Tzbot AGV мотор колес ребёнка ройялас подвесом доставка устройства
- Категория: Caster Wheels >>>
- Поставщик: Zhejiang,Tongzhu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 761.44 $* | 776.67 $* |
| Jul-15-2025 | 617.16 $* | 629.29 $* |
| Jun-15-2025 | 749.14 $* | 764.8 $* |
| May-15-2025 | 743.23 $* | 758.60 $* |
| Apr-15-2025 | 593.47 $* | 605.3 $* |
| Mar-15-2025 | 731.15 $* | 746.95 $* |
| Feb-15-2025 | 725.76 $* | 740.9 $* |
| Jan-15-2025 | 719.18 $* | 733.68 $* |
Характеристики
Product Overview

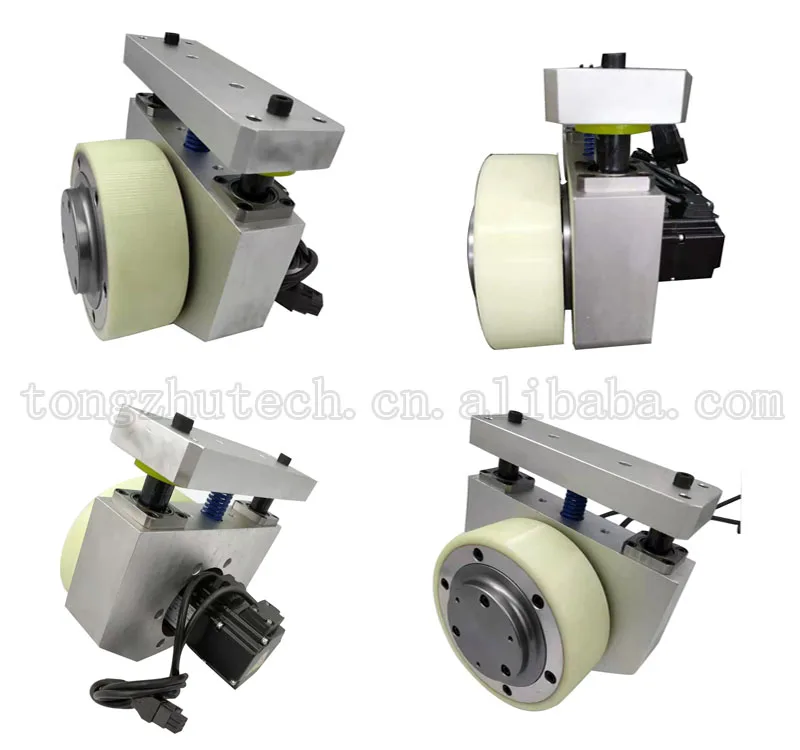

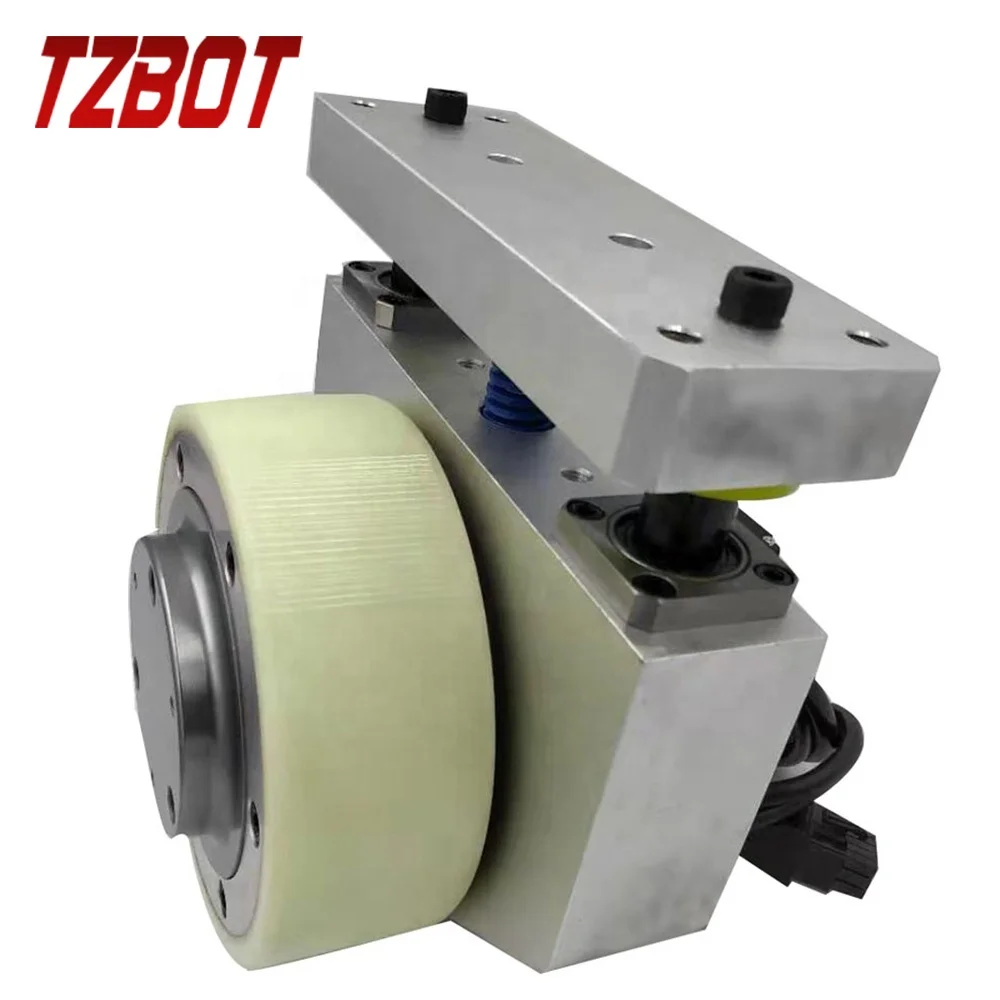

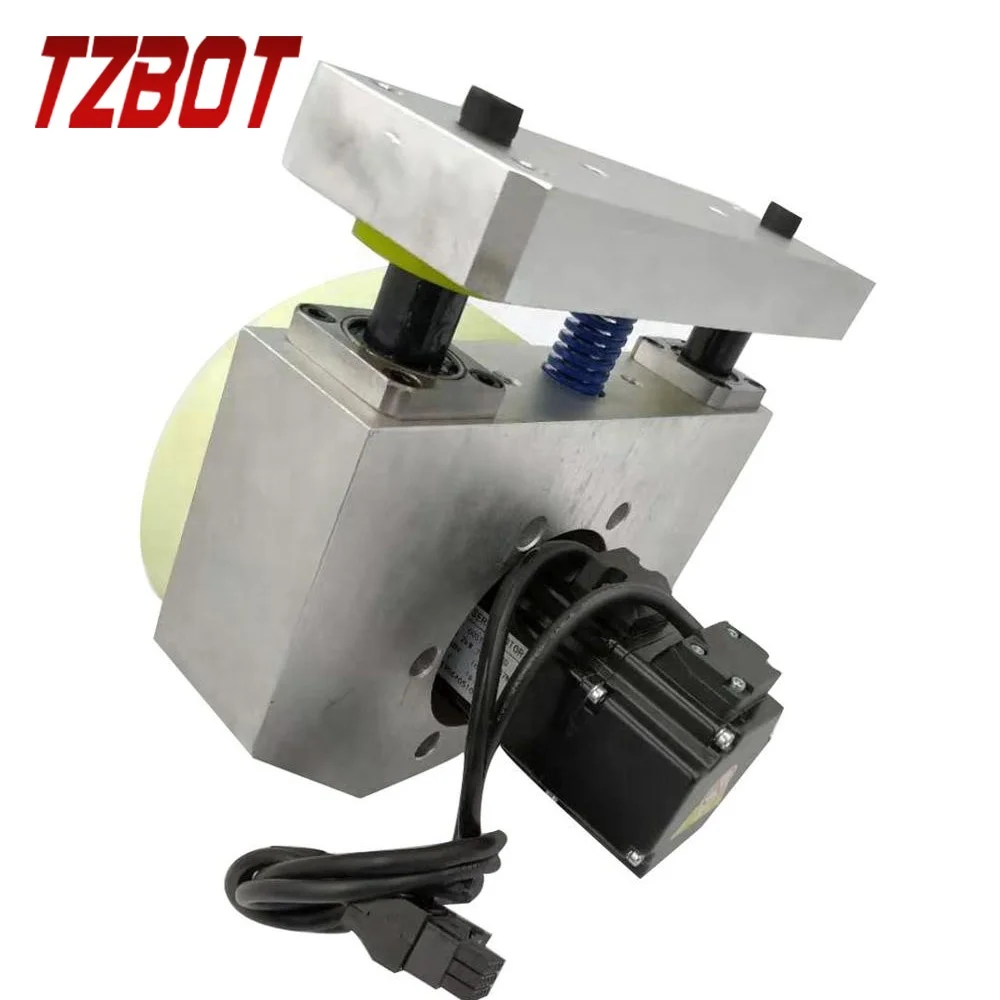

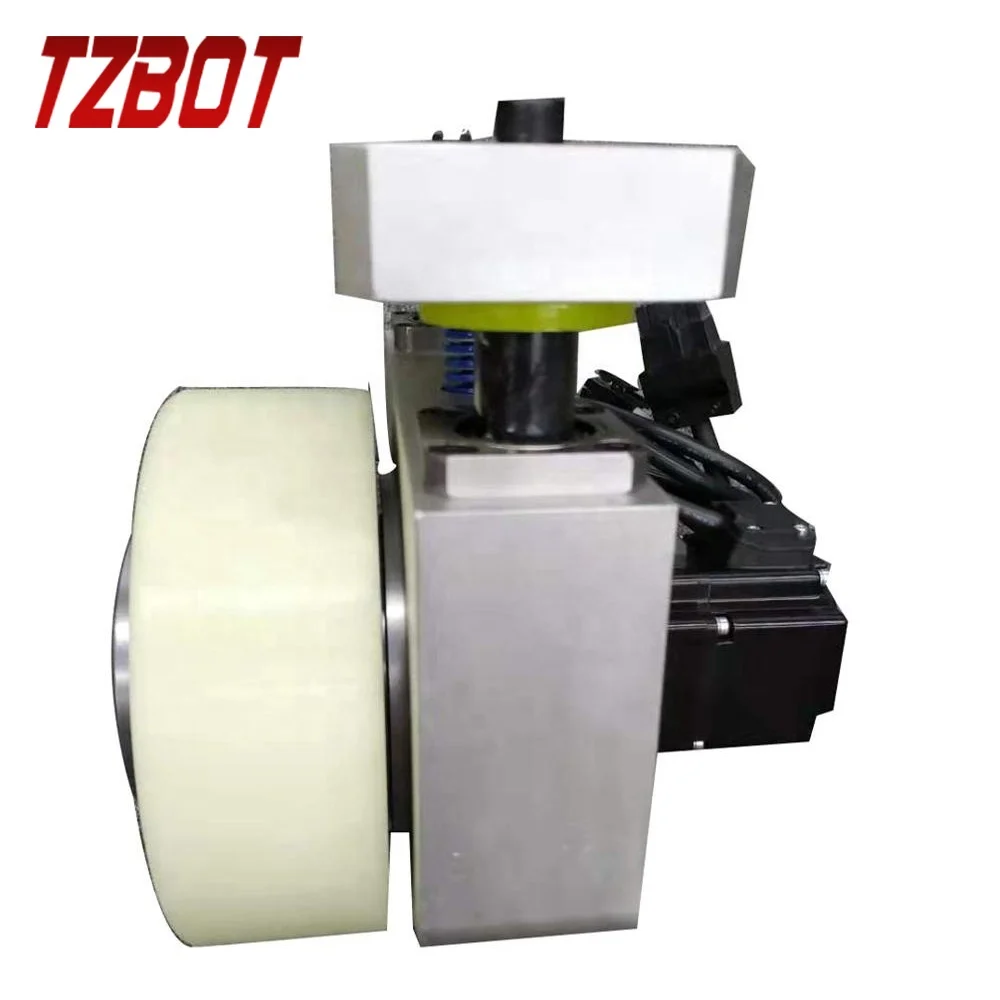

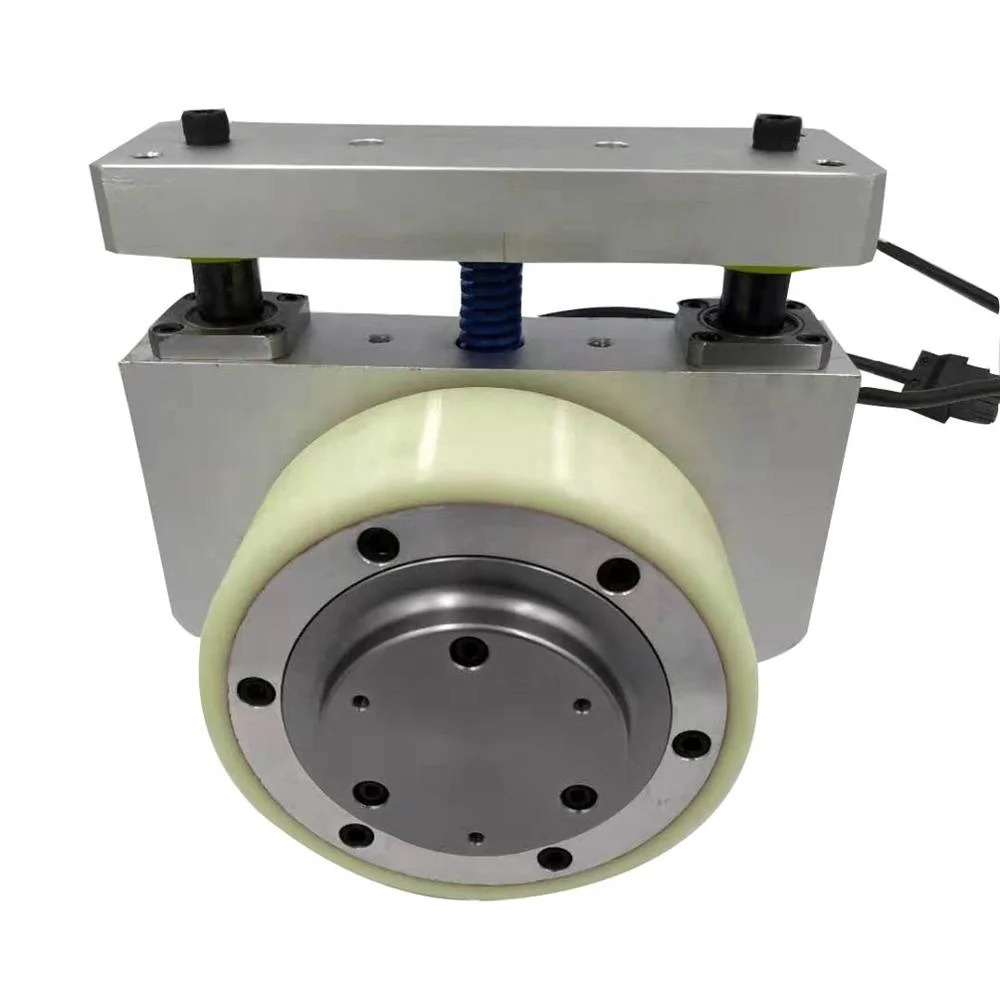

TZDL-200-30-PT-S Drive wheel
The planetary redution wheel adopts a planetary structure and integrated design, and the servo motor is designed inside the planetary wheel. It has the characteristics of compact structure, high transmission efficiency, light noise, and precise control.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | 200W |
2 | Rate Voltage | 24V |
3 | Rate Current | 12A |
4 | Rate Speed | 3000 r/min |
5 | Rate Torque | 0.637Nm |
6 | Wheel Diameter | 160mm |
7 | Reducer Ratio | 30i |

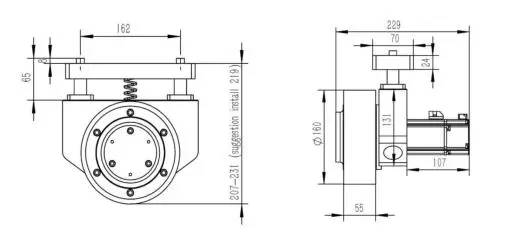

Dimension
Advantages
TZDL-200-30-PT-S
large load
Easy installation
Good shock absorption
High precision
High degree of protection
Low noise(<60db)
Motor&reducer integrated
AGV Kit
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
Certifications
FAQ
