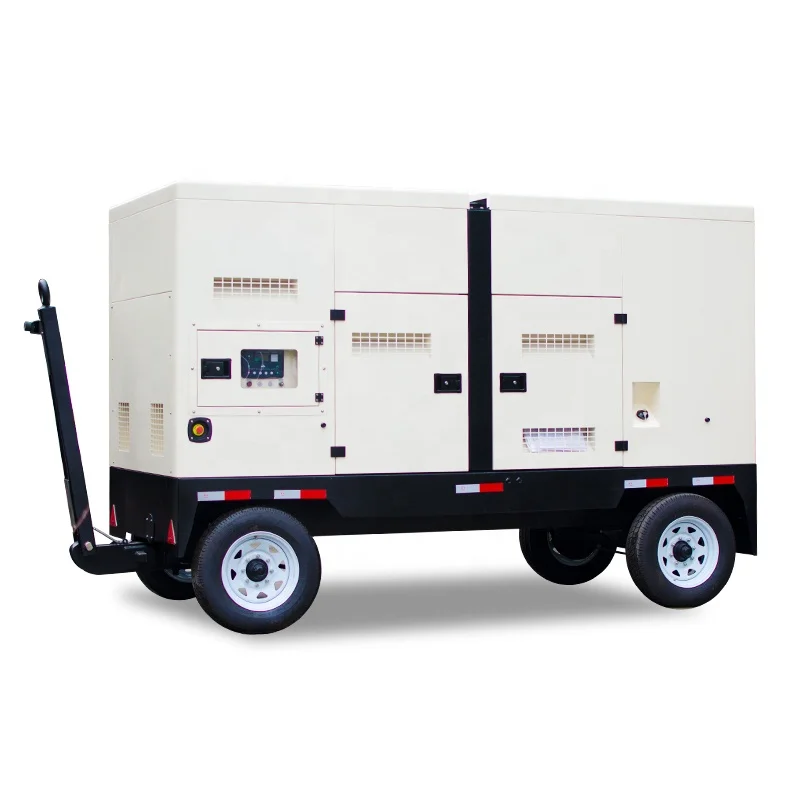

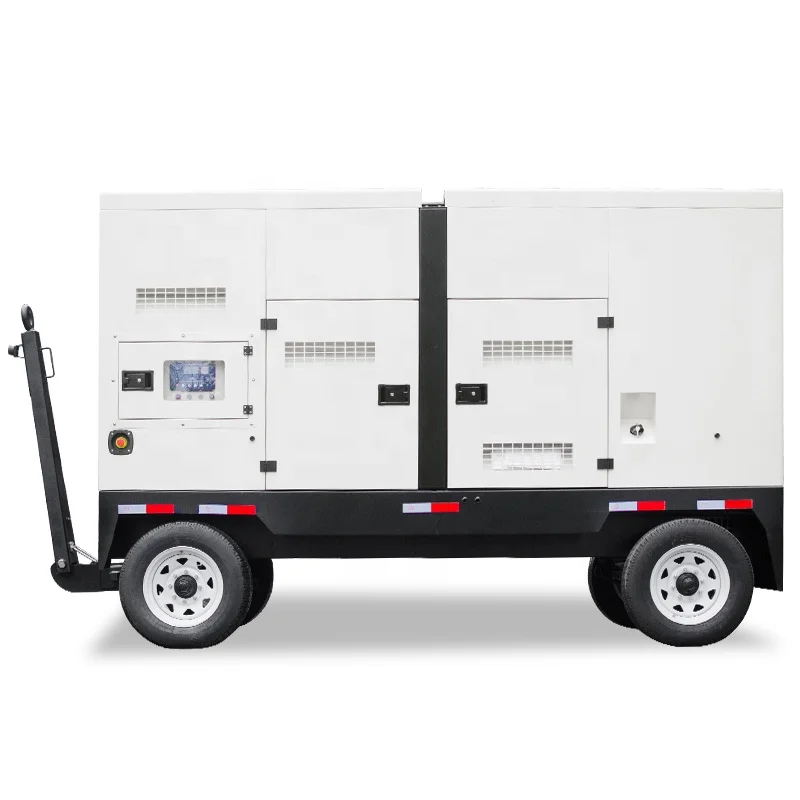

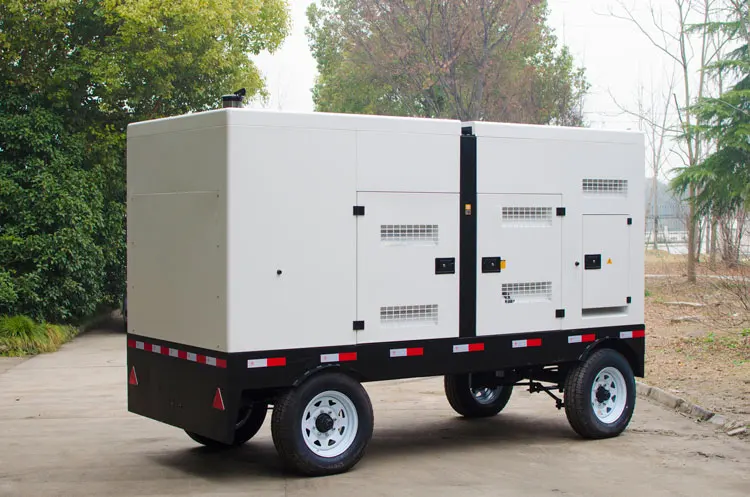

New factory sale powered by Korea Doosan engine DP086LA trailer type 200KW diesel generator

Описание и отзывы

Трекер стоимости

Характеристики

Product Description

Prime power 180KW and standby power 200KW trailer type diesel generator set with Kroea Doosan engine DP086LA.

Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-D200GF	380V/220V-3P	50	0.8	200 KW	180 KW	1550 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Doosan engine, Stamford alternator and DeepSea control panel

Engine Spec

Engine model	DP086LA
Engine manufacturer	Doosan
Number of Cylinders	6 cylinders in line
Cycle	4 stroke
Aspiration	Turbocharged
Bore×Stroke	111mm x 139mm
Displacement	8.1 L
Compression ratio	16.7 : 1
Steady speed droop	≤1%
Cooling System	Water cooled
Fuel consumption	45.7 L/h
dB@7m	70
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Alternator model	UCI274J
Prime power	180 KW
Standby power	200 KW
Frequency/speed	50HZ/1500rpm
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three phases

Control Panel

Model	DSE6120
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts

Standard Accessories

Standard Accessories	Open type	Silent type
Sound-proof & Weather-proof Canopy	N/A	√
Daily base fuel tank. 8 hours capacity	N/A	√
Single-bearing generator again drops	√	√
Intelligent LED display control panel	√	√
Speed governor	√	√
Electric start and 24v charger	√	√
Standard air filter, oil filter, fuel filter	√	√
High-efficient silencer.	√	√
Exhaust elbow	√	√
Storage battery	√	√
Steel base-frame against vibration	√	√
Soft pipe for fuel and handle for lube going-out	√	√
Operation& Maintenance manual.	√	√
