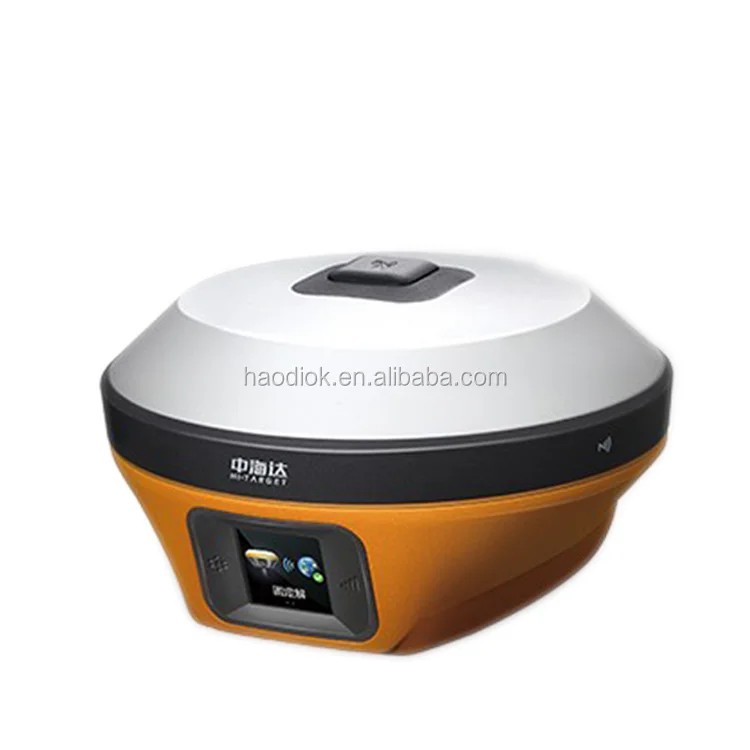

Инструмент наблюдения GPS Hi Target V98 RTK
- Категория: Other Test Instruments >>>
- Поставщик: Shangrao,Haodi,Imp&Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 8762.4 $* | 8937.10 $* |
| Jul-18-2025 | 7106.78 $* | 7248.34 $* |
| Jun-18-2025 | 8624.82 $* | 8796.15 $* |
| May-18-2025 | 8555.35 $* | 8726.38 $* |
| Apr-18-2025 | 6830.68 $* | 6967.61 $* |
| Mar-18-2025 | 8417.82 $* | 8585.21 $* |
| Feb-18-2025 | 8348.96 $* | 8515.33 $* |
| Jan-18-2025 | 8279.73 $* | 8445.89 $* |
Характеристики
Company Information
Related Products
Company Information
PERFORMANCE SPECIFICATIONS
| model | V98 | |
| Gnss | Channel | 336 |
| Satellite Tracked | GPS L1C/A,L2E,L2C,L5 | |
| GLONASS L1C/A, L1R L2C/A, L3 CDMA2 | ||
| GELILEO E1, E5A, E5B, ESAItBOC, E62 | ||
| BEIDOU Bl, B2, B3 | ||
| SBAS : L1 C/A,L5(QZSS,WAAS,MSAS,GAGAN) | ||
| POSITIONING PERFORMANCE | |
| High-Precision Static | |
| Horizon: | 2.5 mm + 0.1 ppm RMS |
| Vertical: | 3.5 mm + 0.4 ppm RMS |
| Static and Fast Static | |
| Horizon: | 2.5 mm + 0.5 ppm RMS |
| Vertical: | 5 mm + 0.5 ppm RMS |
| RTK Accuracy | |
| Horizon: | 8mm+1ppm RMS |
| Vertical: | 15mm+1ppm RMS |
| Network RTK | |
| Horizon: | 8mm+0.5ppm RMS |
| Vertical: | 15mm+O.5ppm RMS |
| Initialization time | |
| Typically 2-10s | |
| Initialization reliability | |
| Typically > 99.9% | |
| Internal Battery | |
| Battery | 7.4V 6800mAh lithium-ion rechargeable and removable battery.RTK rover(UHF/Cellular) for 10 hours.Power indicator embedded. |
| Working time | Quick charge within 3.5 hours. |
| Communication | |
| Internal UHF Transceiver Radio | |
| Frequency | 403-473MHz |
| Transmitting power | 1 ~4W Hi-Target Advanced Radio Supports protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III, SATEL-3AS, TRANSEOT |
| Working Range | Typically 3~5km, optimal 5~8km |
| Physical | |
| Dimensions | 158mm x 98mm (6.22inch x 3.86inch) |
| Weight | lighter than 1.3kg (2.65lb) within internal battery |
| Operation temperature | -40°C~+75°C (-40°F~ + 167°F) |
| Storage temperature | -50°C~+85°C (-58°F~ + 185°F) |
| Temperature control | Auto-adjust the working power to maintain the temperature |
| Interface | |
| Bluetooth 4.0/2.1 + EDR, 2.4 GHz. USB 20 port with OTG function. 1 SMA antenna connector. 1 DC power input(S-pin). 1 SIM card slot Near FieldCommunication(NFC) | |
| I/O Interface | |
| Control Panel | |
| Physical button | 1 |
| Touchscreen | Support glove mode and wet-finger mode |
| Environment | |
| Dustproof&Waterproof | IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28ft) |
| Humidity | 100% condensing |
