Main Products

Brew House System

Brew length: 100L -5000L or 1bbl-40bbl

Two vessels: Mash/Lauter+Brew kettle

Three vessels: Mash+Lauter+Brew kettle

Four vessels: Mash+Lauter+Kettle+Whirlpool

Combined system: Mash+Lauter&kettle

Double brew length hot liquor tank

1-Certified stainless steel 304

2-Mash and brew kettle with steam jacket or directly heated by electricity

3-Lauter with side grain out doors and variable speed controlled rakes

4-Sanitary wort pumps, hot liquor pumps with variable speed control

5-Sanitary plate heat exchanger and wort aeration system

6-Mash Hydration

7-Lights with all the tanks

8-Big-size glass manway in all the tanks

9-work platform with sanitary process piping & sanitary valves

10-wort buffer tank and hop filter

11-UL and CE certification available

12-Siemen control system

13-Option: Double roller miller, grist hoper, auger.

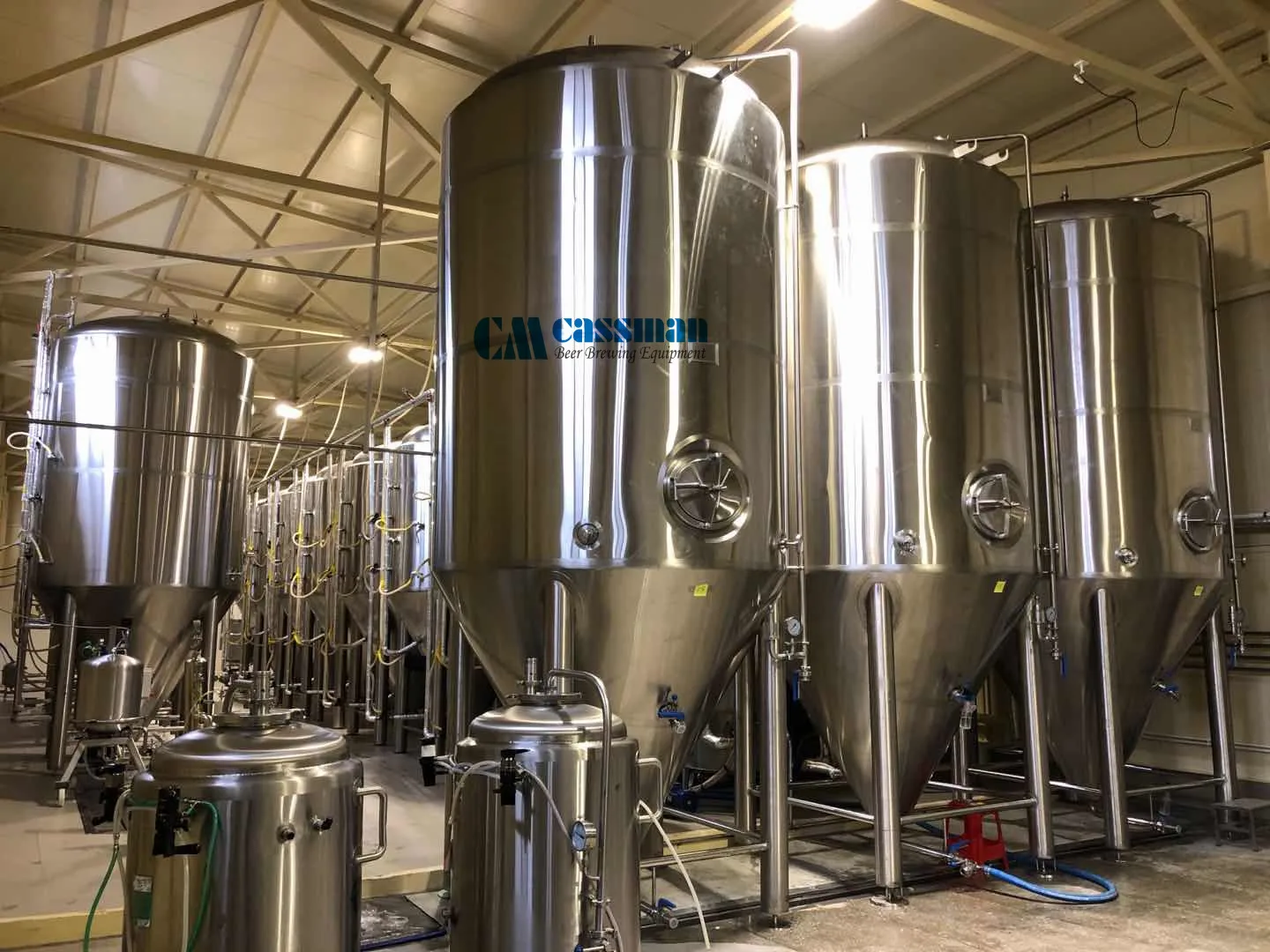

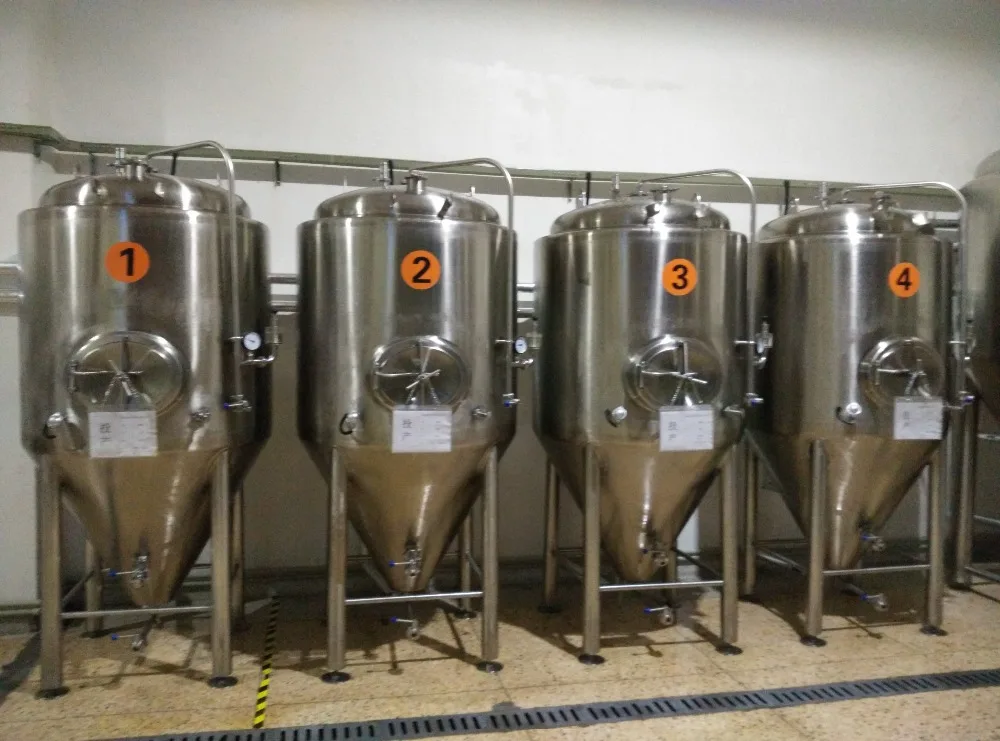

Beer fermentation/ Uni tanks

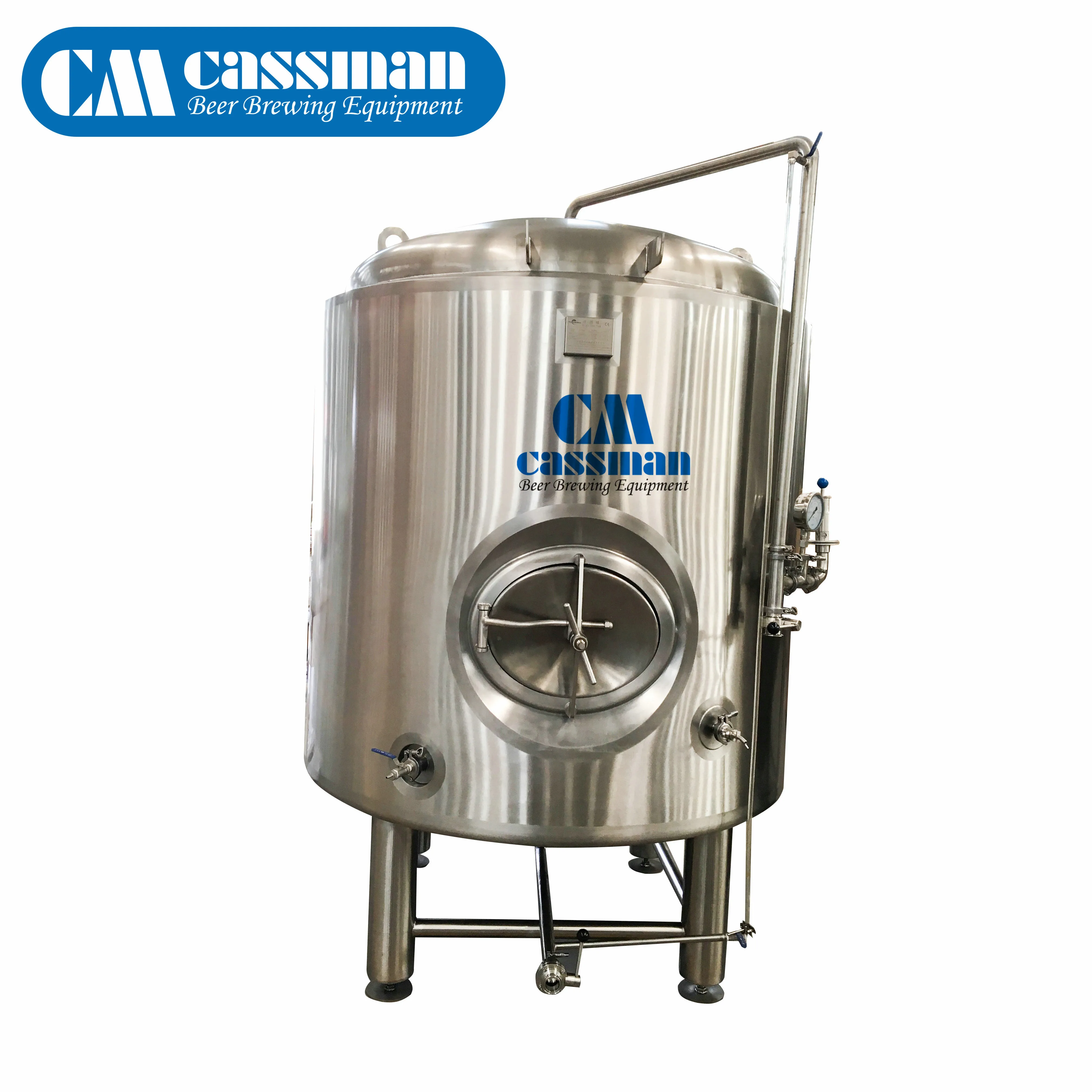

Brite beer/beer serving tanks

Available Capacity: 100L-20000L or 1bbl-150bbl

1- 100% TIG welded joints with Certified stainless steel 304

2- Interior shell 3mm-8mm, Exterior shell 2mm

3-test pressure 0.3Mpa, working pressure 0.2Mpa

4-60 degree cone bottom, with an average of 20%-25% head space

5- 100mm Polyurethane insulation

6- Dimple cooling jackets (two or three sections according to the size)

7- Perlick sample valve, SMC solenoid valve, water seal pressure valve.

8- Side manway, dry hops port, rotating racking port

9- CIP arm and rotary spray ball, sanitary tri-clamp connections,

10- Carbonation port and Level gauge for serving tank

Support system

1-Gas or electricity type steam generator

2-Air-type glycol chiller.

3-Cleaning system

4-Stainless steel kegs(Euro, US and Din)

5-Keging line(Keg filler and washer)

6- SUS 304 HLT and CLT with insulation.

References

Up to now, Cassman equipment has been exported to Russia, USA, Australia, Korea and other more than 27 countries.

Before-Sales Service

 1. Layout Design for new build brewery

Our experienced engineer( more than ten years) will provide the detailed layout according to your brewery, if needed, we will fly to your brewery  at our cost.

2. Exist Brewery Expansion

Expansion of the brew house, beer tanks,  or other parts, we will design and manufacture as per your exist brewery.

3. Effective business communication

Our sales team are young and rich of experience, we are full of passion, all of us  have been in this business line for more than 8 years, and they are graduated from UK, Russia etc.

4. Brewing consultant

Cassman also bult a good relation with Shandong university and other institutes who are expert in beer brewing, we are capable to provide the most advanced brewing technology.

After-Sales Service

1. Guarantee: 3 years

2. Installation: Our engineers team will provide you the perfect installtion and commissioning service. Almost of them have been to 5 countries even more.

3. Our appointed agents are in US, Europe, Russia and other ten countries, they will provide you 24 hours service.

Delivery time and Price

According to the quantity of the fermentation tanks, the delivery time need 20-45 days, which include the equpiment design, manufacture and Inspeption before the delivery.

Reference price: Fob Qingdao USD 20000-30000.

About Cassman Machinery

Cassman is the most famous and leading supplier of beer brewing equipment in China, we focus on the full range of the whole brewing process, which included the raw material handing system, brew house and fermentation system, Cold/Hot water system, Control system etc. What we provide is the turn key project for the craft breweries.

Cassman Facility:the plant covers an area of 8,000 square meters, with four workshops, equipped argon gas welding machines, auto polish machine, Stainless steel handling machine.   Certified with self-support imports and exports right,Obtained the ISO and CE certification. More than 20 engineers and brew masters were registered.

Up to now, our equipment has been exported to more than 27 countries.
