49CC 2-х тактный TRAIL Блейзер STORM TBM200 MX196-2 мини

Описание и отзывы

Трекер стоимости

Характеристики

TBM MB200-6

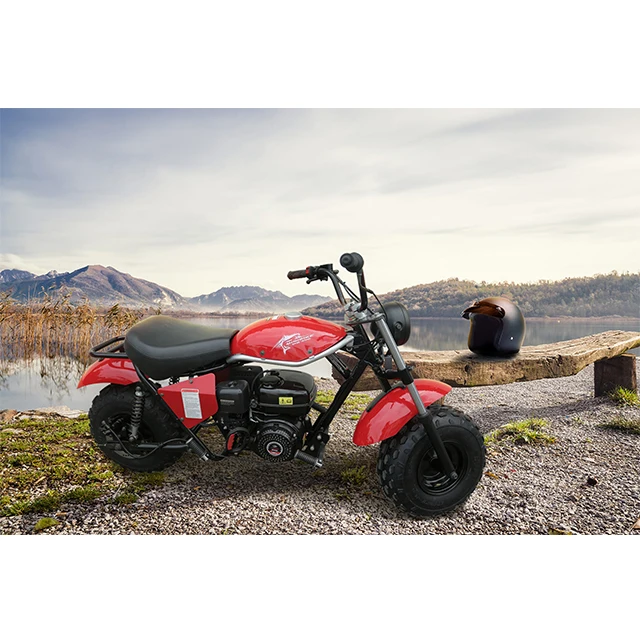

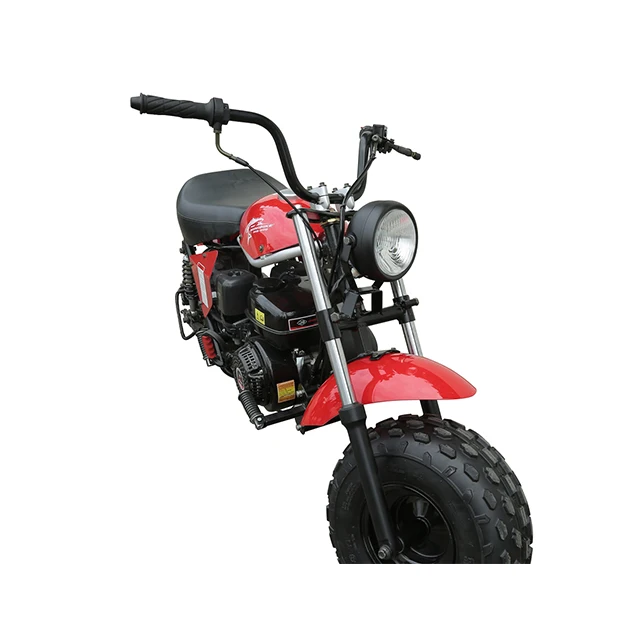

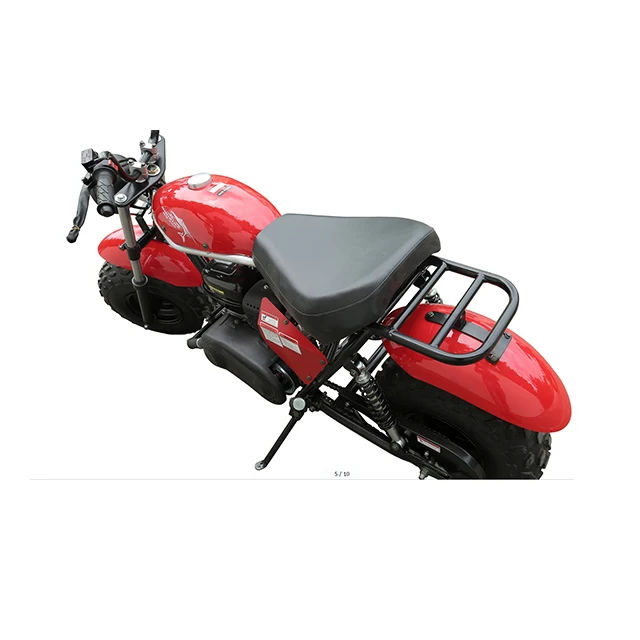

MB200 two wheels offroad motorcycle
	model MB200
general information
length	1680
width	800
hight	980
wheelbase	1250
seat hight	720mm
minimum ground clearance	170
max speed	45KM/H
engine information
model	JF200
type	four stroke
cyclinder qty	single cyclinder
cooling method	air force cooling
displacement	196CC
bore	68
stroke	54
compression ratio	8.5:1
fuel supply method	fuel tank switch direct
carburetor type	P19
power	3.68KW/3600rpm
torque	13.5N.m/2500rpm
ignition mode	Transistor contactless ignition
starting mode	hand pull start
lubrication mode	splash
spark plug model	F7RTC
spark plug clearance	0.7-0.8mm
crankcase lubricating oil	SAE 10W/40
fuel type	gasoline,≥92
fuel tank capacity	3.6L
transmission	CVT
other information
clutch	auto clutch
fuel	15A
front wheel type	AT19X7-6
rear wheel type	AT19X7-8
brake mode	disc brake
driven mode	rear wheel
tire pressure	80-100kpa
climb ability	15°
net weight	76Kg
gross weight	91Kg
max load	95Kg
container loading qty	111 unit

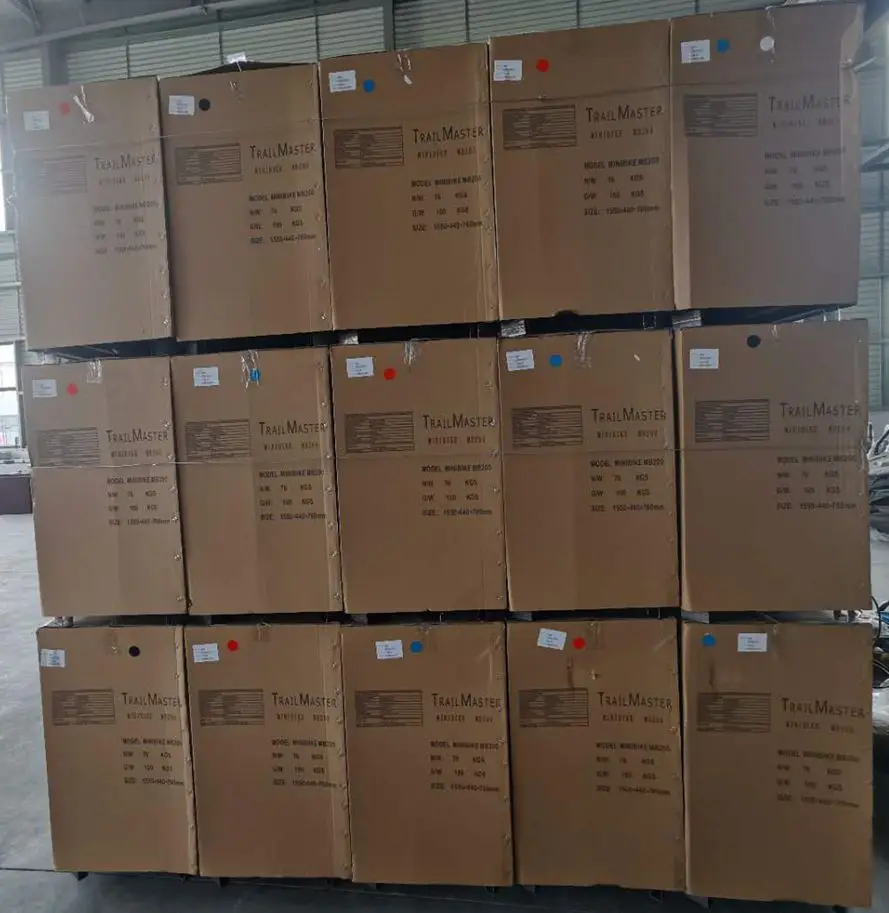

packing size	1500*450*760mm

1. Q May I get some samples?

A: We are honored to offer you samples for quality and performance confirming.



2. Q: Do you have the products ready for shipment ?

A: No. All vehicles are to be produced according to your order..



3. Q: how long is the delivery time?

A:normally 25 working days to produce an order from MOQ to 40HQ container..



4. Q: is it possible to mix different models in one container?

A: Yes, different models can be mixed in one container.



5. Q: How does your factory do regarding quality control?

A: we start quality control from beginning to end of production .first parts inspection ,then assemble checking , and final adjusting and testing., each products will be carefully checked . we are manufacture and we have final responsible for our products quality .
