Brief introduction of Wood Pellets Machine straw pellet prodution line wood sawdust pellet production line wood pellet machine line pellet making machine wood pellet production line biomass pellet machine wood pellet mill wood pellet producetion line

On the market, there are two types wood pellet machine,flat die and ring die(horiztonal type and vertical ring die pellet machine)Wood pellets machine also called wood pellet making machine,pellet press machine, is a biomass equipment which is used to press small size wood into 6/8mm wood pellets.

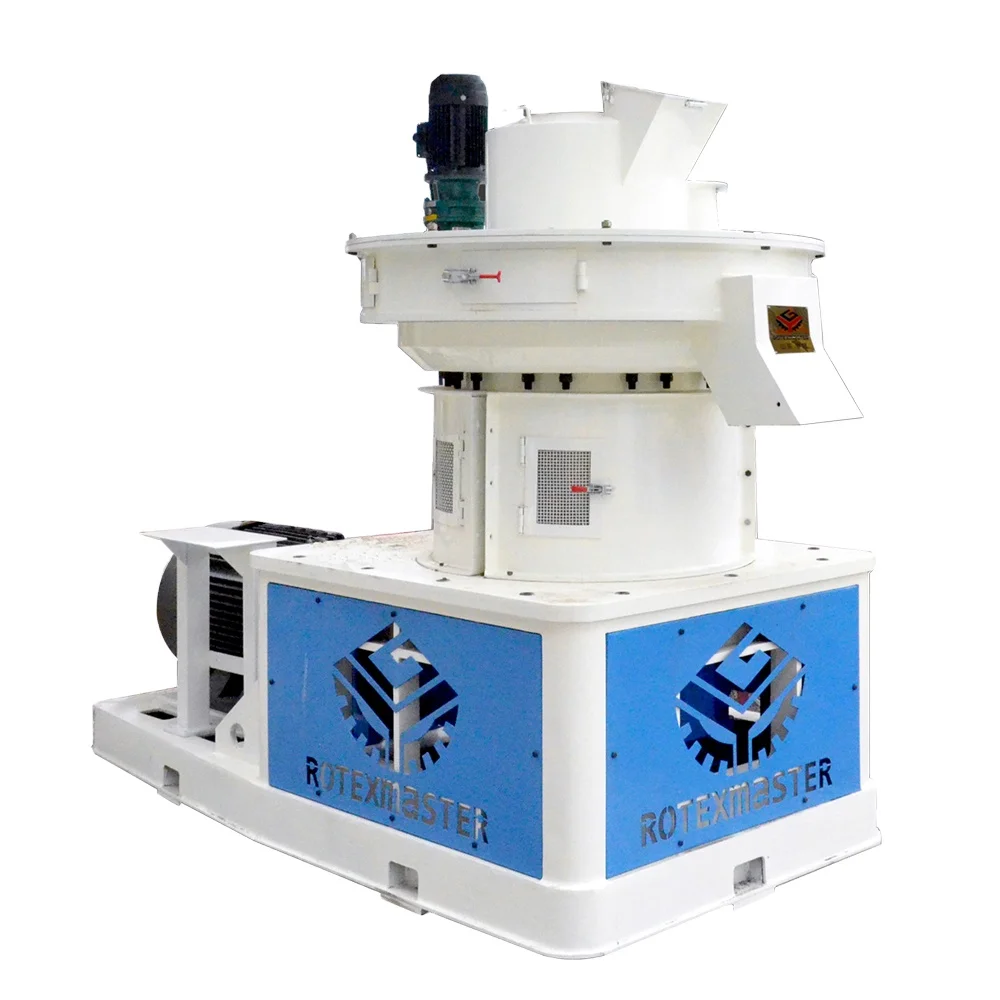

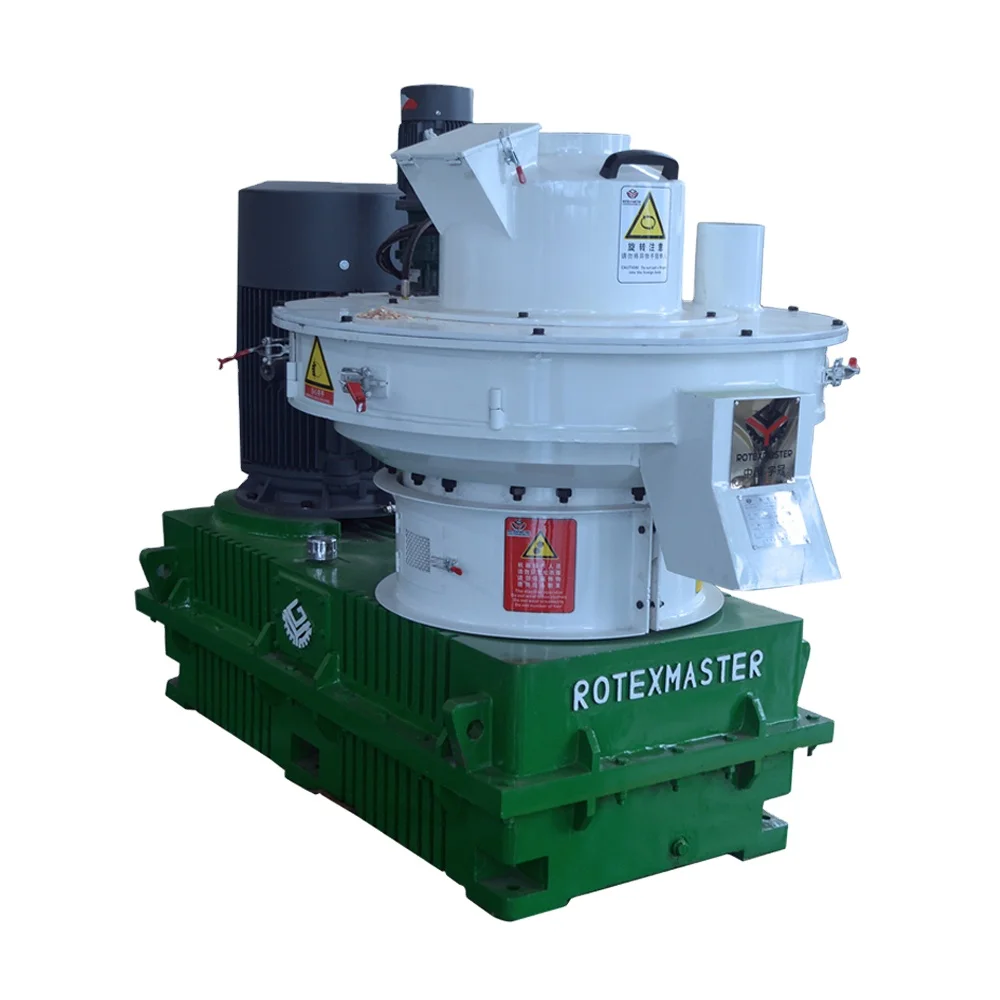

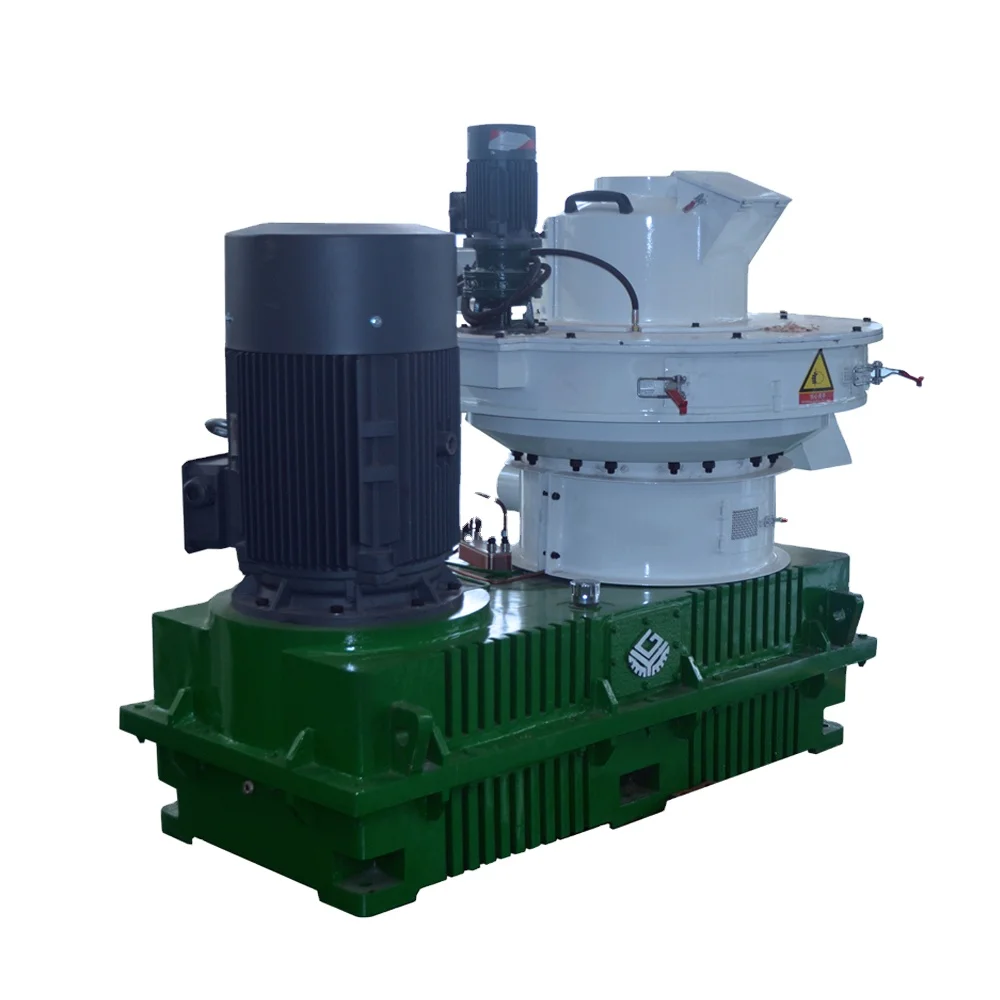

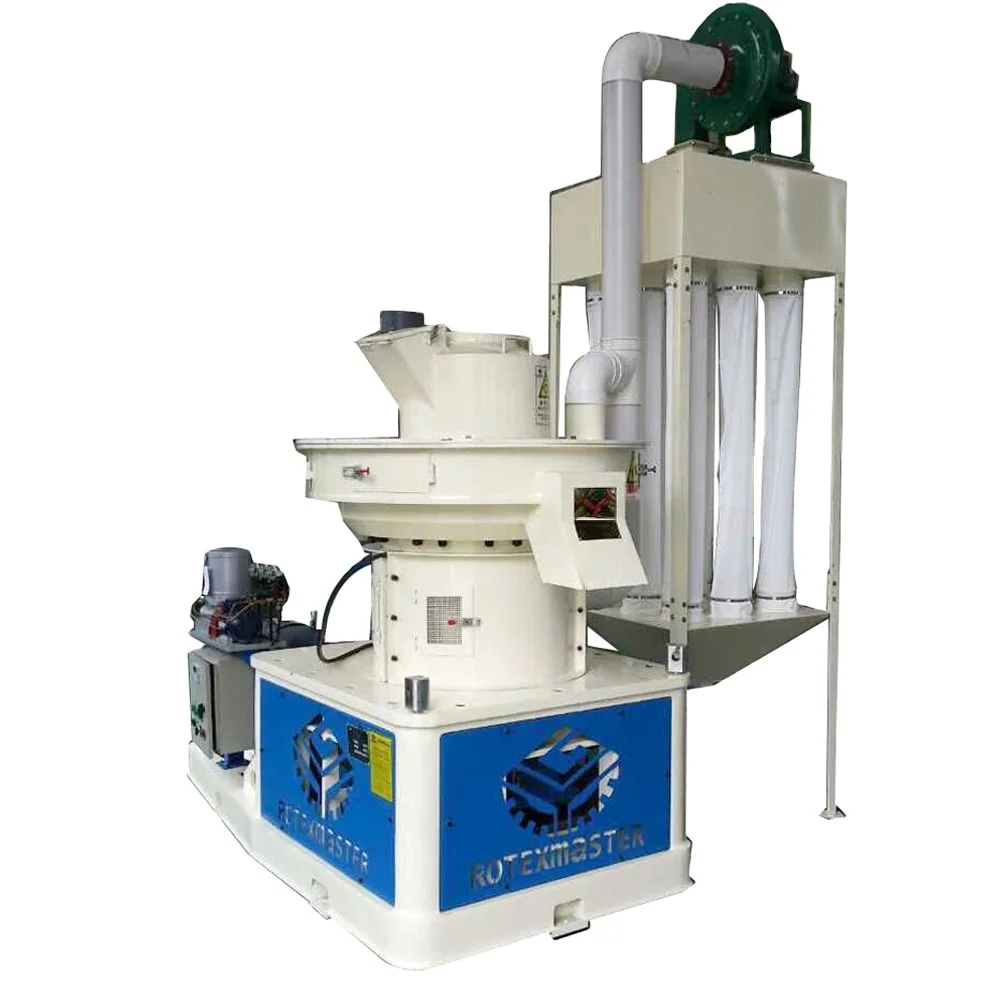

Rotex Master wood pellets machine belongs to the 6th Vertical ring die.Double layer, both side can be used, enhanced the lifetime of spare parts and reduce cost.

Technical Parameter of Wood Pellets Machine
Model	Main Power(kw)	Capacity(t/h)	Dimension(L*H*W)mm	Weight(t)
BGKJ560A	90+1.5+1.5+0.37+0.55	1-1.5	2600*1300*2300	5.8
BGKJ560B	90/110+1.5+1.5+0.37+0.55	1-1.5	2200*1300*1600	5.6
BGKJ700	132/160+2.2+1.5+0.37+0.75	2-2.5	2400*1400*1800	7.8
BGKJ850	220+3+2.2+0.55+0.55	2.5-3.5	3800*1830*3080	15
BGKJ880	220+3+2.2+0.55+1.5	3-4	3000*1500*2300	13.5



Detail information about Wood Pellets Machine of Wood Pellets Machine straw pellet prodution line

(1)Big Gear Box

The gearbox adopts independent research and development big 3 level drive,module increased , gear strengths increased,carrying more and more ability.The service life increased 8-10 times than the traditional reducer,greatly increase the service life.

(2) Casting material of gearbox with high stability. Gearbox body is casted. Its advantages has strong,good heat dissipation,low heat deformation, high steady etc. Avoid disadvantages of the bad sealing for welding boby, easily deformation due to high heat,low steady in basis etc.

(3) Siemens Brand Motor: Motor of biomass pellet machine use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current.

(4) Parallel vertical installation reduce energy consumption loss. The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.



 International Standard Parts For Wood Pellet Machine



Materials&Applications of pellet making machine straw pellet prodution line

Materials:Sawdust,Rice Husk,Wood Chips,Straw etc.

Applications:Make Biomass Pellets,Biomass Industry,Burning,Making Wood Fuel etc.

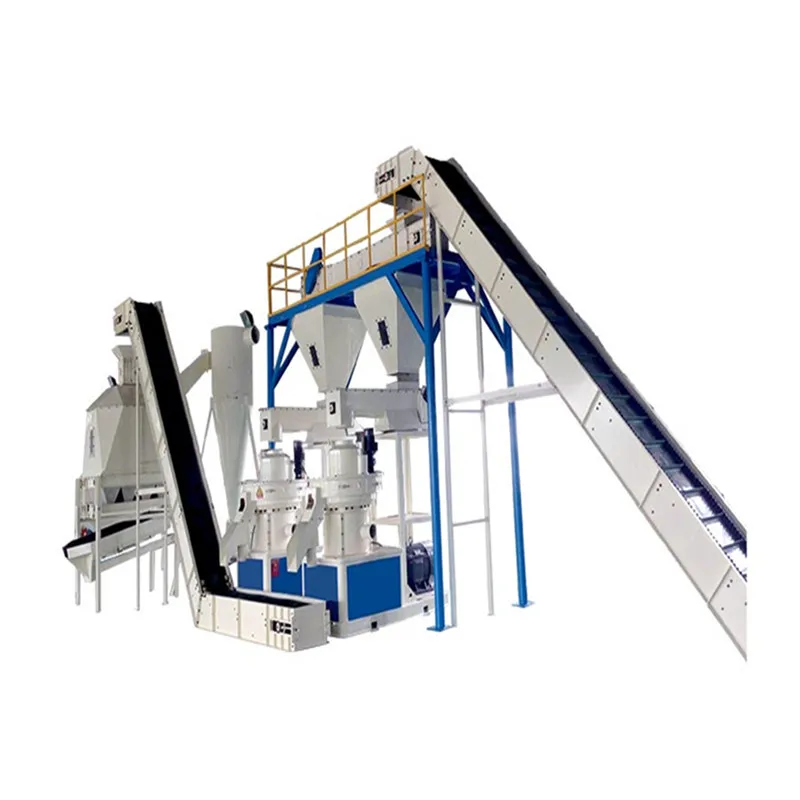

Main Process of pellet making machine straw pellet prodution line

Different material need different machine .

Take wood log as a example,the whole process include:

Durm wood chipper-To make wood log into small size wood chips.

Hammer mill/Crusher-To make wood chips into sawdust

Dryer-To dry the hihg moisture content of sawdust into 12-15%



Packaging and shipping of The YGKJ Series charcoal  fuel making machinery straw pellet prodution line
