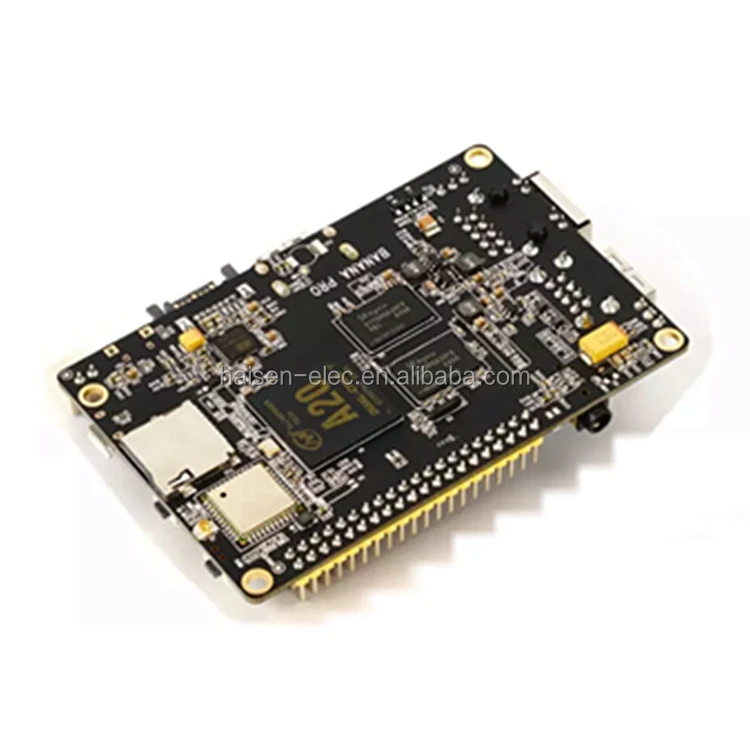

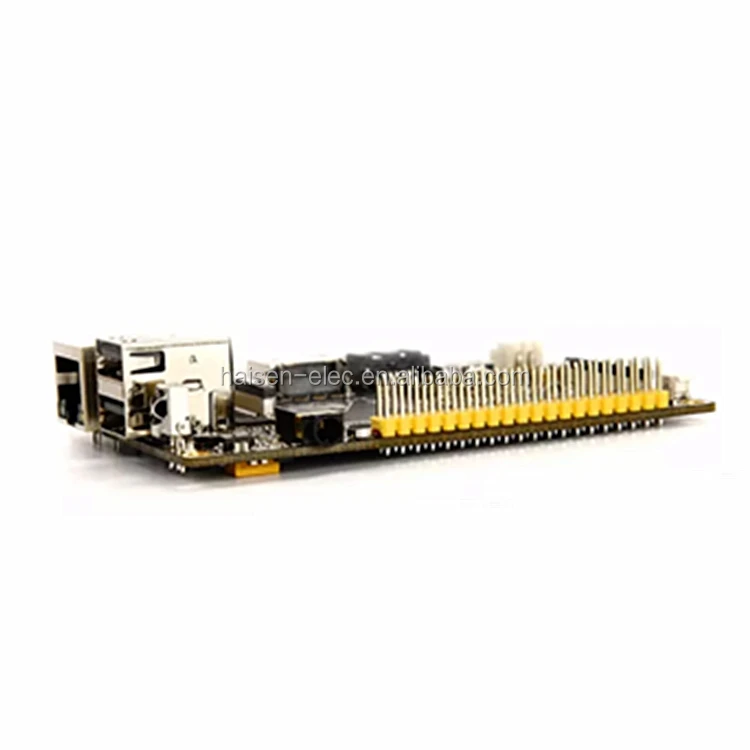

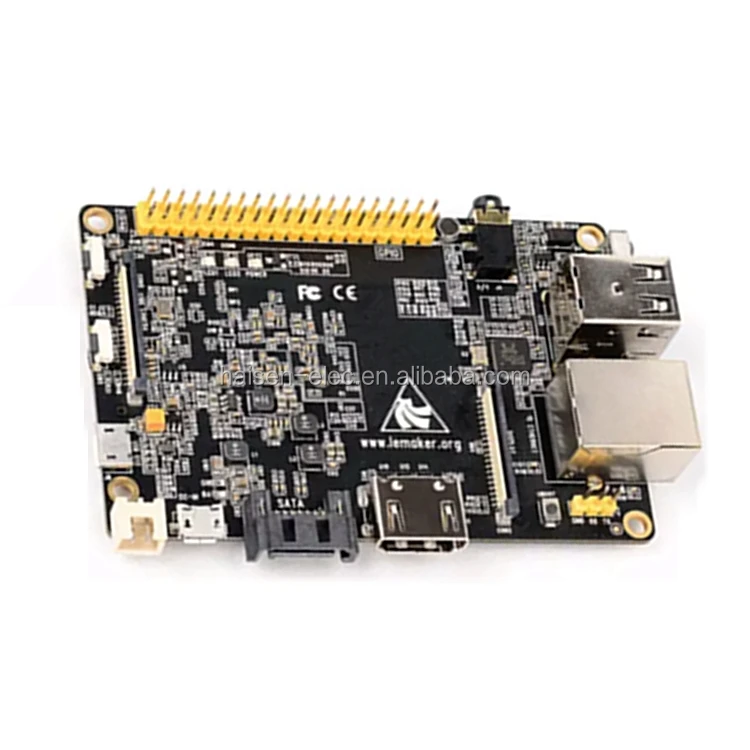

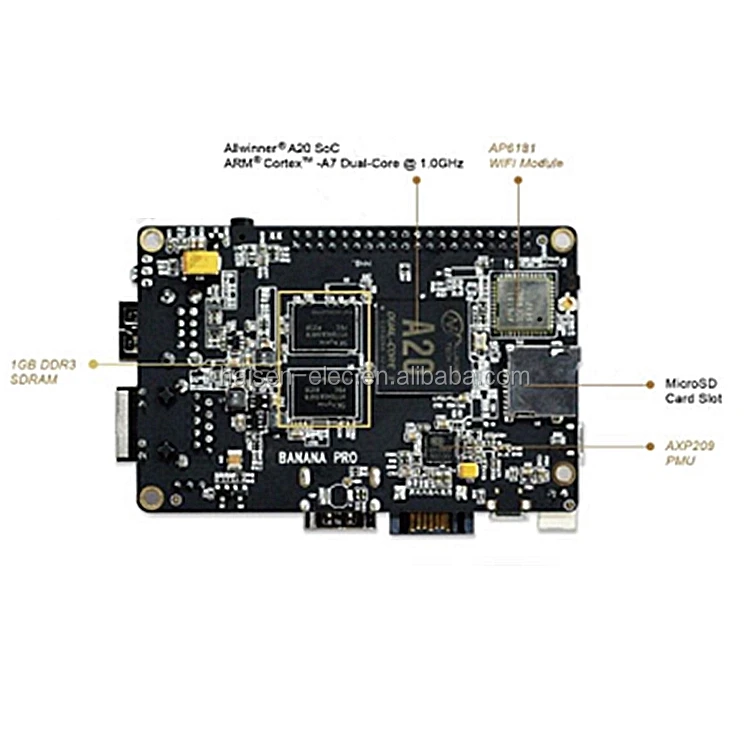

Макетная плата HAISEN Banana Pi Pro A20 Модернизированная banana PI pro с Wi-Fi поддерживает Совместимость Raspberry B

Specification



Feature

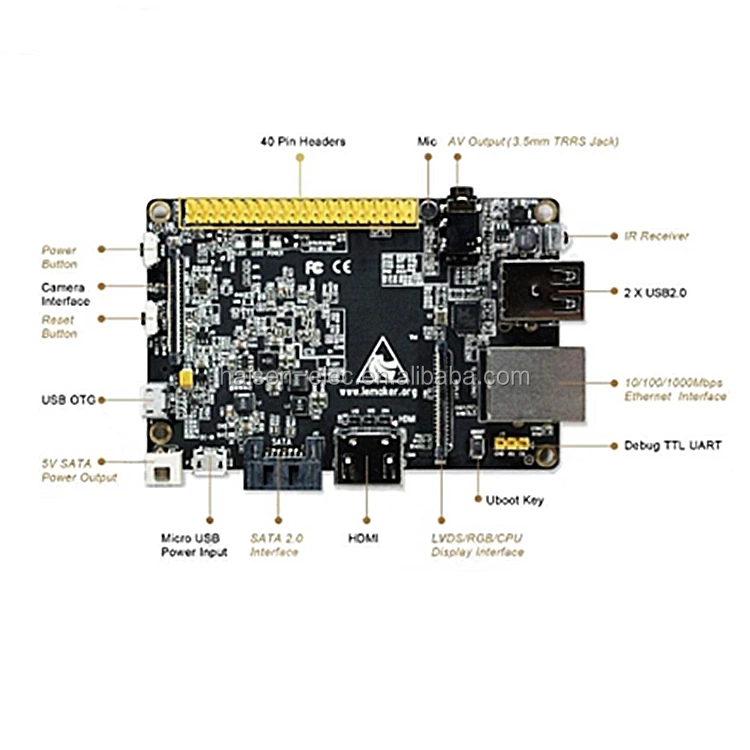

Low-level perpherials	40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, CAN, I2S, SPDIF, LRADC, ADC, LINE-IN,FM-IN,HP-IN.
On board Network	10/100/1000Mbps ethernet (Realtek RTL8211E/D)
Wifi Module	WiFi 802.11 b/g/n
On board Storage	MicroSD (TF) card,SATA 2.0
Display	Supports multi-channel HD display: 1.4 (Type A - full) LVDS/RGB/CPU display interface (DSI) for raw LCD panels Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out) 11 resolutions from 640×480 to 1920×1080 plus various PAL and NTSC standards
Video	HD H.264 2160p video decoding Mutilformat FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 high profil
Audio outputs	,analog audio (via 3.5 mm TRRS jack shared with composite video out),I2S audio
Camera	Parallel 8-bit camera interface
Audio input	On board micphone
USB	2 USB 2.0 host, 1 USB 2.0 OTG (all direct from A20 chip)
Buttons	Reset button Power button U-boot button
Leds	Power status led (red) Ethernet status led (blue) User defined led (green)
Other	IR
Size	92 mm × 60mm
Weight	48g

Lead Time

Quantity(Pieces)	1 - 5000	>5000
Est. Time(days)	7	Negotiable
