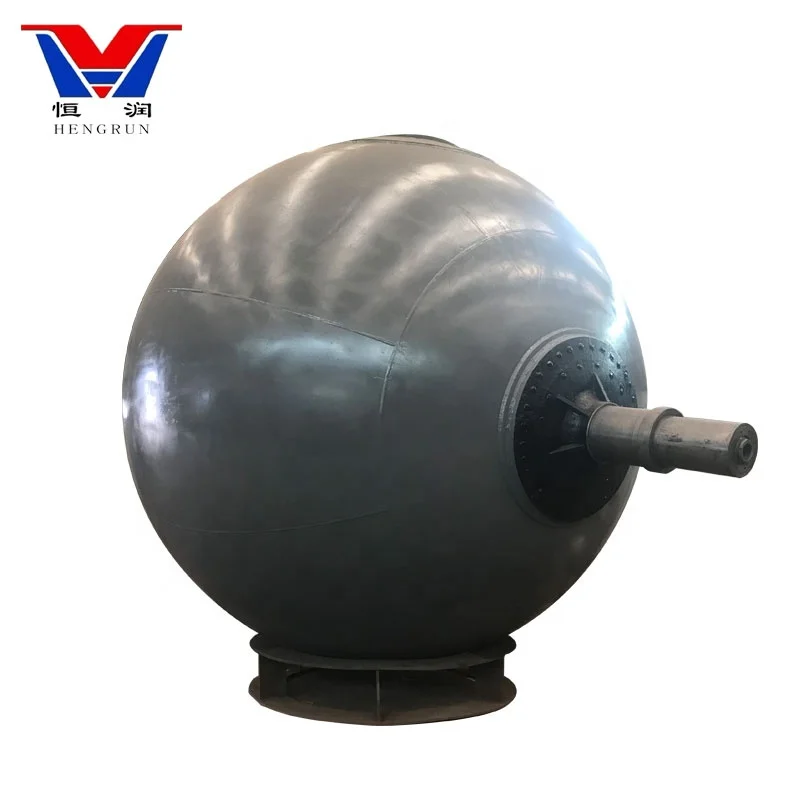

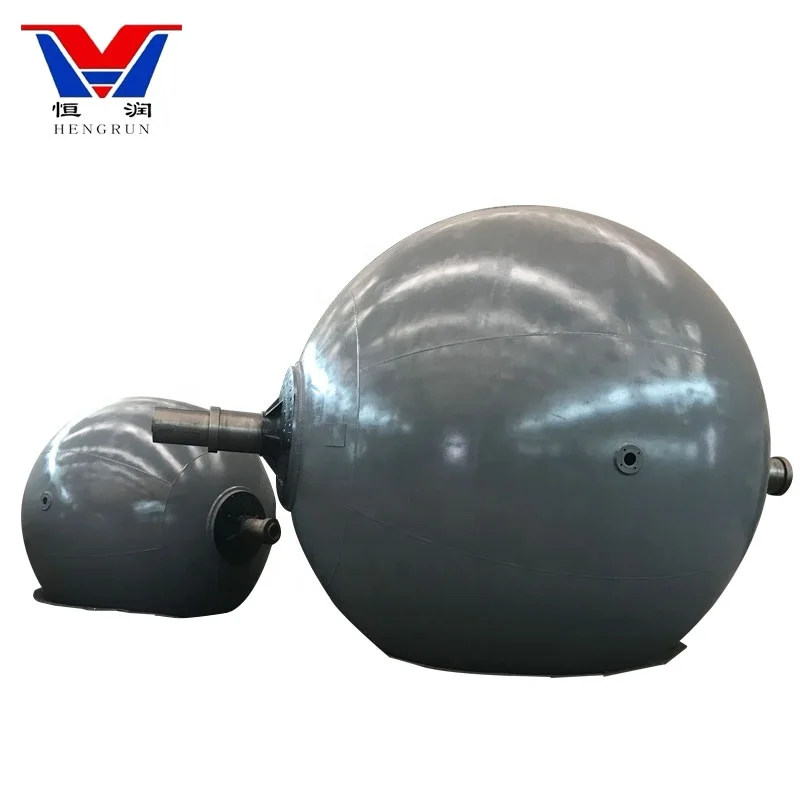

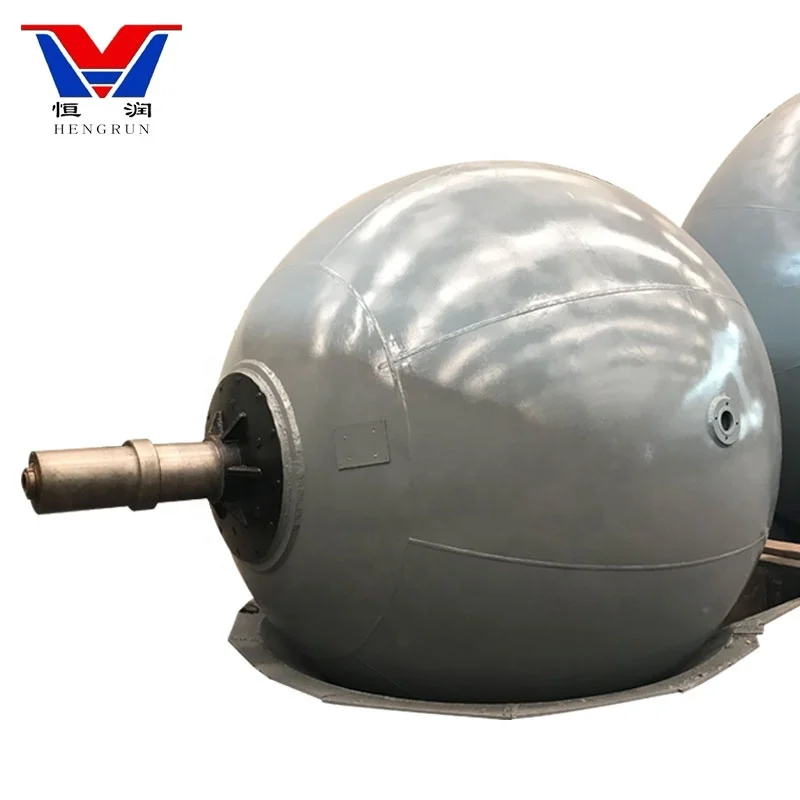

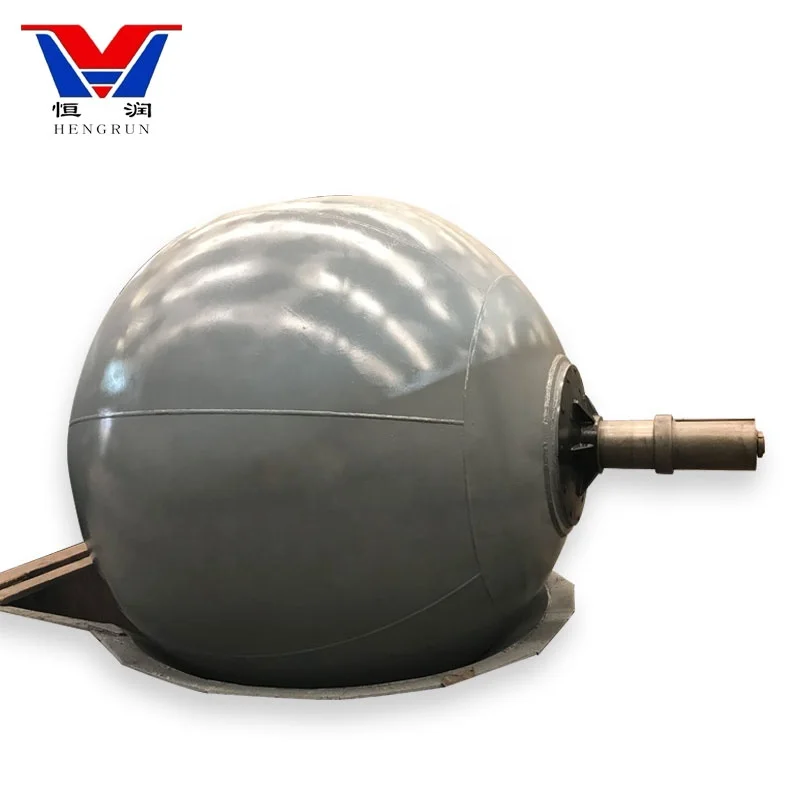

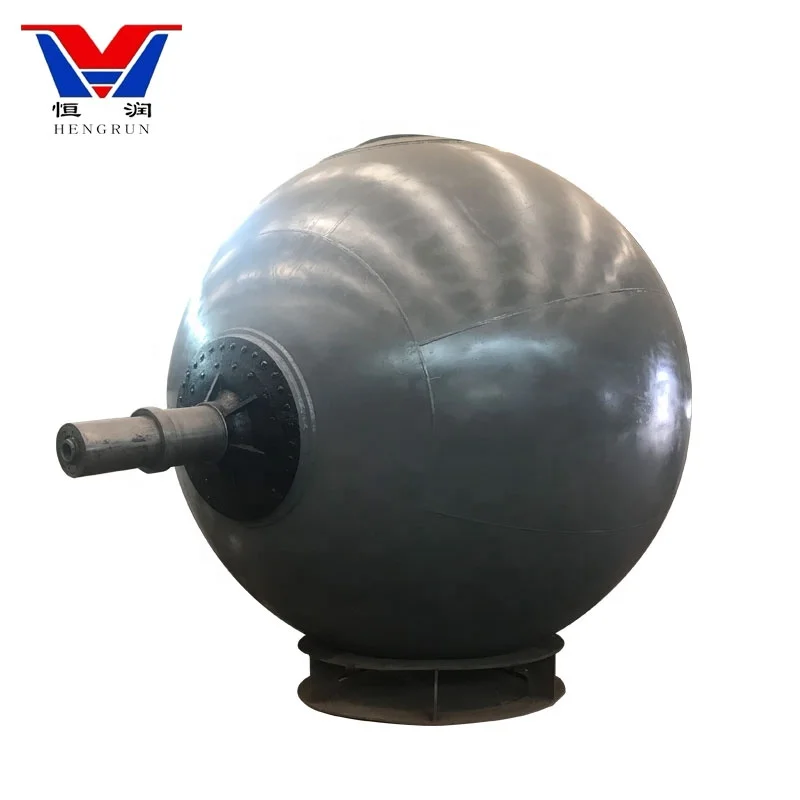

A rotary intermittent cooking and pulping equipment. It is spherical in shape, and is mainly composed of a sphere, a base, and a transmission device. The sphere is made of steel plate welded or riveted. From the hollow journal, steam for cooking and condensate is discharged. The advantages of the steamed ball are that the raw materials in the ball are fully mixed with the liquid medicine, the quality of the slurry is relatively uniform, the liquid ratio is low, and the concentration of the liquid medicine is high, which can shorten the cooking time, simple equipment, low investment, and easy management and maintenance.
Main Features:
1. All stainless steel structure, composite food grade standard.
2. Large cooking capacity, time Duan.
3. The equipment can rotate and the cooking materials are even.
4. Spray discharge discharge, high efficiency and convenience.
5. Equipped with brake, the steam ball can stay in any position.
6. Rock wool thermal insulation material is set outside the steam ball to save energy and reduce consumption.
Technical parameter
1 | Product Name | Rotary Spherical digester |
2 | Max designed Pressure | 0.88MPa |
3 | Max working pressure | 0.8MPa |
4 | Hydraulic test pressure | 1.26MPa |
5 | Design temperature | 200℃ |
6 | Sphere nominal inner diameter | 3650mm |
7 | Sphere volume | 25m3 |
8 | Sphere rotate speed | 0.48r/min |
9 | Inlet hole size | 600*900mm |
10 | Inlet Diameter | 80mm |
Packaging
products will packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc
Shipping
sea transportation is from Qingdao seaports or other china main ports. the delivery time is decided by machine types.But we also try to make it follows your needs.
Pre-sales service:
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of client;
4) Training periodically high qualified service technician.
After-sales service:
1) Highly inspecting equipments in every working procedure, quality comes first;
2) Fast & Safe Delivery;
3) Assisting our clients for foundation construction of equipments;
4) Dispatching engineers to install and debug equipments;
5) Training the first-line operators on site;
6) Regularly visit clients to solve production problems;
7) Providing life-long maintenance service;
8) Providing technical exchanging;
Qinyang Hengrun Machinery Co., Ltd. is a company specializing in the production of 1575-6000 round web papermaking machine, super forming papermaking machine, long web papermaking machine, stacked web papermaking machine, high-speed toilet paper machine, special paper machine, calender, rewinder, horizontal pneumatic winder, various pulping equipment and other products. The company is headquartered in Fubei Industrial Zone, Qinyang City. Our company has a complete and scientific quality management system. Our company has a complete and scientific quality management system.
Our company is based on good faith and has strong strength in product quality, which is recognized by the industry. Welcome friends from all walks of life to visit our company for guidance and business negotiation!We grow up because we have a strong and United team, working together and climbing hard. We strive to be steady in every step and know that the road is still long.
The eight character enterprise spirit of "quality as the root and honesty as the foundation" guides us forward. We develop because we have more and more loyal customers. The enterprise value is equal to the total value of customer relationship. Loyal customer group is our most valuable wealth. We can't tolerate disrespect and shortsightedness to the strategic position of customer service.
1.Q:Can you put my brand name on these products?
A:Yes, we can.
2.Q:What is your usual payment conditions?
A:FOB 30% advanced payment, full payment before delivery, by T/T.
3.Q:Can you provide sample for us?
A:It depends on. If the products you need are standard and we have stock, we will provide.If not, we can not provide for you immediately. The freight will be payed by buyer.
4.Q:Why choose us?
A:Direct price, gurantee quality, 24H service.
Below is our company's other hot selling products if you need to contact us!
We have many patents of pulping equipment,like impurity separator, high and low density cleaner,grapple,pressure screen and so on.
