Характеристики

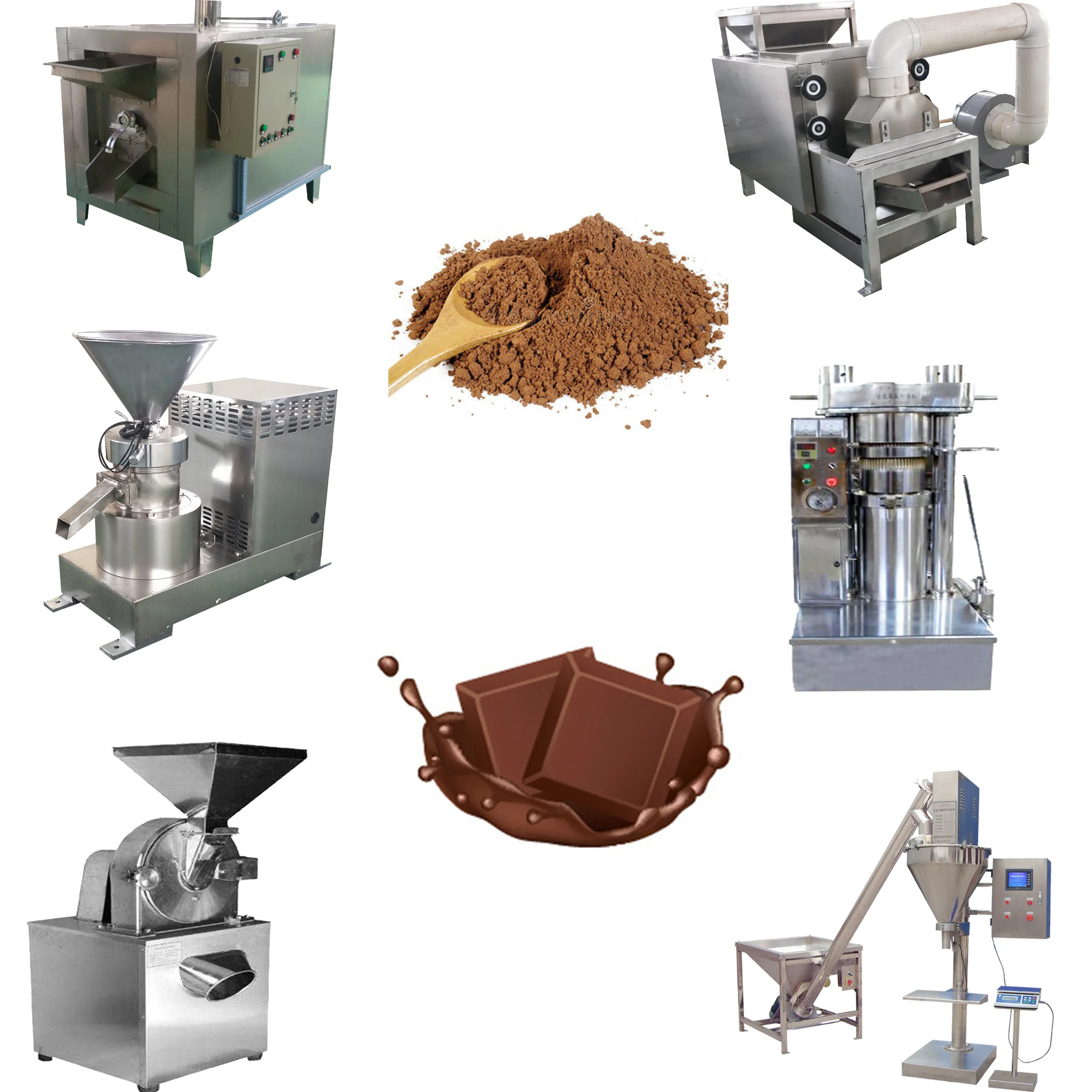

Small Scale 50kg/h Cocoa Powder Processing Line Cocoa Bean Powder Making Line
Process
1)cocoa bean roasting machine→ 2)cocoa bean peeling machine→ 3)cocoa bean grinding machine→4)ydraulic oil press machine→5)cocoa powder grinding machine→6)cocoa powder packing machine.
Product Description
1. Cocoa roasting machine:Used for drying cocoa beans, sesame, almonds, and the temperature can be adjusted freely between 0-300 degrees.
2. Cocoa bean peeling machine:Use the rubber roll for rubbing, thus to achieve the purpose of removing cocoa bean skin and crush cacao.
3. Cocoa grinding machine:It can be applied to the homogenization, emulsification, mixing and comminution of all kinds of semid fluid or fluid and emulsion.
4. Cocoa oil extractor:It is a new product instead of small manual oil pressing equipment at present. Because every time the amount of oil extraction is 2 to 8 kilograms per time, the time is short (8 one 12 minutes).
5. Cocoa powder crushing machine: The machine utilizes the high-speed relative motion of movable tooth disc and fixed toothed disc to make the crushed material get the crushing effect through the comprehensive action of impact, friction and impact between materials.
2. Cocoa bean peeling machine:Use the rubber roll for rubbing, thus to achieve the purpose of removing cocoa bean skin and crush cacao.
3. Cocoa grinding machine:It can be applied to the homogenization, emulsification, mixing and comminution of all kinds of semid fluid or fluid and emulsion.
4. Cocoa oil extractor:It is a new product instead of small manual oil pressing equipment at present. Because every time the amount of oil extraction is 2 to 8 kilograms per time, the time is short (8 one 12 minutes).
5. Cocoa powder crushing machine: The machine utilizes the high-speed relative motion of movable tooth disc and fixed toothed disc to make the crushed material get the crushing effect through the comprehensive action of impact, friction and impact between materials.
Specification

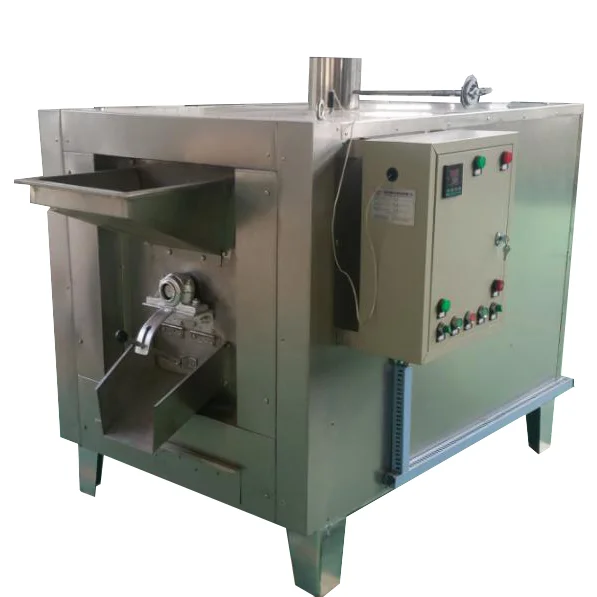

Step1 Cocoa Bean Roasting Machine
There are many types of roasting machine can be used to process cocoa beans. This peanut roasting machine can record temperature continously,which adopts heat conduction and thermal radiation theory,scroll uninterruptedly pushed by screw panel inside the drum,to be heated evenly.
Model | Dimension | Output | Motor Power (Kw) | Electrical Heating |
YEMHK-0 | 2.3*1*1.35m | 50kg/h | 0.75 | 12-13.5kw/380v |

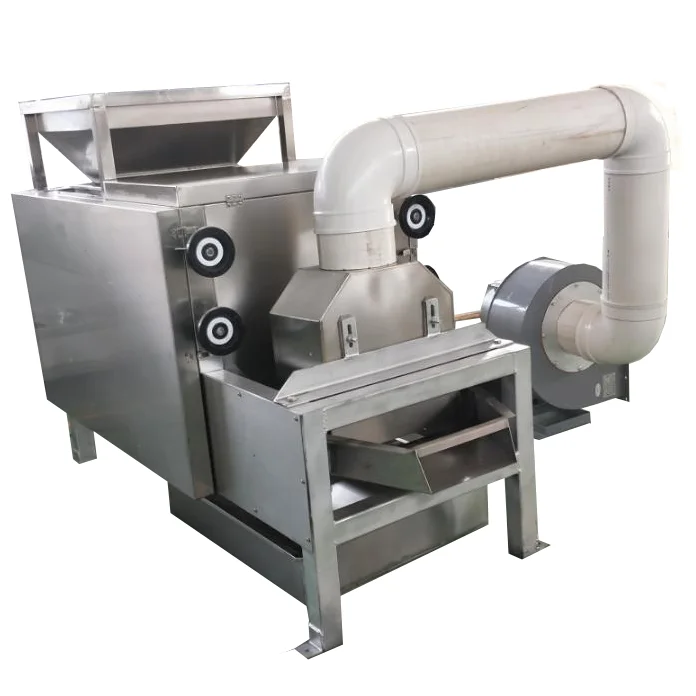

Step2 Cocoa Bean Peeling Machine
This Cocoa Bean Peeling Machine is a special equipment for processing cocoa bean and peanut it has a high degree of automation, peeling rate is high, low noise and no pollution etc. this machine is the vacuum cleaner can suck cocoa bean skin and peanut red coat, is the ideal choice for the food processing industry.
Power | Capacity | Dimension | Voltage | Fan Power |
1.5KW | 500-600kg/h | 1.9*0.85*1.35m | 380V,50HZ | 1.5kw |

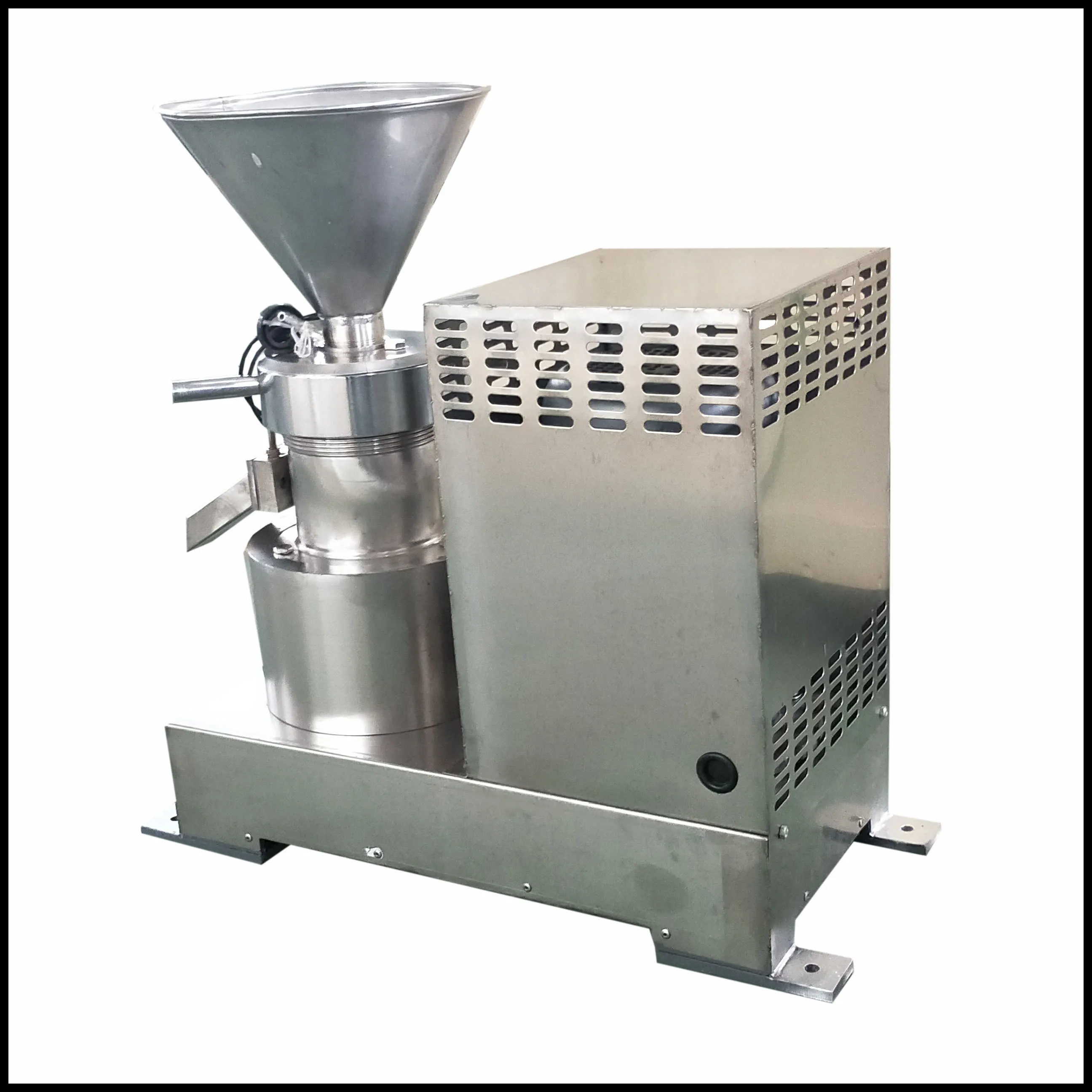

Step3 Cocoa Bean Grinding Machine
Put peeled cocoa beans into grinding machine to make cocoa bean paste.This grinder machine is mainly used to make nuts, seeds and beans into butter.
Model | Capacity | Weight | Power | Dimension | Fineness |
YE-80 | 60-80kg/hour | 70kg | 3kw,220v | 0.65*0.32*0.65m | 50-100mesh |

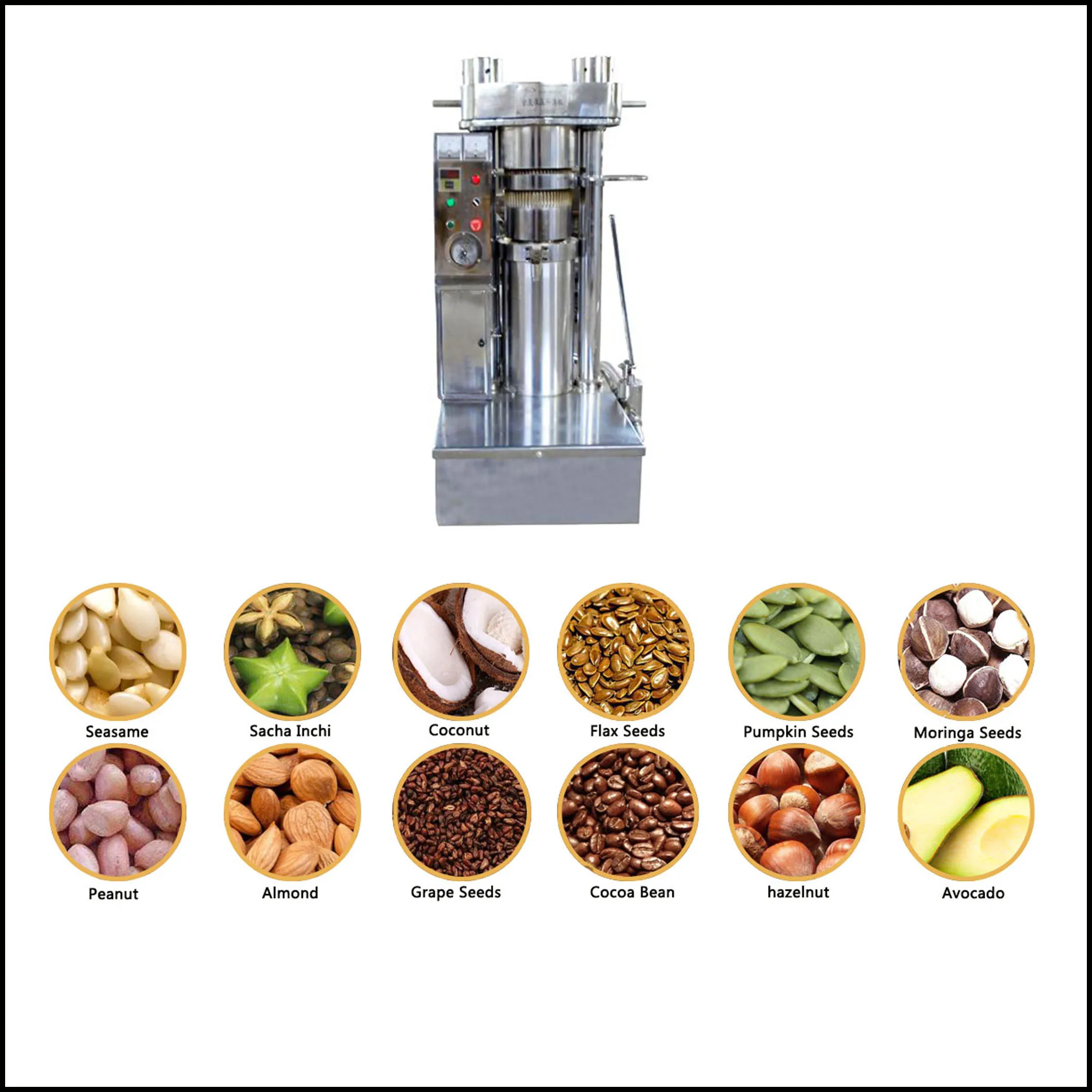

Step4 Hydraulic Oil Press Machine
6YY-230 Automatic Quick Hydraulic Oil Press are manufactured,designed and improved on the basis of the introduced foreign similar products.Specially press sesame,peanut,walnut kernel,almond,fax pine nuts cocoa mass,perilla seed,semen nigellae and other oil crops.Easy to operate,high oil yield each loading 6-10kg,8-10minutes can be pressed clean.
Model | 6YY-230 |
Dimension | 900*850*1550mm |
Power/Voltage | 1.5kw/380v |
Weight | 900kg |
Capacity | 35-55kg/h |
Nominal Pressure | 1900KN |
Maximum working pressure | 50MPa |
Heater power | 2KW |

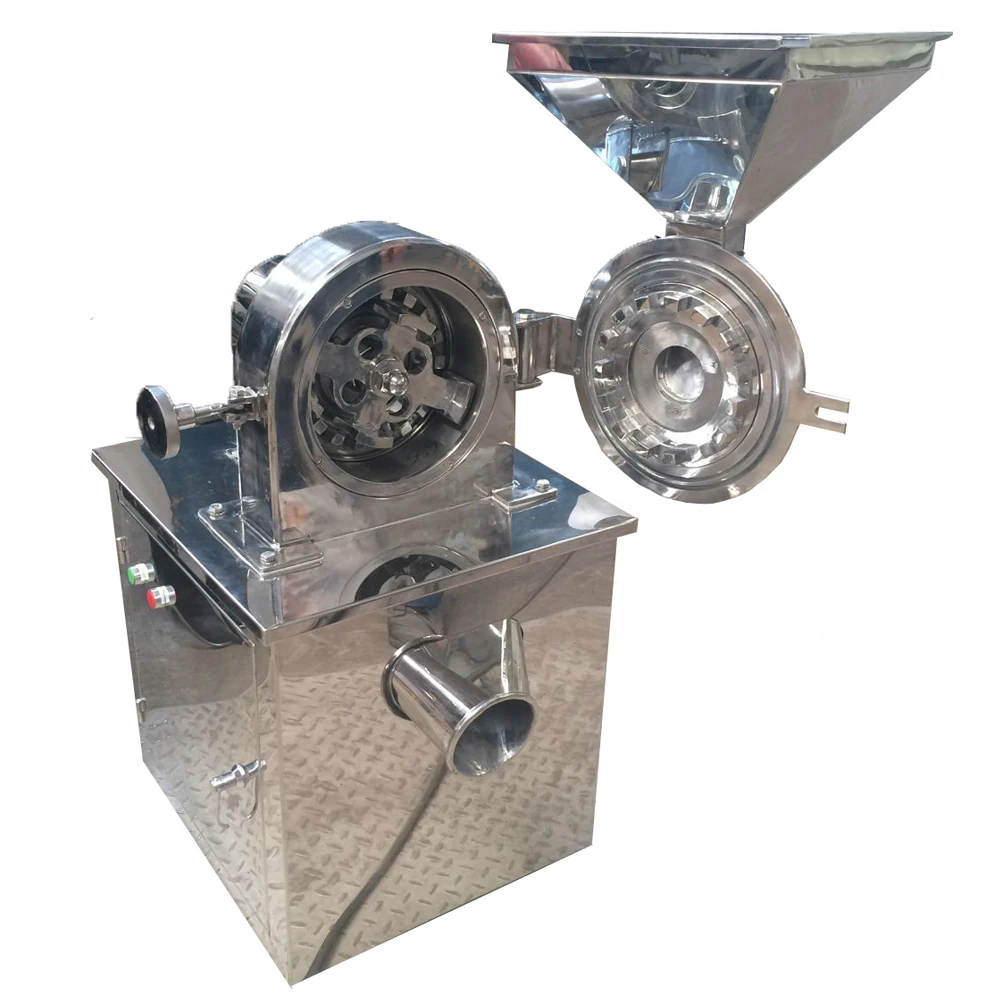

Step5 Cocoa oil cake Grinding Machine
Mainly used for the pharmaceutical, chemical, food(example: ginger, chili, pepper, oiland wheat, soybean, sugar, star anise, cinnamon), and other materials in the crushing process low hardness, fineness adjusted between 10 to120mesh
Model | 18B |
Capacity(kg/h) | 20-50 |
Feeding Granularity(mm) | 6 |
Crush fineness(mesh) | 60-150 |
Weight(kg) | 145 |
Rotary speed(r/min) | 2900 |
Power(kw) | 2.2 |
Dimension(mm) | 450*550*900 |
Step6 cocoa powder packing machine
Part 1 | Elevator | Part 2 | Weighing And Packing Machine |
Tube Diameter | 114mm | Weighing Range | 1-5000g |
Working Speed | 1-6CBM/H | Packing Speed | 1200-3500bag/h |
Tank Volume | 180L | Dimension | 0.69*1.06*1.9m |
Lifting Height | 1.7m | Power | AC380 50HZ·900W |
Power | 380V·1.2KW | ||
Dimension | 2.3*08*2.1m |
