Автоматическая машина для формования яиц Beston производства бумажной
- Категория: Paper Production Machinery >>>
- Поставщик: Beston,(Henan),Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11662.57 $* | 12245.82 $* |
| Aug-19-2025 | 11564.29 $* | 12142.67 $* |
| Jul-19-2025 | 9702.34 $* | 10187.36 $* |
| Jun-19-2025 | 11368.59 $* | 11936.53 $* |
| May-19-2025 | 9898.69 $* | 10393.15 $* |
| Apr-19-2025 | 11172.89 $* | 11731.77 $* |
| Mar-19-2025 | 11074.97 $* | 11628.18 $* |
| Feb-19-2025 | 10976.84 $* | 11525.78 $* |
| Jan-19-2025 | 10878.21 $* | 11422.59 $* |
Характеристики
Pulp Egg Tray Moulding Machine pre-expander machine
Competitive price colored egg tray making machine
Model | BTF 1-4 Egg Tray Production Line |
Drying Method | Natural In Sun |
Output per hour | 1500 pieces |
Mold Quantity | 3 units forming molds and 3 units transfer molds |
Total Power | 41.2KW |
Workers | 3-4 workers |
Waste paper consumption | 85kg/hr |
Water Consumption | 255kg/hr |
Workshop area | More than 60m² |
Egg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc. Our machine include pulp making system ,forming system and drying system.
various types and output of egg tray making machines can be supplied by our company , such as:
BTF-1-3; BTF-1-4; BTF-3-4; BTF-4-4; BTF-4-8; BTF-5-8; BTF-5-12;
And you can choose different drying system like: Natural drying system; Brick drying system and Metal drying system
Advantages:
1. Raw material: Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
2. Automation: Fully-automatic control
3. Quality standard: CE
4. 100% environmentally production process.
5. Engineers available to service machinery overseas.
2. Automation: Fully-automatic control
3. Quality standard: CE
4. 100% environmentally production process.
5. Engineers available to service machinery overseas.

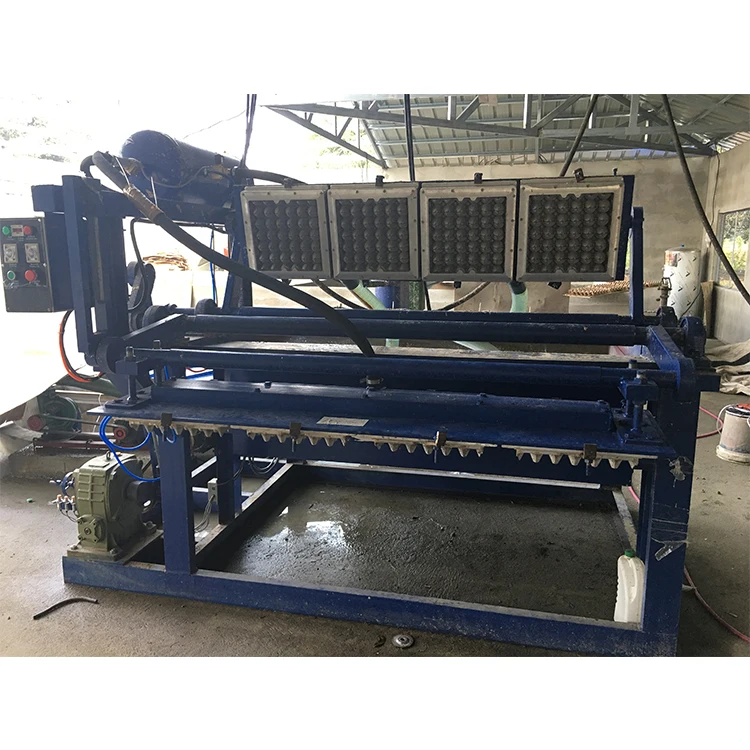

Reciprocating type egg tray machine reference picture as the following:
1.Egg tray’s raw materials are waste paper and water, it’s proportion is paper 1 to water 3. The waste paper and water are added to hydrapulper, and are mixed into rough pulp through processes such as hydraulic disintegration, filtration, and water injection.
2.Then the rough pulp flows into mixing pool. In the mixing pool, the rough pulp will be refined by a pulp beater.
3.The refined pulp will flow into supply pulp, and it’s concentration be adjusted well by pulp beater , then the pulp pump transported finished pulp to the forming machine.
4.Under the suction power of vacuum pump, sucks pulp to forming molds , and at the same time, draws away water from the egg tray on the forming mold, and recycles the pumped water to the sewage water pond for recycling.
5.Under the blowing force of air compressor, the formed egg tray will be blowed off from the forming mold to the transfer mold, then blow it to the conveyor belt/tray, and enters the next process-drying system.
6.The conveyor belt passes through the drying room to dry egg trays, finally, collecting and packaging egg trays.
The drying system includes 3 different drying methods
01.- Natural drying in the sun.
02.-Brick drying system.
03.- Metal drying system.
2.Then the rough pulp flows into mixing pool. In the mixing pool, the rough pulp will be refined by a pulp beater.
3.The refined pulp will flow into supply pulp, and it’s concentration be adjusted well by pulp beater , then the pulp pump transported finished pulp to the forming machine.
4.Under the suction power of vacuum pump, sucks pulp to forming molds , and at the same time, draws away water from the egg tray on the forming mold, and recycles the pumped water to the sewage water pond for recycling.
5.Under the blowing force of air compressor, the formed egg tray will be blowed off from the forming mold to the transfer mold, then blow it to the conveyor belt/tray, and enters the next process-drying system.
6.The conveyor belt passes through the drying room to dry egg trays, finally, collecting and packaging egg trays.
The drying system includes 3 different drying methods
01.- Natural drying in the sun.
02.-Brick drying system.
03.- Metal drying system.
Beston paper egg tray machine is used to produce paper egg tray. The main working process of paper egg tray machine is composed of
pulping system, forming system and drying system. Paper tray making machine is mixing the waste paper and water. When it reaches
the certain concentration, the egg tray pulp can be conveyed to forming machine. When it forms a paper egg tray, the egg tray
paper needs to dry because the paper egg tray has some water after forming. Then, you can pack the paper egg tray after drying.
pulping system, forming system and drying system. Paper tray making machine is mixing the waste paper and water. When it reaches
the certain concentration, the egg tray pulp can be conveyed to forming machine. When it forms a paper egg tray, the egg tray
paper needs to dry because the paper egg tray has some water after forming. Then, you can pack the paper egg tray after drying.
And it is also a waste recycling machines,the raw material use general waste paper, like old book, old newspaper ,abandoned carton
and so on .Egg carton making machine is very environmentally friendly and Safety,it is in line with the needs of the development
of modern society .High yield and high return.
The whole production line include pulp making system + egg tray molding system + egg tray drying system + egg tray packing system.
and so on .Egg carton making machine is very environmentally friendly and Safety,it is in line with the needs of the development
of modern society .High yield and high return.
The whole production line include pulp making system + egg tray molding system + egg tray drying system + egg tray packing system.
Our Services:
1.We have our own factory that can provide professional design and stability product quality, and also we can offer the most reasonable prices.
2.We can send the machine about 20 days .
3. We have our own professional sales teams who have rich experiences on the international trade and good technical knowledges.
4.we can offer the the services install the machines to your country after the machines were ordered .
5.If the machines have any problems ,we will offer the parts and the tools for the repairment for free witin 1 year.and our the warranty is 1 year.
6.We welcome customers to inspectour our production line.and if you come ,the relevant person will pick up customers at the airport.
2.We can send the machine about 20 days .
3. We have our own professional sales teams who have rich experiences on the international trade and good technical knowledges.
4.we can offer the the services install the machines to your country after the machines were ordered .
5.If the machines have any problems ,we will offer the parts and the tools for the repairment for free witin 1 year.and our the warranty is 1 year.
6.We welcome customers to inspectour our production line.and if you come ,the relevant person will pick up customers at the airport.
Packaging :
1.egg tray machine Outside package :Standard export wooden cases .
2. egg tray machine Inner package stretch film .
3.We can do as your requirements.
Shipping :
1:we will send out your egg tray machines 20 working days after payment .
2: Usually we will ship the paper egg tray machines by the sea transportation.
1.egg tray machine Outside package :Standard export wooden cases .
2. egg tray machine Inner package stretch film .
3.We can do as your requirements.
Shipping :
1:we will send out your egg tray machines 20 working days after payment .
2: Usually we will ship the paper egg tray machines by the sea transportation.
Q1. Why we choose your company?
A1.We have 10 years’ rich experience in paper puling molding industry. We have professional technical team and advanced
technology. We are factory direct sale, we can provide you best quality and service at a reasonable price.
Q2. Where is your company located? How can I visit there?
A2. Our company is located in Zhengzhou city, Henan province, you can fly to Zhengzhou airport. When you confirm your flight No.
and date, please tell us then we can arrange to pick up you.
Q3. How many countries have your machine been installed?
A3.Our equipment has been already exported to more than 20 countries, such as Algeria, Egypt, Russia, Ukraine, Australia,
Argentina, Brazil, Saudi Arabia, Libya, Syria and other countries.
Q4. What products can this machine produce, or do you provide customize service?
A4.This machine can produce egg trays, egg box, egg carton, fruit tray, wine tray and so on. If you want to other different paper
industrial packages, we also can provide customize service per your requirement after you provide samples, like pictures or
dimensions etc.
Q5. What should I do if I don't know how to install the machine after I bought it ? Can you install the machine in my country?
What's about the after-sales service?
A5.After our customers placed orders, we’ll arrange professional engineers to go to customer’s country, they’ll help to install and train workers for operation and maintenance. In addition, we have abroad visiting for once or twice every year for checking customer’s equipment.
Q6. What's the payment term?
A6.30%TT prepayment before production, the balance payment need to be paid before shipment.
A1.We have 10 years’ rich experience in paper puling molding industry. We have professional technical team and advanced
technology. We are factory direct sale, we can provide you best quality and service at a reasonable price.
Q2. Where is your company located? How can I visit there?
A2. Our company is located in Zhengzhou city, Henan province, you can fly to Zhengzhou airport. When you confirm your flight No.
and date, please tell us then we can arrange to pick up you.
Q3. How many countries have your machine been installed?
A3.Our equipment has been already exported to more than 20 countries, such as Algeria, Egypt, Russia, Ukraine, Australia,
Argentina, Brazil, Saudi Arabia, Libya, Syria and other countries.
Q4. What products can this machine produce, or do you provide customize service?
A4.This machine can produce egg trays, egg box, egg carton, fruit tray, wine tray and so on. If you want to other different paper
industrial packages, we also can provide customize service per your requirement after you provide samples, like pictures or
dimensions etc.
Q5. What should I do if I don't know how to install the machine after I bought it ? Can you install the machine in my country?
What's about the after-sales service?
A5.After our customers placed orders, we’ll arrange professional engineers to go to customer’s country, they’ll help to install and train workers for operation and maintenance. In addition, we have abroad visiting for once or twice every year for checking customer’s equipment.
Q6. What's the payment term?
A6.30%TT prepayment before production, the balance payment need to be paid before shipment.
