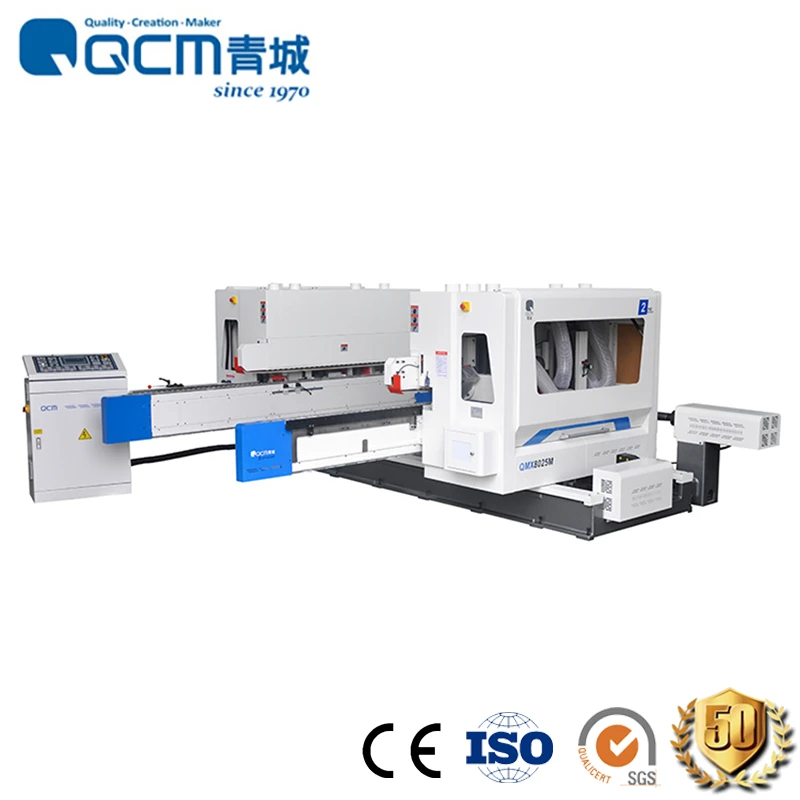

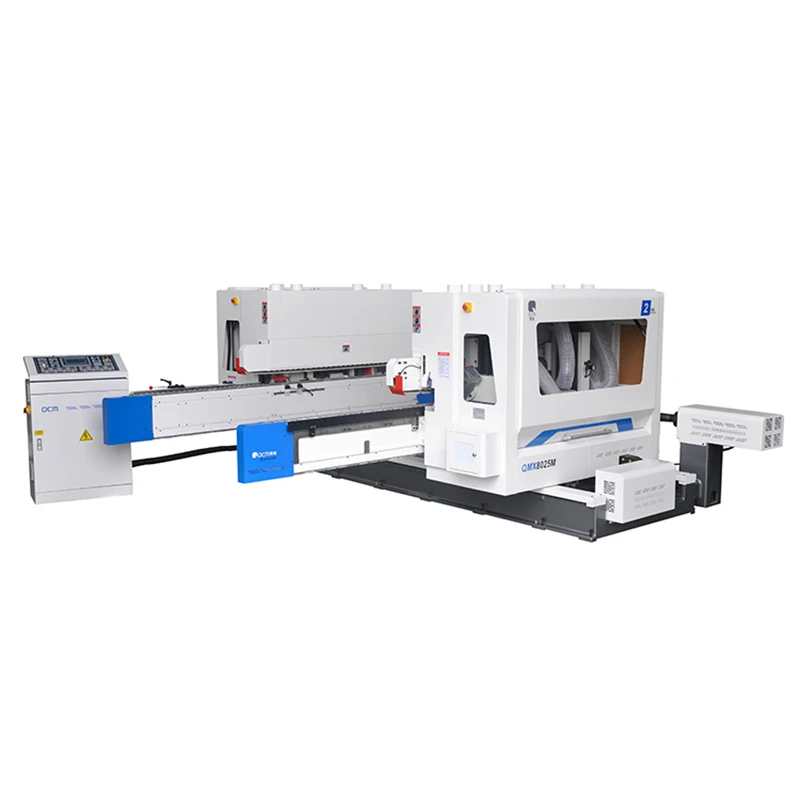

QMX8025M двухконцевая машина с ЧПУ 6 шпинделями для тенонирования
- Категория: >>>
- Поставщик: Huzhou,Qingcheng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 51765.12 $* | 54353.83 $* |
| Aug-19-2025 | 51330.73 $* | 53897.41 $* |
| Jul-19-2025 | 43065.88 $* | 45218.84 $* |
| Jun-19-2025 | 50460.60 $* | 52983.75 $* |
| May-19-2025 | 43935.52 $* | 46132.78 $* |
| Apr-19-2025 | 49590.17 $* | 52070.15 $* |
| Mar-19-2025 | 49155.63 $* | 51613.31 $* |
| Feb-19-2025 | 48720.27 $* | 51156.74 $* |
| Jan-19-2025 | 48285.41 $* | 50699.41 $* |
Характеристики
QMX8025M CNC Double-end Tenoning Machine With 6 Spindles Wood Tenoner Tenoning Machine
Product Description
QCM Smart Panther Woodworking Machinery Trimming Wood Tenoner QMX CNC Double-end Tenoning Machine | ||||||||||
Technical Parameter | Wood Planer Moulder Four Side Moulder | |||||||||
Specifications | Unit | QMX8025M | QMX6025M | QMX3826D*8 | QMX3820D*6 | |||||
Processing width | mm | 300-2500 | 300-2500 | 300-2600 | 300-2000 | |||||
Processing thickness | mm | 10-120 | 10-120 | 10-70 | 10-70 | |||||
Feed block spacing | mm | 500 | 500 | 240 | 240 | |||||
Feeding speed | m/min | 6-36 | 6-36 | 5-20 | 5-20 | |||||
Saw shaft speed | r/min | 3000 | 3000 | 3000 | 3000 | |||||
Milling axis speed | r/min | 7500 | 7500 | 7000 | 7000 | |||||
Buckle milling spindle speed | r/min | / | / | 8000 | / | |||||
Upper saw blade diameter | mm | Φ200-Φ300 | Φ200-Φ300 | Φ200-Φ250 | Φ200-Φ250 | |||||
Lower saw blade diameter | mm | Φ160-Φ200 | Φ160-Φ200 | Φ200-Φ250 | Φ200-Φ250 | |||||
Milling cutter diameter | mm | Φ108-Φ180 | Φ108-Φ180 | Φ108-Φ180 | Φ108-Φ180 | |||||
Buckle milling blade diameter | mm | / | / | Φ120-Φ150 | / | |||||
Saw shaft/milling shaft diameter | mm | Φ30/Φ40 | Φ30/Φ40 | Φ25.4/Φ30 | Φ25.4/Φ30 | |||||
Total motor power | kW/HP | 47/64 | 41/56 | 26.06/35 | 20.95/28 | |||||
Upper saw blade motor | kW/HP | 2*5.5/7.5 | 2*7.5/10 | 2*3/4 | 2*3/4 | |||||
Lower saw blade diameter | kW/HP | 2*2.2/3 | 2*3/4 | 2*3/4 | 2*3/4 | |||||
Jump cut milling shaft | kW/HP | 2*5.5/7.5 | / | / | / | |||||
Milling axis | kW/HP | 2*7.5/10 | 2*7.5/10 | 2*3/4 | 2*3/4 | |||||
Buckle milling shaft power | kW/HP | / | / | 2*2.2/3 | / | |||||
Feeding motor | kW/HP | 4/5.5 | 4/5.5 | 2.2/3 | 2.2/3 | |||||
Width adjusting motor | kW/HP | 0.75/1 | 0.75/1 | 0.75/1 | 0.75/1 | |||||
Press lifting motor | kW/HP | 2*0.37/0.5 | 2*0.37/0.5 | 2*0.37/0.5 | / | |||||
Vacuum port diameter | mm | 8*Φ120 | 6*Φ120 | 8*Φ100 | 6*Φ100 | |||||
Overall dimensions | mm | 4880*4650*1900 | 4880*4130*1890 | 4700*3350*1600 | 4100*2500*1460 | |||||
Weight | kg | 6500 | 6000 | 4300 | 3250 | |||||
Our Advantages
Product Main Features
1. This machine adopts integral casting body with stable performance, good precision and good rigidity.
2. Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.
3. Feeding guide rail is cast with sectional combination structure. 1300mm long feeding area has a feature of easy assembling, stable precision, especially suitable for large size work piece.
4. Worktable width movements uses imported linear guide and CNC automatic width setting structure which has feature of easy adjustment, precise positioning and excellent wear ability.
5. Up pressing mechanism is configured with NC electric lift, ensuring the stable pressing and more convenient and quick
operating.
6. The operating system is equipped with an imported computer touch screen and PLC for joint control, which is intuitive and convenient to operate, which can effectively reduce adjustment time and improve production efficiency.
7. Feeding chains are configuration with high precision synchronous chain, aluminum alloy chain plates and rolling bearing structure, ensuring the stable running, accurate positioning, stable and reliable.
3. Feeding guide rail is cast with sectional combination structure. 1300mm long feeding area has a feature of easy assembling, stable precision, especially suitable for large size work piece.
4. Worktable width movements uses imported linear guide and CNC automatic width setting structure which has feature of easy adjustment, precise positioning and excellent wear ability.
5. Up pressing mechanism is configured with NC electric lift, ensuring the stable pressing and more convenient and quick
operating.
6. The operating system is equipped with an imported computer touch screen and PLC for joint control, which is intuitive and convenient to operate, which can effectively reduce adjustment time and improve production efficiency.
7. Feeding chains are configuration with high precision synchronous chain, aluminum alloy chain plates and rolling bearing structure, ensuring the stable running, accurate positioning, stable and reliable.
Related Products
Company Information
Certificate & Delivery
HUZHOU QINGCHENG MACHINERY CO., LTD
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
FAQ
1. Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
