Sugar powder gzv series vibrating feeder







Sugar powder gzv series vibrating feeder is widely used in various industries such as light industry, chemical industry, grain, food, grinding, etc. It is used in the process of feeding, batching and quantitative automatic packaging of powder and granular materials, and can realize centralized control and automatic control in the production process.











The following table shows the detailed data of different models of Sugar powder gzv series vibrating feeder for your reference, and we will choose a suitable model accordting to your needs.



Model	GZV 1	GZV 2	GZV 3	GZV 4	GZV 5	GZV 6
Capacity(t/h)	0.1	0.5	1	2	4	6
Double Amplitude	1.5	1.5	1.5	1.5	1.5	1.5
Frequency(r/m)	3000	3000	3000	3000	3000	3000
Power(w)	5	8	20	25	30	50
Weight(kg)	4	7	12	18	27	45
Voltage(v)	220	220	220	220	220	220





Sugar powder gzv series vibrating feeder adopts linear trough reciprocating type, which is composed of trough, electromagnetic vibrator and shock absorber. It can screen materials without orientation. Its electrical control uses a half-wave rectification circuit, which is completely equipped with no rotating parts and feeding on the principle of micro-throw motion. The feeding process is completely automatic, the trough wear is small, the mechanical maintenance is convenient, and the material with high temperature wear and corrosiveness can be transported at the same time. The control box allows manual and automatic adjustment.

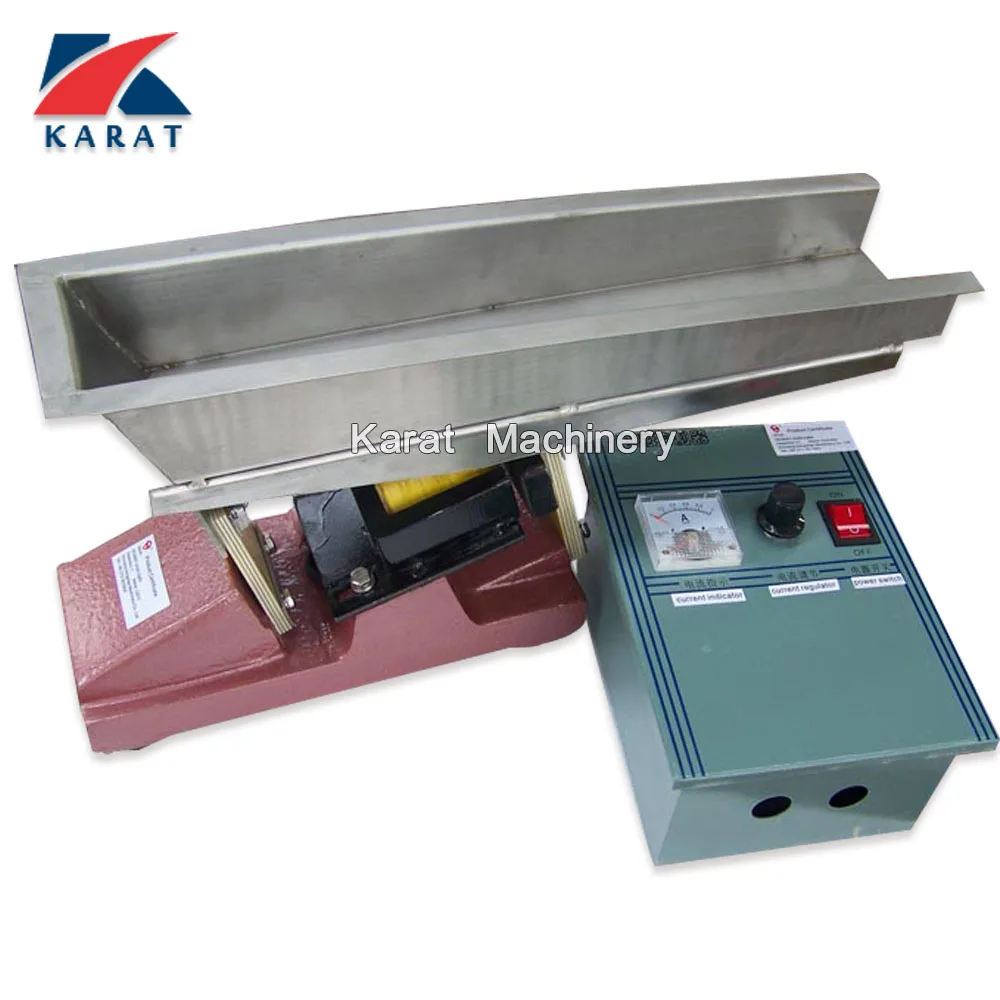

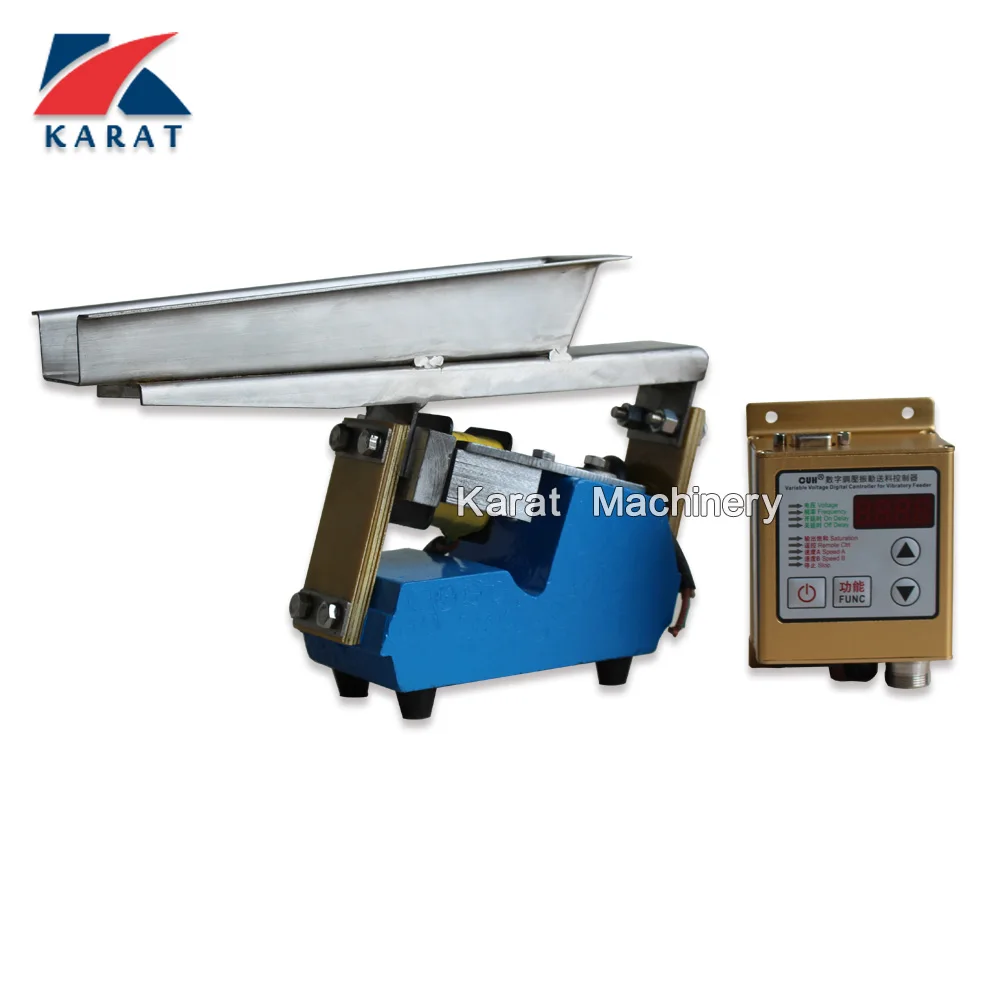

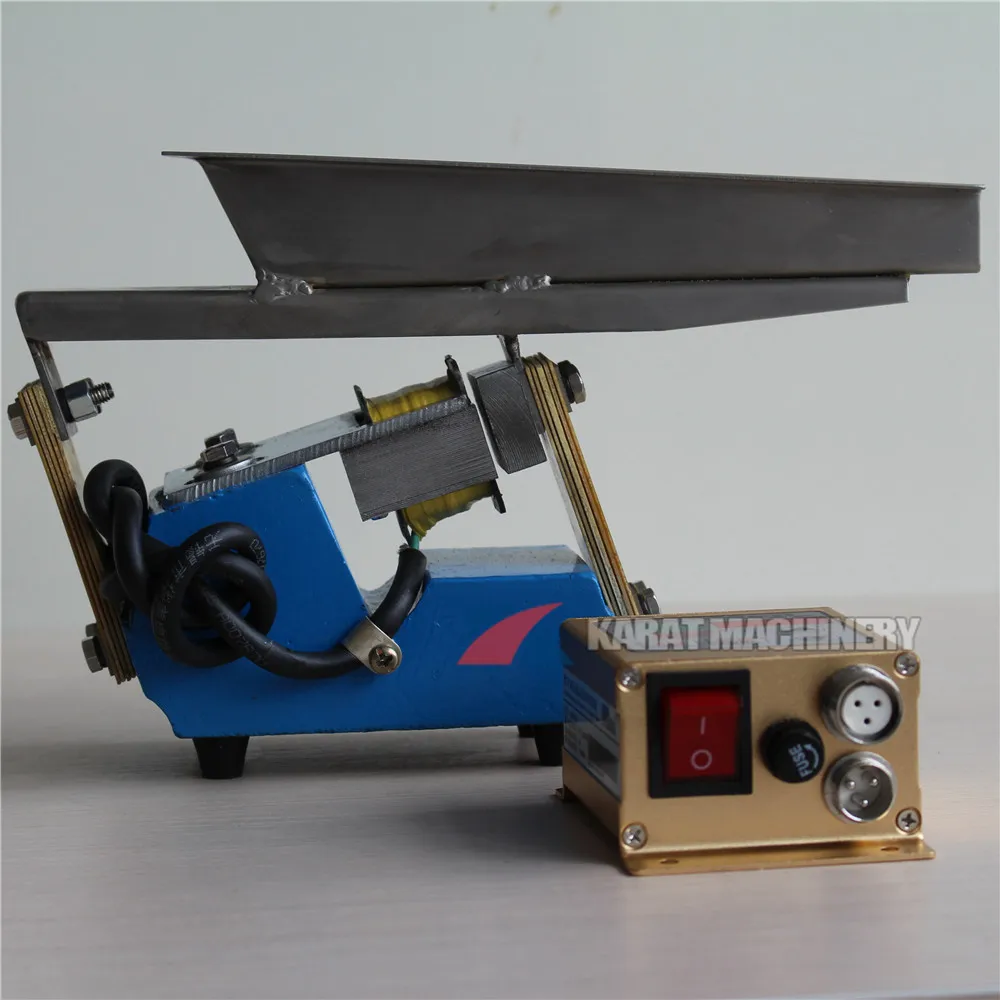

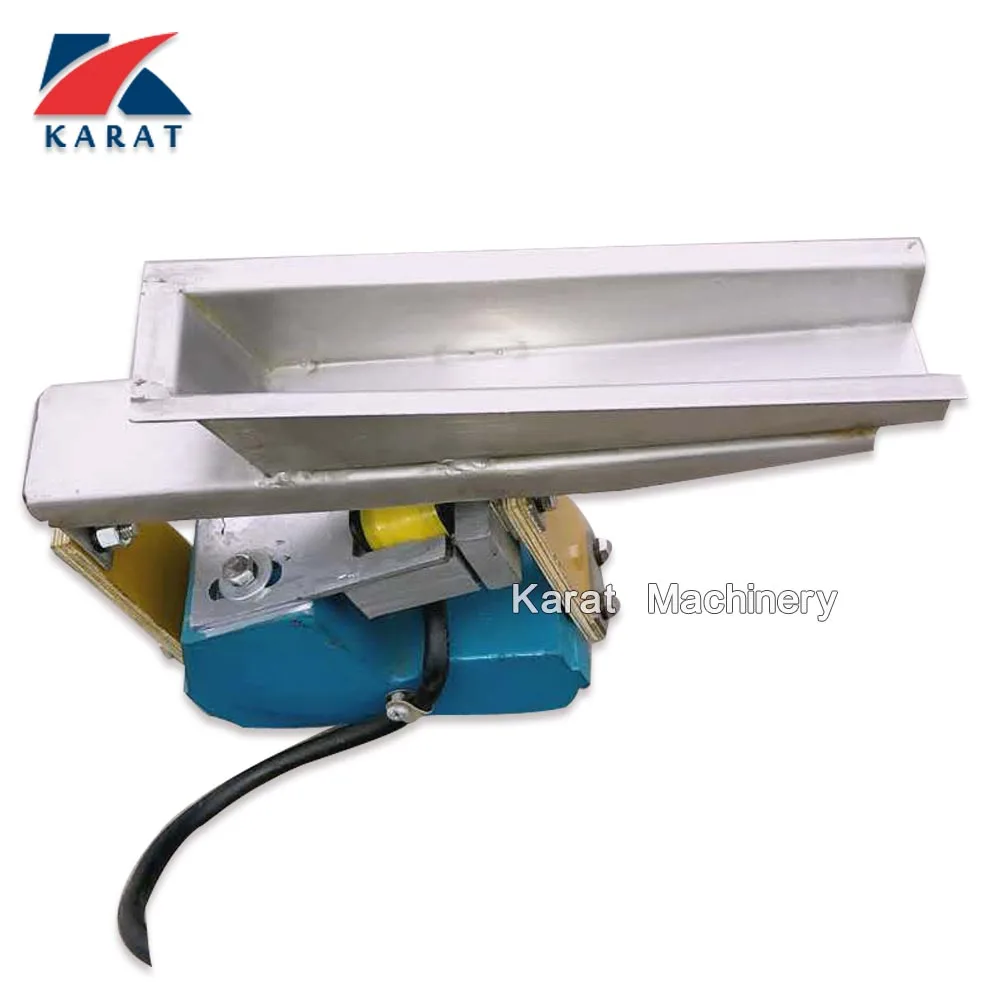

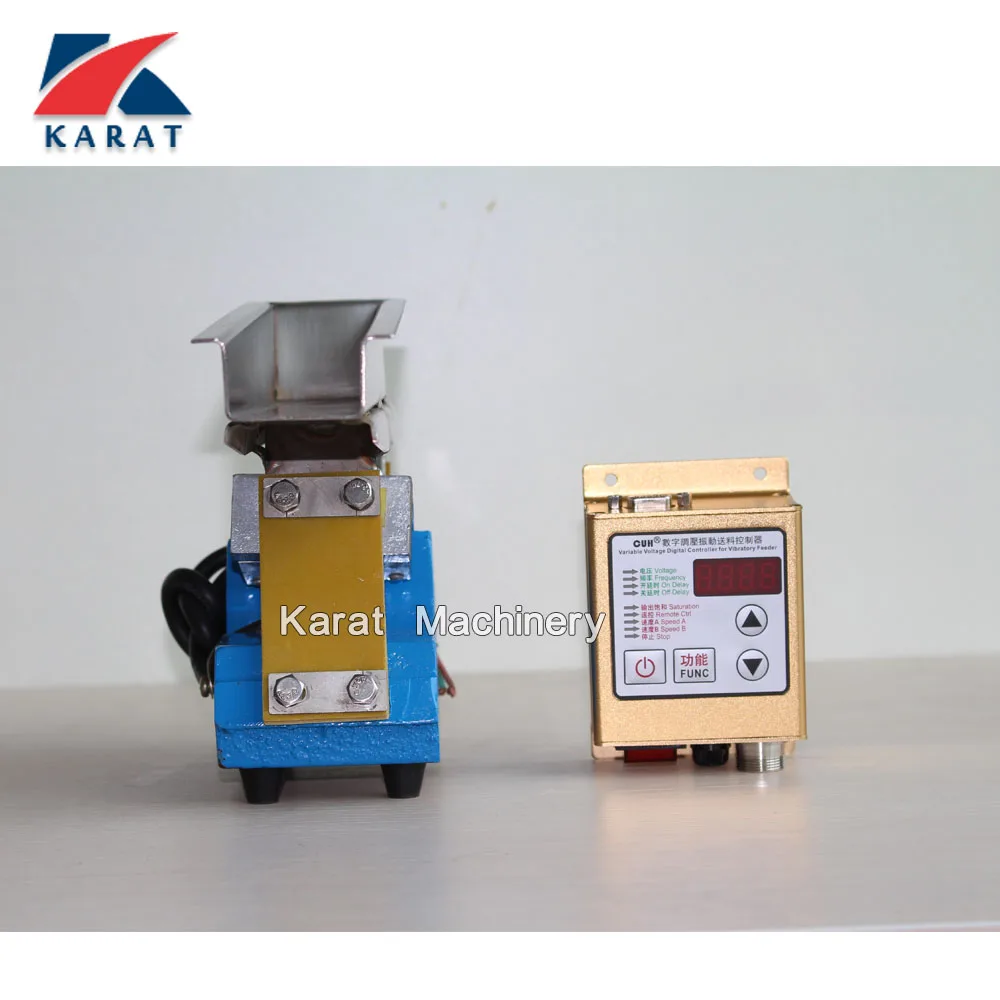

The following pictures of Sugar powder gzv series vibrating feeder make you know more about each part of our products.



Features



Sugar powder gzv series vibrating feeder is a new type of feeding equipment, which has the following characteristics compared with other feeding equipment:
1. Small size, light weight, simple structure, easy installation and low operating cost
2. Due to the mechanical vibration resonance principle, the power consumption is small
3. Using thyristor half-wave rectification power supply, the feed amount can be adjusted steplessly during use
4. The feeder continuously throws the material during the feeding process, so the wear of the feed tank is small.





Producte Show













If you are interested in Sugar powder gzv series vibrating feeder, welcome to reach us here and visit our workshop.





FAQ



Q: What information do I need to provide for getting an accurate quotation for Sugar powder gzv series vibrating feeder?

A: 1. Material’s name, bulk density, and water content

    2. Capacity you required___kg/h

    3. Voltage and frequency



Q: How long for the delivery time?

A: 5-10 working days for conventional products.



Q: How long for warranty time?

A: 12 months from the shipping date.



Q: Can your engineer come to the construction site to guide the installation?

A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/ local accommodation/ local traffic is in charge of customer.



Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer, the customer only need to find special installation team to execute.
