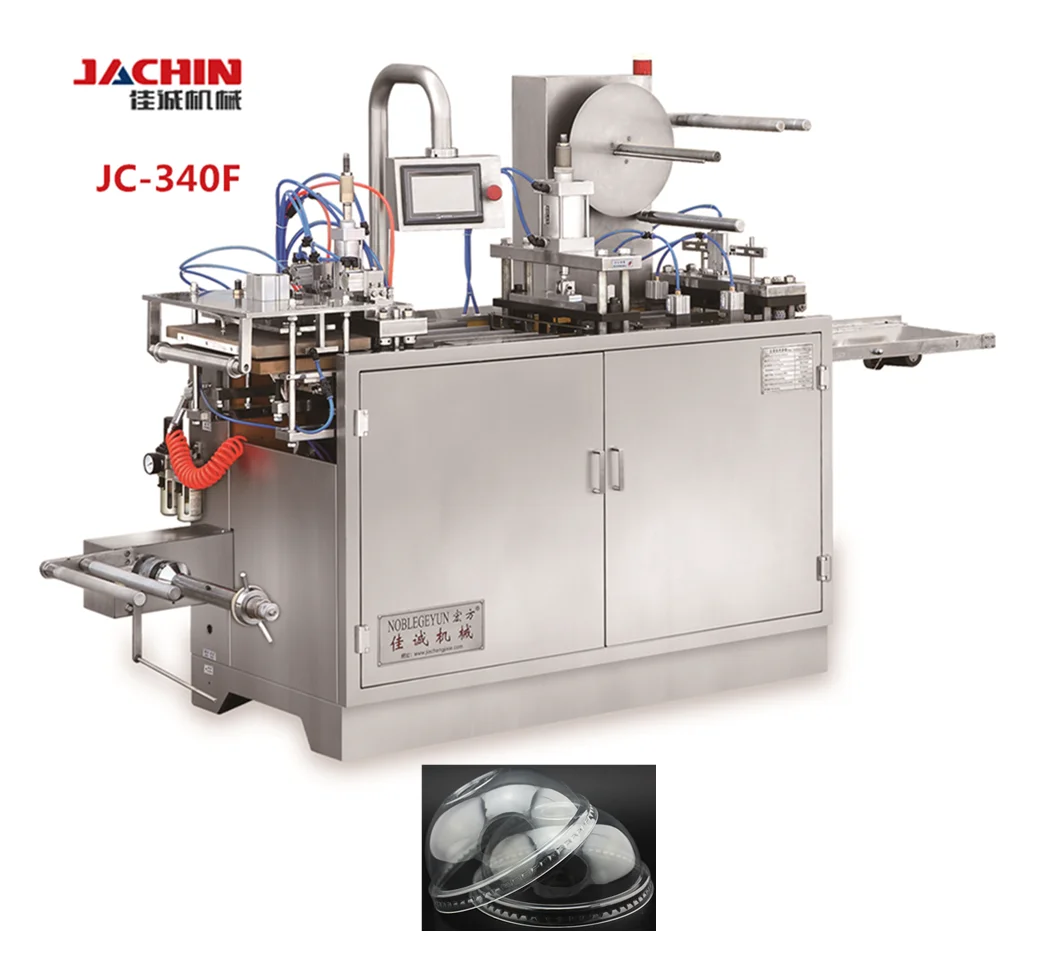

JC-340F Manufacturer of plastic cup lid making machine small machine
Product Description
JC-340F Automatic Plastic Thermoforming Machine is developed by our reasearch and development department, according to the demand of packing market. Absorbing the advantages of aluminum-plastic blister packaging machine and plastic molding machine, the new machine developed according to the requirements of medical "GMP" and food "QS" standards.
Machine adopts automatic forming, punching and cutting as the special properties of product requires of the users. With advantaged technology, safe and simple operation, avoiding the consumption of labor caused by manual punhing and the pollution caused by the employees during work, guarantee the quality of products. The machine equipped with matrix heating tile infrared radiation heating, low power consumpltion, small external footprint, economical and practical. So the machine is widely used in manufacturing lids, covers, containers, trays, plates, boxes.
Product Feature
1. Speed reducer, main-rotating connection, main shaft are on line (to decrease driving errora) for mechanical transmission.
2. Sensor controls are adopted in pneumatic system. PLC control makes the whole machine run smoothly, keeps synchronous stablility during the products are to be packed in multi-labor, long-distance.
3. Main motor variable frequently speed regulating, the travel adjustable at will, simple and convenient to change the mould, cam traction, stable running.
4. Positive pressure formation in the equipment ( Puffing forming ).
Technical Parameters
| Model | JC-340F |
| Punch Speed | 15-40 times/minute |
| Max. Forming Area | 330*160mm |
| Max. Forming Depth | 47mm |
| Stroke | 65-160mm |
| Raw Material | PS/PET/PVC Roll: 75mm |
| Material Sheet | 0.15-0.6*350mm |
| Total Power | 4.5 KW 380V |
| Compressed Air | 0.6-0.8 Mpa |
| Mold Cooling | 20℃, tap water or recycle water 60L/H |
| Overall dimension | 1900*790*1700mm |
| Weoght | 1100kg |
Samples

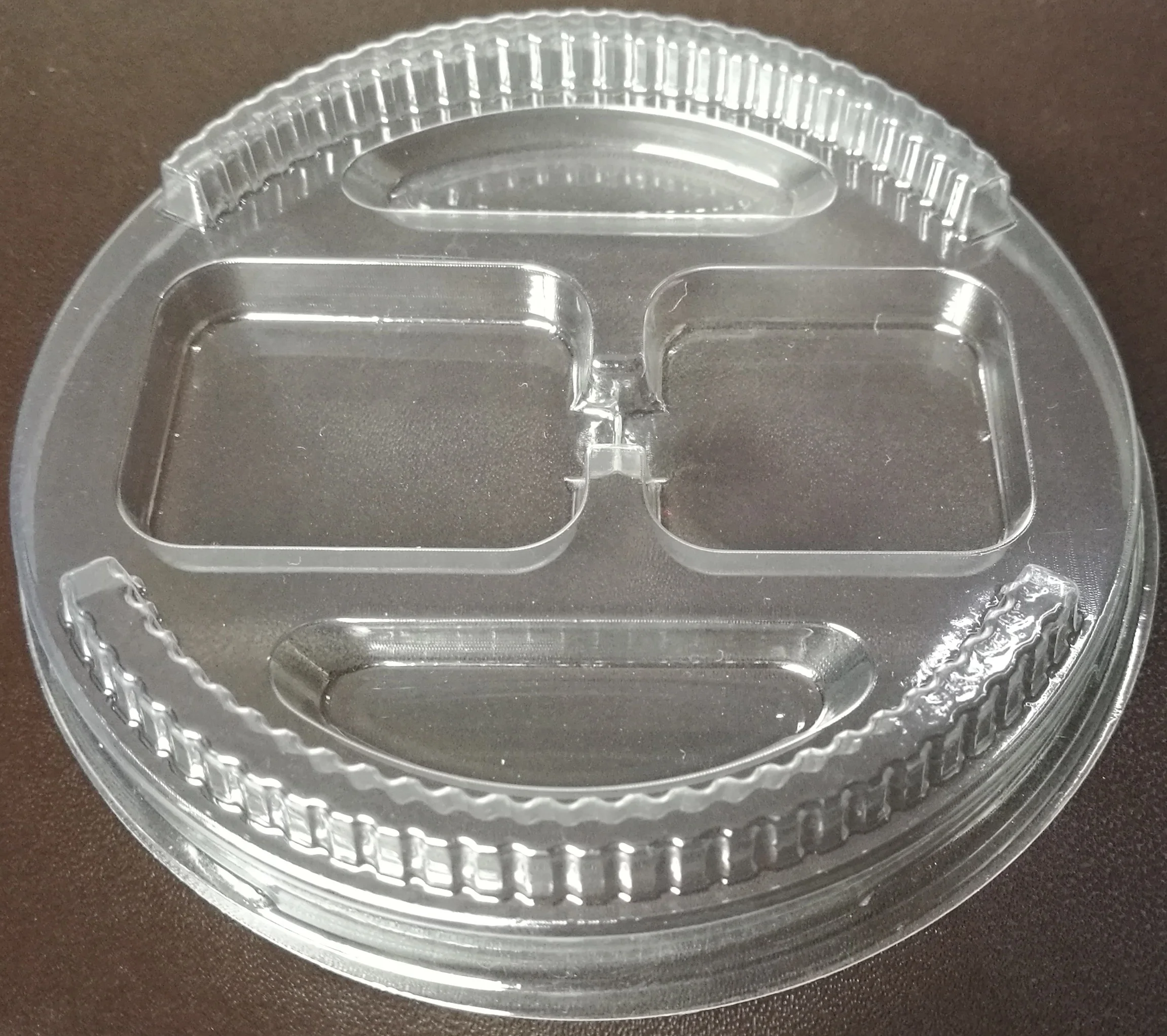

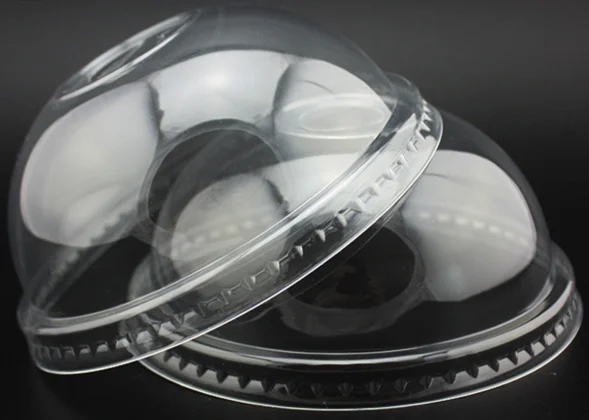

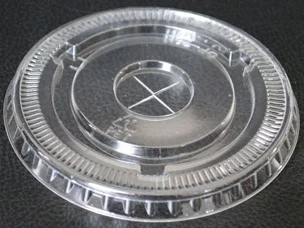

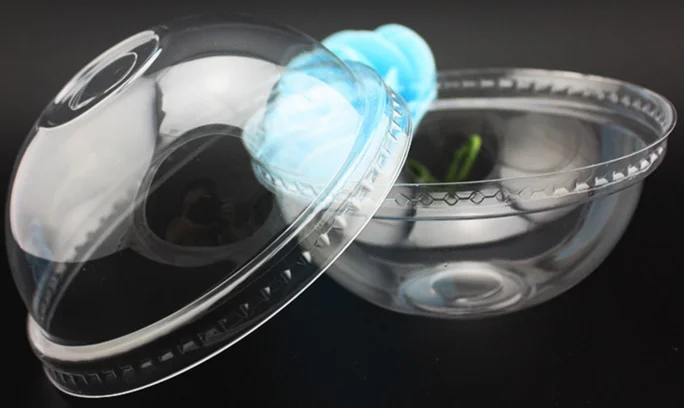

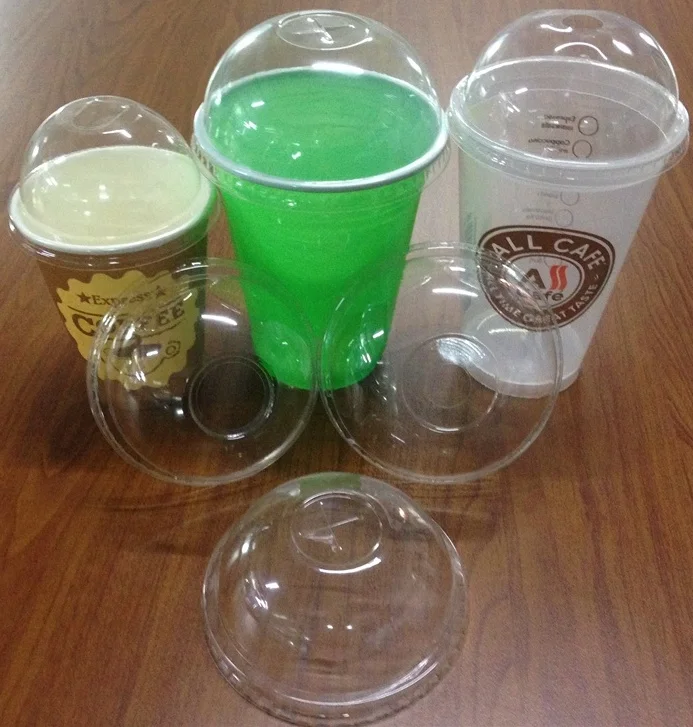

Various products made by the machine!
This machine application to the plastic sheet such as PS, PET, PVC to making cup lid, cover, container, tray, box, plate, etc. Just need to replace the mold can be achieved!
Company Information
Choose us to meet the future
Wenzhou Hongao Trade Co.,Ltd. / Wenzhou Jiacheng Machinery Co.,Ltd. is located in Wenzhou city. This is a professional company engaged in automatic plastic thermoforming machines. We have advanced technology research and development strength, with a modern system of scientific and technological management and perfect service system, also an elite team with spring vitality.
Since its establishment, the company all along adhere " good faith-based, development study, innovation" spirit of enterprise. Based on " human technology, and customer-oriented service, develop the market with integrity and high-quality and establish the corporate culture system with the unique features. Company has passed the 9001 quality system certification and CE certification in 2010. Gold supplier and trade assurance in Alibaba.
It application for medical equipment, food, package, drink and other industries as well as the various specifications of medical devicals ampoule, light food, candy, electronic components, hardware products, seal blister packaging. We have sold machine to North America, South Amercia, Africa, Middle East, South Asia, East Asia, South East Asia. Facing the new century, in order to the modern economic development pace, to achieve the ambition of "first-class brand, the grade goal of good faith". Carry out group managemt in an all-round way, with large-scale production concept and internationalization market development as the direction. Strive to creat a good kingdom with Oriental features! With perfect pre-sales and after-sales service system, engineers available to service machinery overseas. Now, it will be our great honor to invite you to visit our company!
Customers From All Over The World
Because of the good quality and service , we have lots of customers all over the world
Choose us, Choose trust.
The exhibition
Certifications
Shipping & Payment
Delivery time : 20 working days after payment and drawing confirmed
Term of payment: 30% ($) T/T in advance, and the balance 70% ($)T/T payment before shipment
Price terms: FOB Ningbo/Shanghai ,China
Transportation: By sea
Warranty: We will provide the English operation manual part list and all thing come with the machine to our customer and shipped them with the machine
Our Services
We can offer you English manual for install and operation. If you need us send English for install or adjusting, the buyer should take on all costs required during our technician’s stay in the buyer’s county, like VISA FEE, round airplane tickets, accommodation, foods and others. The engineer’s salary is 100 USD/day.
