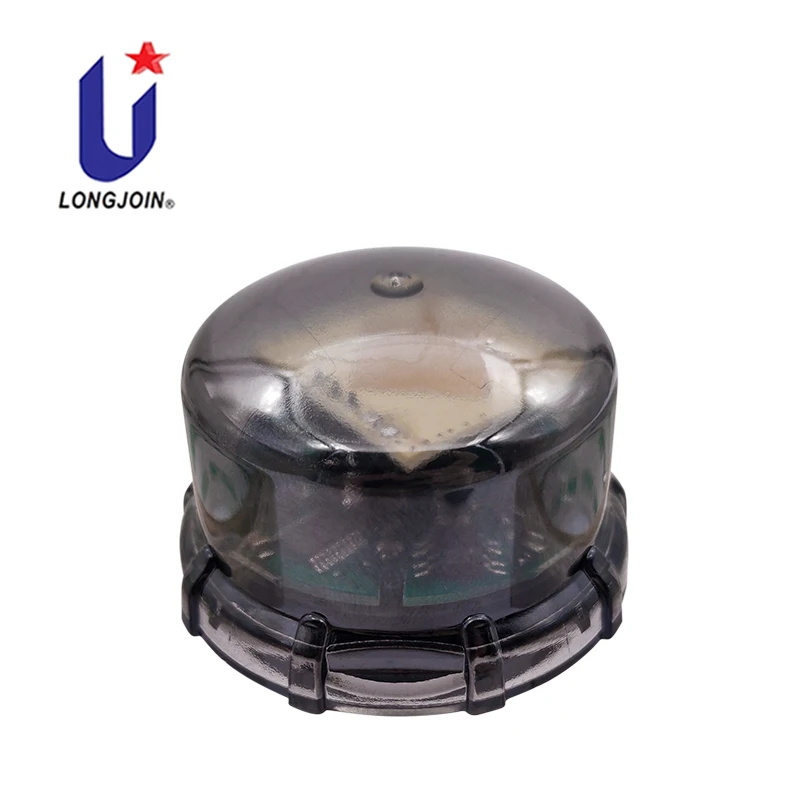

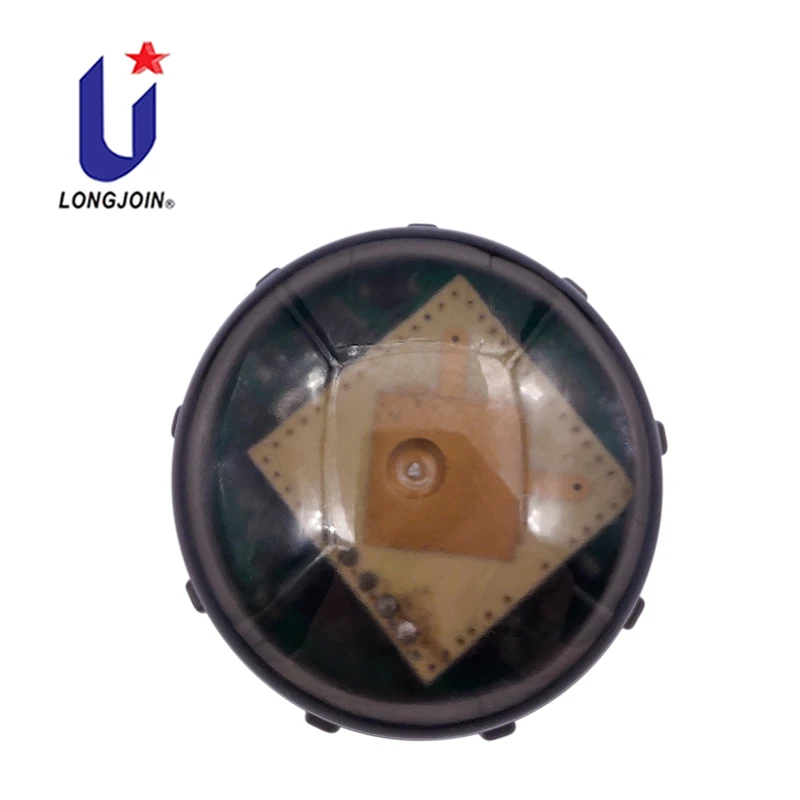

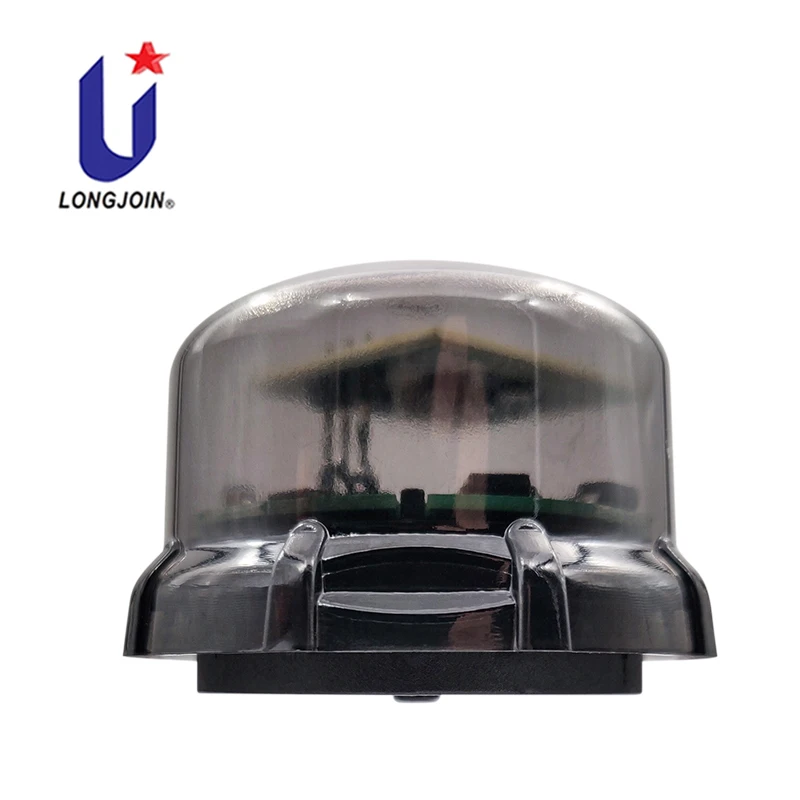

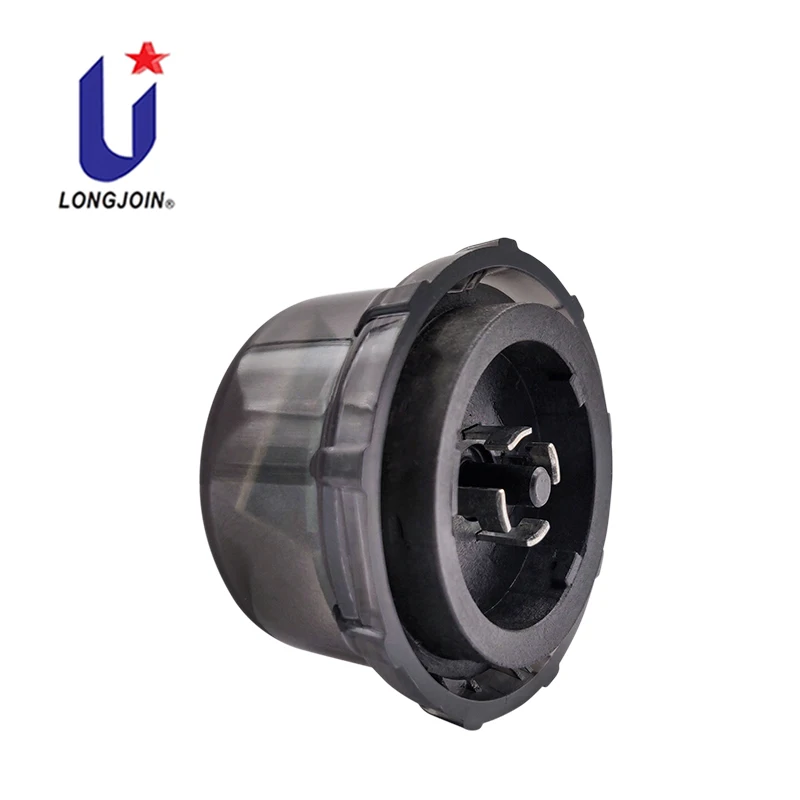

Светильник контроллер Zhaga датчик для уличного света

Item

Definition

Type

1

12-24 VDC

power input

2

GND / DIM-

power input

3

NC

Signal output

4

DIM+ (0-10V+)

Signal output

Model

JL-722A3

Voltage

12V/45 mA, 24V/30mA

Power consumption (at daylight)

12-24V / 8.5 mA

Sensor type

Optic sensor & microwave motion

Dimming output

DALI, adjustment range 2%, Drive capability: 40 mA

Spectral Acquisition Range

350~1100nm, Peak wavelength 560nm

Default turn-on illuminance threshold

50 lx +/-10

Real-time turn-off illuminance threshold*1

when the ambient illuminance after turning on the light to 100% brightness each time +40 lx (+/-10)

up limit: 50+40 lx (+/-10)

down limit: 6000 lx (+/-100)

Reflected light compensation upper limit

6000 lx (+/-100)

initiate state adjustment

After power-on, the light will be turned on by default at 100% brightness and maintained for 5 seconds, then the light will be turned off automatically and enter the self-sensing operation mode

Light on delay

5s (The light will be turned on only when the ambient illuminance is satisfied for 5S continuously)

Turn-off delay

20s (Turn off the lights when the ambient illuminance is satisfied for 20S continuously)

Fixture illumination brightness change ratio: 0%~20%, 20%~100%

1s

Fixture illumination brightness change ratio: 100%~20%, X~0%

8s

100% lighting duration after its motion trigger

30s

Standby brightness (when the illuminance is satisfied but there is no moving object)

20%

Maximum hanging height

15 m

Sensing radius

4-8 m (Under 15m hanging height)

Sensing angle

92 degrees

Flammability Level

UL94-V0

Anti-static interference(ESD)

IEC61000-4-2

Contact discharge:±8kV,CLASSA

Air discharge:±15kV,CLASS A

Mechanical Vibration

IEC61000-3-2

Operating Temperature

-40°C~55°C

Operating Humidity

5%RH~99%RH

Life

>=80000h

IP rating

IP66

extra protection mode

built anti-trigger motion protection

Certificate

CE, CB, zhaga book 18
