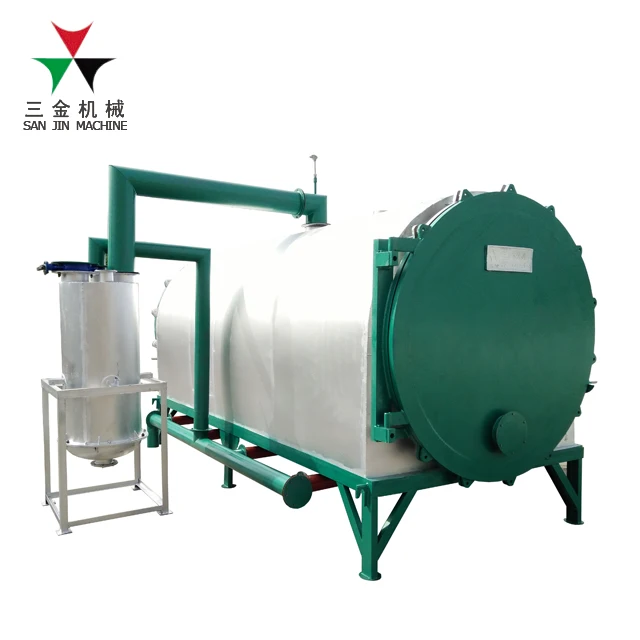

Новый дизайн, машина для производства древесного угля
US $3300-$3370
Китайский бренд Sanjin инновационный дизайн опилки угольные карбонизированные
- Категория: Carbonization Stove >>>
- Поставщик: Gongyi,Sanjin,Charcoal,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7378.52 $* | 7747.38 $* |
| Aug-15-2025 | 7316.42 $* | 7682.37 $* |
| Jul-15-2025 | 6138.32 $* | 6445.86 $* |
| Jun-15-2025 | 7192.20 $* | 7552.94 $* |
| May-15-2025 | 6262.30 $* | 6575.86 $* |
| Apr-15-2025 | 7068.93 $* | 7421.15 $* |
| Mar-15-2025 | 7006.48 $* | 7356.94 $* |
| Feb-15-2025 | 6944.53 $* | 7291.47 $* |
| Jan-15-2025 | 6882.76 $* | 7226.75 $* |
Характеристики
Product Description
1.Introduction:
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
2.The feature:
1.Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times.
2.The door use packing seal, not into the air, Out of carbon than the conventional carbonization furnace is much higher.
3.The reason is called green carbonization furnace because the stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.
4.Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler.
5.Carbonization furnace to end charcoal cooling time is shorter, we use the inter layer of the gap between the unit water cooling carbonization furnace natural cooling, more efficient and convenient.
6.Environmental air carbonization furnace Supporting a track and kiln car, use more convenient,reduce worker labor intensity.
*Customers to buy this carbonization furnace really reached a simple, labor-intensive, easy to install charcoal out of carbon, cooling time greatly reduced, carbonization furnace production can be greatly improved.
*Carbonization furnace can be customized according to customer requirements.(Materials and working process)
3.Advantage:
1.Due to its design principle with two layers,one is the cooling layer, another is the heat preservation layer, so can reduce its carbonization time.
2.It can use different material as heating source.Such as the Firewood/coal gas/ natural gas/liquefied gas/Combustible gas(produced during the carbonized process)
3.Using anaerobic coking and combustible gas recycling technology
4.Every step from raw materials to production process will be monitored by the engineer, equipment debugging the final before delivery.With engineer and boss signature before shipment ensure the reliability of the technology, has the practicability of products。
5.Smoke purification treatment :Water and activated carbon filtration purification gas
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
2.The feature:
1.Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times.
2.The door use packing seal, not into the air, Out of carbon than the conventional carbonization furnace is much higher.
3.The reason is called green carbonization furnace because the stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.
4.Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler.
5.Carbonization furnace to end charcoal cooling time is shorter, we use the inter layer of the gap between the unit water cooling carbonization furnace natural cooling, more efficient and convenient.
6.Environmental air carbonization furnace Supporting a track and kiln car, use more convenient,reduce worker labor intensity.
*Customers to buy this carbonization furnace really reached a simple, labor-intensive, easy to install charcoal out of carbon, cooling time greatly reduced, carbonization furnace production can be greatly improved.
*Carbonization furnace can be customized according to customer requirements.(Materials and working process)
3.Advantage:
1.Due to its design principle with two layers,one is the cooling layer, another is the heat preservation layer, so can reduce its carbonization time.
2.It can use different material as heating source.Such as the Firewood/coal gas/ natural gas/liquefied gas/Combustible gas(produced during the carbonized process)
3.Using anaerobic coking and combustible gas recycling technology
4.Every step from raw materials to production process will be monitored by the engineer, equipment debugging the final before delivery.With engineer and boss signature before shipment ensure the reliability of the technology, has the practicability of products。
5.Smoke purification treatment :Water and activated carbon filtration purification gas
Size Information
Model | 120 | 170a | 170b | 190 | |||
Capacity | 2000kg/24h | 4000kg/24h | 7000kg/24h | 10500kg/24h | |||
Dimension | 2.86*1.6*2.1m | 2.85*2.1*2.1m | 4.6*2.1*2.1m | 5.5*2.2*2.2m | |||
Weight | 1.68t | 3t | 3.5t | 6.8t | |||
Inner pot diameter | 1.2m | 1.7m | 1.7m | 1.9m | |||
Inner pot length | 2.6m | 2.2m | 4.4m | 5.3m | |||
Volume | 3cbm | 5cbm | 10cbm | 15cbm | |||
Carbonization | 6-8 hours | ||||||
Specification
1.Supply to USA, Europe, and Australia
2.Material: bamboo, wood, wood log, branches, coconut shell, wood briquette, biomass briquette etc.
3.Professional charcoal machine supplier
4.Energy saving, it can reuse the smoke produced during the process of carbonization.
2.Material: bamboo, wood, wood log, branches, coconut shell, wood briquette, biomass briquette etc.
3.Professional charcoal machine supplier
4.Energy saving, it can reuse the smoke produced during the process of carbonization.
Details Images
To improve the design of the charcoal carbonization furnace, in order to prevent gas leakage, the oven door with graphite packing seal, greatly enhancing the effect of carbonization.
In the carbonization process ,can produce combustible gas,can recycle these gas.These gas delivery to the white tank through No.1 pipeline,then open the valve of the No.2 pipeline, these gas can reach to the bottom of the furnace through the No.2 pipeline.At the No.4 valve, you can be connected to a pipeline at the No.4 valve, so that can use the extra gas,these gas can cooking, burnning boiler etc.So can save some cost, it is enery-saving.
This is shunt tank, at the Nbottom(NO.5) can collect the wood tar.
This is shunt tank, at the Nbottom(NO.5) can collect the wood tar.
Raw Materials
The Final Production

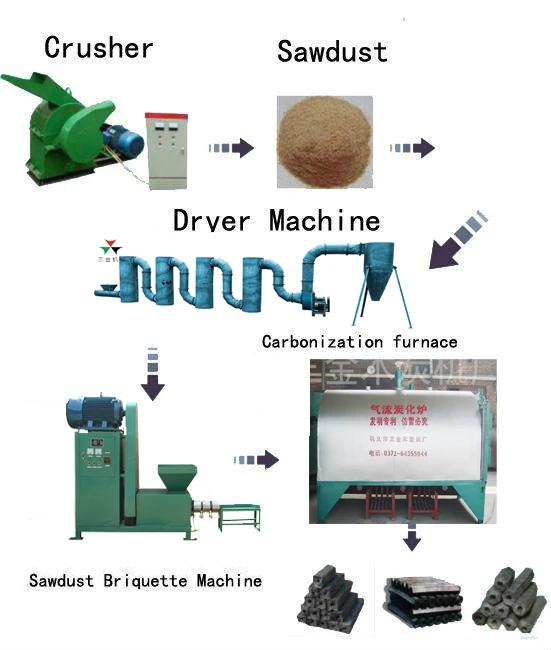

Production Flow Chart
Packing & Delivery
