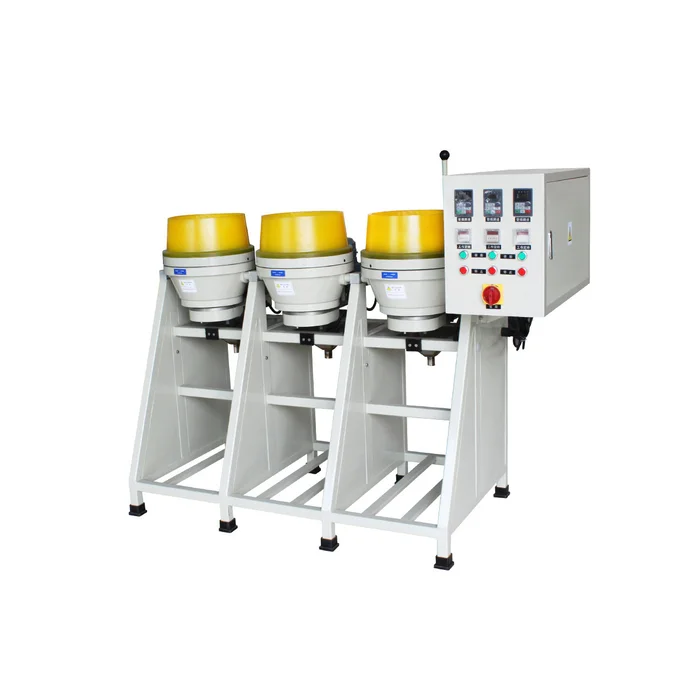

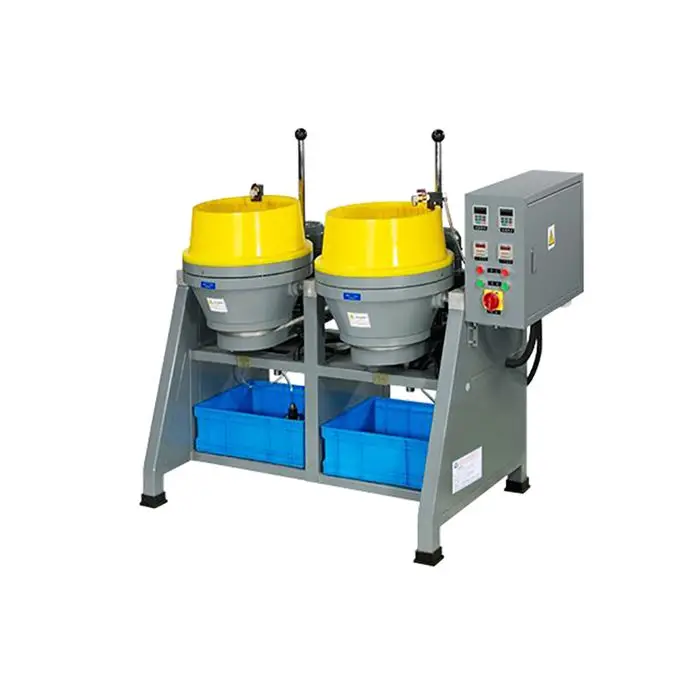

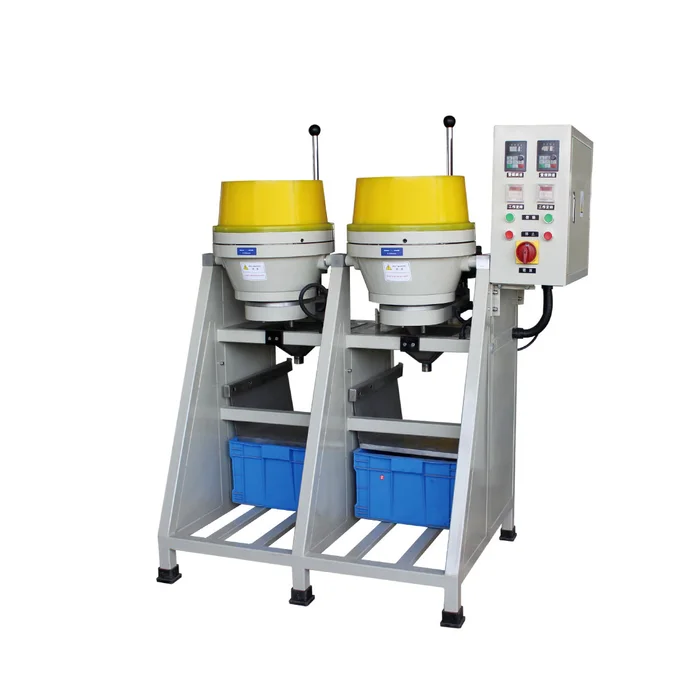

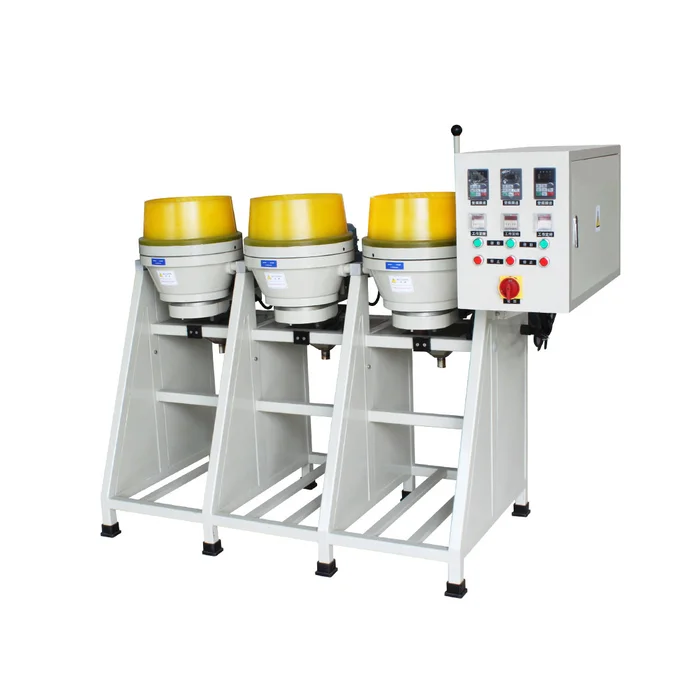

Otec style Adjustable small gaps Centrifugal disc finishing machine/Centrifugal disc finisher/Jewelry polishing machine
Product details
Place of Origin
Guangdong;China (Mainland)
Brand Name
DY
Condition
New
Warranty
1 YEAR
After-sales Service Provided
Online support,Video technical support
Power (kW)
0.75
Applicable Industries
Manufacturing Plant
Key Selling Points
Eco-friendly
Weight (KG)
150
After Warranty Service
Online support,Spare parts,Video technical support
Welcome to Dongyuan GrindingWe are a manufacturer of high quality disc finsihing machine. The motor adopts Taiwan original motor , very small gap 0.035MM.This unique setting of the gap between the disc and the ring of barrel make super fine polishing granulate to be possibly used as media.In the operation process ,the machine shows excellent quality at any time,No need to worry about the after-sale, and the price is Cost-effective.
Cost-Effective High Efficiency Automatic Unloading Centrifugal Disc Tumbler China
Advantage:
●Disc finishing machine offers an automatic solution for big batch processing for smaller parts.
●The high energy disc finishing technology provides up to 10-30 times faster process than vibratory finishing.
●The short processing time and high automation level is a major advantage of the finishing process.
●Centrifugal disc finishing equipment can accomplish work from aggressive deburring to luster polishing.●Typical application includes pre-painting finishing, Belt buckle deburring, Pre-plating finishing, finishing before coating.
Specification:
Model
Volume
Machine Size
Power
Machine weight
Rotary Speed
DY-W20L
20L
720*800*1450MM
0.75KW
140KG
0---450 R.P.M
DY-W20L*2
20L*2
1180*800*1450MM
0.75KW*2
235KW
0---450 R.P.M
DY-W20L*3
20L*3
1700*800*1450
0.75*3KW
330KG
0---450 R.P.M
DY-W38L
38L
900*820*1450MM
2.20KW
220KG
0---400R.P.M
DY-W38L*2
38L*2
1500*820*1450MM
2.20KW*2
370KG
0---400R.P.M
DY-W38L*3
38L*3
2150*820*1450MM
2.20KW*3
530KG
0---400 R.P.M
DY-W50L
50L
1450*2000*2350MM
2.20KW
650KG
0---380R.P.M
Feature:
1.Compact design suit both wet and dry process
2.Process containers with hot molded PU lining
3.The bearing selected the wear resistant ceramic/tungsten alloy ring
4.High quality gap adjusting system
5.Speed control with frequency inverter
6.Automatic water recycling device
