Product Description


UR71 Industrial Cellular Router

The UR71 is an affordable industrial-grade 3G/4G LTE router with compact construction designed for connecting Ethernet and RS-232/485 devices to a cellular network. It is ideal for typical applications including remote installations like kiosks, point of sales equipment and lottery terminals.







Device Management Platform

Ursalink Device Management Platform is engineered to extend your network reach of remote equipment and allows you to perform further analysis, spot outages and ensure the highly possible uptime. As an intelligent IoT-based strategy, the Platform comes with exciting promises that release operational efficiency and drive commercial success.





Highlights:

High Processing Speed: embeds 64-bit ARM Cortex-A53 processor, 256 MB DDR3 RAM
Flexible Modular Design: supports Serial port, 1xRS232 or 1xRS485
IoT Platform Readiness: connects to AWS, Azure, ThingWorx in minutes
Remote Management: features Ursalink Device Management Platform
Edge Computing Capabilities: supports python programming
Custom-Tailored Service: experienced OEM/ODM solution

Multiple Encryption Tunnels: complies with a wide range of VPN protocols

High-Speed Data Transmission: features Gigabit Ethernet Port



Designed for Universal Use

Keeping machines connected 24×7 with Ursalink industrial router is the most reliable solution for M2M/IoT applications. It enables wireless communication in an environment where landline connections are either too expensive or not feasible at all.



Sign up for online Free Demo!

http://www.ursalink.com/apply-ur7x-demo







Detailed Images

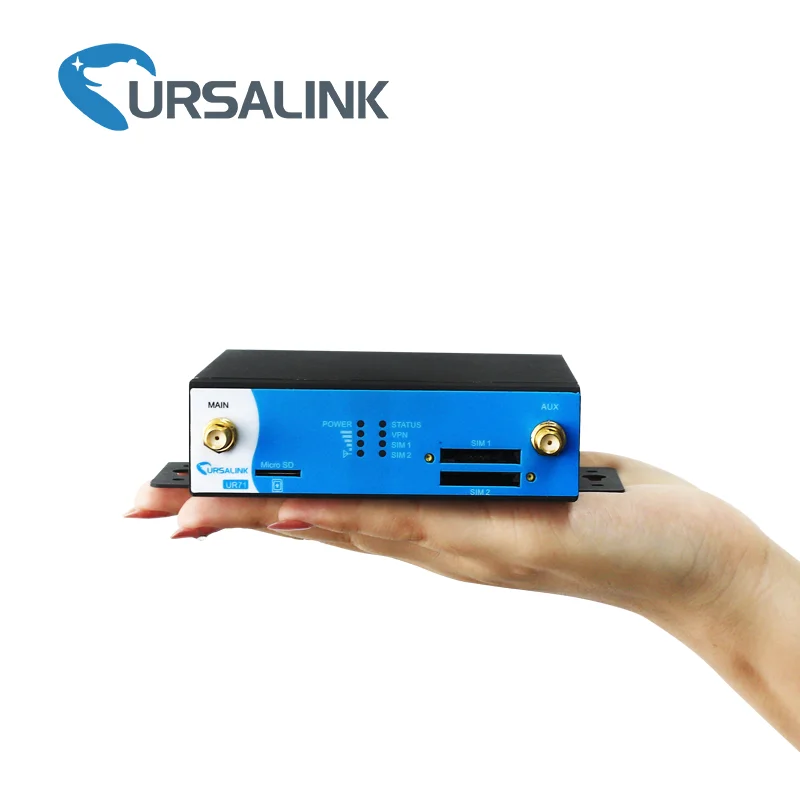

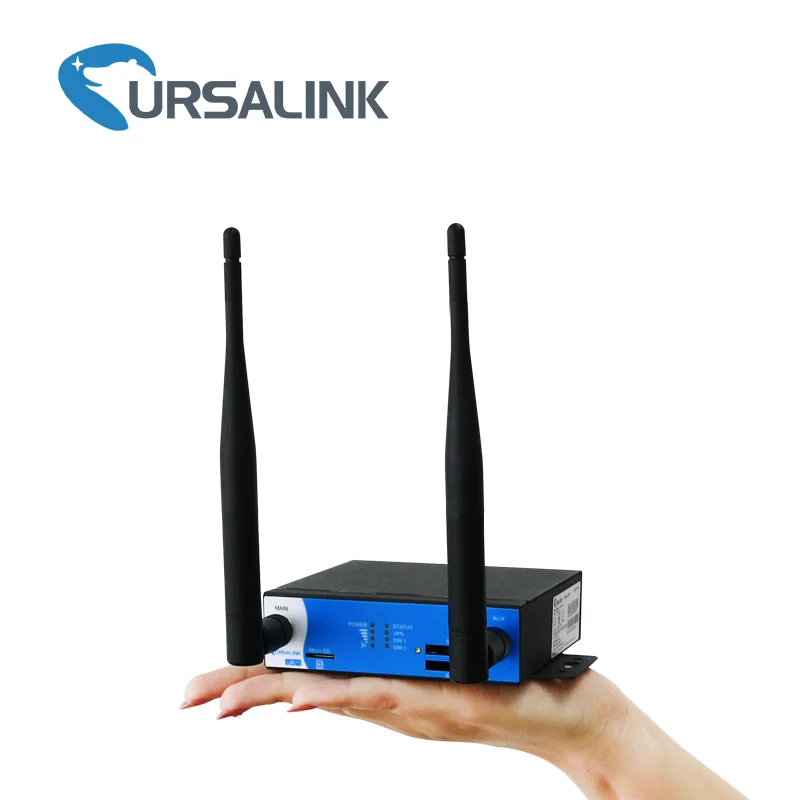

Comprehensive Industrial Interface - Front

Main Cellular Antenna & AUX Cellular Antenna

Micro SD Card

Dual SIM Card Slots

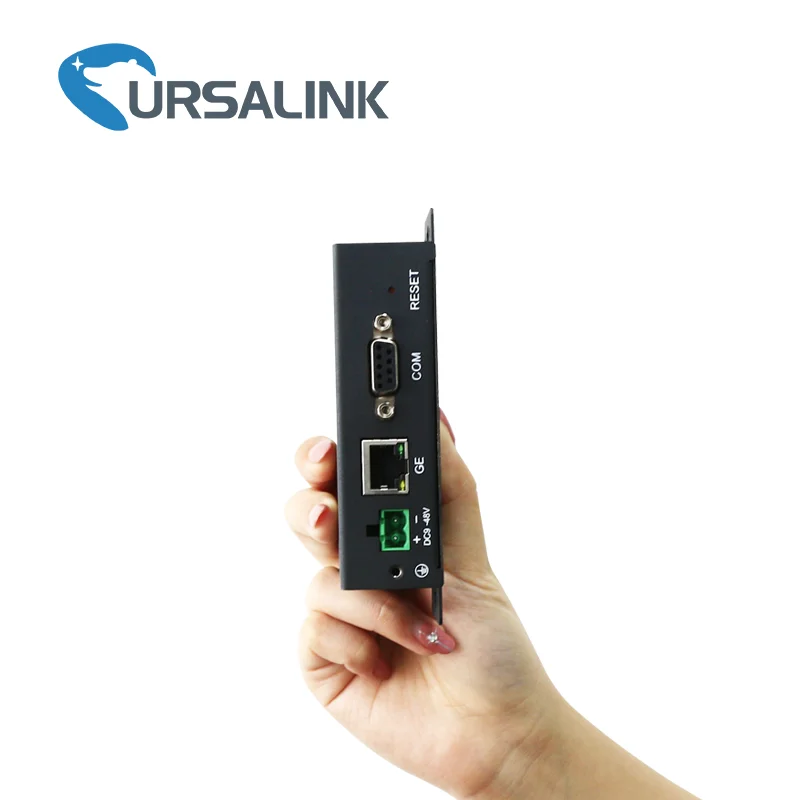

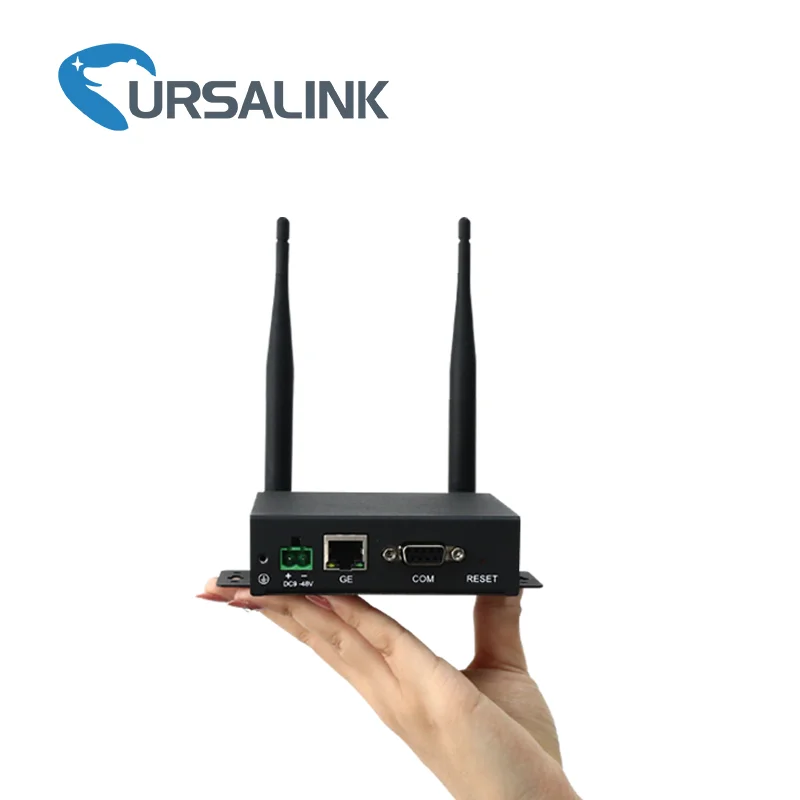

Comprehensive Industrial Interface - Back

Gigabit Ethernet Port: 1 x 10/100/1000 Mbps

Serial Port: 1 x RS232 or 1 x RS485

Grounding Stud

Power Connector

High Accuracy GPS (Optional)






            Package Contents


             2 x Magnetic Mount Cellular Antennas
             2 x Stubby Cellular Antennas (Optional)
             2 x SIM Card Slots
             1 x Power Adapter

             and more....








3 Years Warranty Included

With Real-Time Online Technical Support



Specifications



UR71
UR72
UR75




Capabilities
CPU
800 MHz, 64-bit ARM Cortex-A53
Flash
64 MB
Memory
256 MB DDR3
Built-in
Watchdog, RTC
GPS
GPS + GLONASS
SSD
N/A
M.2 slot supports SATA M.2 SSD
(22 x 42 mm) up to 512 GB
Micro SD
Supports micro SD card up to 128 GB



Interfaces
SIM Slots
2
Ethernet Ports (Mbps)
1 x 10/100/1000
2 x 10/100/1000
5x 10/100/1000
Serial Ports
1 x RS232 or
1 x RS485
1 x RS232 + 1 x RS485
or 2 x RS232 or 2 x RS485
Digital (I/O)
N/A
2 x DI + 2 x DO
Antenna Connectors
2 x Cellular Connectors
(Center Pin: SMA Female)
2 x Cellular Connectors
2 x Wi-Fi Connectors, 1 x GPS Connector
(Center Pin: SMA Female)




Network
Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA
Radius, TACACS+, LDAP, Local Authentication
Firewall
ACL/DMZ/Port Mapping/MAC Binding
Wi-Fi
N/A
IEEE 802.11 b/g/n/ac (2 x 2 MIMO)
Serial Port
Transparent ( TCP Client/Server, UDP), Modbus Master
 Modbus Gateway (Modbus RTU to Modbus TCP)
VPN
 DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE
Reliability
VRRP, WAN Failover, Dual SIM Backup

Maintenance
Management
Web, CLI, SMS, Watchdog, On-Demand Dial up
Multilevel Authority
Multiple Levels of User Authority




Hardware
Power Input
9-48 VDC
Power Consumption
Typical 2 W
(Max 3 W)
Typical 2.6 W
(Max 4.5 W)
Typical 3 W
(Max 5.5 W)
Ingress Protection
IP30
Housing & Weight
(Metal)
369 g (0.81lb)
471 g (1.04lb)
492 g (1.08lb)
Dimensions
100 x 96.1 x 30 mm
(3.94 x 3.78 x 1.18 in)
132 x 103.8 x 45 mm
(5.20 x 4.09 x 1.77 in)
Mounting
Desktop, Wall or DIN Rail Mounting



Others
Operating Temperature
-40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance above 60°C
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Relative Humidity
0% to 95% (Non-Condensing) at 25°C/77℉
Certifications
RoHS, CE, FCC


EMC
IEC 61000-4-2 Level 3
IEC 61000-4-3 Level 4
IEC 61000-4-4 Level 3
IEC 61000-4-5 Level 4
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 4


Certifications
