Портативный барабан JZC500 для дизельного двигателя бетономешалка цена мобильная самозагружающаяся
- Категория: Concrete Machinery >>>
- Поставщик: Zhengzhou,Jinlong,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 7021.73 $* | 7372.86 $* |
| Aug-17-2025 | 6962.48 $* | 7310.20 $* |
| Jul-17-2025 | 5841.15 $* | 6133.55 $* |
| Jun-17-2025 | 6844.59 $* | 7186.8 $* |
| May-17-2025 | 5959.95 $* | 6257.99 $* |
| Apr-17-2025 | 6726.57 $* | 7062.94 $* |
| Mar-17-2025 | 6667.47 $* | 7000.94 $* |
| Feb-17-2025 | 6608.68 $* | 6938.25 $* |
| Jan-17-2025 | 6549.77 $* | 6876.34 $* |
Характеристики
Product Overview

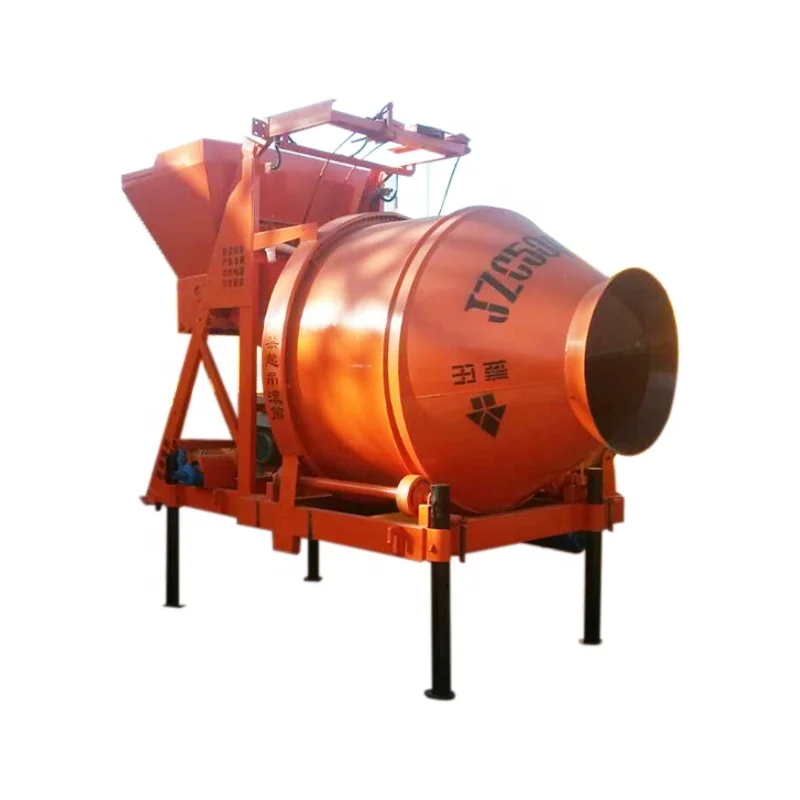

Portable JZC500 drum concrete mixer
The JZC series concrete mixer is suitable for mixing plastic and semi-rigid concrete mixer. It is mainly used in architectural building site; road construction; bridge project; water-power project; small and medium concrete plant,etc. The mixing drum of the machine through the ring geare driven,it has plenty of advantages such as reliable transmission,light weight,low energy consumption,compact structure,smooth operation,simple operation,good mixing quality,high efficiency and so on.
We have electric concrete mixer and diesel concrete mixer for your reference. Please contact us at any time, we will give you a good solution.
We have electric concrete mixer and diesel concrete mixer for your reference. Please contact us at any time, we will give you a good solution.
Product Paramenters
Model | JZC250 | JZC350 | JZC400 | JZC500 | JZC750 | JZC1000 |
Feeding Volume | 320L | 560L | 640L | 800L | 1200L | 1600L |
Discharge Volume | 250L | 350L | 400L | 500L | 750L | 1000L |
Production capacity | 6-8m3/h | 10-14m3/h | 12-16m3/h | 18-20m3/h | 25-30m3/h | 35-50m3/h |
Aggregates size(mm) | ≤60 | ≤60 | ≤60 | ≤60 | ≤80 | ≤80 |
Mixing power | 4kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
Lifting power | 4kw | 4.5kw | 4.5kw | 5.5kw | 7.5kw | 11kw |
Pump power | 0.55kw | 0.55kw | 0.55kw | 0.75kw | 1.1kw | 2.2kw |
Weight | 1500kg | 1700kg | 2000kg | 2400kg | 4200kg | 5000kg |
Mixing drum speed | 14 r/min | 14 r/min | 14 r/min | 14 r/min | 13 r/min | 13 r/min |
Discharging way | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
Dimensions (mm) | 2260*1990*2750 | 2766*2140*2880 | 2940*2240*2880 | 3320*2460*3650 | 3810*2120*3730 | 5300*2300*5800 |
