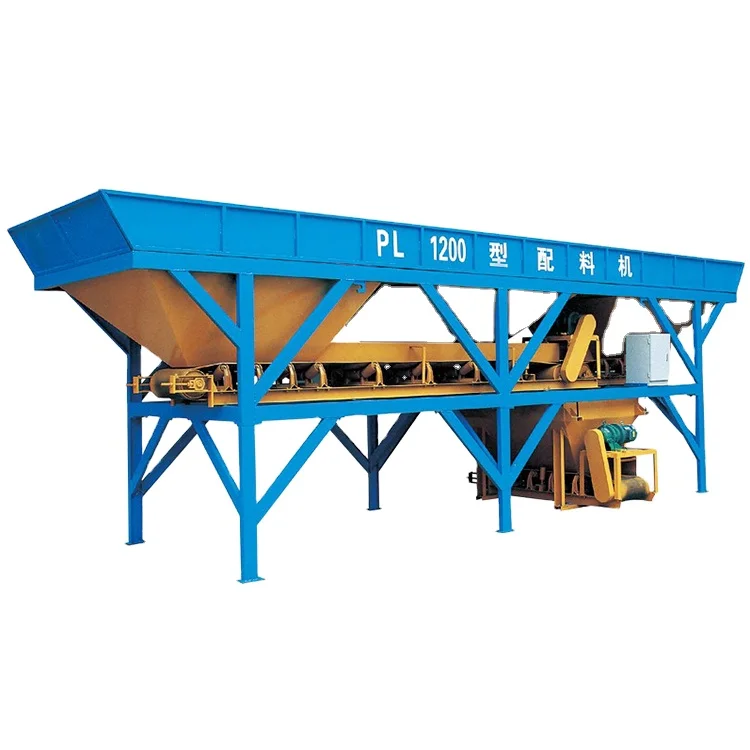

Горячая Распродажа агрегаты установка для сбора бетона PL1200 машина сборки с 3 емкостями маленькие производственные
- Категория: Бетонные машины >>>
- Поставщик: Quanzhou,City,Xingxin,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 9520.52 $* | 9996.32 $* |
| Aug-17-2025 | 9440.70 $* | 9912.52 $* |
| Jul-17-2025 | 7920.37 $* | 8316.29 $* |
| Jun-17-2025 | 9280.93 $* | 9744.11 $* |
| May-17-2025 | 8080.14 $* | 8484.59 $* |
| Apr-17-2025 | 9120.83 $* | 9576.80 $* |
| Mar-17-2025 | 9040.39 $* | 9492.39 $* |
| Feb-17-2025 | 8960.56 $* | 9408.10 $* |
| Jan-17-2025 | 8880.37 $* | 9324.82 $* |
Характеристики
Product Description
Concrete batching machine is used for the aggregates batching for concrete mixing station. The aggregates can be 2-4 types, such as crushed stone, sand and other industry wastes. The proportion of each aggregate is weighed automatically controlled by microcomputer. There are hopper cumulative weighing, belt cumulative weighing and separated hopper weighing can be chosen.
Item | Parameter |
Nominal Capacity of Weighing Hopper | 1.2 m³ |
Capacity of Storage Hopper | 3*3 m³ |
Batching precision | +-2% |
Max. Weighing Magnitude | 2000KG |
Types of Aggregates for Batching | 3 (can be customiazed) |
Feeding Height | 2300 mm |
discharging methord | Electric Conveyor Belt |
Weight | 3760KG |
Dimension | 8390*2000*2800mm |
The weighing type and bin numbers can be customized
1. Hopper Cumulative Weighing
Concrete batching machine with hopper cumulative weighing discharges the aggregates into the same one hopper for weighing. The discharging is automatically controlled to ensure the accuracy. It has features of simple structure, low cost and easy maintenance.
Hopper cumulative weighing is used for small batching capacity machines, such as PL800 (48m³/h), PL1200 (60m³/h), PL1600 (80m³/h). Usually thistype concrete batching machines have 2-3 bins.
1. Hopper Cumulative Weighing
Concrete batching machine with hopper cumulative weighing discharges the aggregates into the same one hopper for weighing. The discharging is automatically controlled to ensure the accuracy. It has features of simple structure, low cost and easy maintenance.
Hopper cumulative weighing is used for small batching capacity machines, such as PL800 (48m³/h), PL1200 (60m³/h), PL1600 (80m³/h). Usually thistype concrete batching machines have 2-3 bins.

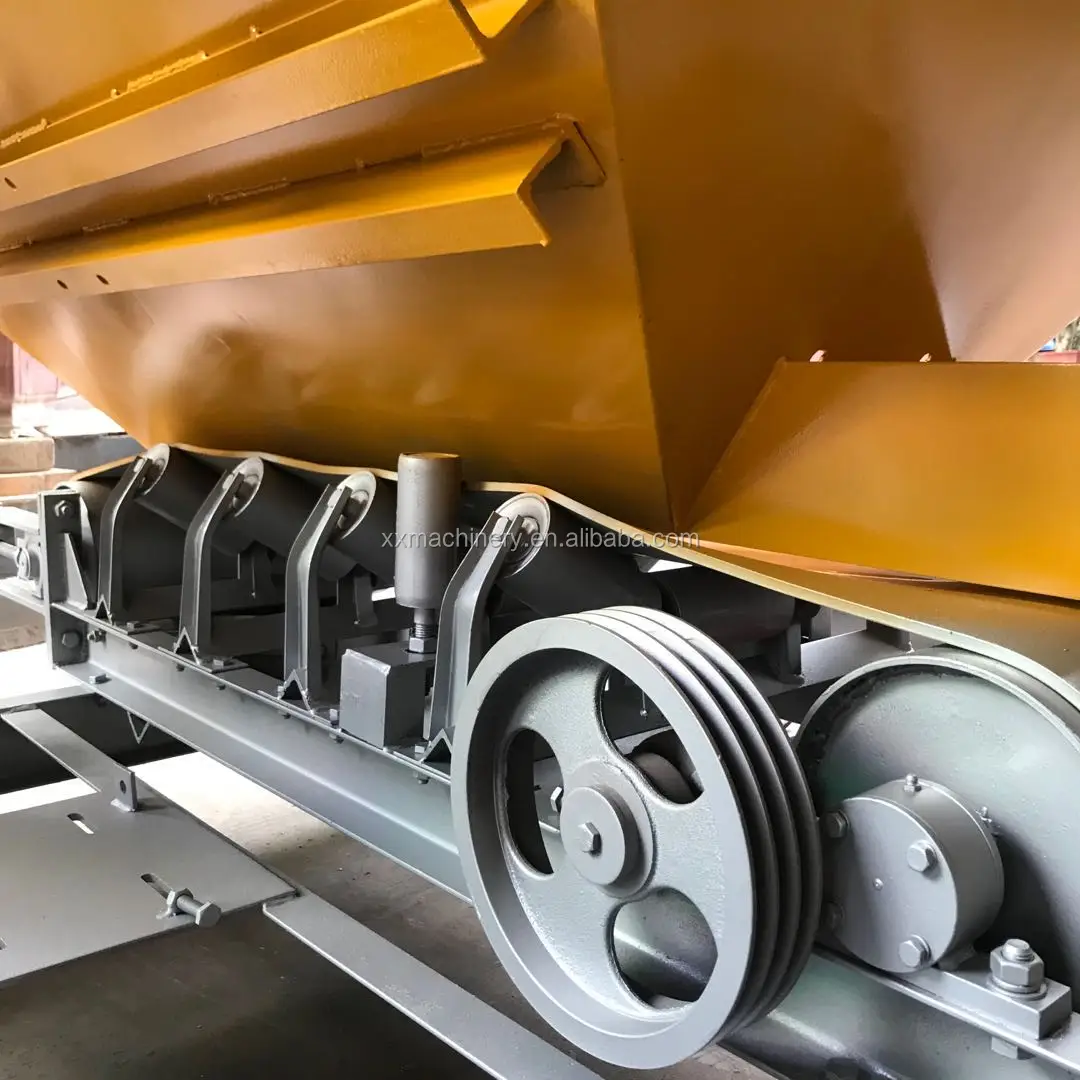

2. Belt Cumulative Weighing
Concrete batching machine with belt cumulative weighing discharges all the aggregates onto the delivery belt with a long hopper.
It has features of big capacity, fast opening and delivery.
Belt cumulative weighing is usually used for PL1600 (80m³/h) and PL2400 (120m³/h) with 3-4 bins.
Concrete batching machine with belt cumulative weighing discharges all the aggregates onto the delivery belt with a long hopper.
It has features of big capacity, fast opening and delivery.
Belt cumulative weighing is usually used for PL1600 (80m³/h) and PL2400 (120m³/h) with 3-4 bins.
3. Separated Hopper Weighing
Concrete batching machine with separated weighing discharges each aggregate into a separated hopper with weighing device. Its main
advantage is high accuracy weighing, but its cost is higher than others, because of the advanced design.
Separated hopper weighing is usually used for PL2400 (120m³/h), LP3200 (160m³/h) or largerbatching machines.
Concrete batching machine with separated weighing discharges each aggregate into a separated hopper with weighing device. Its main
advantage is high accuracy weighing, but its cost is higher than others, because of the advanced design.
Separated hopper weighing is usually used for PL2400 (120m³/h), LP3200 (160m³/h) or largerbatching machines.
Related Products
Packing&Shipping
Company Introduction
FAQ
Q1: what are our advantages?
A: Almost 30 years experience, so we can provide more professional suggestion, installation, training service for you. With 10 years trading experience, our products have been exporting to over 30 countries.
Q2: What kind of products we can supply ?
A: Auto concrete brick making machine, Auto hydraulic brick making machine, Free pallet automatic block forming machine, Concrete mixer, Batching machine, Stacker, Cuber, etc.
Q3:How to make different size and shape brick by one machine?
A: By changing mould it can produce all types of standard building blocks.
Q4:How about installation service?
A: We have experienced engineers, they could come to your place to direct the installation and give the operation training.
Q5:How about After sale service?
During the 1st year, we will supply followings for free:
1. Spare parts of machine and equipment (except quick-wear parts)
2. Repair for equipment’s broken (design, work process and production)
A: Almost 30 years experience, so we can provide more professional suggestion, installation, training service for you. With 10 years trading experience, our products have been exporting to over 30 countries.
Q2: What kind of products we can supply ?
A: Auto concrete brick making machine, Auto hydraulic brick making machine, Free pallet automatic block forming machine, Concrete mixer, Batching machine, Stacker, Cuber, etc.
Q3:How to make different size and shape brick by one machine?
A: By changing mould it can produce all types of standard building blocks.
Q4:How about installation service?
A: We have experienced engineers, they could come to your place to direct the installation and give the operation training.
Q5:How about After sale service?
During the 1st year, we will supply followings for free:
1. Spare parts of machine and equipment (except quick-wear parts)
2. Repair for equipment’s broken (design, work process and production)
