Optional Diesel Generator Accessories:

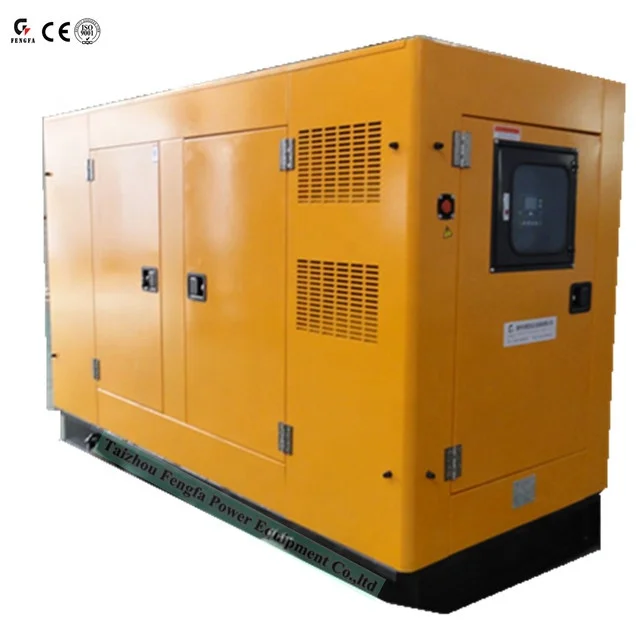

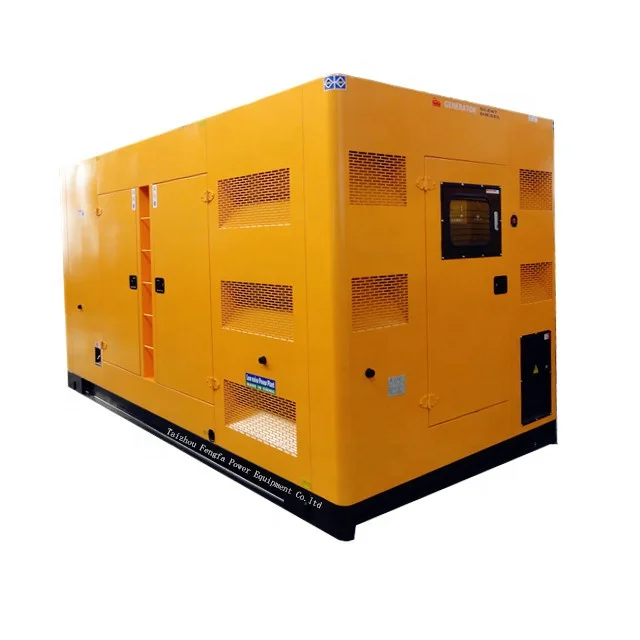

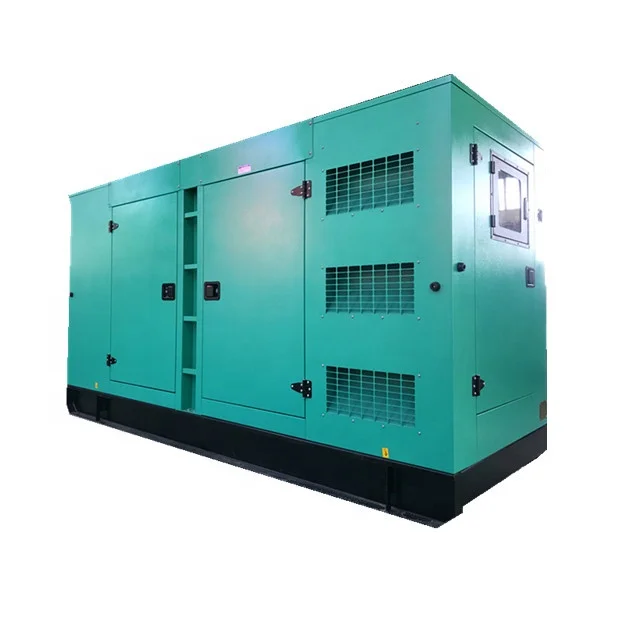

slient type:

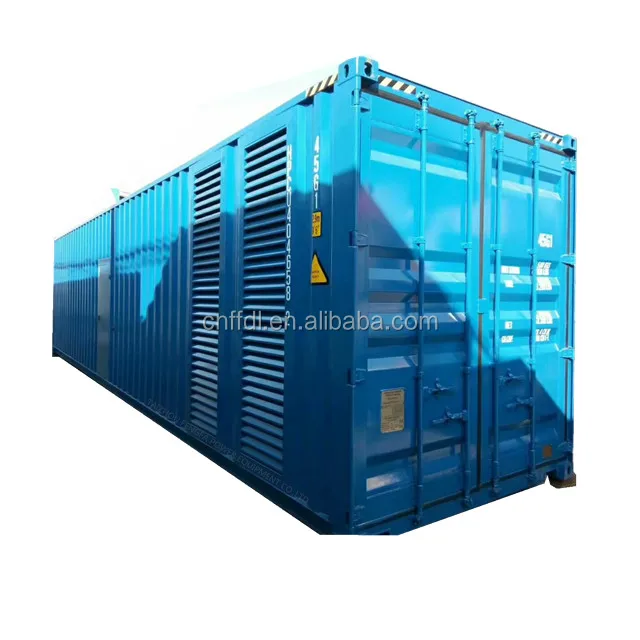

movable type:

2,Alternator Brand:Stamford ,Marathon ,MECC, Copy Stamford ,Faraday,and other brand .

3,Controller:DSE ,SMARTGEN

1)Automatic control panel: use Smartgen or DSE controller: with automatic start, automatic stop; disply current , voltage, frequency, power, power factor, oil temperature, water temperature, oil pressure. Automatic protection function: overload, short circuit, high water temperature, low oil pressure, oil temperature and overspeed protection function;

2)Switch: the French model high beauty technology, small size, impact resistance, large current, high sensitivity, short trnsition time, etc.
3)Function: after the power grid, the controller signal launch, 10 seconds to start the generator set (time can be adjusted 3 to 30 seconds) switch switch to power generation side. After the mains calls, controller signal downtime, delay 3 minuts downtime generator speed down.

4,ATS:

1)Automatic control panel: use Smartgen 6120 LCD controller: with automatic start, automatic stop; display current , voltage, frequency, power, power factor, oil temperature, water temperature, oil pressure. Automatic protection function: overload, short circuit, high water temperature, low oil pressure, oil temperature and overspeed protection function;automatic protection function: with overload, short circuit, high temperature, low oil pressure, under voltage, oil temperature, downtime, overspeed protection function

2)Automation controller: the LCD panel: display current, voltage, frequency, control of generating set automatic start, automatic stop and fault alarm.

3)Switch: the French model high beauty technology, small size, impact resistance, large current, high sensitivity, short transition time, etc.

4)Function: after the power grid, the controller signal launch, 10 seconds to start the generator set (time can be adjusted 3 to 30 seconds) switch switch to power generation side. After the mains calls, switch to the mains switch, and the controller signal downtime, delay 3 minutes downtime generator speed down.

160kw 200kva water cooled super silent doosan engine diesel generator

sound proof 200kva 250kva diesel generator set price

a, 3 year after installation;

b, 3000 running hours (accumulated); subject to the earlier one.

c,The Spare parts can be provided free within one year .
