Аппарат для очистки Волоконным лазером Raycus pulse 200 Вт с
- Категория: Очистная машина на волоконно-оптическом лазере >>>
- Поставщик: Shenzhen,Lonwill,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 2812264.79 $* | 2868509.48 $* |
| Jul-17-2025 | 2280812.98 $* | 2326428.65 $* |
| Jun-17-2025 | 2767976.69 $* | 2823336.63 $* |
| May-17-2025 | 2745832.82 $* | 2800749.14 $* |
| Apr-17-2025 | 2192237.99 $* | 2236082.69 $* |
| Mar-17-2025 | 2701545.85 $* | 2755576.70 $* |
| Feb-17-2025 | 2679401.53 $* | 2732989.94 $* |
| Jan-17-2025 | 2657257.46 $* | 2710402.60 $* |
Характеристики

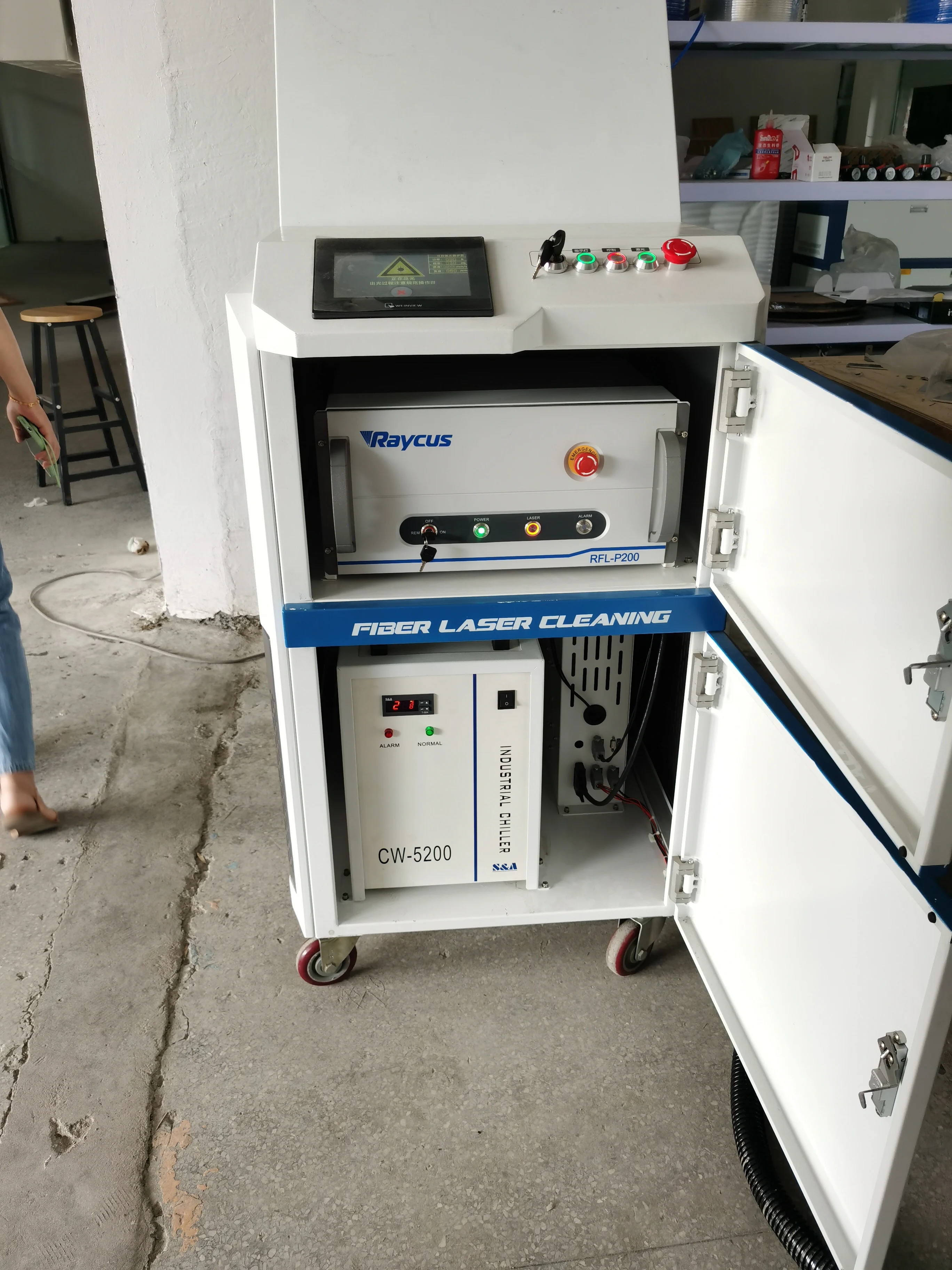

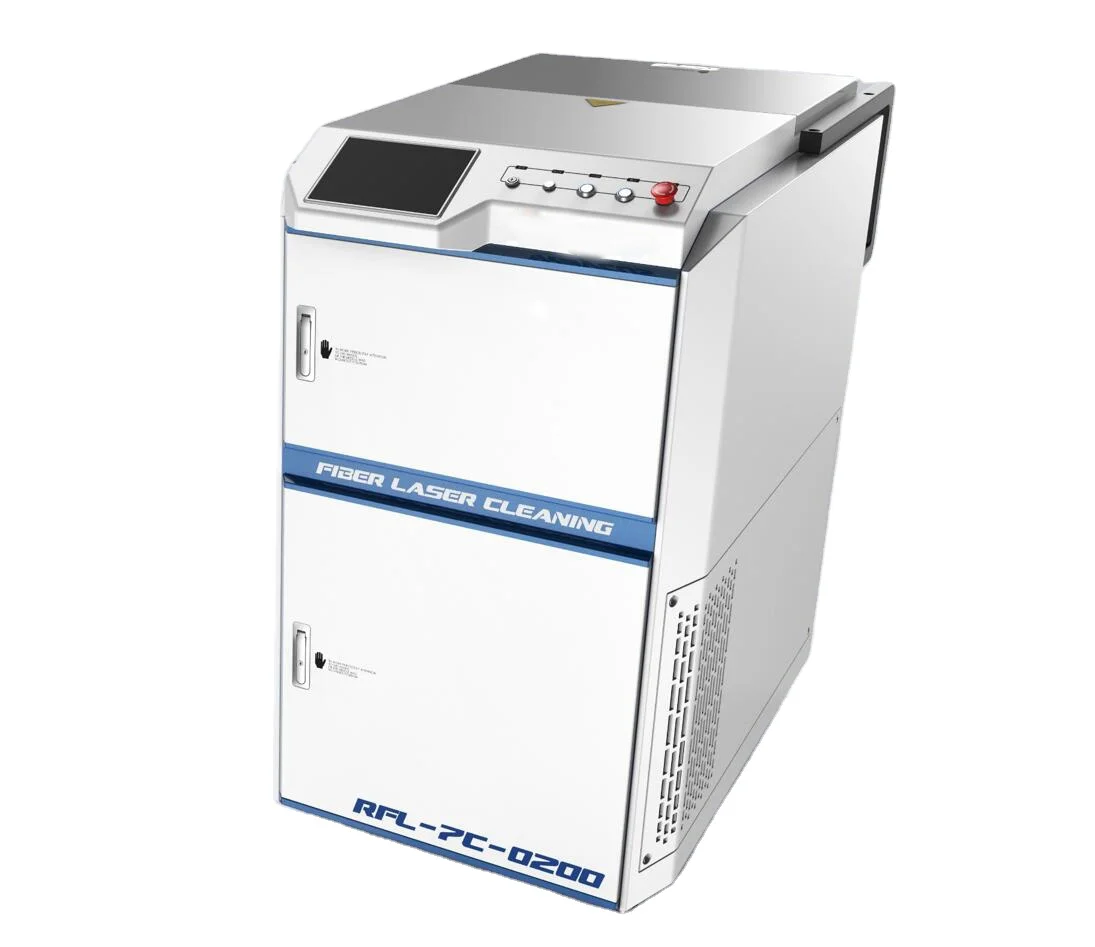

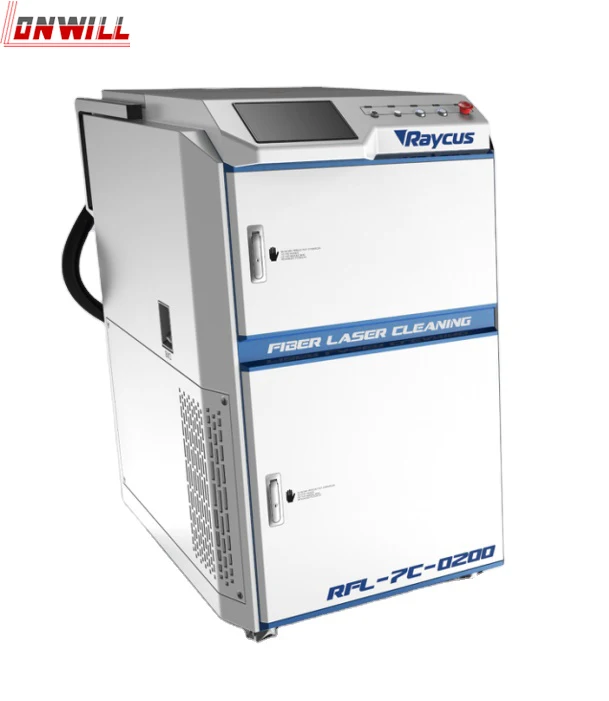

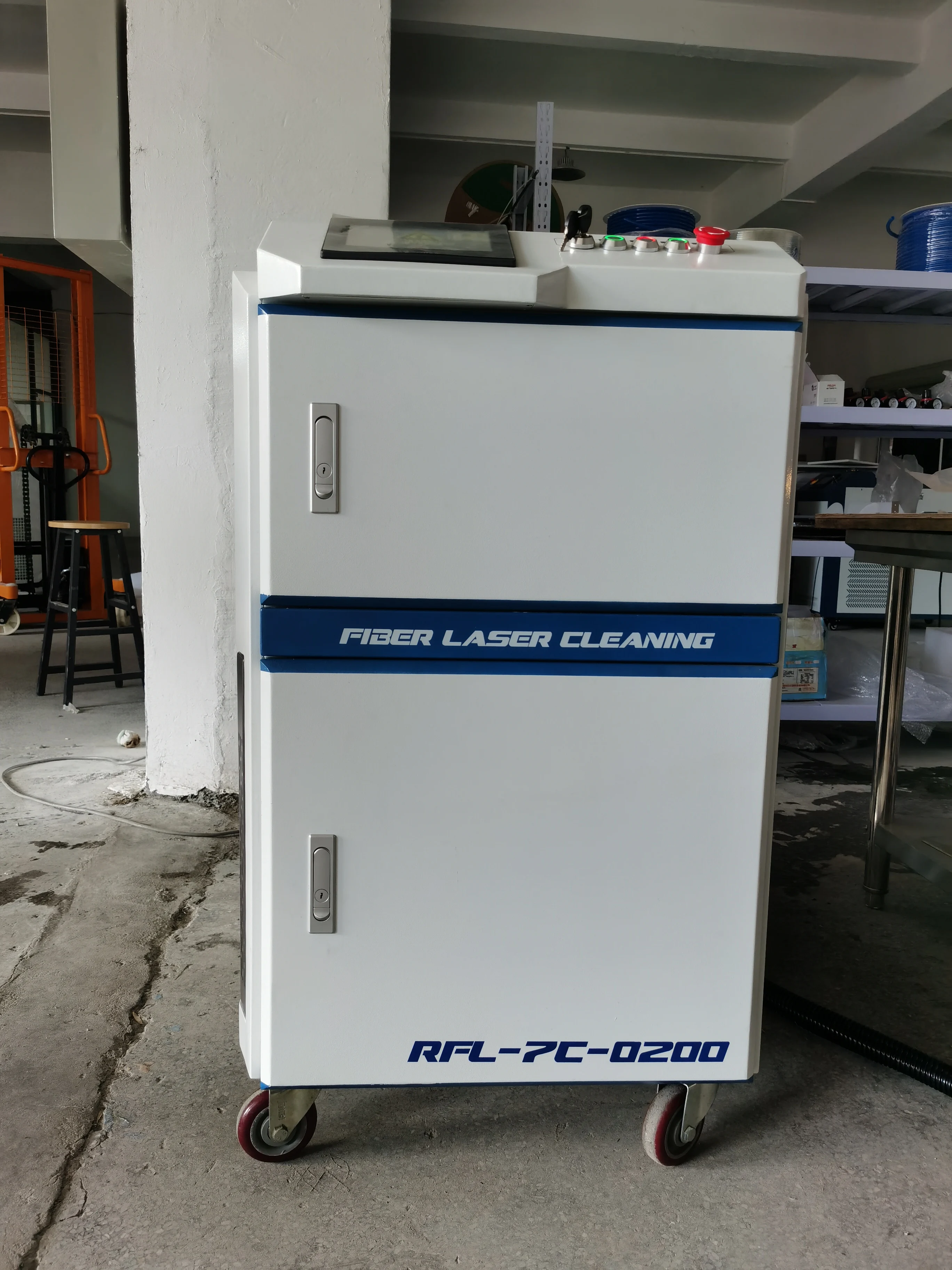

Raycus pulse 200w fiber laser cleaning machine with handle
Machine Features
- No damage to the base of the material due to the no-touch surface cleaning performance.
- Precise cleaning technic for the specific area in a selected area.
- No need of chemistry or other added supplies.
- Easy to be operated, can be hand-held or auto-cleaned by installing a robotic arm.
- Small cleaning time consumption and comes with a high quality finishing result.
- Stable and impacted integrated design which results to no extra maintenance.
Machine Parameter
| Model | RFL-7C-0200 | RFL-7C-0300 | RFL-7C-0500 | RFL-7C-1000 |
| Laser Type | LD-Fiber | LD-Fiber | LD-Fiber | LD-Fiber |
| Pulse Formation | Q-Switched | Q-Switched | Q-Switched | Q-Switched |
| Average Power (W), Max | 200 | 300 | 500 | 500 |
| Power regulation range(%) | 10-100 | 10-100 | 10-100 | 10-100 |
| Pulse-Frequency (KHz),Range | 10-50 | 20-50 | 20-50 | 10-50 |
| Pulse width | 90-130ns | 130-140ns | 130-160ns | 1200-160ns |
| Fiber Length (m) | 5m | 5m | 10m | 15m |
| Cooling Type | Water cooling | Water cooling | Water cooling | Water cooling |
| Input Power | 220V, 50/60H | 220V, 50/60H | 220V, 50/60H | 220V, 50/60H |
| Power Consumption (W) | 2500W | 3200W | 4000W | 5000W |
| (including Chiller) | (including Chiller) | (including Chiller) | (including Chiller) | |
| Dimensions(mm3) | 485*237*764mm | 485*237*764mm | 502*254*755mm | 698×846×1132mm |
| Laser Gun Weight | 2Kg | 2Kg | 2.5Kg | 3.5Kg |
Machine Comparasion
| Item | Pulse laser cleaning | Chemical cleaning | Mechanical polish | Dry lce cleaning (CO2) |
Ultrasonic cleaning |
| Methods | Pulse laser and non-contact type | Chemical agent, contact cleaning | Mechanical/abrasive paper, contact cleaning | Dry lce(CO2),non-contact type | Cleaning agent, contact type |
| Hurt for workpieces | No damage | With damage | With damage | No damage | No damage |
| Cleaning efficiency | High | Low | Low | Medium | Medium |
| Consumable | Just with Electricity | Chemical cleaning agent | Abrasive paper grinding wheel oilstone | lce(CO2) | Special cleaning agent |
| Effective | Excellent with high cleaniness | Common, non-uniform | Common, Non-uniform | Excellent, non-uniform | Excellent, small cleaning area |
| Accaracy | Precise control, high accuracy | Non-control Lower accuracy | Non-control, common accuracy | Non-control lower accuracy | Can not clear in special place |
| Safety&Pollution | No pollution | No pollution | No pollution | No pollution | No pollution |
Machine Dimension

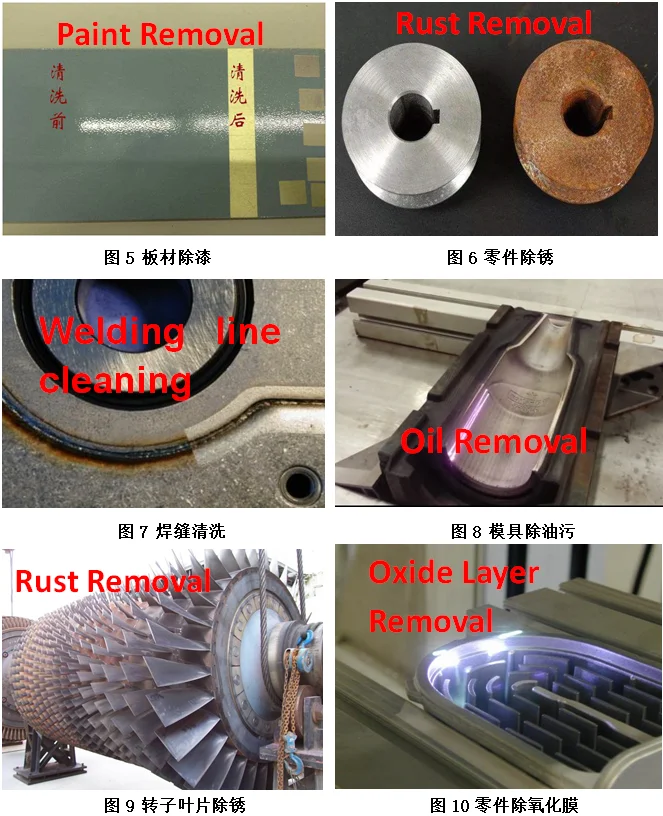

Machine Application
- Metal surface derusting
- Surface paint removal paint treatment
- Surface without dirt, stains, dirt cleaning
- Surface coating, coating removal
- Oxide surface,Oil stain and contaminant cleaning
- Welding surface / spray surface pretreatment
- Stone figure surface dust & attachment cleaning.
- Rubber/plastic/metal mold residue cleaning.
