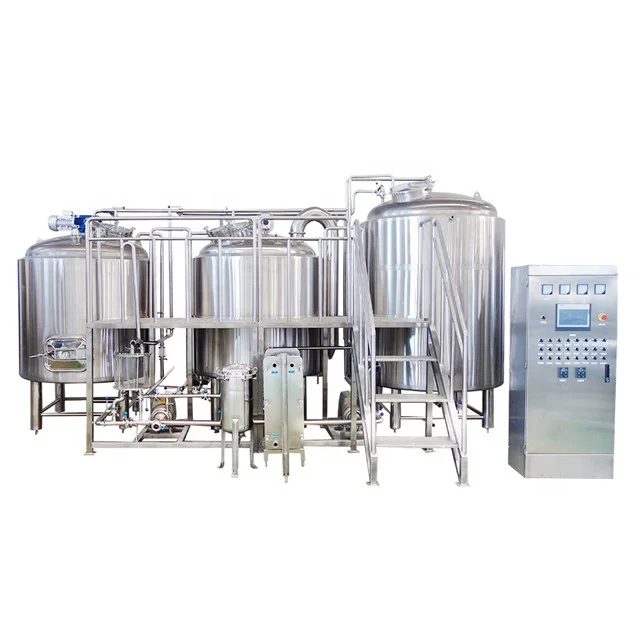

800l complete microbrewery system micro brasserie craft beer brewing equipment brewing tank

1. Features

1) Automatic /semi-automatic operation system ,need one or two brewer operate

2) With our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes

3) We have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate

4) Have good feedback from our clients

5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.

Parameters:



No.	Name	Function	Remark
1	Grain miller	Grain crushing	Necessary
2	Flexible Auger	Conveyor the malt from miller to mash tun	Optional
3	Brew house	Grain mashing/lautering/wort boiling/whirlpool/hot water supply	Necessary
4	Fermentation Tank(CCT)	Wort fermentation or maturation	Necessary
5	Filtration unit	Beer filtration	Optional
6	Bright beer tank(BBT)	Beer maturation/conditioning/serving/filtered beer receiving	Optional
7	Glycol cooling unit	Glycol water supply for wort, cooling and fermentation cooling	Necessary
8	Controlling unit	Brewhouse/Fermenter/Bright beer tank controlling	Necessary
9	CIP unit	Supply caustic liquid and sterilization liquid for all tanks cleaning	Necessary
10	Keg filler and washer	Filling kegs and washing kegs	Optional
11	Bottling machine	Rinsing/Filling/Capping/Labeling bottles	Optional
12	Assisting purchased facilities	Water treating equipment/Steam boiler/ burner/Kegs etc	Optional



PS: All the configurations and specifications can be customized according to your requests.



Brewhouse Unit
1. Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
2. Hot water tank and cold water tank for optional in special combinations
3. Infusion or decoction brewing methods are designed exactly
4. Stainless steel or copper cladding are popular
5. Two stages or single stage heat exchanger for wort cooling
6. Completely stainless steel integrated work platform
7. Sanitary and efficiency wort pump
8. All pipings and fittings



Fermentation Unit
1. Standard stainless steel conical cylindrical fermentation tanks
2. Single size as brewhouse is common used in restaurant
3. Tanks quantity is exactly calculated by fermentation cycle for various beers
4. All manhole, valves, pressure gauges, fittings etc are included



Bright Tank Unit
1.Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
2. Single size as fermenter is common used in restaurant or bar
3. Tanks quantity is exactly calculated for various beers and the function
4. All manhole, valves, stone, gauges, fittings etc are included

Cooling Unit
1.Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
2. Efficiency chillers or refrigerators with fronto supply cooling energy
3. Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
4. All pipes, fitting, insulation materials are included



Controlling Unit
1. Electrical controlling cabinet with temperature, on-off controlling for brewhouse
2. Electrical controlling cabinet with temperature, on-off controlling for cooling parts
3. Temperature controller, thermocouple, solenoid valves etc are included
4. PLC with touch screen panel for special request







Jinan Honglin beer equipment has been widely used around the world, such as home brewing, small breweries, pubs, restaurants, hotels, brewpubs, bars, teaching laboratories and leisure field, brewing barley beer, wheat beer, dark beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.





Packaging Details:

1.Wooden case or steel frame.

This method is very good for loading but need extra cost. Also because of the dimensions of the tanks and container, maybe some tanks cannot use them, but can be confirm when talking about the order.

2. Generally will use the stretched film, this is free and also can avoid the scratches. Will use the carton to cover all of the accessory.

We can package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment.

1. 10 years warranty for the main equipment; the electronic component is 2 year.

2.Pre-sales service

Some clients are new in this field, they also no have ideas about how to confirm the configuration list, since we have experience, we can give some suggestions and also other clients for reference, then they will know what they will need exactly.

We also have the process video for the brewing equipment, if the client do not know the process, the video will be sent.

We will give the layout according to the client’s floor plan or their requirements.3D layout also can be provided. This can help the client to get a better understanding about the project.

We will give the detailed diagram of the tanks, this can help the client to know whether this is what they need and also can modify them before placing the order.

3.After-sales service

 When loading the equipment, we will take photos and show them to the client to confirm everything in the container already.

 Another important issue is installation,2 options can be chosen by the clients as follows:

 1). We can send the engineer there for helping the client install debug the equipment, if it is necessary, the engineer also can teach the client how to brewing beer.

 2). We can provide the piping diagram and wire diagram. They are useful for installing. Then the client can install the equipment by themselves.

 3). The sales will contact with the client all the time until the equipment running normally. Once the client need any assistances or need any accessory, the sales will provide them soonest.



Good reviews from customer in the world:



Jinan Honglin Beer Equipment Co.,Ltd



Jinan Honglin Beer Equipment Co.,Ltd is a professional manufacture of brewery equipment,certified by CE,ISO,ROHS and TUV.We are specialized in brewery design,manufacture,installation and commissioning.With fine workmanship,excellent performance and simple operation,Honglin Brewery Equipment is your wise choice for beer brewing.No matter in appearance,quality,technology or service,Honglin product stands for the top level of beer brewing equipment domestically and worldwide.As an Original Design Manufacture,Honglin Brewery Equipment perfectly fits various brewing process.Our engineers had been sent all over the world for brewery designing,installation, training and technical supporting .
