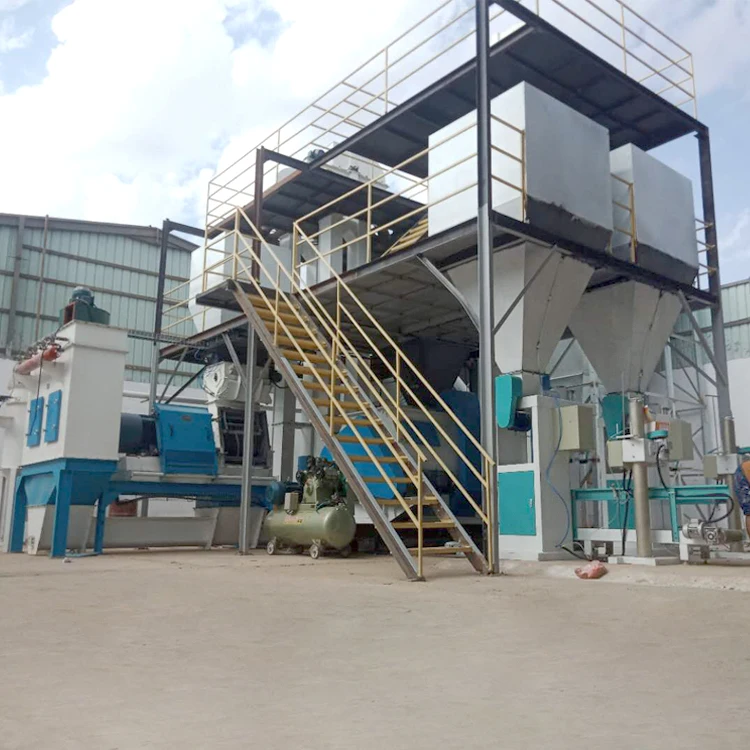

HNHF 10 t/h henan manufacturer complete poultry feed production line



Product Description


Description for feed making plant









































































1200
This animal feed pellet production line can be used for processing livestock, poultry and aquatic feed pellets, which is specially suitable for big feed factory, breed farms. It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials . And also, this manufacturing plant for animal feed has the features of low energy consumption and high production efficiency for larger profits.
CapacityFrom 5-20t/h
_05


Feed Pellets Processing Technology




Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet crushing→ Screening & Grading → Pellet Packing
Equipment Related to Complete feed mill production plant layout
Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine







——Main equipment
SFSP-1

SFSP HAMMER MILL





General-purpose products, stable performance, widely used in large and medium-sized feed, food processing enterprises of raw materials crushed.
A variety of screen size optional, quick open door mechanical and elastic pressure screen mechanism, for screen fast, easy operation and maintenance.

NSK bearings, SKF bearing, and Siemens Motor are available, tungsten carbide alloy spray hammer.


8

SSHJ DOUBLE SHAFT MIXER





Mixing speed is short, the mixing cycle is short, 30-120 seconds / batch; mixing uniformity is high, CV ≤ 5%, and does not produce segregation;
machine mixing process is moderate, loading variable range;
Expected to meet the environmental requirements; can be equipped with compressed air cleaning system, the residue to a minimum level; can be customized for special atomization spray system; add molasses , Grease and so more uniform;


800-800

SZLH RING DIE PELLET MILL





The main drive uses high precision gear drive, the output is about 20% higher than the belt drive type.
Feeder using frequency control motor to ensure that the quality of particles discharged.
The international advanced level of compensation type serpentine spring coupling, with a new structure, compact, safe, low noise, low fault performance.
Ring mold lifting device, gear box gear oil automatic cooling system.


1 (3)

SKLN COUNTER FLOW COOLER





The latest octagonal cooling box design, no cooling dead ends. The use of closed feeder feed, into the air area, cooling effect is significant.
The use of slide valve reciprocating discharge mechanism, the movement is smooth, reliable, small residue.
Low energy consumption, easy operation.
After cooling the finished product temperature is not higher than room temperature+3 ℃ ~ 5 ℃, suitable for the cooling of granular materials.


3

SSLG CRUMBLER





Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc.



SFJH ROTARY CLASSIFICATION SIEVE





Combination of the circle, oval, straight three kinds of movement, screening effect is good. Screen ship drive with belt drive, emphasis on balance, low noise.

Screen tail support for the improved elastic support, vibration, low noise. Strengthen the base to ensure a more balanced operation of the equipment.



AUTOMATIC PACKAGING MACHINE



Applicable to materials with poor mobility. In the weighing mechanism, the hopper on the system with a suction port, can effectively control the spill of equipment dust to ensure that the dust concentration in the working environment, and can make the scale of the body pressure to maintain balance with the outside world, to avoid the air flow weighing accuracy influences.
Packing accuracy: 0.2% Packing range:10-70kg / bag


-1

Electric control system





With the automatic PLC control system, the plant can be high efficiency and convenient operation.
1.Full automation of the complete production line
2.Constant product quality at a high throughput rate
3.Lower manpower requirements, less time cost
4.Better monitoring of the production process
5.High availability due to the use of proven quality components
6.High flexibility and adjustable speed.


——Final product
_04

a. For pig, the pellet diameter is usually ø3.5-6.5mm.
b. For cattle, the pellet diameter is usually ø4.5-8mm.
c. For chicken, pellet diameter is usually ø3.2mm.
d. For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm.
e. For shrimps, pellet diameter is usually ø1.0-ø3.5mm.


Pellet length is customized.



_09


















Packaging & Shipping


---_03


 HNHF 10 t/h henan manufacturer complete poultry feed production line


Specialized design of wooden box packing, ensure that the goods are not damaged,; Container transport.





feed mill equipment





Our Services


 HNHF 10 t/h henan manufacturer complete poultry feed production line


Pre-sale service:


1.Provide our client with investment guide for free.


2.Provide our client with evaluation investment scheme for free


3.Free visit to our factory.


4.Design of production line scheme is provided for free.


In-sale service:


1. Experienced workers are sent to provide track service when equipment is transported.
2. Experienced technicians or engineers will be sent for on-site installation, adjustment and technical devices according to clients' engineering requirement.
3. "Operating instruction manual", equipment assembly drawings and wearing parts list in duplicate will be provided for free.


Post-sale service:


1. On the premise that equipment is operated correctly and in warranty period, we accept repair, exchange, and return items.
2. We provide permanent favorable spare parts for our clients.


3. We provide permanent technology support and related help.





.jpg


² Professional engineering design





² Earliest delivery ,high quality with best price





² Safe and efficient transport services





² Efficient installation guide can send video installation and operation





² One year guarantee for whole machine, except the wearing parts .





² We can provide engineers available to service machinery overseas.





² 24 hours technical support by E-mail or telephone.





Company Information


---_01


With More than 25 Years in Production of Animal Feed Machines


 HNHF 10 t/h henan manufacturer complete poultry feed production line


Henan Hengfu Electronic Machinery Co. Ltd, founded in 1993, is currently one of the best key enterprises specialized in the research and development of feed machinery, pellet machines, animal feed mixers and grinders in the machinery manufacturing industry, which have passed the certification of CE due to our ISO 9001:2008-certified operations. Our feed complete equipment have been exported to North and South America, Africa, Asia, Europe, and more than 20 countries worldwide. We also have strict and complete QC system.


Good quality, competitive price and excellent after-sale service are highly praised by customers. So far, product sales have covered more than 25 provinces and cities in China and also exported to Ghana, Botswana, Benin, Ivory Coast, Venezuela, Mozambique, Indonesia, Malaysia, Korea and over more than 20 countries.


---_02


---_04





FAQ


To give you the accurate price, there are some details to confirm as follows:
HNHF 10 t/h henan manufacturer complete poultry feed production line
1. What's your raw material?
2. what kind of animal do you feed?
3. The output per hour?
4. Do you also need automatic packing machine?
5. The basic processing technology: Grinding, mixing, pelleting, cooling, crumbling, screeening, packing. Any special requirement, let me know directly.
6. Our normal voltage is 380V, 50HZ,3phase, if yours is different, tell me yours.





.png





1.Are you manufacturer,yes or not?
Answer:Yes. We have been feed machine manufacturer for 23 years and it will be longer.Now we are capable of producing not only feed machines but also biomass machines and mineral stone processing machines.



2.Can you accept the customized plan? Can you simplify my plan for reducing costs?
Answer:Of course,our brilliant engineers are waiting for it all the time.

3.What's your MOQ?
Answer:Generally speaking,one is okay,but larger quantity ,lower price.

4.What i need know to build a feed processing plant?
Answer:You just need figue out the following questions:

(1)What animal you want to feed? the animal amount?This is used for confirming the production capacity and feed type.
(2)What raw materials you have?material size?material moisture?
(3)Any speical demand?Wait for your contact anytime.
