Features of hot air centrifugal dryer



   1. Using the principle of centrifugal drying, the drying efficiency is high.



   2. The pedal brake device is used to stop the drum quickly.



   3. The container is made of stainless steel and has a long service life.



   This dryer uses the principle of centrifugation and hot air convection to dry the workpiece. Specifically, the motor is driven by a belt to drive the stainless steel barrel to rotate, throw away most of the water, and then heat the air with the help of the electric heating tube installed on the barrel cover, and form a hot air circulation to heat the parts, so as to achieve the purpose of quickly drying the parts. . After the parts are completely dry, if you need to stop as soon as possible, you can use the foot brake device to complete it to improve its production efficiency. The machine is also equipped with a leakage switch and a thermal overload relay, which play a role of leakage protection and protection of the circuit and the overload or short circuit protection of the motor.



Instructions



   1. Before starting up and using, check the power connection, whether the fixed position of the drum is correct, connect the power, open the upper cover, switch on the motor switch, let the drum run idling, the steering should be indicated by the arrow in the shell In the same direction, turn on the heating wire switch, and hot air can be discharged after a few minutes. If the heating wire has not been discharged after 5 minutes of work, stop and check whether the heating wire exhaust is blocked.



   2. The cover should be put down for drying work, and the machine should be stopped when loading and unloading workpieces. Pay attention that the workpieces should be evenly distributed in the drum, otherwise the centrifugal force will be non-parallel and shake vigorously with the dehydration opportunity. The rotating drum should not be overloaded or overfilled. If the dried workpiece is small and dense, or easy to store liquids, first centrifuge and dry for 1-2 minutes, take out the drum, turn the workpiece to the position, and perform heating and centrifugal drying to achieve satisfaction Effect.

   3. To use the drum to stop, first stop the electric machine, and then step on the brake plate with your foot, but remember to turn off the motor to brake. The dehydrator can perform centrifugal drying alone without heating, but it cannot turn off the motor and heat alone for drying.



   4. Before using the dehydrator, you should read the instructions and understand the operating principle. In order to ensure safe production, you should always check and maintain the dehydrator, and regularly add high-quality lubricating grease to the bearings to keep the dehydrator in good condition.

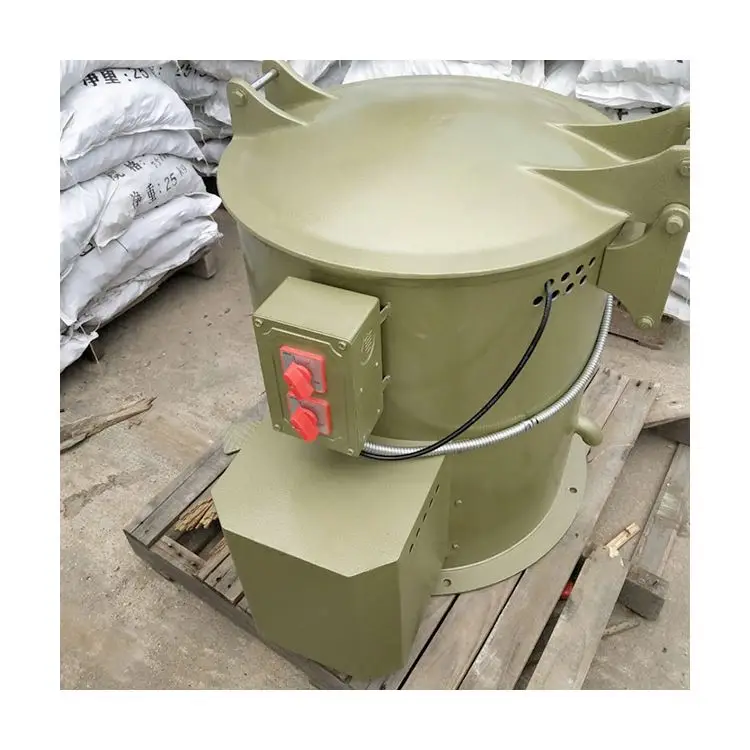

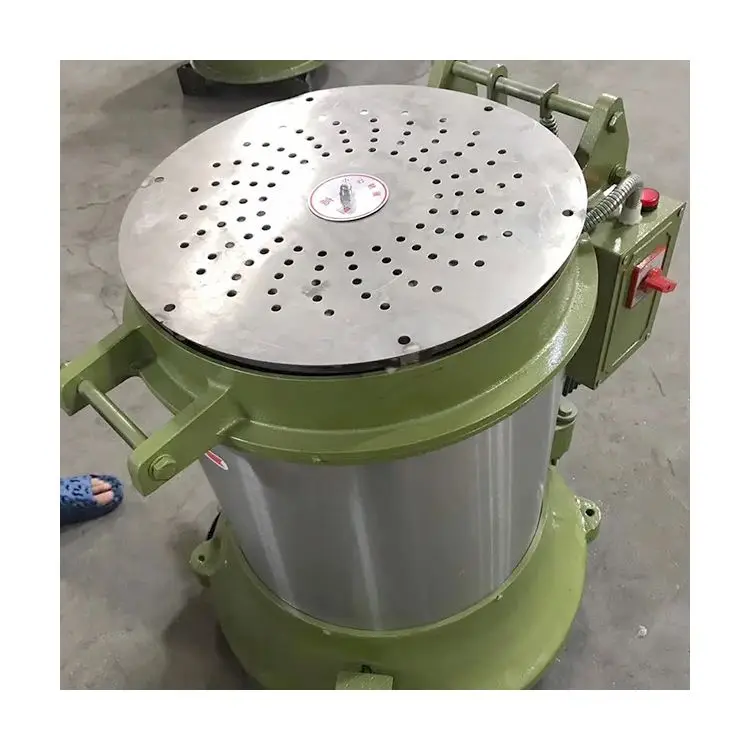

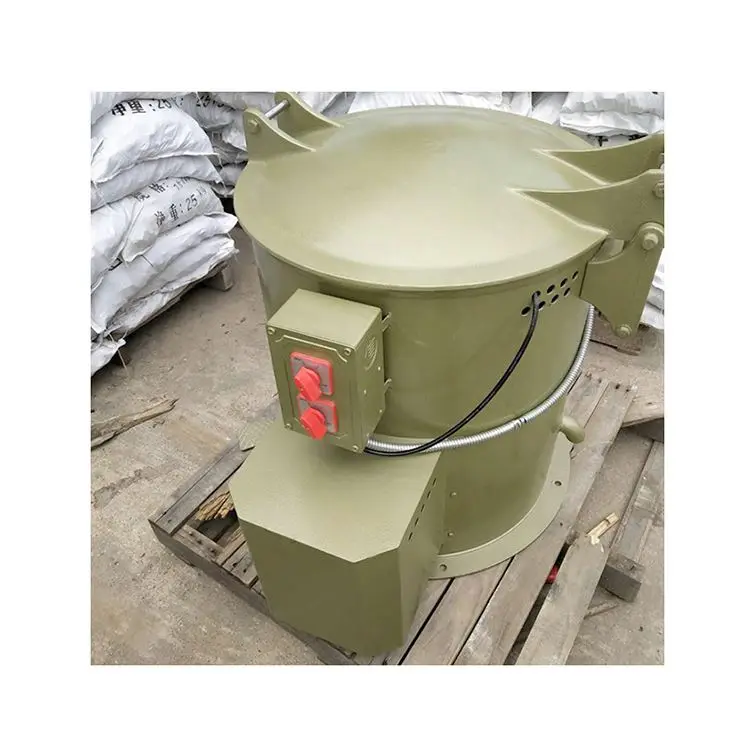

Dehydration dryer (aluminum cover + iron bucket + stainless steel inner basket)





   1. Using the principle of centrifugal drying and hot air drying, dehydration and drying are carried out at the same time, no water stains and stains appear, and the gloss and quality of the finished product are improved



   2. The pedal brake device is adopted to quickly stop the drum to improve the safety of use.

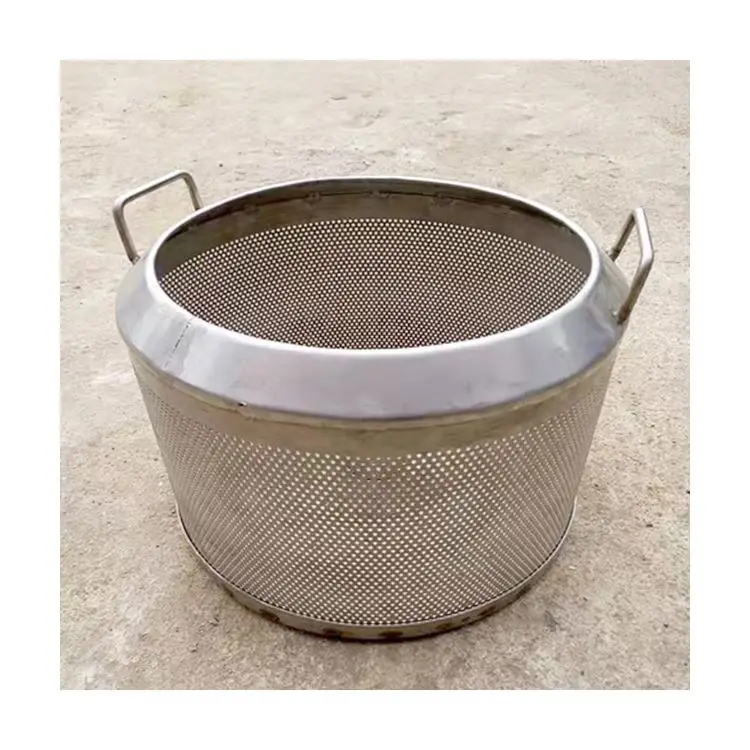

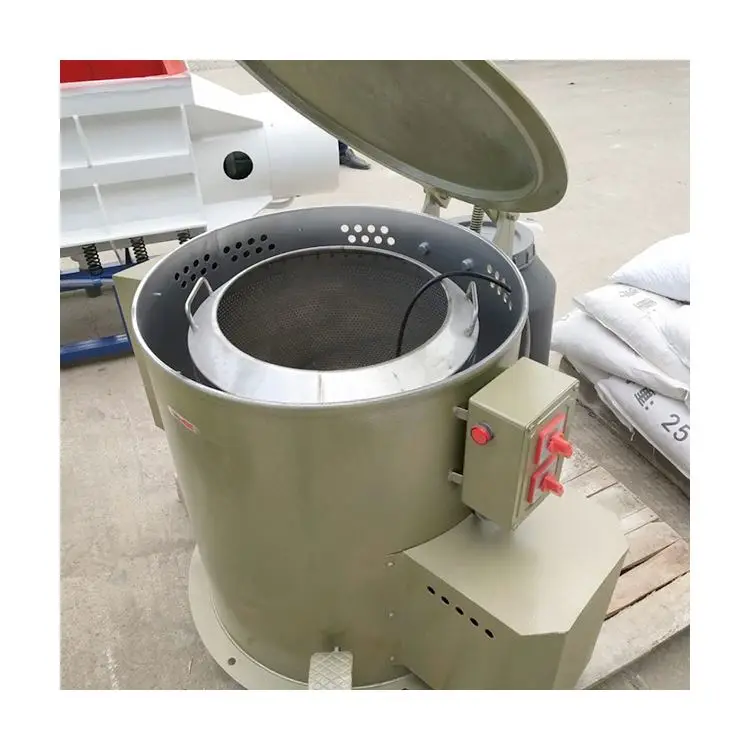

   3. The dehydration tank is made of stainless steel, which is strong and durable, and the inner basket can be raised to facilitate the loading and taking of the workpiece.
It is suitable for dehydration and drying of various metal parts after grinding, oil washing and water washing or immersion in anti-rust liquid.





Precautions



   1. Before use, let the drum run idling, check whether the direction of rotation is the same as the indicating arrow on the outer label of the shell, and check with the heating wire



   2. When loading the workpiece, make the workpiece evenly distributed in the drum,



   3. When stepping on the brake plate with your foot, be sure to turn the drum switch off.



   4. The dehydrator can be centrifuged and dried separately without heating, but the motor cannot be turned off and heated separately for drying.



   5. Frequent inspection, maintenance, and regular addition of high-quality lubricating grease to the bearings should be used to maintain good performance of the dehydrator.



You should also pay attention to the following three issues



1. To be fixed and anti-movement

   The dewatering and drying machine has a high speed and is easy to move during operation. It should be fixed before use. The usual method is to put a layer of shock-absorbing rubber or waste tires on the bottom; you can also use anchor screws.



2. Products should be evenly distributed

   The dehydrated (deoiled) and dried parts should be evenly placed around the dehydration basket, and do not pile up in the middle to prevent the machine from shaking violently due to unbalanced centrifugal force. For those flat parts that are easy to overlap, or parts with many inner holes (inner diameter), you can stop the machine halfway, turn the parts over, and then start the machine, which can effectively prevent water accumulation.



3. Don't overfill. For the sake of safe operation, the dehydrated (deoiled) dried parts should not exceed 80% of the volume of the dehydration basket.









   Huzhou xinfeng grinding co., ltd. is located in the south taihu lake, the Yangtze river delta hinterland, the famousHangzhou jiahu plain, jiangnan town huzhou shuanglin town western suburbs.East Shanghai, south hangzhou, west pillow Tian Mu shan, north su xichang, huyan highway through the territory, through the ancient canal, land and water traffic tenCent is convenient, geographical environment is advantaged, travel resource is quite rich, famous person is enumerated, be a voice

Renowned at home and abroad silk house, the land of fish and rice.

Our factory is a complete set of manufacturing process that integrates polishing, grinding equipment, grinding tools, abrasives and grinding liquid into one Battalion unit, complete production equipment, strong technical force, with abrasive, abrasive, machinery, chemical and other specialized Engineer.The factory was founded in 2001, the company in the development of "plastic first-class team, casting first-class management, create first-class companies, first-class products".Set up the concept of "customer development, quality survival", form the purpose of "customer demand oriented, customer satisfaction as the goal, serve customers wholeheartedly".As a result, the bank with its own advantages such as excellent quality, low price, service week, and so on, won the general praise and favor from customers.Has 20 years of design and development experience, has a complete set of production, sales, service system.



 Products are widely used in metal, non - metal parts surface finishing finishing.Especially suitable for irregular type Surface batch to cut, grinding, jade, casting and other parts produced by the burr, flying edge, water chestnut And eliminate the oxide skin, rust and so on, but also especially suitable for the surface geometry complex, easy to deform thin wall narrow Seam, special - shaped cavity finishing finishing processing.

   Our factory will be "quality for survival, science and technology for development, honesty for prosperity" spirit of service to customers Door, service to the community, thank you for your cooperation!









Our laboratory services are available to you at no cost. Mass Finishing and determination of Process Capability allows you to use the right media to ensure consistent production capability and built-in reproducibility of your manufacturing processes. We will work with you to determine the best media and the best processes for your parts. This step can result in:

• Reduced Cycle Times


• Improved RMS Finishes


• Reduced Finishing Costs


• Access to Latest Technology


• R & D for Special Process Media



Mass Finishing describes a mechanical process where large amounts of parts are economically processed to achieve one or several surface improvement functions. These surface improvement functions include:



• Cleaning


• Deburring


• Surface refinement


• Inhibiting


• Drying



These functions are not independent of each other. It is common to have several or all of these functions take place in a single mass finishing process.

Process Capability is the measured, built-in reproducibility of the product turned out by the process. Such a determination is made using statistical data, not wishful thinking. Statistically determined limits are compared to specification limits to decide if a process can consistently produce acceptable product. Process capability is best established through closely monitored testing and recording of data over a set period of actually production.
