Spent grains organic refuse spiral dewaterer recycling machine line



Product Description


 1





Introduce of Stainless Steel Waste Vegetable Grass Dewatering Machine

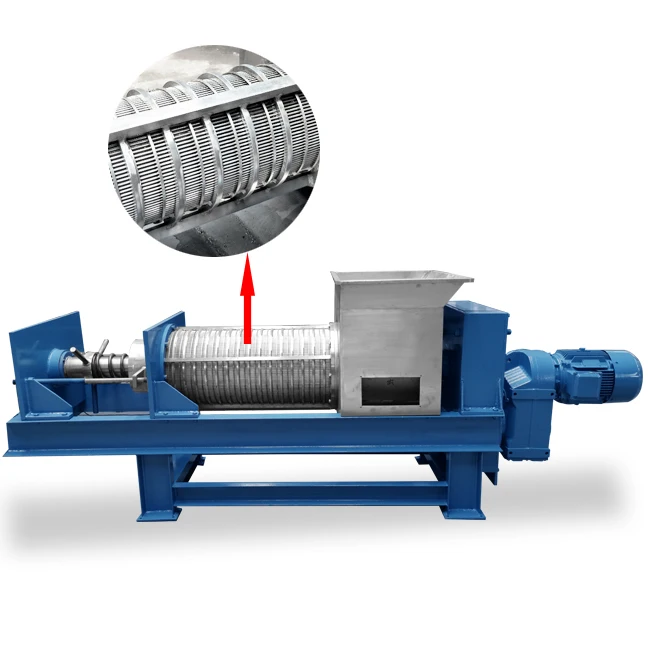

Screw Press Organic Waste Screw Dewatering Machine is a way of using physical squeeze dehydration equipment, this equipment consists of driving system, feed box, spiral twisted dragon, screen mesh, pneumatic device, water tank, frame parts, such as material from the feed box into the device, under the conveying of spiral twisted dragon escalate pressure extrusion, excess liquid through a sieve is being exhausted from outlet, the remaining material (dehydration) under the spiral twisted continue to delivery of the dragon, through the resistance device is being exhausted from other outlet.











































































































                                                                 Screw Press Dewatering Machine
    ModelTZ - 0.5 TZ - 1.5 TZ - 3 TZ - 5TZ - 10
    Capacity t/h0.2 - 0.5t/h1 - 1.5t/h2 - 3t/h3 - 5t/h5 - 10t/h
Screw conveyor Diameter 180mm 260mm 350mm 420mm 500mm
Screw pitch 100mm 150mm 200mm 210mm 280mm
Speed 5-15r/min 5-15r/min 5-15r/min 5-15r/min 5-15r/min
Screw pressDiameter 180mm 260mm350mm 420mm500mm
Speed 5-15r/min 5-15r/min 5-15r/min 5-15r/min 5-15r/min
Hydraulic systemDiameter  Spring adjustment  Spring adjustment  Spring adjustment ≤6Mpa ≤6Mpa
Power 0.55KW 0.55KW
Power 3KW 5.5KW 7.5KW 11KW 18.5KW
Dimension1800*550*9202200*800*12003100*900*13003580*1000*14703740*1200*1650
Weight450Kg 900Kg 1300Kg 2600Kg 3050Kg




 2


3


4


 5


6





Scope Of Application


7


8


1, High fiber fruits and vegetables juice, hawthorn, lemon, apple, pineapple, seabuckthorn fruit, ginger (crushed), and other fruit and vegetable juice
2. Dehydration of organic matter, distillers' grains, vinegar grains, mushroom residue, cassava residue, carrot residue, bagasse, straw, soybean protein, etc

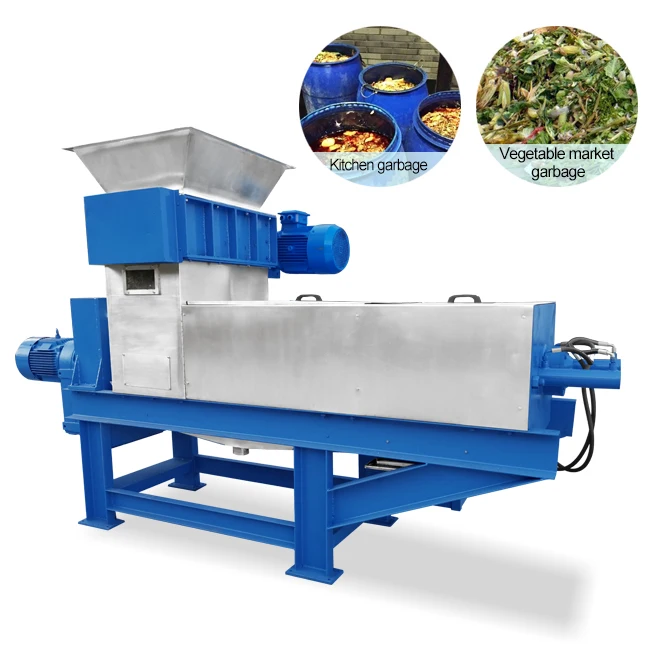

3. Dehydration of kitchen waste, hotels, restaurants and urban organic waste
4. Extract herbal juice from herbs,
5, Pulp dehydration, wood pulp, grass pulp, bamboo pulp





Packaging & Shipping


 9


We are a technology-based, professional Research & Development and Production manufacturing factory for environmental protection equipment, screw dewatering machine, screw conveyor and all kinds of shredding crushing machine.
Our team has 3 engineers, 55 professional and technical personnel, the main product technology in accordance with national GB standards and local and industry standards. Over the years, we has been committed to the research of filtration, dehydration, waste recycling and other equipment, and has accumulated rich experience in these aspects.
