Мощный дизельный генератор 12 кВт с двигателем Perkins 403A-15G2 50 Гц бесшумная Дизельная генераторная
- Категория: Diesel Generators >>>
- Поставщик: Taizhou,Jinte,Electromechanical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4284.42 $* | 4498.81 $* |
| Aug-15-2025 | 4248.31 $* | 4460.88 $* |
| Jul-15-2025 | 3564.72 $* | 3742.27 $* |
| Jun-15-2025 | 4176.25 $* | 4385.49 $* |
| May-15-2025 | 3636.19 $* | 3818.29 $* |
| Apr-15-2025 | 4104.97 $* | 4309.44 $* |
| Mar-15-2025 | 4068.80 $* | 4271.30 $* |
| Feb-15-2025 | 4032.62 $* | 4234.43 $* |
| Jan-15-2025 | 3996.30 $* | 4196.36 $* |
Характеристики
Product Overview
Prime Power 12KW 15KVA 50Hz Perkins diesel generator
Jinte Power Perkins Diesel Generating Set, power ranging from 10kVa up to 2500kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 2,000 kW (5 - 2,800 hp) market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.
FEATURES AT A GLANCE
ORIGINAL ENGINE AND ALTERNATOR
COMPACT DIMENSIONS
SOLIDLY STRUCTURE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
COMPACT DIMENSIONS
SOLIDLY STRUCTURE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY

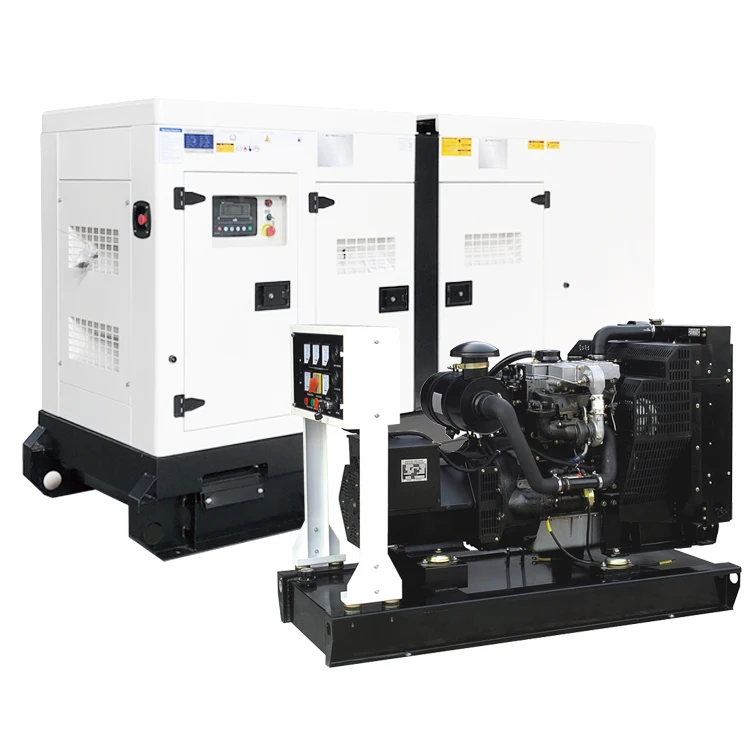

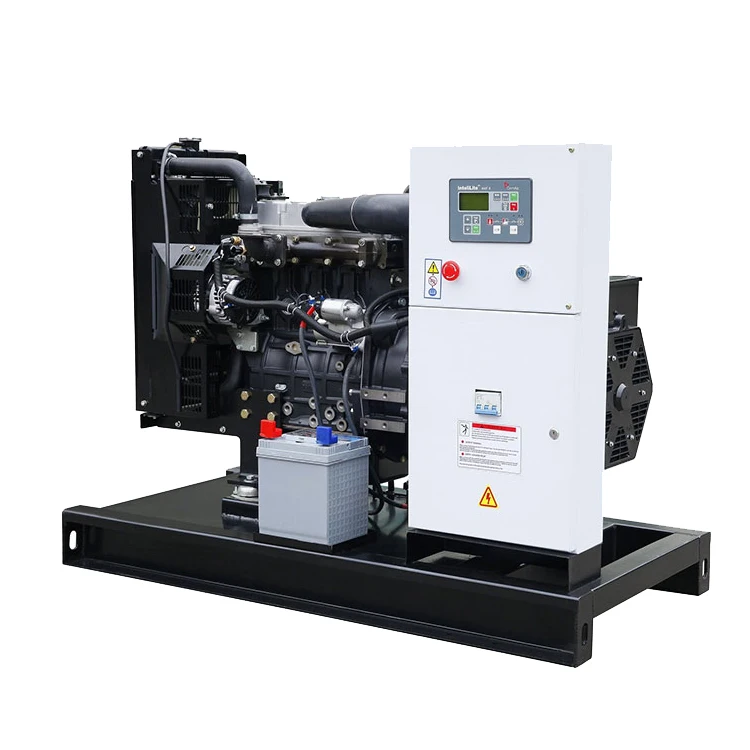

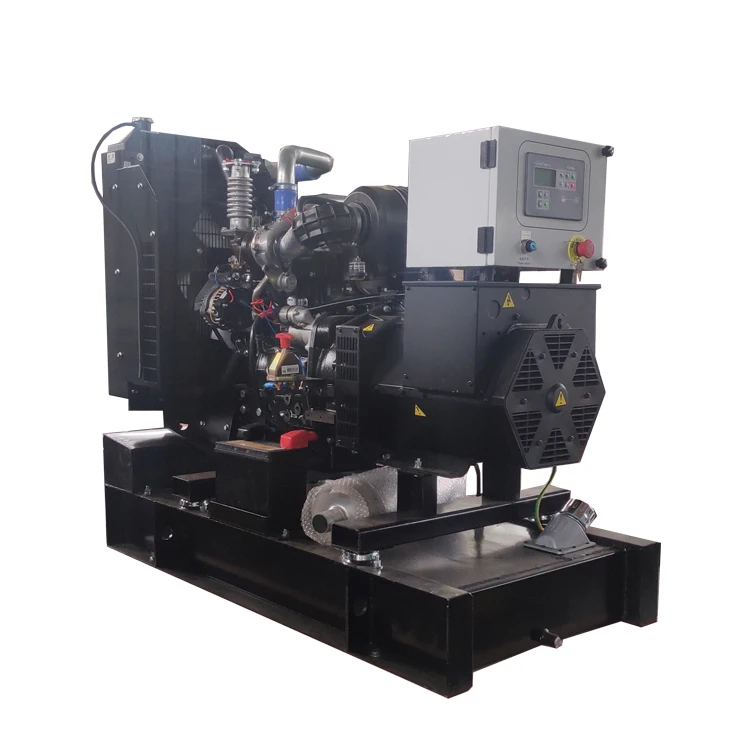

Open type

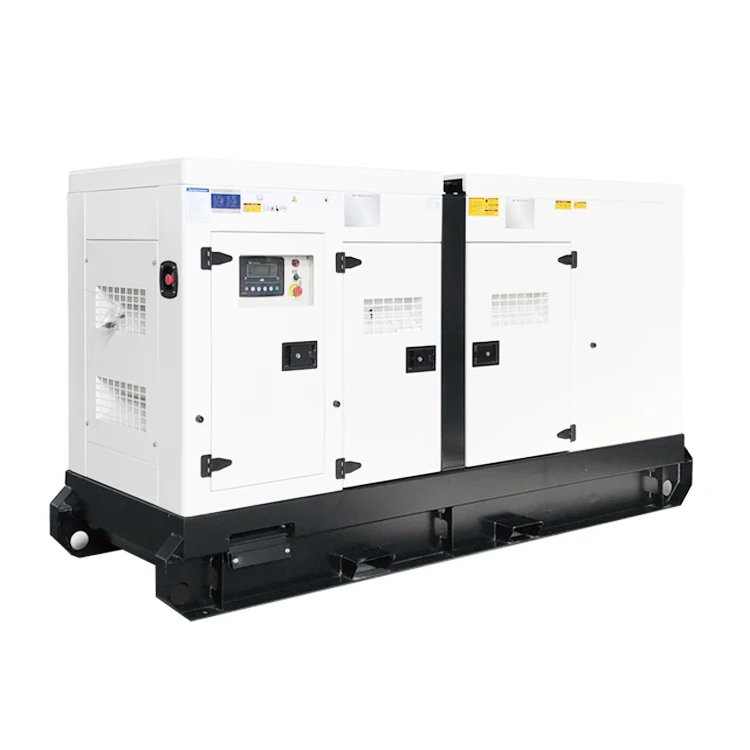

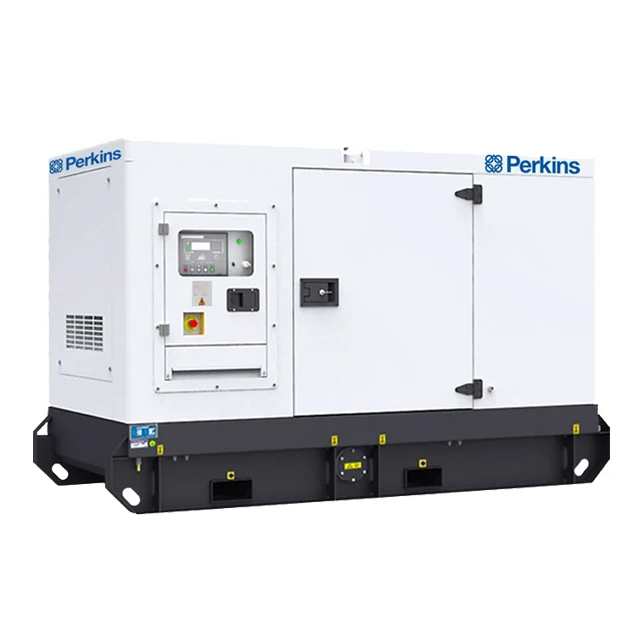

Silent type
Trailer type
PRODUCT SPECIFICATIONS
Genset Model | Diesel Engine | Alternator | Controller | Prime Power |
JTP-15GF | Perkins 403A-15G2 | Stamford | Deepsea | 12kw/15kva |
Engine Data | Engine model | Perkins 403A-15G2 | |||||
1 | Air intake system | Natural | |||||
2 | Fuel system | Direct injection | |||||
3 | Cylinders | 3 inline | |||||
4 | Bore and stroke | 84x90(mm) | |||||
5 | Compression ratio | 22.5:1 | |||||
6 | Displacement | 1.496L | |||||
7 | Rotation speeed | 1500 rpm | |||||
8 | Standby power | 15.1kw | |||||
Governor | Mechanical | ||||||
Alternator data | Alternator model | Stamford/Marathon/Leroy Somer etc. | |||||
Number of phase | 3 | ||||||
Connecting type | 3 phase 4 wires, Y type connecting | ||||||
Number of bearing | 1 | ||||||
Power factor | 0.8 | ||||||
Protection grade | IP23 | ||||||
Excitor type | Brushless, self-exciting | ||||||
Power capacity | 15kva | ||||||
Controller data | Controller brands: Deepsea, Smartgen, ComAp, PCC, Datacom, etc. | ||||||
4-line back-lit LCD text display | |||||||
Multiple display languages | |||||||
Data logging facility, Internal PLC editor | |||||||
Fully configurable via PC using USB communications | |||||||
3-phase generator sensing and protection, overload alarm | |||||||
Protection: over-speed, low-speed, over-current, low-oil, low-fuel, high-temp, etc. | |||||||
PRODUCT CONFIGURATION
Diesel engines
Alternators
Controllers
Diesel engines we can supply are including Cummins, Perkins, Volvo, MTU, Mitsubishi, Doosan, Baudouin, Deutz and China Yuchai, Weichai, SDEC, Yangdong, etc.
Alternators we can supply are including Stamford, Marathon, Leroy Somer, ABB, Mecc Alte, Engga, Jinte, etc. We also can provide OEM and ODM for alternators.
Controllers we can supply are including Deepsea, PCC, ComAp, Smartgen, Datakom, etc. Automatical or manual control, ATS, AMF, Synchronizing, Remote monitor system are optional.
Successful Project
Project in Philippines
Project in Kenya
Project in Russia
Why Choose Us
Our advantages
1. Jinte is devoted to the R&D and manufacturing of diesel generator sets since 2002. And Jinte new factory covers an area of 25,000 square meters.
2. Jinte production is submitted to ISO8528, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high-quality products and services.
3. Jinte is maintaining long term strategic friendship cooperation with domestic and abroad famous manufacturers of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroy Somer, Stamford, and Marathon, etc.
4. We have so wide products ranges from 5kva to 5000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set;
5. Soundproof/weatherproof type, container type generator set; movable, vehicle type generator sets. Regarding the electrical control systems, it covers the Auto control panel, Synchronization panels, ATS, etc.
6. Jinte can also provide customized solutions due to customer requirements upon our standard product supply in order to meet the demand of the market. To focus on the global market, Jinte as an international brand, and constantly improve our quality level and maximize customer profitability is Jinte unchangeable promise and eternal pursuit.
2. Jinte production is submitted to ISO8528, GB/T2820-97 and CE certification, and quality certified by ISO9001 & ISO14001 Management System to guarantee high-quality products and services.
3. Jinte is maintaining long term strategic friendship cooperation with domestic and abroad famous manufacturers of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroy Somer, Stamford, and Marathon, etc.
4. We have so wide products ranges from 5kva to 5000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set;
5. Soundproof/weatherproof type, container type generator set; movable, vehicle type generator sets. Regarding the electrical control systems, it covers the Auto control panel, Synchronization panels, ATS, etc.
6. Jinte can also provide customized solutions due to customer requirements upon our standard product supply in order to meet the demand of the market. To focus on the global market, Jinte as an international brand, and constantly improve our quality level and maximize customer profitability is Jinte unchangeable promise and eternal pursuit.
Delivery and Packing
All of our diesel generators are strictly tested before deliver to our customers. Each diesel generator has a testing report.
Normally, for open type diesel generators, we will pack with plastic film, and then fixed in a plywood case. We make sure the diesel genset will be firmly fixed in the plywood case.
For soundproof silent type diesel generators, we usually pack with plastic film, and directly load into the container. If customer needs, we can pack the silent type diesel generator with plywood as well. However, for big power gensets, such as larger than 800kw genset, we usually directly load into container.
Customer Photos
Customers visiting us
We have exported to over 40 countries and regions, including the USA, Russia, Australia, Ukraine, Pakistan, Philippines, Myanmar,
Cambodia, South Africa, Kenya, Zambia, Kuwait, UAE, Dominican, Ecuador, Venezuela, Panama, etc.
Cambodia, South Africa, Kenya, Zambia, Kuwait, UAE, Dominican, Ecuador, Venezuela, Panama, etc.
Our diesel generator sets are widely used in Mines, Railways, Field construction sites, Road traffic maintenance, Schools, Residences, Shopping malls, as well as Factories, Enterprises, Hospitals, Data centers, Communications, and other departments, as a backup or temporary power supply.
FAQ
Q1: Are you a trading company or manufacturer?
A: We are a factory and exporter.
Q2: What is the power range of your diesel generator?
A: We can provide power from 6KVA-5000KVA
Q3: How long is your delivery time?
A: 1-4 weeks
Q4: What are your terms of payment?
A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.
Q5: What is your warranty period?
A: Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period.
Q6: Do you offer OEM service?
A: Yes
Q7: How could I trust you?
A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here.
Q8: What's the frequency of diesel generators?
A: 50/60HZ
Q9: What's the voltage of your diesel generator?
A: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage or high voltage.
Q10: What's your MOQ?
A: 1 set.
Q11: What kind of Diesel Generators you can supply?
A: We can supply: Open type diesel generators, soundproof type (silent type) diesel generators, trailer mounted diesel generators, containerised diesel generators, high voltage diesel generators, synchronized diesel generators.
A: We are a factory and exporter.
Q2: What is the power range of your diesel generator?
A: We can provide power from 6KVA-5000KVA
Q3: How long is your delivery time?
A: 1-4 weeks
Q4: What are your terms of payment?
A: T/T 30% in advance and TT 70% balance paid before shipment or 100% LC at sight.
Q5: What is your warranty period?
A: Our payment terms are 1 year or 1000 running hours whichever comes first. But based on some special projects, we can extend our warranty period.
Q6: Do you offer OEM service?
A: Yes
Q7: How could I trust you?
A: Diesel Generators Service & Supply comply with all the standards about Diesel Power Supply Equipments requirements. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have to go on here.
Q8: What's the frequency of diesel generators?
A: 50/60HZ
Q9: What's the voltage of your diesel generator?
A: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage or high voltage.
Q10: What's your MOQ?
A: 1 set.
Q11: What kind of Diesel Generators you can supply?
A: We can supply: Open type diesel generators, soundproof type (silent type) diesel generators, trailer mounted diesel generators, containerised diesel generators, high voltage diesel generators, synchronized diesel generators.
