Китайская заводская цена оборудование для продольной резки рулон металлической ленты алюминия/оцинкованной/нержавеющей стали катушки Размотка и

Китайская заводская цена оборудование для продольной резки рулон металлической ленты алюминия/оцинкованной/нержавеющей стали катушки Размотка и

Категория: Бобинорезательный станок >>>
Поставщик: Baoji,Xintai,Precision,Equipment,Manufacturing,Co.,Ltd.

Цена:12 065,00 $ - 12 252,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	15323.84 $*	15629.27 $*
Jul-16-2025	12427.45 $*	12676.23 $*
Jun-16-2025	15081.1 $*	15383.43 $*
May-16-2025	14961.45 $*	15260.67 $*
Apr-16-2025	11944.38 $*	12183.41 $*
Mar-16-2025	14719.52 $*	15013.60 $*
Feb-16-2025	14599.59 $*	14891.59 $*
Jan-16-2025	14478.84 $*	14768.97 $*

Характеристики

Why Choose Us

Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, built in 1995, mainly working on researching, development and production of electron, metallurgy and special grinding equipment. It Produces all kinds of equipment for slitting material used for electrolysis and capacitor, such as: aluminum foil, copper foil, metal foil, paper slitting, foil slitting, membrane cutting and metal bar material slitting.

we hope to honestly cooperate with all friends in different world and develop together.

Product Description

Product Application

The precision cutting machine is used to cutting stainless steel, copper strip, galvanized strip, aluminum strip, cold rolled metal. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.

Slitting Machine For XTF-305
Type	XTF-305
Raw materials thickness	0.1mm-0.8mm
Width of raw materials less than	305mm
Outer diameter of raw material	< 1000mm
Raw material inner diameter	280mm-320mm (customizable)
Weight of raw materials less than	1000Kg
Finished product width	4mm-305mm
Outer diameter of finished coil	≤600mm
Inner diameter of finished coil	80mm (customizable)
Number of sliced strips	30 (depending on the thickness of the cut)
Width tolerance of finished product	±0.02mm
Equipment speed	1-80 m/min
Coverage of equipment	LWH : 5m2m1.6m
Equipment weight	1.8T

Main Features

1. This machine is suitable for longitudinal shearing of rolling metal strips. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed.
2. Product warranty period is one year, non-human problems, free spare parts are provided during the warranty period, and the supplier is responsible for the lifelong maintenance of equipment.
3. Equipment color: black and white (customizable)
4. Date of production: 25 days
5. Support overseas after-sales service.

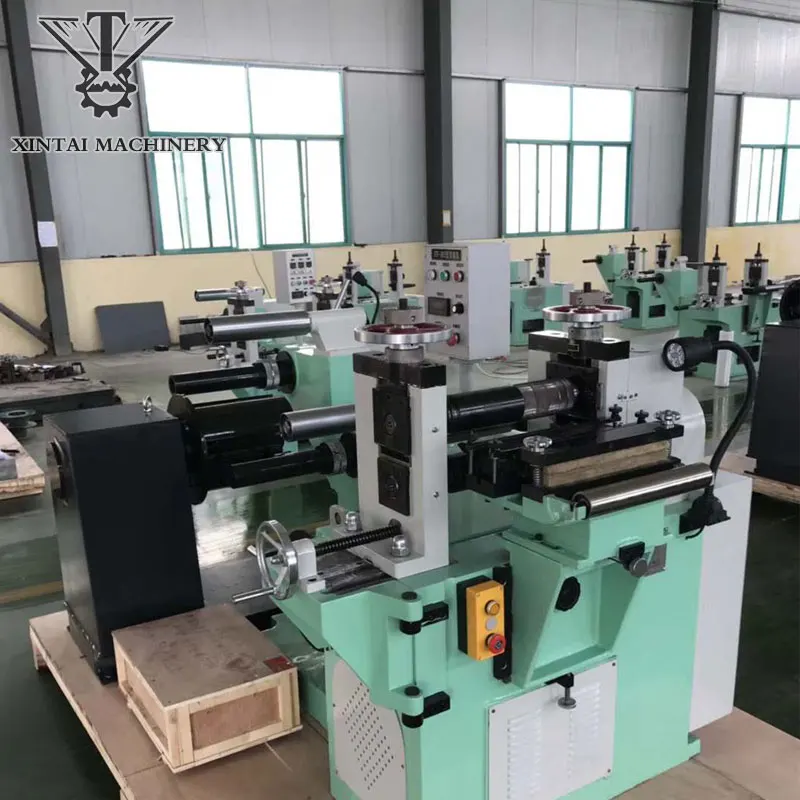

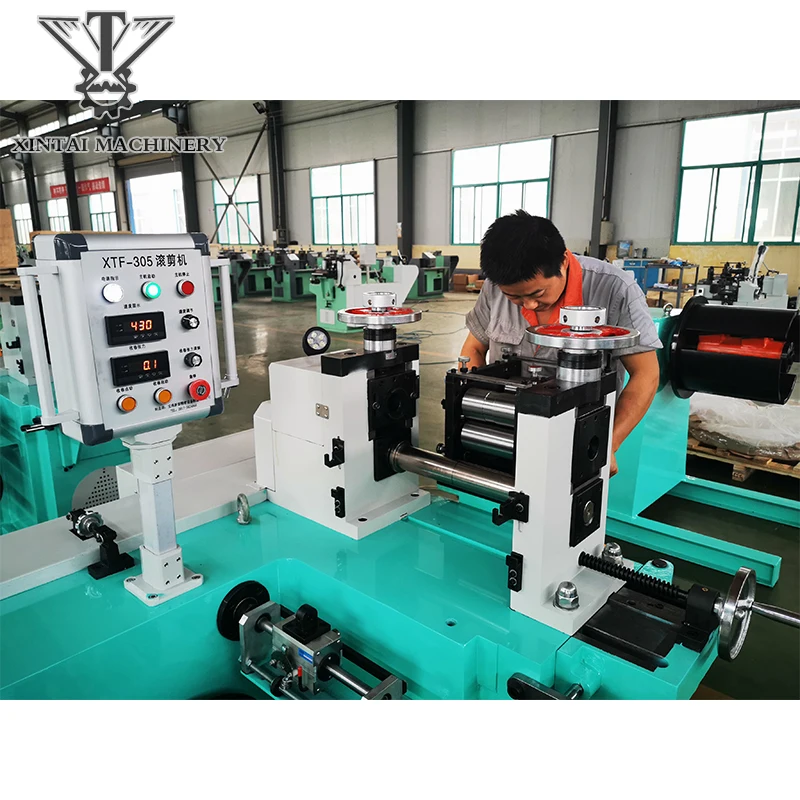

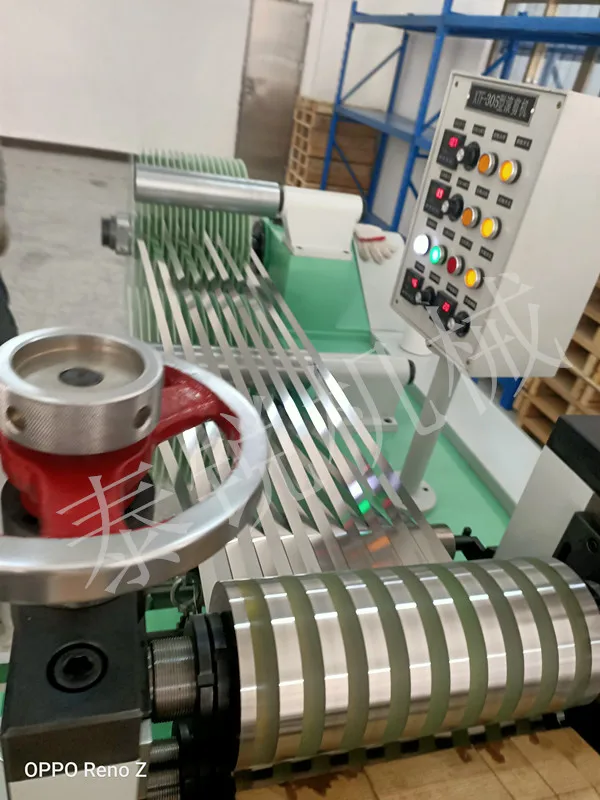

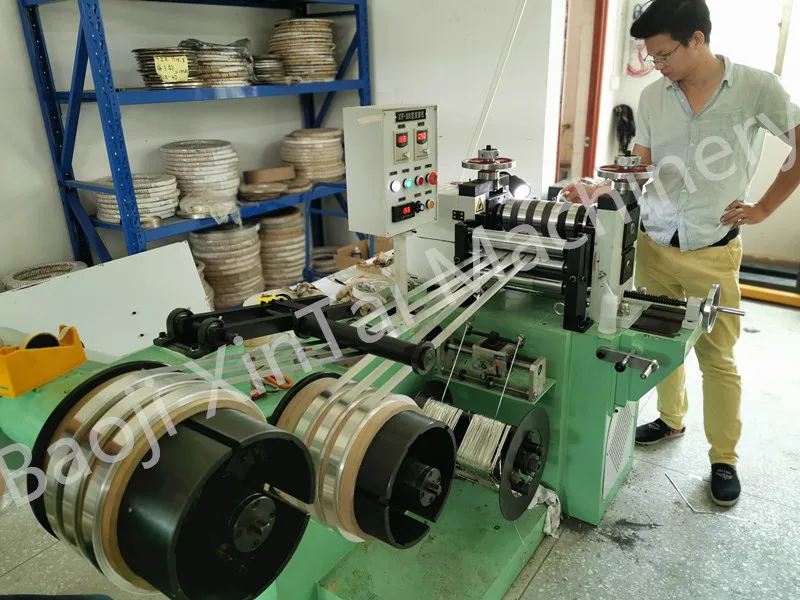

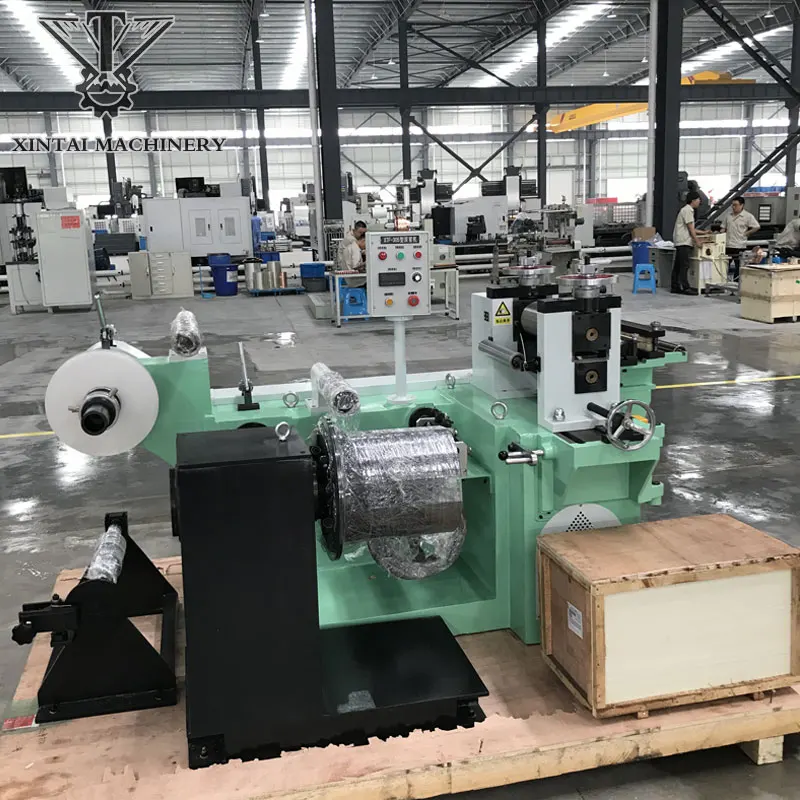

Detailed Images

Raw material parameter

1. Raw materials: stainless steel/copper strip/galvanized strip/aluminium strip/cold rolled and various metal strips
2. Slitting zone thickness: 0.1mm-0.8mm
3. Maximum feed width: <305 mm
4. Maximum Outer Diameter of Raw Materials: <1000 mm
5. Raw material inner diameter: 280mm ~ 320mm (customizable)
6. Raw material weight: <600kg

Finished product parameters

1. Material width of finished product: 4mm~305mm
2. Outer diameter of finished coil: <600mm
3. Finished coil inner diameter: 80mm (customizable)
4. Number of slices: 30(depending on the thickness of the material)
5. Width tolerance of finished product: ±0.02mm

Device parameters

1. Operation direction of equipment: from right to left
2. Equipment speed: 1-80 m/min
3. Equipment capacity: 7.5KW
4. Equipment coverage L*W*H:5m*2m*1.6m
5. Equipment weight: 1.8T

Electrical parameters

1. Inverter: Audi (China)
2. Intelligent Voltmeter: French School (China)
3. Intermediate relay: Omron (Japan)
4. Electrical Switching Components: Zhengtai (China)
5. Equipment Power Supply: Sanhuo 101, AC380V, 50Hz
6. Motor: Wuxi, China
7. Reducer: Wuxi, China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* video support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2.5m (L) * 1.2m (W) *1m (H)
Weight	2T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Our Company

Our advantages:

1. Factory direct supply.
2. Full cast iron fuselage, parts are produced by ourselves.
3. Products are guaranteed. We have profession Quality Test Report.
4. High speed and stable effectiveness,Suitable for mass production.
5. Focus on metal non-metal foil strips industry more than 25 years.
6. High utilization rate of materials,Stepless cutting speed regulation.

Production workshop

In our company, skilled men are more, all kinds of methods of production process are complete, product quality guarantee system and test system are complete. As per user requirements, we produce special equipment of different types. Abundant technology and advanced management idea constitute serious quality guarantee system and strong researching and devolvement ability.

Customer satisfaction is eternal target of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, high qualified, warm and thoughtful service are eternal commitment of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD for you.

Service commitment To ensure that the maintenance service and fault fixing are carried out in time, fast and effective, we are equipped with full time staff, spare parts and special savings.
