Electric vehicle 6.6KW On Board Charger Liquid-cooled Integration EV 6.6KW OBC
OBC input
Input Voltage
85-265VAC
Input Current
108A
Input Frequency
45-65Hz
OBC output
Output Voltage
200-420VDC
Output Current
20A max
LV Output
14VDC 7A
Output Power
6.6KW max
Output Current Accuracy
±0.4A
Output Ripple & Noise
±2%mVp-p
Output Wakeup Voltage
12VDC
Output Wakeup Current
200mA
Efficiency
95%
Technical Parameters
Communication
CANbus
Baud Rate
250K/500K
Operating Temperature
- 40 to 85℃
Altitude
5000m
IP rate
IP67
Cooling
Liquid-cooled
Dimension (LxWxH)
290x257x82mm
Net Weight
6kg
Protections
input&output under voltage protection
input&output over voltage protection
over temperature protection
output short circuit protection

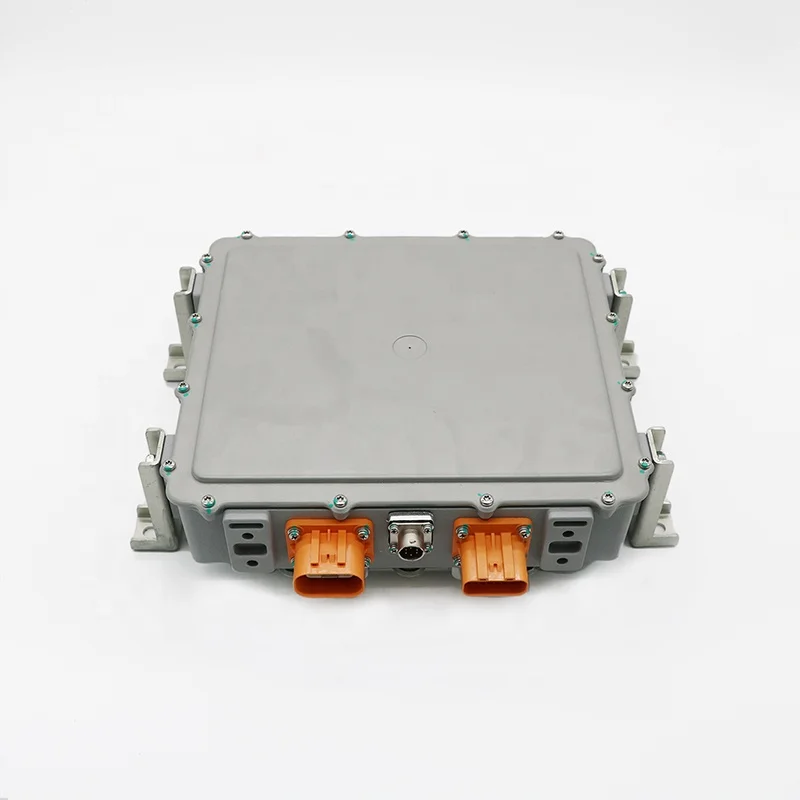

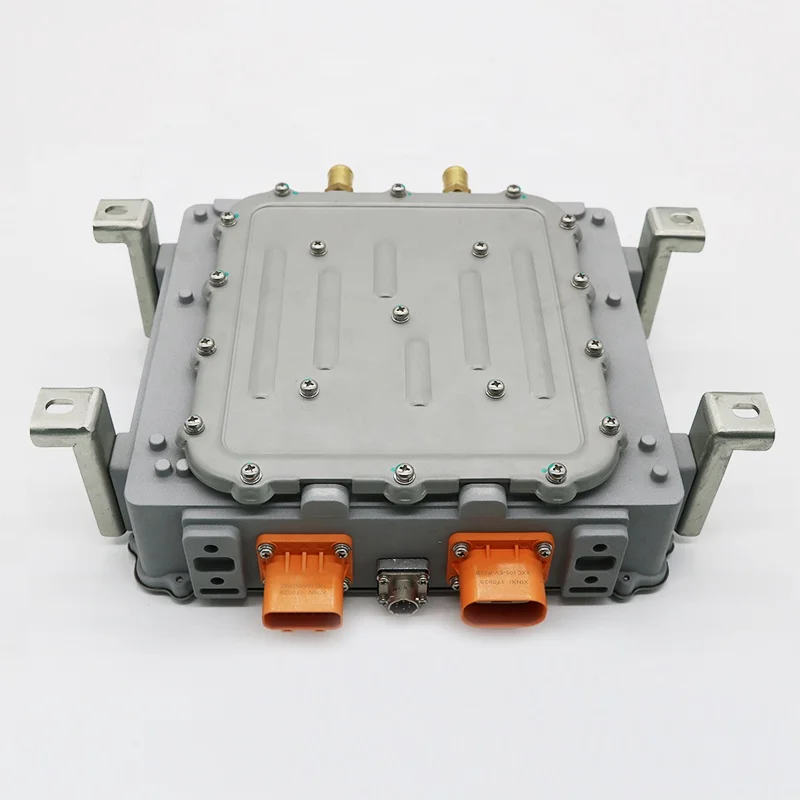

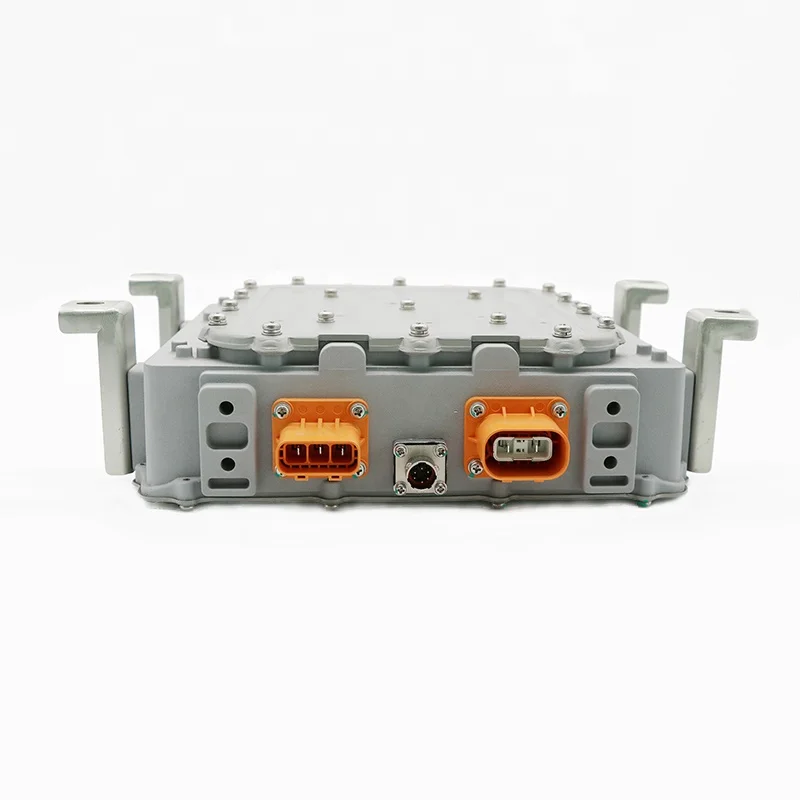

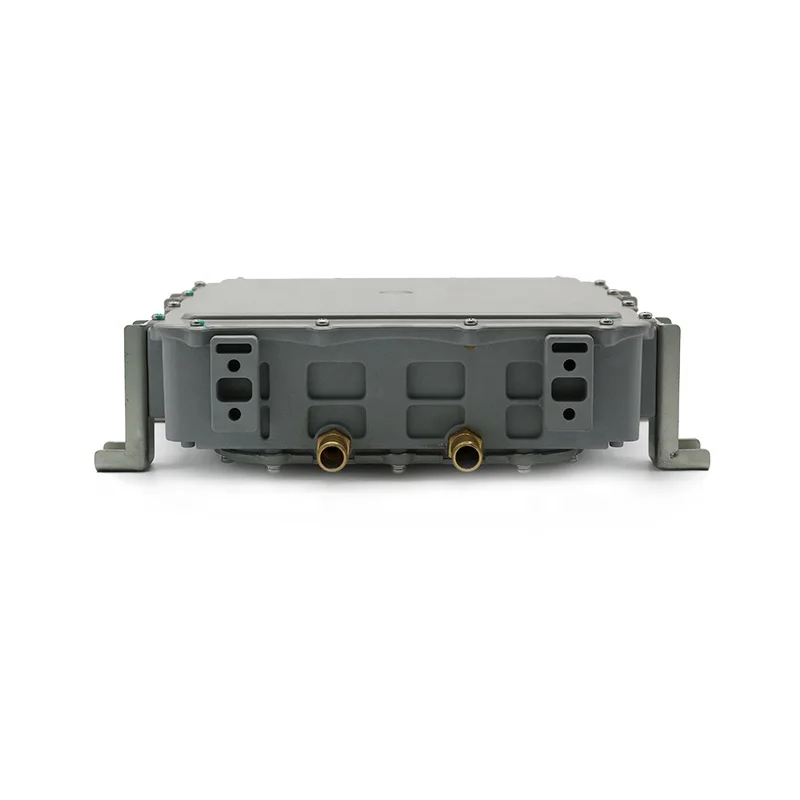

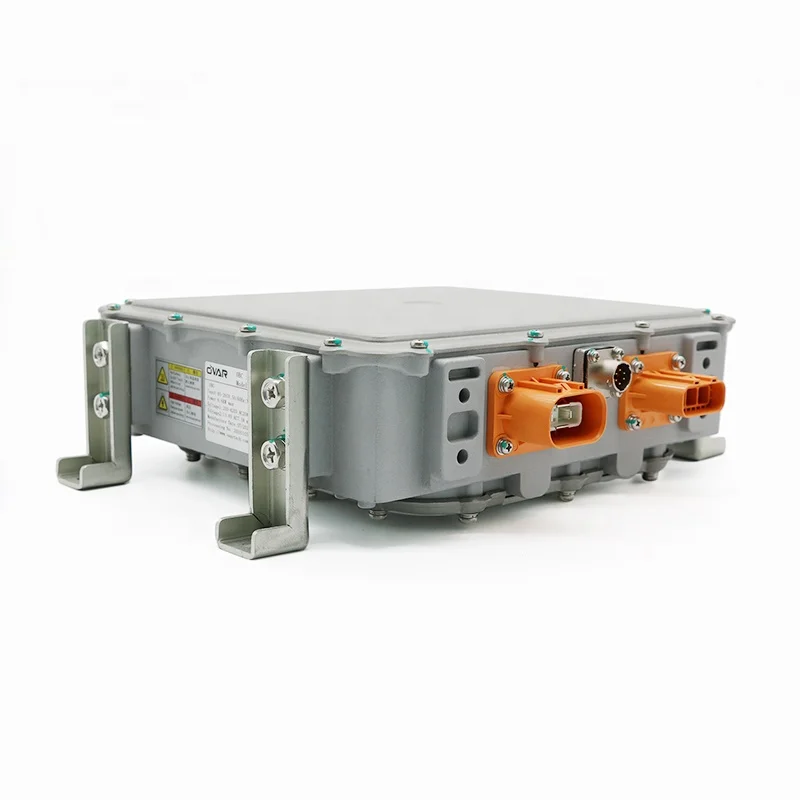

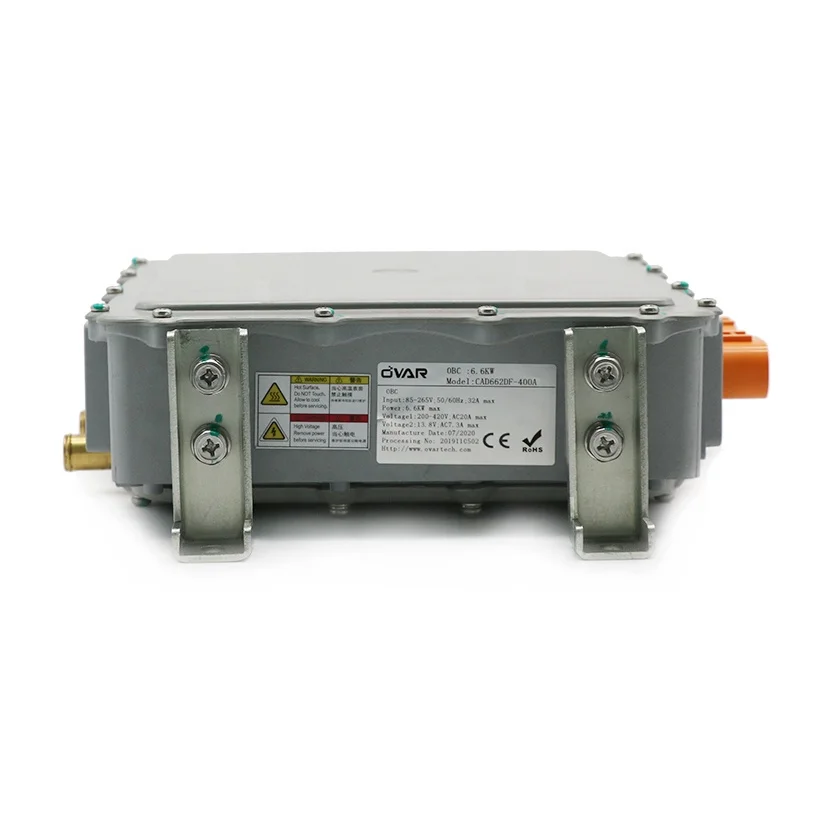

Detailed Images
