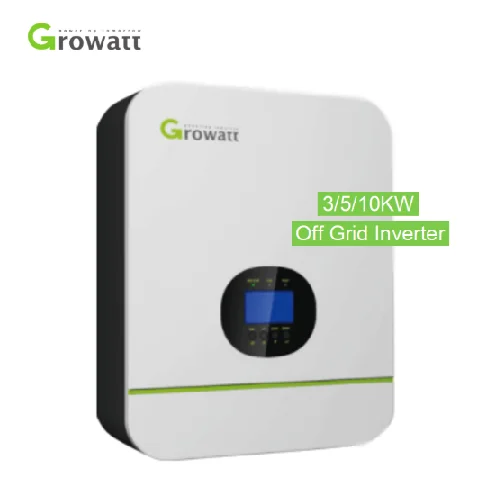

Инвертор Growatt off grid inverter SPF 3000 5000 TL HVM с Mppt однофазный PV солнечный инвертор 3 кВт
- Категория: Солнечные инверторы >>>
- Поставщик: Jiangsu,Morel,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 692.54 $* | 706.4 $* |
| Jul-19-2025 | 561.16 $* | 572.83 $* |
| Jun-19-2025 | 681.74 $* | 695.50 $* |
| May-19-2025 | 676.97 $* | 690.22 $* |
| Apr-19-2025 | 540.46 $* | 551.46 $* |
| Mar-19-2025 | 665.16 $* | 678.66 $* |
| Feb-19-2025 | 659.85 $* | 672.24 $* |
| Jan-19-2025 | 654.33 $* | 667.42 $* |
Характеристики
Product Description
(this is an example parameter,if you need other model inverter informations,please contact me)
Datasheet | SPF 3000TL HVM-WPV | SPF 5000TL HVM-WPV | ||
Battery voltage | 24VDC | 48VDC | ||
INVERTER OUTPUT | ||||
RATED POWER | 3000VA/3000W | 5000VA/5000W | ||
Parallel Capability | Optional/ support 6 units | |||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||
Surge Power | 6000VA | 10000VA | ||
Efficiency (Peak) | 93% | |||
Waveform | Pure sine wave | |||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 3500W | 5500W | ||
MPPT Range @ Operating Voltage | 120VDC-430VDC | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Solar Charge Current | 100A | |||
Maximum Efficiency | 97% | |||
AC CHARGER | ||||
Charge Current | 80A | |||
AC Input Voltage | 230VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
PHYSICAL | ||||
Dimension (D/W/H) in mm | 485/330/135 | |||
Net Weight (kgs) | 12 | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | 0°C- 55°C | |||
Storage Temperature | -15°C -60°C | |||
Our factory
Jiangsu Morel Energy Co.,Ltd.Is a professional manufacturer of panelized accessories, solar system accessories, off-grid systems
and other products.
Jiangsu Morel Energy Co.,Ltd. is located in jingjiang city by the Yangtze river. It has convenient land and water transportation
and is only 2 hours' drive from Shanghai airport.
Morel pv takes efficient quotation, efficient drawing and efficient production as our code of conduct. We will consider your
needs at the first time, improve the design scheme for you at the first time, and provide competitive quotation and production
plan for the industry.Warmly welcome new and old customers to inquire!Wish all new and old customers grow together with us!
and other products.
Jiangsu Morel Energy Co.,Ltd. is located in jingjiang city by the Yangtze river. It has convenient land and water transportation
and is only 2 hours' drive from Shanghai airport.
Morel pv takes efficient quotation, efficient drawing and efficient production as our code of conduct. We will consider your
needs at the first time, improve the design scheme for you at the first time, and provide competitive quotation and production
plan for the industry.Warmly welcome new and old customers to inquire!Wish all new and old customers grow together with us!
Project case
Product packaging
FAQ
Q 1. what's the payment term?
A. We accept T/T, L/C,WEST UNION, PAYPAL, CASH
Q 2. What's the delivery time ?
A. usually it will take about three weeks for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
.
Q 4. what kind of product quality your factory offer?
A. We offer most competitive prices with best quality
Q 5. Do you accept OEM business?
A.We accept OEM with your autherization.
Q 6.What is your production capacity?
A. We can finish four 40 HQ mini circuit breaker each month, four 20 HQ contactor, two 20 feet container for the frequency
inverter. Each product has different production capacity, we can talk details by email.
Q 7.Which market do you already sell?
A.We already ship to Europ, Middle East, South America, Asia, Afria etc.
Q8. what kind of certificate you have ?
A.We have ISO9000, CB, CE, INMETRO, SONCAP, SASO
A. We accept T/T, L/C,WEST UNION, PAYPAL, CASH
Q 2. What's the delivery time ?
A. usually it will take about three weeks for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
.
Q 4. what kind of product quality your factory offer?
A. We offer most competitive prices with best quality
Q 5. Do you accept OEM business?
A.We accept OEM with your autherization.
Q 6.What is your production capacity?
A. We can finish four 40 HQ mini circuit breaker each month, four 20 HQ contactor, two 20 feet container for the frequency
inverter. Each product has different production capacity, we can talk details by email.
Q 7.Which market do you already sell?
A.We already ship to Europ, Middle East, South America, Asia, Afria etc.
Q8. what kind of certificate you have ?
A.We have ISO9000, CB, CE, INMETRO, SONCAP, SASO
Our Services
1.Flexible and Efficient
a.Optimized global MPPT algorithm, MPPT efficiency higher than 99.5%
b.Asymmetric dual MPPT which are compatible to all kinds of solar roofs
c.Max. efficiency of 98.0%, European efficiency of 97.6%
d.Super wide input voltage range(150V-1000V), supporting all varieties of solar panels and string desings
e.With reduced derating
2.Convenient Installation
a.Transformerless, smaller and lighter
b.AC output quick connector design, for faster installation
c.Speciaized mountingl design, easy to install
3.Smart and Easy to Use
a.One-button safety setting, easy configuration of all parameters
b.Built-in independent RTC chip, supporting data storage of 25 years
c.Integrated LCD graphical display, showing daily/monthly/yearly generating capacity
d.Integrated RS232 / Wi-Fi interfaces, for improved communication
e.Free monitoring anytime anywhere
f.Local and remote intelligent maintenance by PC, IOS and Android devices
g.Responds to power grid dispatching, energy management of micro-grids
h.Integrated with the function of reactive adjusting
4.Safe and Reliable
a.IP65 protection for indoor and outdoor installation
b.Aluminum case design to enhance heat dissipation and prevent rust corrosion, prolong life time
c.Built-in high voltage DC switch for safer maintenance and application
d.Built-in convective fans to lower the temperature of core components, prolong life time
e.Natural convection for longer life
a.Optimized global MPPT algorithm, MPPT efficiency higher than 99.5%
b.Asymmetric dual MPPT which are compatible to all kinds of solar roofs
c.Max. efficiency of 98.0%, European efficiency of 97.6%
d.Super wide input voltage range(150V-1000V), supporting all varieties of solar panels and string desings
e.With reduced derating
2.Convenient Installation
a.Transformerless, smaller and lighter
b.AC output quick connector design, for faster installation
c.Speciaized mountingl design, easy to install
3.Smart and Easy to Use
a.One-button safety setting, easy configuration of all parameters
b.Built-in independent RTC chip, supporting data storage of 25 years
c.Integrated LCD graphical display, showing daily/monthly/yearly generating capacity
d.Integrated RS232 / Wi-Fi interfaces, for improved communication
e.Free monitoring anytime anywhere
f.Local and remote intelligent maintenance by PC, IOS and Android devices
g.Responds to power grid dispatching, energy management of micro-grids
h.Integrated with the function of reactive adjusting
4.Safe and Reliable
a.IP65 protection for indoor and outdoor installation
b.Aluminum case design to enhance heat dissipation and prevent rust corrosion, prolong life time
c.Built-in high voltage DC switch for safer maintenance and application
d.Built-in convective fans to lower the temperature of core components, prolong life time
e.Natural convection for longer life
