Прямая поставка с завода YUEHANG Уплотнительная Машина для изоляции стекла
- Категория: Building Material Machinery >>>
- Поставщик: Shandong,Dexi,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 71400.40 $* | 74970.53 $* |
| Aug-19-2025 | 70800.18 $* | 74340.69 $* |
| Jul-19-2025 | 59400.21 $* | 62370.49 $* |
| Jun-19-2025 | 69600.70 $* | 73080.4 $* |
| May-19-2025 | 60600.31 $* | 63630.45 $* |
| Apr-19-2025 | 68400.55 $* | 71820.12 $* |
| Mar-19-2025 | 67800.21 $* | 71190.57 $* |
| Feb-19-2025 | 67200.65 $* | 70560.67 $* |
| Jan-19-2025 | 66600.4 $* | 69930.45 $* |
Характеристики
Product Description

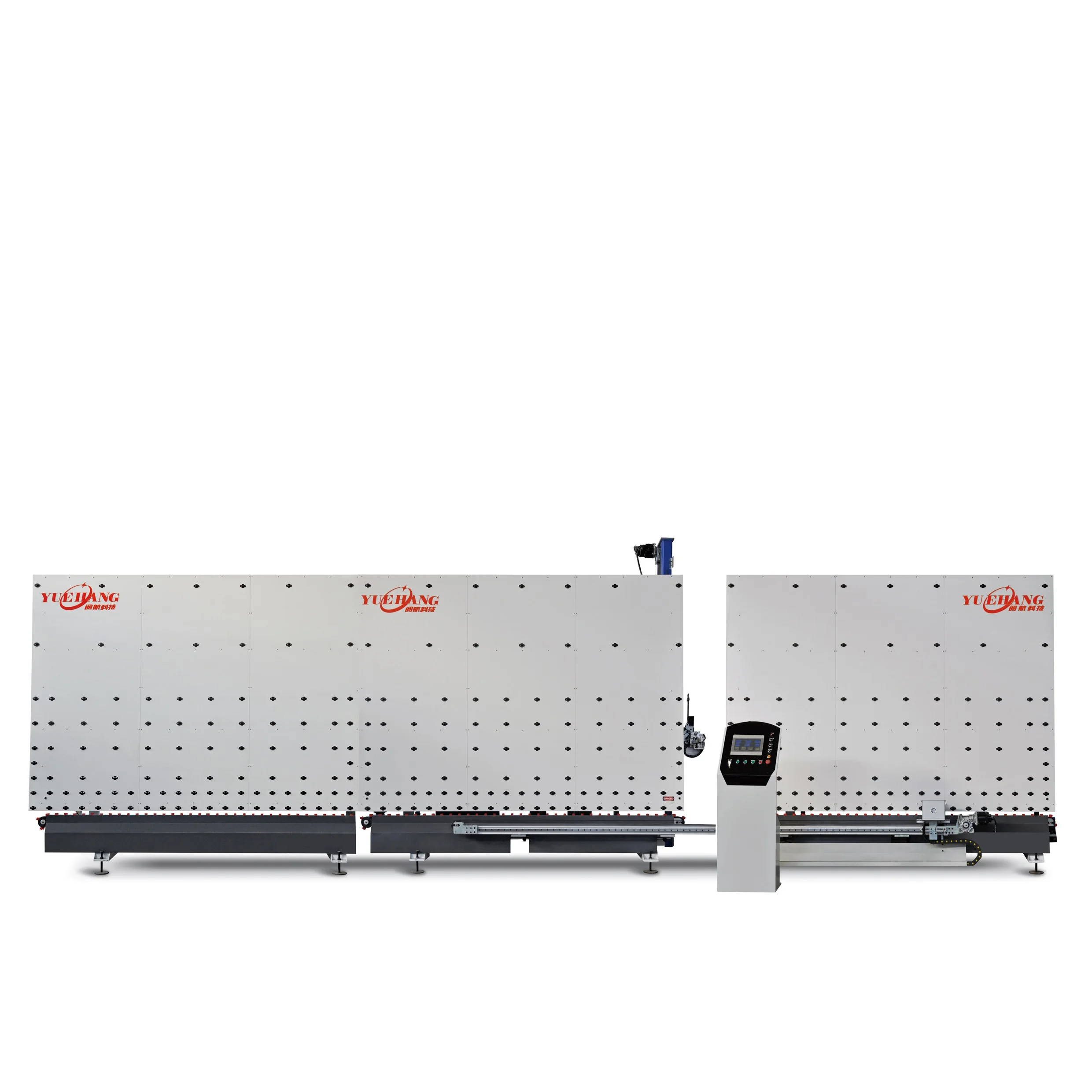

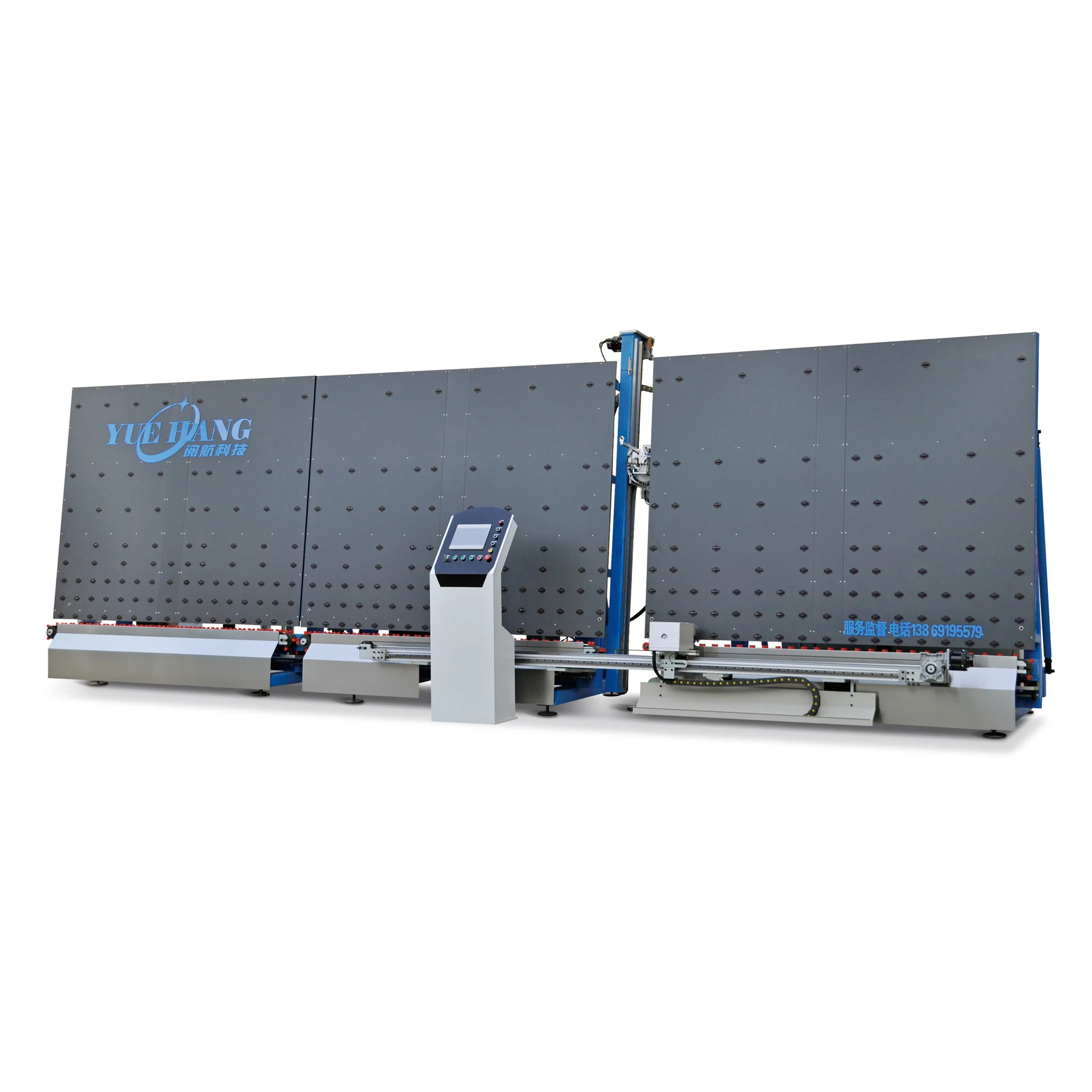

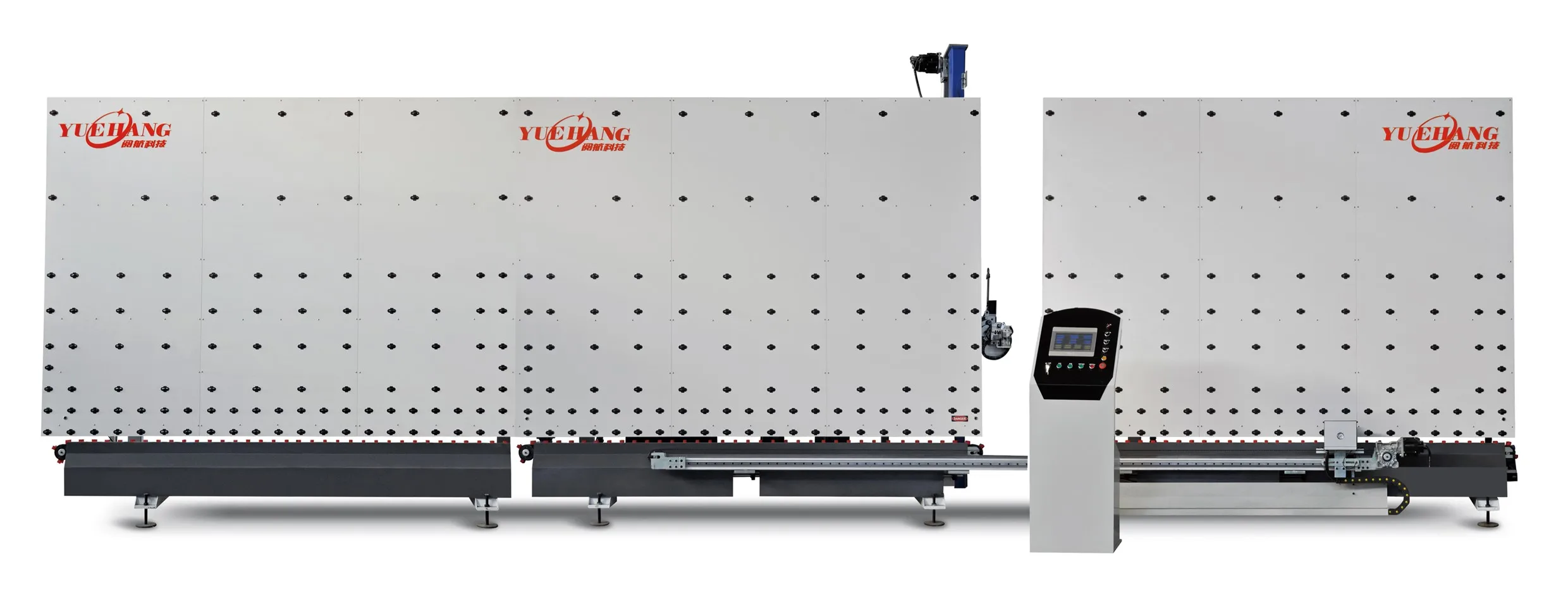

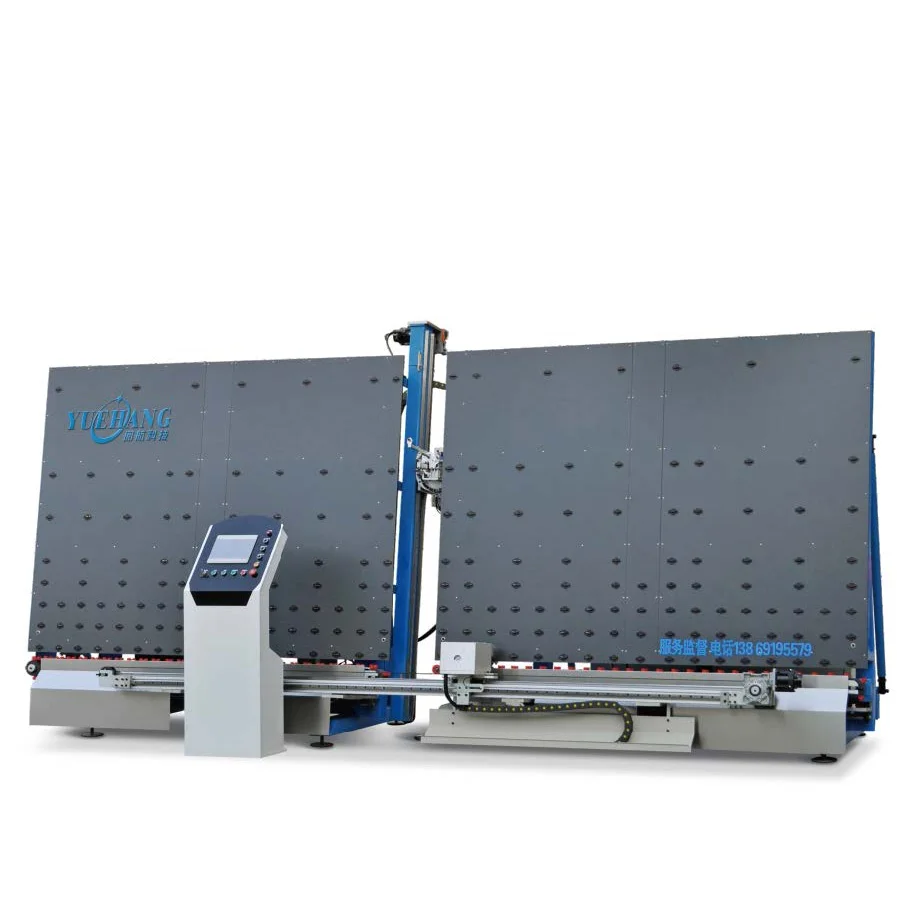

YUEHANG factory directly supply insulating glass sealent machine machine
The adhesive continuity of rectangular insulating glass of various sizes can be realized, with high adhesive efficiency and stable quality.
Two completely independent glue supply systems, two kinds of sealants can be arbitrarily switched (optional).
The glass can be pre-stored in the third paragraph to strengthen the continuity of equipment operation and improve production efficiency.
The side coating is full without bubbles, and the corner is full without manual trimming.
World-renowned brand Yaskawa motion control system and servo control system have stable performance.
Unique automatic alarm device for glue quantity.
Accurate synchronous belt transmission system ensures pollution-free operation of glass.
Using two sealant supply systems, switch fast and one-key operation. (Model II)
Suitable for triple glazing.
Machine Parameters
Model | Max Size (mm) | Min Size (mm) | Glass Thickness (mm) | Seal speed (M/min) | Power (KW) | Dimension (L*W*H, M) | maximum pressure (Mpa) |
2000*2500 | 300*450 | 3-12 | 0-50 m/min | 380V 50Hz 8kw | 8.5m*1.6m*2.85m | ≤35 Mpa | |
YH-FJX-2000*3000 | 2000*3000 | 260*450 | 3-12 | 0-50 m/min | 380V 50Hz 10kw | 10.5m*1.5m*2.9m | ≤35 Mpa |
YH-FJX-2500*3000 | 2500*3000 | 300*450 | 3-12 | 0-50 m/min | 380V 50Hz 10kw | 10.5m*2m*3.35m | ≤35 Mpa |
YH-FJX-2500*4000 | 2500*4000 | 300*450 | 3-12 | 0-50 m/min | 380V 50Hz 12kw | 12.6m*2m*3.35m | ≤35 Mpa |

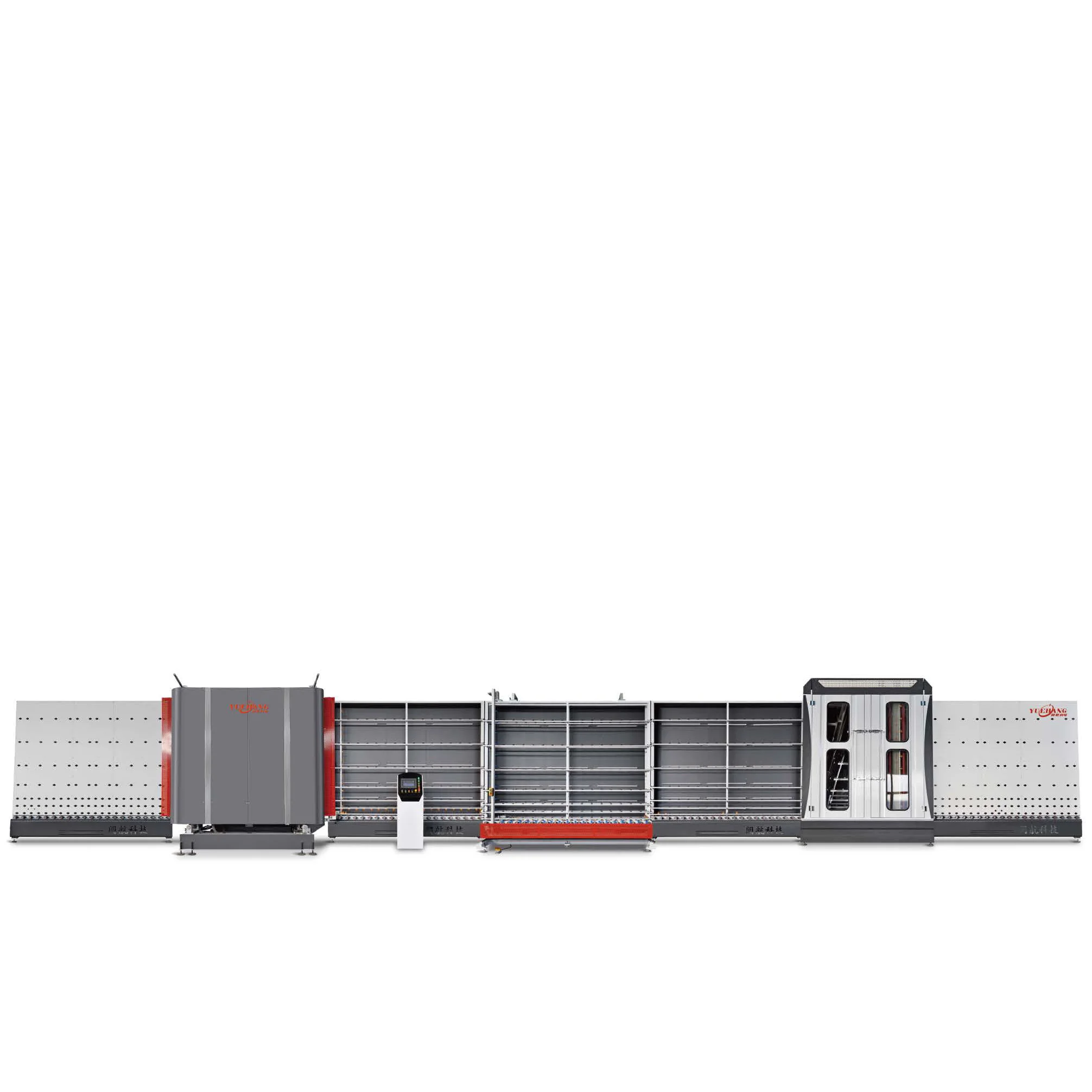

Automatic insulating glass sealant machine line:

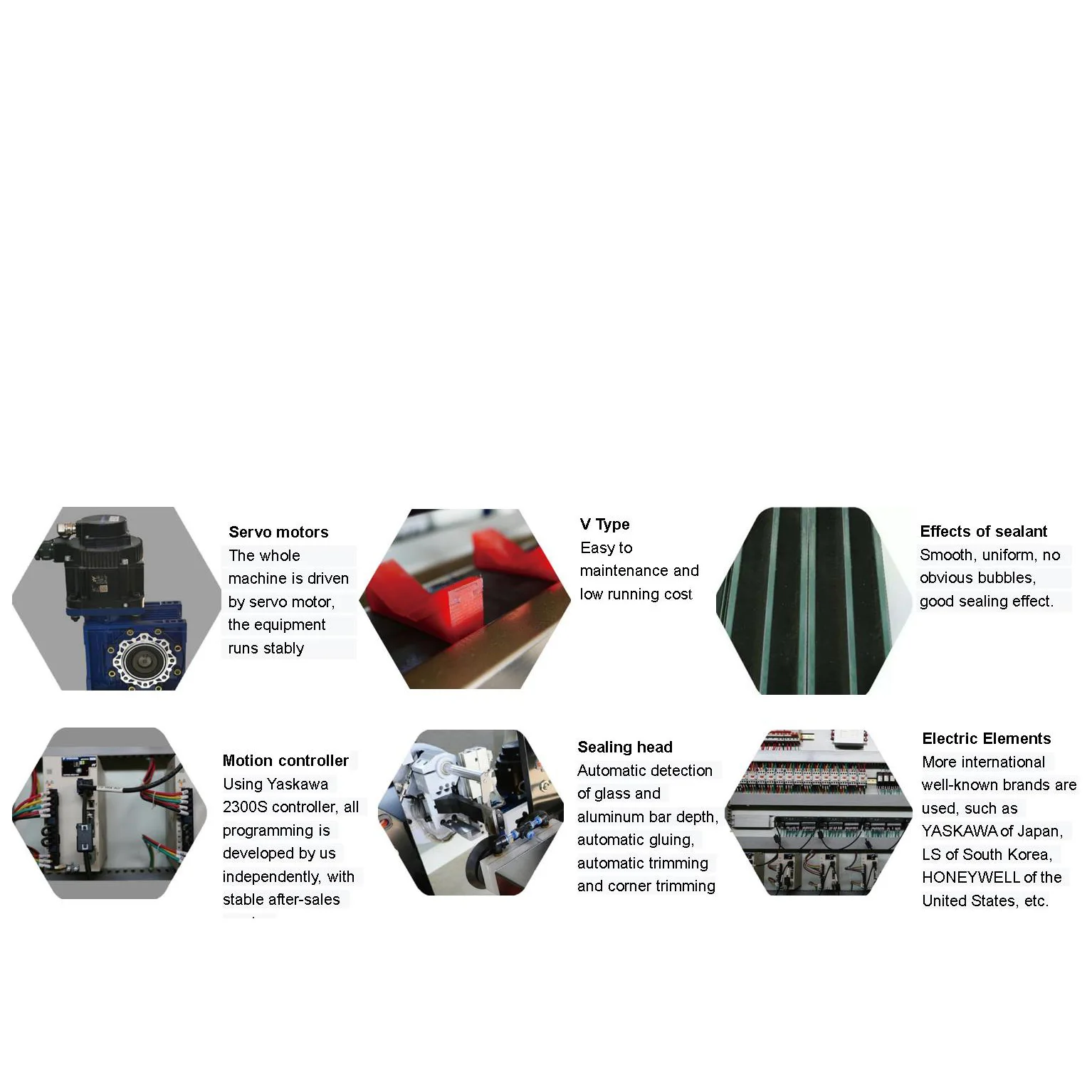

Name | Brand | Name | Brand |
Head column servo motor | YASKAWA (Japan) | Distribute I/O extension modules | M-SYSTEM(Japan) |
Head column servo motor driver | YASKAWA (Japan) | Photoelectric switch used in the whole machine | Opos (Japan) |
Head rotary servo motor | YASKAWA (Japan) | Proximity switch used in whole machine | AOTONICS(Korea) |
Head rotation servo motor driver | YASKAWA (Japan) | All contactor for machine | LS (Korea) |
Front and rear moving servo motors | YASKAWA (Japan) | All relay for machine | Honeywell (USA) |
Front and rear moving servo motor drivers | YASKAWA (Japan) | Air switch used in machine | LS (Korea) |
Input servo motor | YASKAWA (Japan) | Glue A and glue B solenoid valves | AIRTAC (Taiwan) |
Input segment servo motor driver | YASKAWA (Japan) | All cylinder for machine | AIRTAC (Taiwan) |
Output 1 servo motor | YASKAWA (Japan) | All linear guide rails used for machine | HIWIN (Taiwan) |
Output 1 segment servo motor driver | YASKAWA (Japan) | Guide rail slider for the whole machine | HIWIN (Taiwan) |
Auxiliary sucker servo motor | YASKAWA (Japan) | V-belt front and rear motor | ZD (Taiwan) |
Auxiliary sucker servo motor driver | YASKAWA (Japan) | MP2300S Servo controller (Brain) | YASKAWA (Japan) |
Features:
1-The adhesive continuity of rectangular insulating glass of various sizes can be realized, with high adhesive efficiency and stable quality.
2-The side coating is full without bubbles, and the corner is full without manual trimming.
3-Human-computer interface, succinct, adopts simplified thought designed operation interface; sealant output pressure and other.
4-Parameters shown on screen in -real-time, convenient to see and easy to operate.
5-Electrical parts and cable are used imported brand, with long endurance.
6-Automatically finish linear sealing, easy and convenient operation.
7-The machine frame is made by CNC processing center, spare parts with high standardization and could be interchanged, which improve
convenience for maintenance and ensure long service life.
8-The machine is installed in assembly line, with high precision, ensuring stable working in long life.
Want more Informatio
Any more info you need for the equpment, please feel free to contact us!
