Обучающая модель на основе возобновляемых источников энергии обучающее оборудование для демонстрации дидактической системы

XK-FTD2A On Grid  Solar  Powser Generation Didactic System Educational Equipment

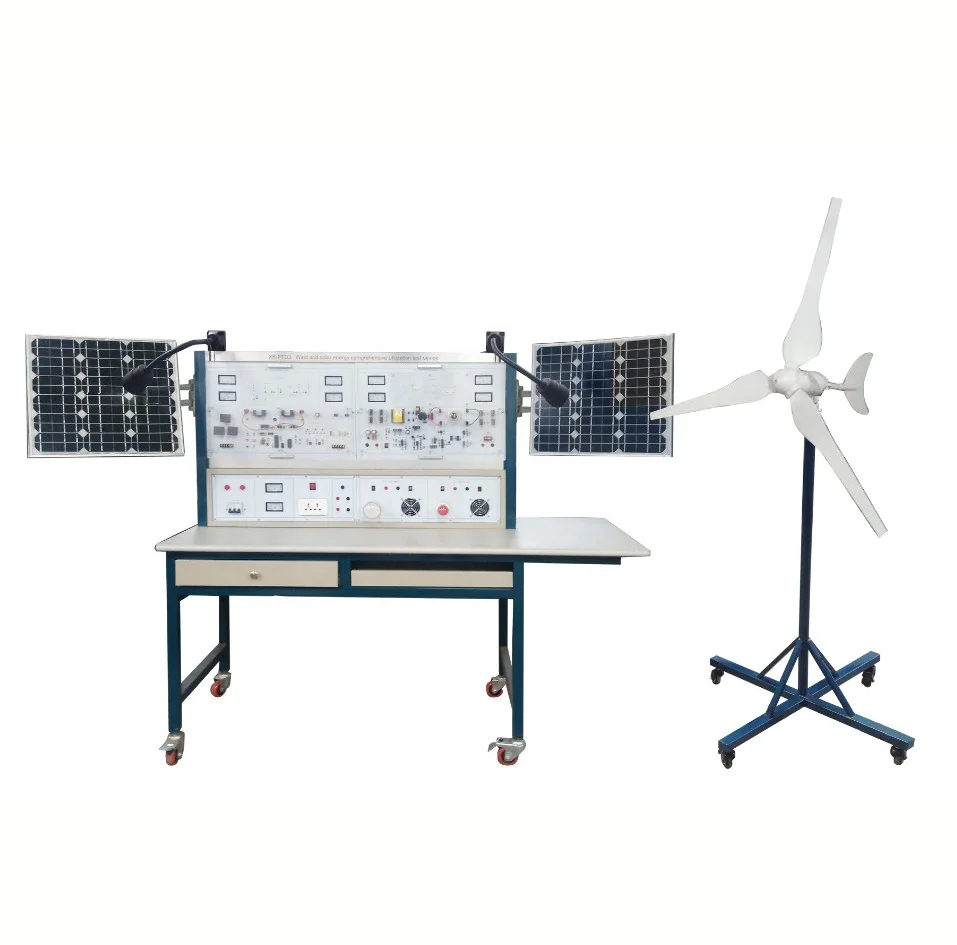

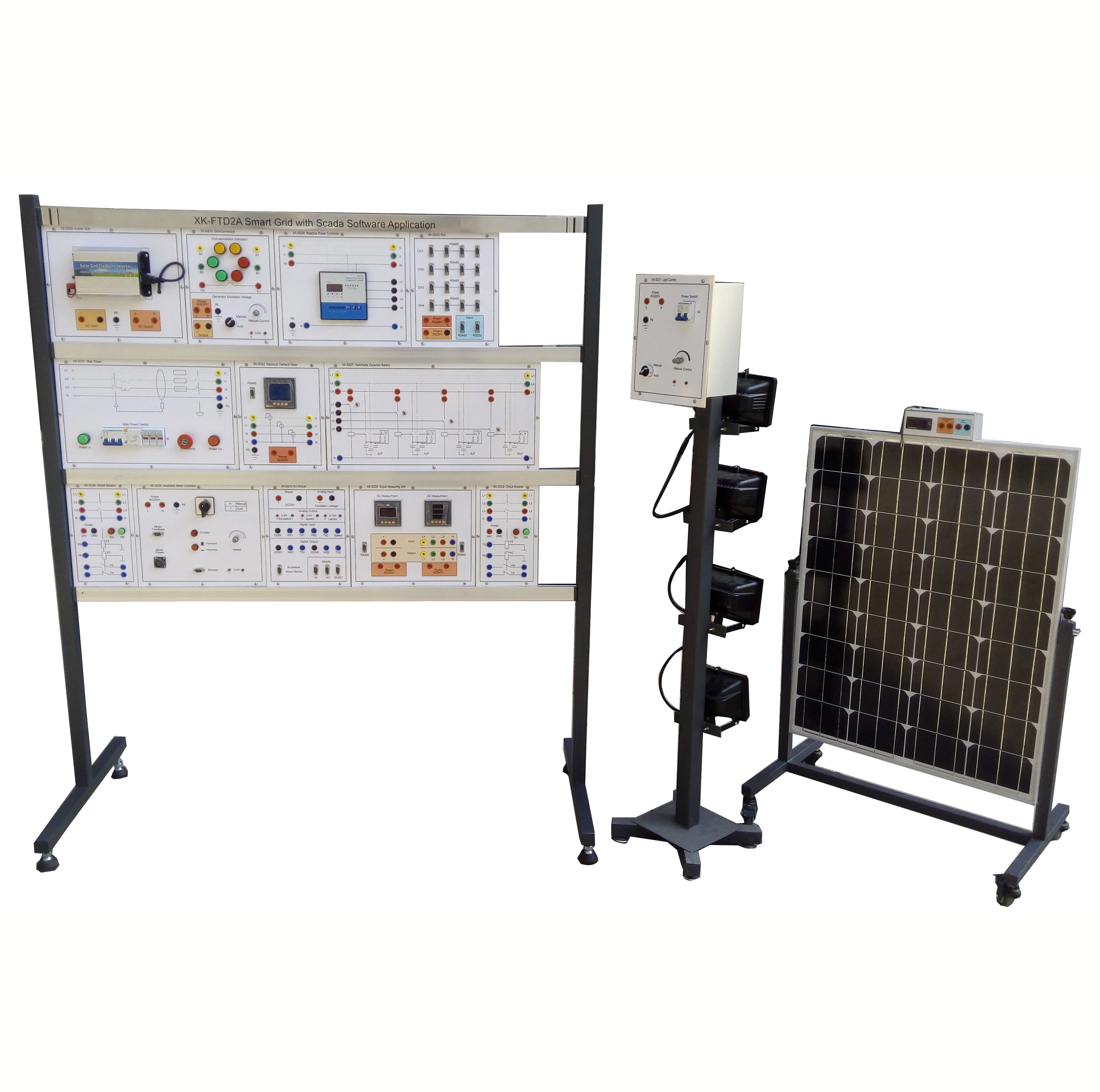

XK-FTD2A Training platform of grid connected generation system is designed and manufactured combined with practical experience of power system. And it widely used for smart grid training of vocational Colleges. This product includes generator set, solar energy panel, photovoltaic inverter, intelligent instrument and several other main modules. It mainly accomplishes experimental functions of three phase synchronous generator grid connection and photovoltaic power generation grid connection, and work with background software, which could control operation process remotely and monitor the experimental data of each phase.

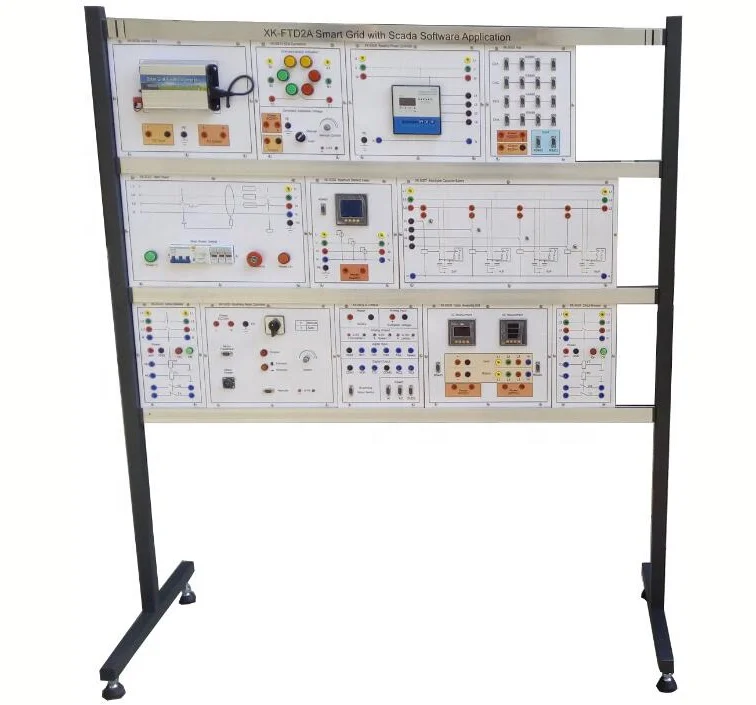

Training bench adopts aluminum profile structure. The modular structure is convenient for extended upgrade. It also has the characters of strong functional combination, convenient installation and operation, etc.

Experiments List:

Motor driving experiment

Generator excitation control experiment

Generator grid connected experiment

Reactive power compensation controller

Reactive power compensation experiment

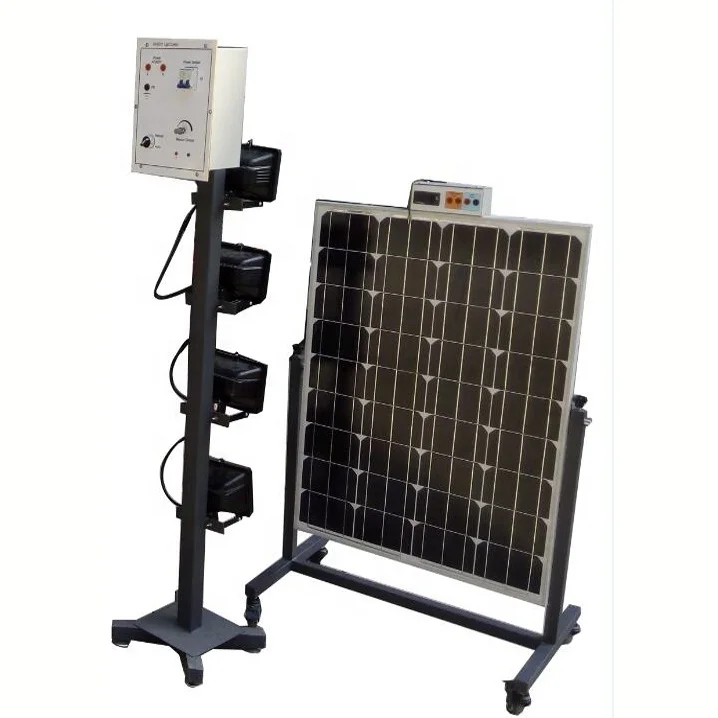

Simulated lighting experiment

Solar grid connected experiment

Generator background monitoring
