T16-2 T20-2 T25-2 T27-2 T30-2 T37-2 T38-2 T44-2 T50-2 T60-2 T68-2 T72-2 T80-2 T94-2 Pro тороидальный трансформатор железное
- Категория: Passive Components >>>
- Поставщик: Dongguan,Feixia,Magnetoelectric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.27 $* | 0.0 $* |
| Aug-20-2025 | 0.1 $* | 0.38 $* |
| Jul-20-2025 | 0.9 $* | 0.20 $* |
| Jun-20-2025 | 0.65 $* | 0.0 $* |
| May-20-2025 | 0.16 $* | 0.74 $* |
| Apr-20-2025 | 0.66 $* | 0.88 $* |
| Mar-20-2025 | 0.1 $* | 0.23 $* |
| Feb-20-2025 | 0.50 $* | 0.69 $* |
| Jan-20-2025 | 0.30 $* | 0.39 $* |
Характеристики
Product Description

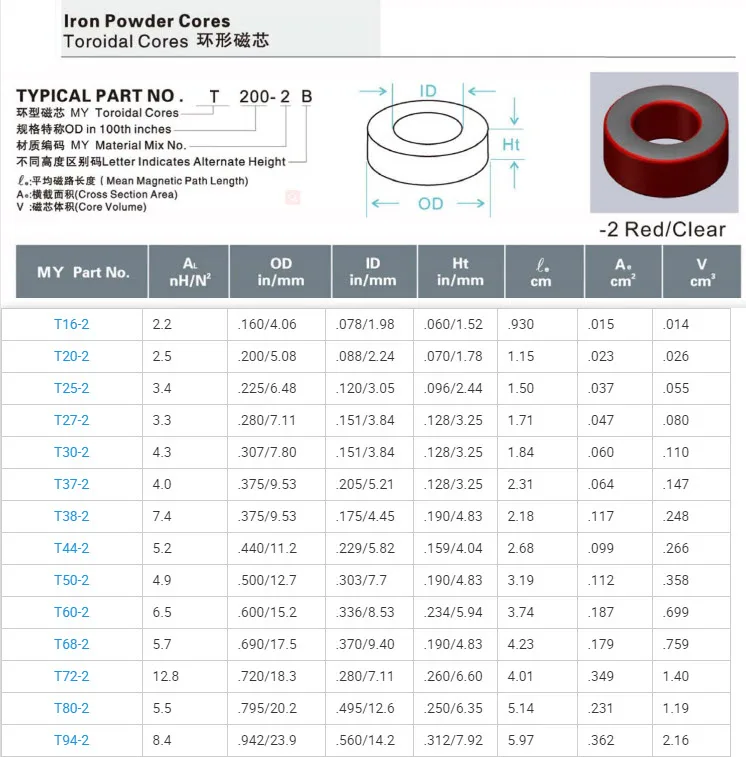

Product Name | T16-2 T20-2 T25-2 T27-2 T30-2 T37-2 T38-2 T44-2 T50-2 T60-2 T68-2 T72-2 T80-2 T94-2 Pro Toroidal Transformer Iron Powder Core |
part no | T16-2 T20-2 T25-2 T27-2 T30-2 T37-2 T38-2 T44-2 T50-2 T60-2 T68-2 T72-2 T80-2 T94-2 |

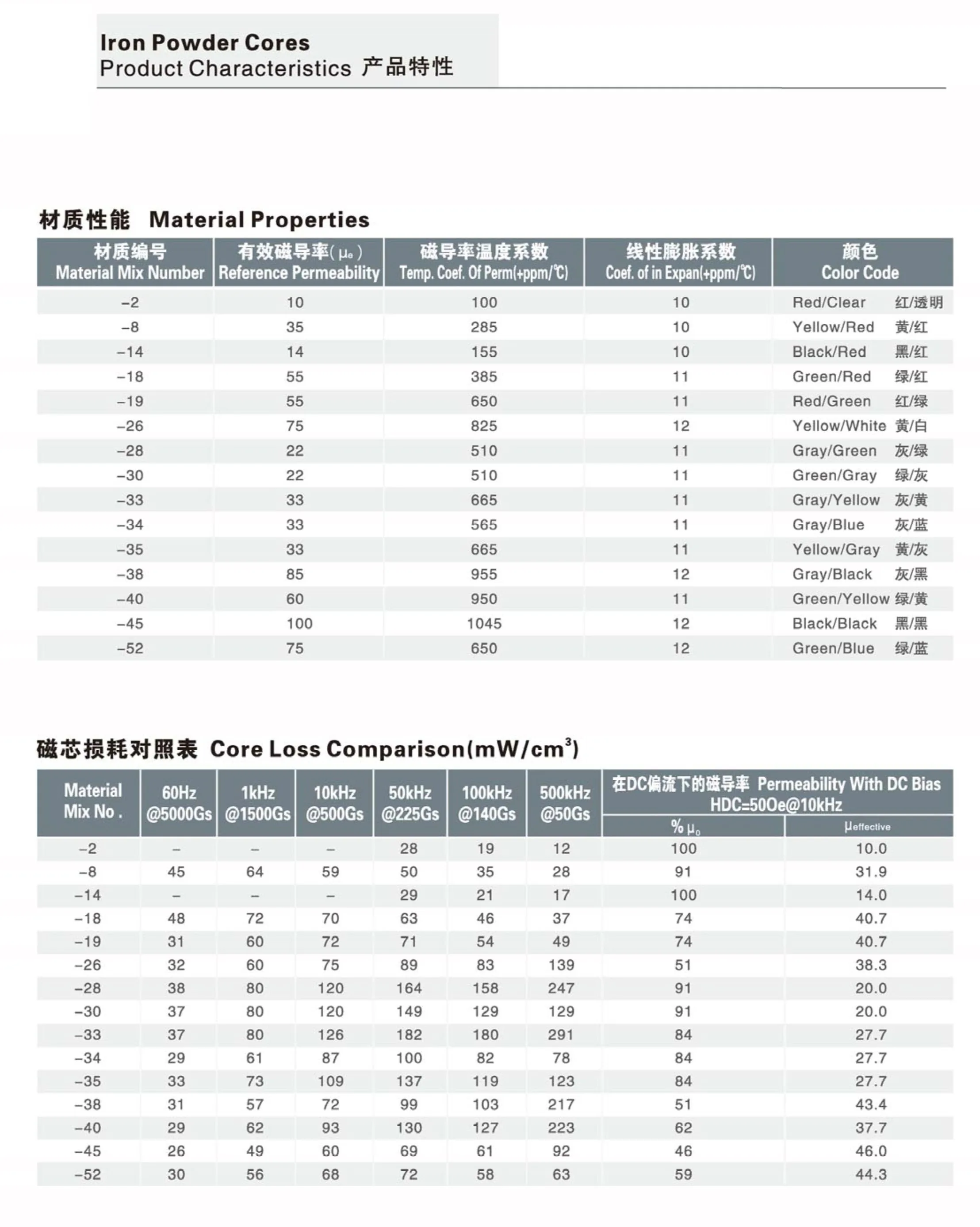

Material | -2 |
Effective permeability (μe) | 10 |
Temp.coef.of Perm(+PPM/℃) | 100 |
Coef.of in Expan (+PPM/℃) | 10 |
Color | Red/Clear |
2.2 | .160/4.06 | .078/1.98 | .060/1.52 | .930 | .015 | .014 | |
2.5 | .200/5.08 | .088/2.24 | .070/1.78 | 1.15 | .023 | .026 | |
3.4 | .225/6.48 | .120/3.05 | .096/2.44 | 1.50 | .037 | .055 | |
3.3 | .280/7.11 | .151/3.84 | .128/3.25 | 1.71 | .047 | .080 | |
4.3 | .307/7.80 | .151/3.84 | .128/3.25 | 1.84 | .060 | .110 | |
4.0 | .375/9.53 | .205/5.21 | .128/3.25 | 2.31 | .064 | .147 | |
7.4 | .375/9.53 | .175/4.45 | .190/4.83 | 2.18 | .117 | .248 | |
5.2 | .440/11.2 | .229/5.82 | .159/4.04 | 2.68 | .099 | .266 | |
4.9 | .500/12.7 | .303/7.7 | .190/4.83 | 3.19 | .112 | .358 | |
6.5 | .600/15.2 | .336/8.53 | .234/5.94 | 3.74 | .187 | .699 | |
5.7 | .690/17.5 | .370/9.40 | .190/4.83 | 4.23 | .179 | .759 | |
12.8 | .720/18.3 | .280/7.11 | .260/6.60 | 4.01 | .349 | 1.40 | |
5.5 | .795/20.2 | .495/12.6 | .250/6.35 | 5.14 | .231 | 1.19 | |
8.4 | .942/23.9 | .560/14.2 | .312/7.92 | 5.97 | .362 | 2.16 | |
13.5 | 1.060/26.9 | .570/14.5 | .437/11.1 | 6.49 | .659 | 4.28 | |
11 | 1.30/333.0 | .780/19.8 | .438/11.1 | 8.26 | .698 | 5.78 | |
14.0 | 1.57/39.9 | .950/24.1 | .570/14.5 | 10.1 | 1.06 | 10.7 | |
15.0 | 1.75/44.5 | 1.07/27.2 | .650/16.5 | 11.2 | 1.34 | 15.0 | |
24.0 | 1.84/46.7 | .950/24.1 | .710/18 | 11.2 | 1.88 | 21.0 | |
12.0 | 2.00/50.8 | 1.25/31.8 | .550/14.0 | 13.0 | 1.27 | 16.5 | |
12.0 | 2.25/57.2 | 1.405/35.7 | .550/14.0 | 14.6 | 1.42 | 20.7 | |
11.4 | 3.04/77.2 | 1.93/49 | .500/12.7 | 19.8 | 1.68 | 33.4 |
Product Usage
Description of product use effect
For: ring type transformers with good stability
High frequency filter inductance
Power amplifier/audio/non-contact sensor
High frequency automatic welder
Low temperature rise, small loss.
Service frequency: 40-400MHZ
