Electric car 2 in 1 obc battery charger ev liquid cooled 6.6kw on board charger
OBC input
Input Voltage
85-265VAC
Input Current
32A
Input Frequency
45-65Hz
DC-DC converter input
Input Voltage
200-420VDC
Input Current
7A
OBC output
Output Voltage
200-420VDC
Output Current
20A max
LV Output
14VDC 7A
Output Power
6.6KW max
Output Current Accuracy
±0.4A
Output Ripple & Noise
±2%mVp-p
Output Wakeup Voltage
12VDC
Output Wakeup Current
200mA
Efficiency
95%
DC DC converter output
Output Voltage
9-16VDC
Rated Output Voltage
14VDC
Output Current
108A
Output Power
1.5KW
Maximum Output Power
1.8KW
Output Voltage Accuracy
±1%Vo
Output Ripple & Noise
300mVp-p
Efficiency
94%
Technical Parameters
Communication
CANbus
Baud Rate
250K/500K
Operating Temperature
-40 to 85℃
Altitude
5000m
IP rate
IP67
Cooling
Liquid-cooled
Dimension (LxWxH)
443x326x91mm
Net Weight
10kg
Protections
input&output under voltage protection
input&output over voltage protection
over temperature protection
output short circuit protection

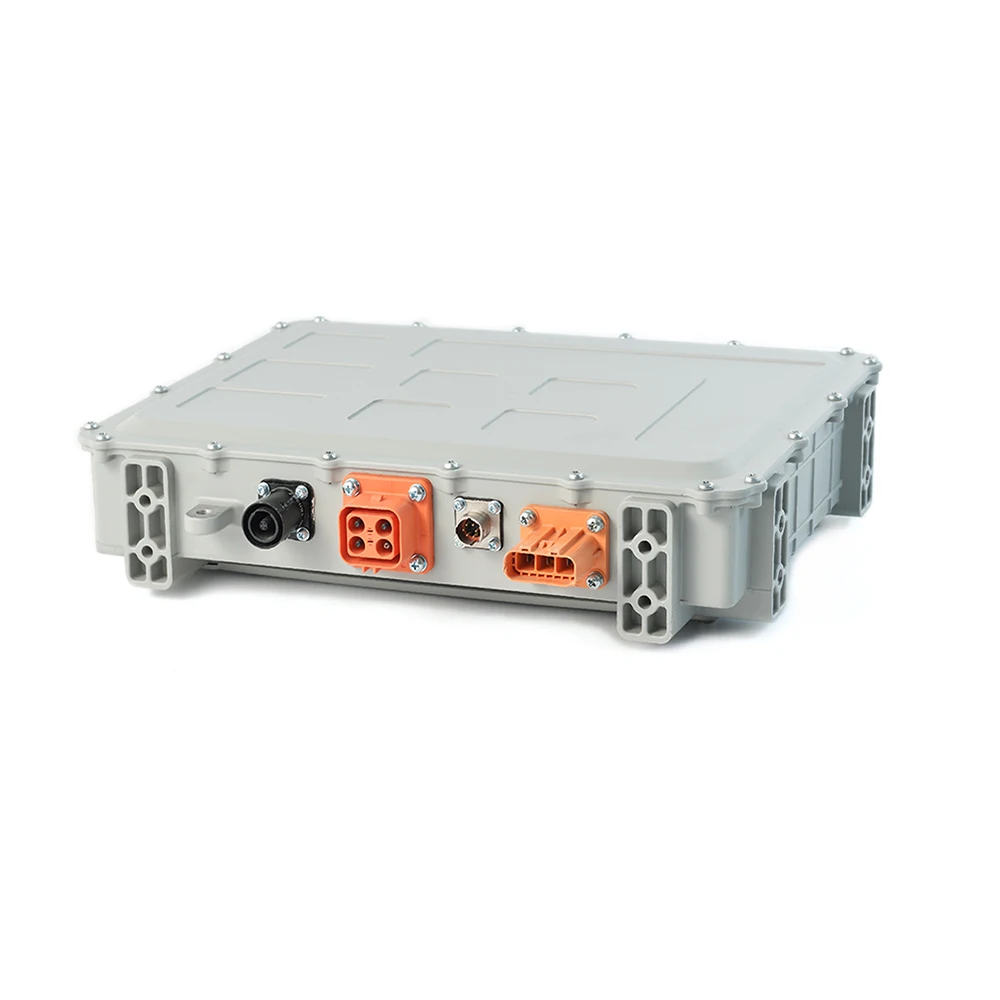

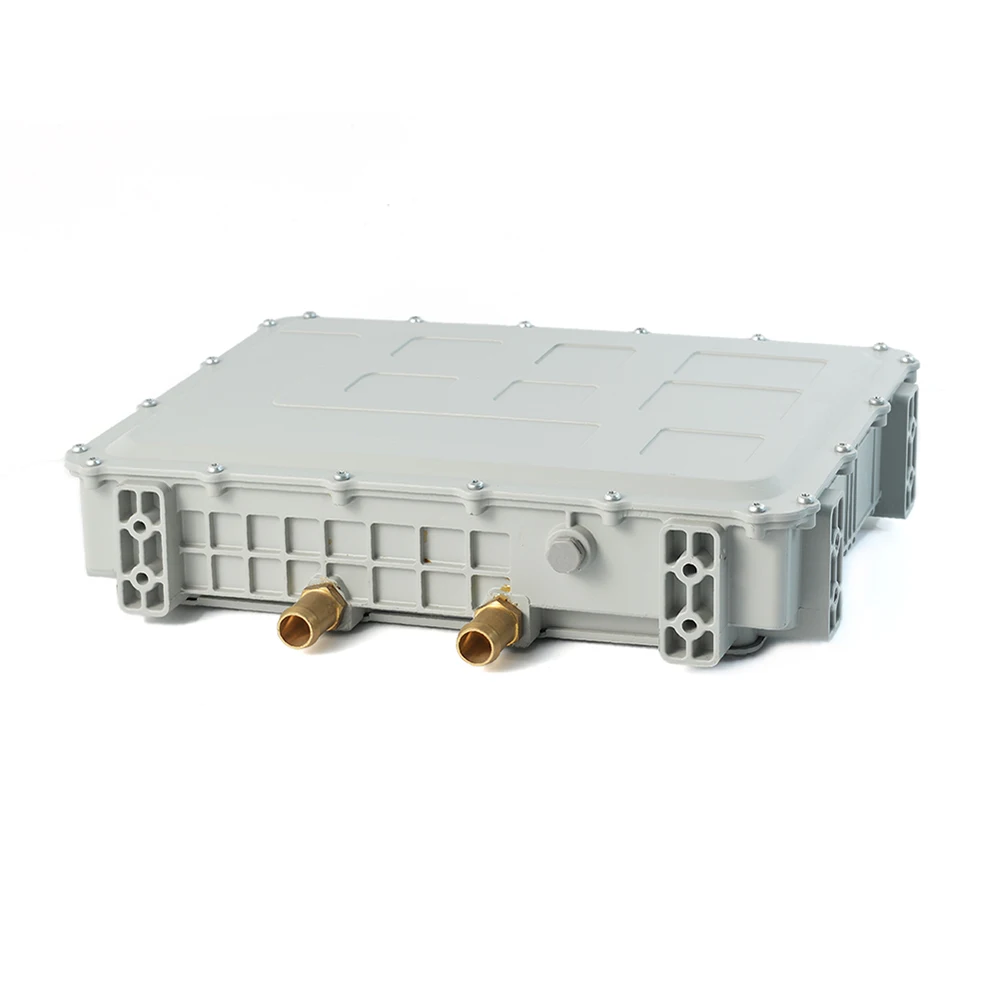

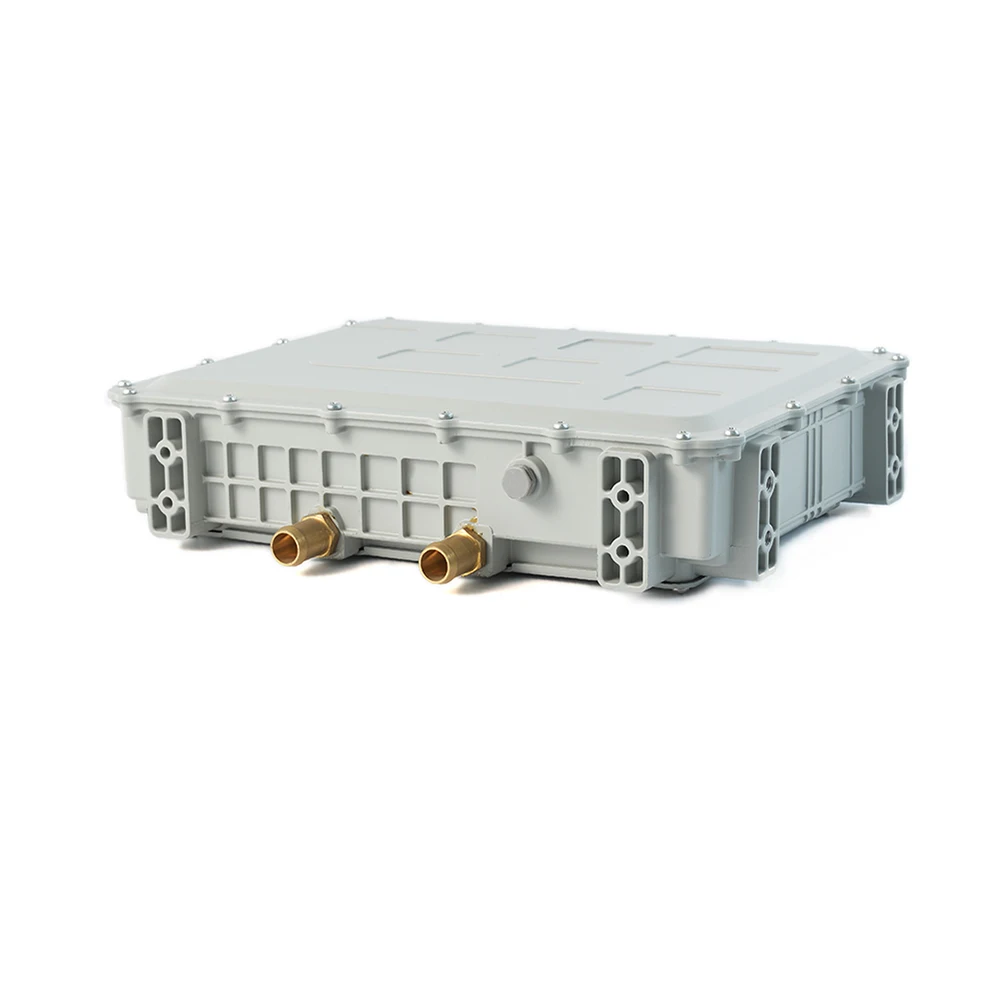

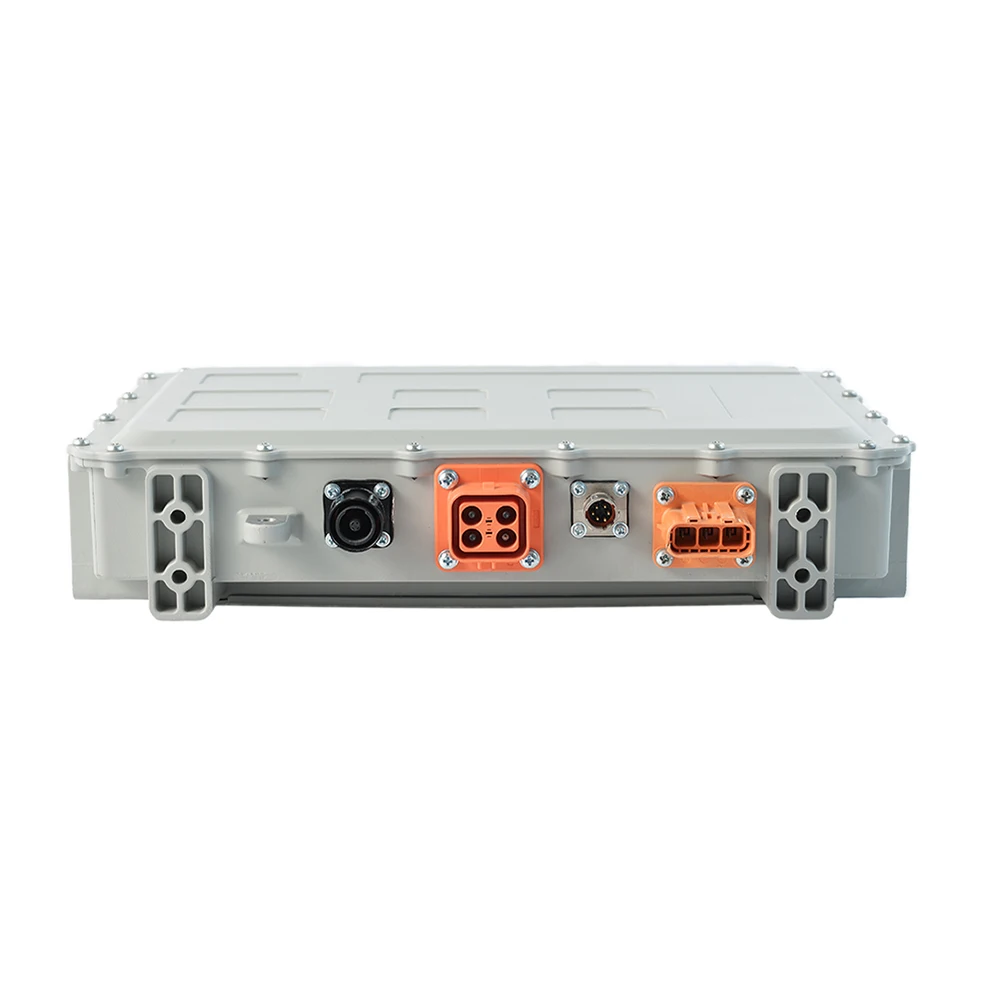

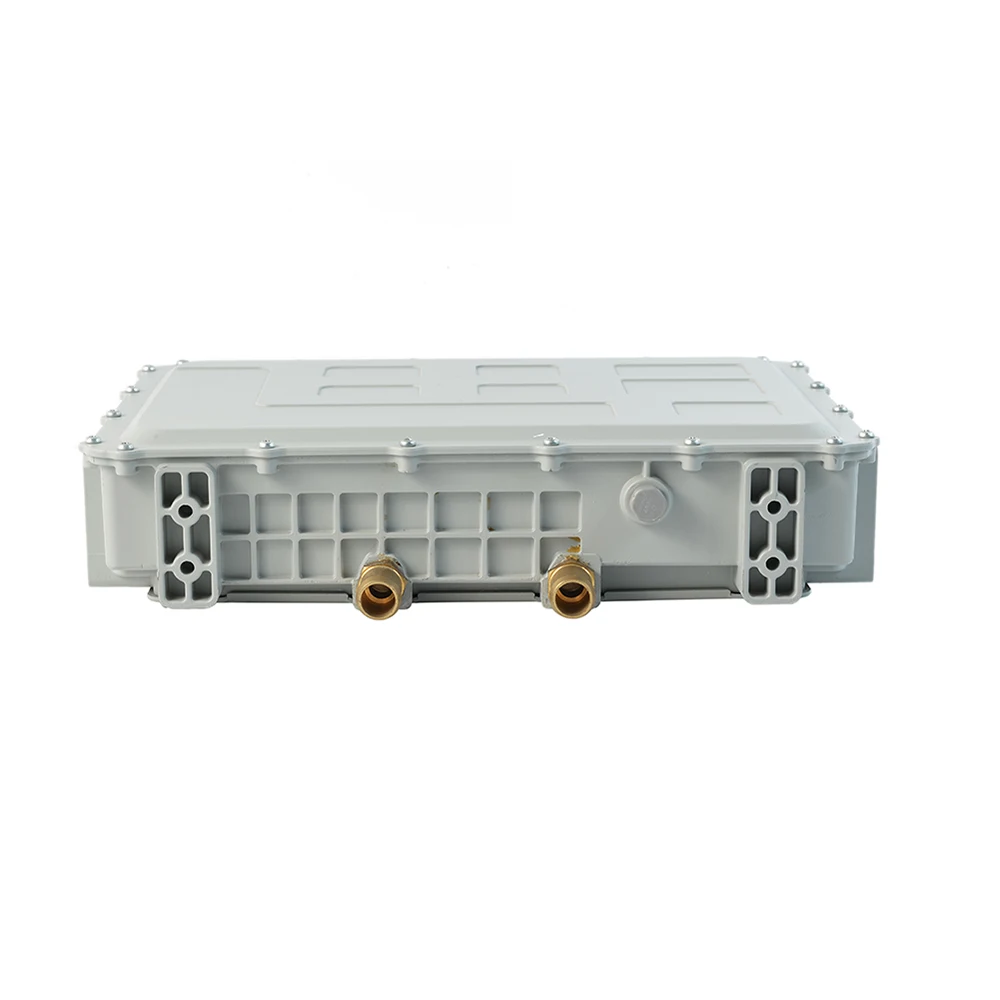

Detailed Images
Applications
Company Profile
Certifications
Ship and Payment
FAQ
Q: Are you trading company or manufacturer? A: We are manufacturer.
Q: How long is your delivery time? A: Generally, it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: What is the key technical advantage of your products? A: We adopt the digital control technology, which is convenient for remote upgrade and fully automatic production.
Q: What is your Engineering Testing and Validation capabilities? A: We will response you within 2 hours and solve the problem within 24 hours.
Q: What are your terms of payment? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Q: What is the MOQ (Mini Order Quantity)?
A: 1unit
Q: Do you accept customization?
A: Yes, OEM and ODM services are all supported.
Q: Will you provide free sample before order?
A: Generally speaking, you need to pay for that.
Q: What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and paper cartons. If you have legally registered brand, we can pack the goods in your branded boxes after getting your authorization letters.
Q: Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can produce the molds and fixtures in-house.
Q: What is your sample policy?
A: We can supply the sample if we have the parts in stock, customers must pay the sample cost and the courier cost.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery, if necessary, we can send inspection report before delivery.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
