Профессиональный промышленный криогенный резервуар для хранения СПГ большого размера по заводской
- Категория: Chemical Storage Equipment >>>
- Поставщик: Henan,Kaiyuan,Air,Separation,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 237941.60 $* | 249838.71 $* |
| Aug-16-2025 | 235941.22 $* | 247738.80 $* |
| Jul-16-2025 | 197951.69 $* | 207849.14 $* |
| Jun-16-2025 | 231942.82 $* | 243539.61 $* |
| May-16-2025 | 201950.66 $* | 212048.86 $* |
| Apr-16-2025 | 227943.3 $* | 239340.36 $* |
| Mar-16-2025 | 225944.57 $* | 237241.78 $* |
| Feb-16-2025 | 223944.41 $* | 235141.60 $* |
| Jan-16-2025 | 221945.14 $* | 233042.18 $* |
Характеристики
Professional industrial large size cryogenic LNG storage tank with factory price
Product Description
Throughout optimizing the pipeline design in the interlayer and utilizing the principle of thermosyphon, the thermosiphon vacuum storage tank developed by our company has shortened the startup time of the cryopump to 5 minutes, and the liquid loss of pre-cooling and emptying is significantly reduced.
Its structure is mainly composed of inner and outer tanks, the gap is vacuumed and filled with expanded perlite, piping system, and safety accessories. This product is for storing industrial gases such as liquid oxygen, liquid nitrogen, liquid argon, carbon dioxide, LNG, ethylene, etc.
1. Specification for cryogenic liquid product storage tanks
Model(CFL/W) | KY5 | KY10 | KY15 | KY20 | KY30 | KY50 | KY60 | KY100 | KY150 | KY200 | KY250 |
Inner tank/outer tank material | S30408/Q345R(CO2inner tank:16MnR) | ||||||||||
Operation pressure | 0.2/0.8/1.2/1.6/2.8 MPa | ||||||||||
Volume (m3) | 5 | 10 | 15 | 20 | 30 | 50 | 60 | 100 | 150 | 200 | 250 |
Inner tank size (m) | 1.4 | 1.8 | 1.8 | 2.0 | 2.2 | 2.5 | 2.7 | 3.0 | 3.3 | 3.5 | 3.6 |
Outer tank size (m) | 1.9 | 2.3 | 2.3 | 2.5 | 2.7 | 3.0 | 3.2 | 3.5 | 3.8 | 4.0 | 4.1 |
Daily evaporation rate(%/d)o2 | 0.4 | 0.36 | 0.35 | 0.33 | 0.29 | 0.23 | 0.21 | 0.16 | 0.14 | 0.13 | 0.12 |
Large flat-bottom storage tanks are mainly composed of inner and outer tanks, the gap is vacuumed and filled with expanded perlite, piping system, and safety accessories. And it
is currently the most economical storage container for industrial gases such as liquid oxygen, liquid nitrogen, and liquid argon.
2. Specification for Large flat-bottom storage tanks
| Tank size (m3) | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Inner tank/outer tank material | S30408/Q345R | ||||||||||
| Operation pressure | 15-50 KPa | ||||||||||
| Inner tank size (m) | 6.5 | 7.3 | 8.0 | 9.0 | 9.0 | 9.0 | 10.0 | 12.4 | 13.5 | 16.2 | 20.0 |
| Outer tank size (m) | 8.8 | 9.6 | 10.2 | 11.3 | 11.3 | 11.3 | 12.3 | 14.6 | 16.0 | 18.5 | 22.4 |

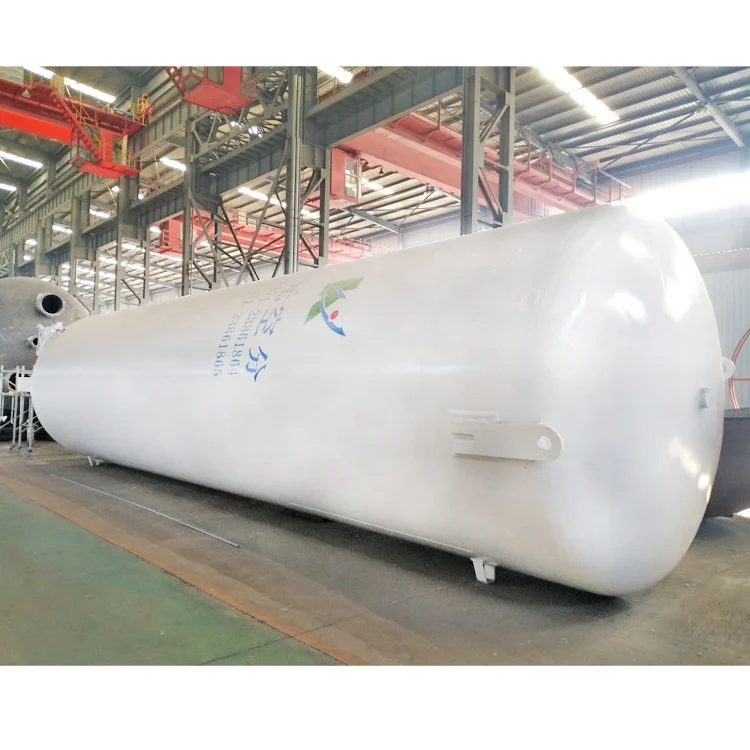

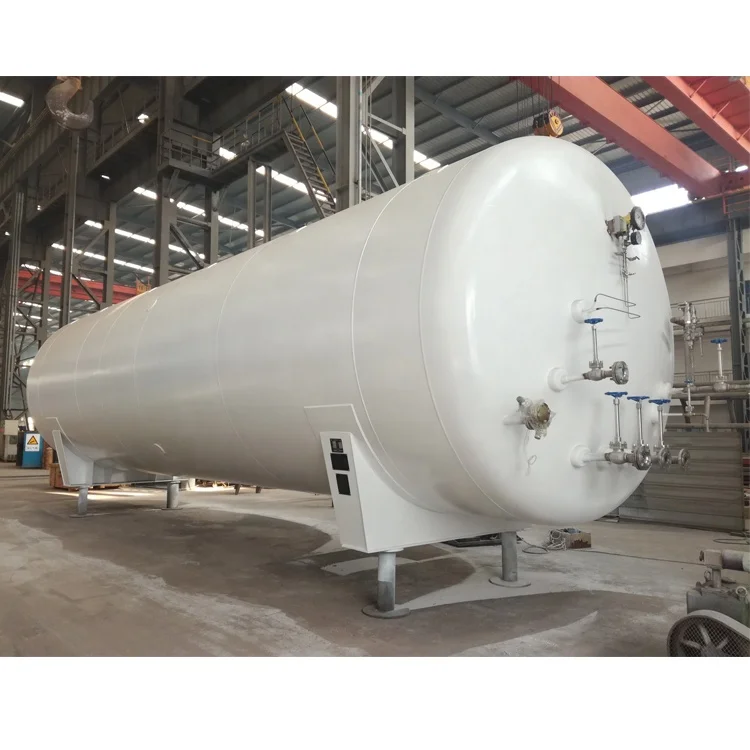

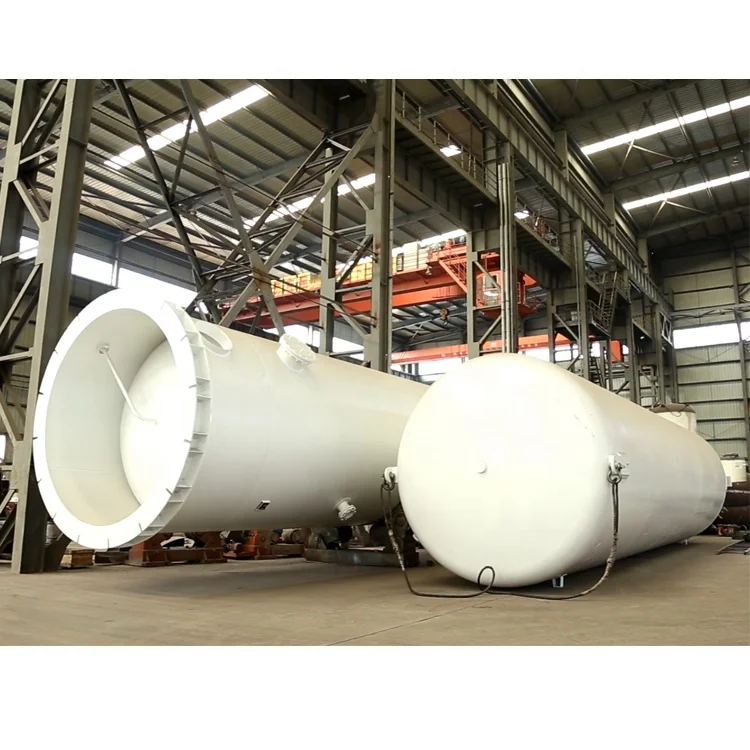

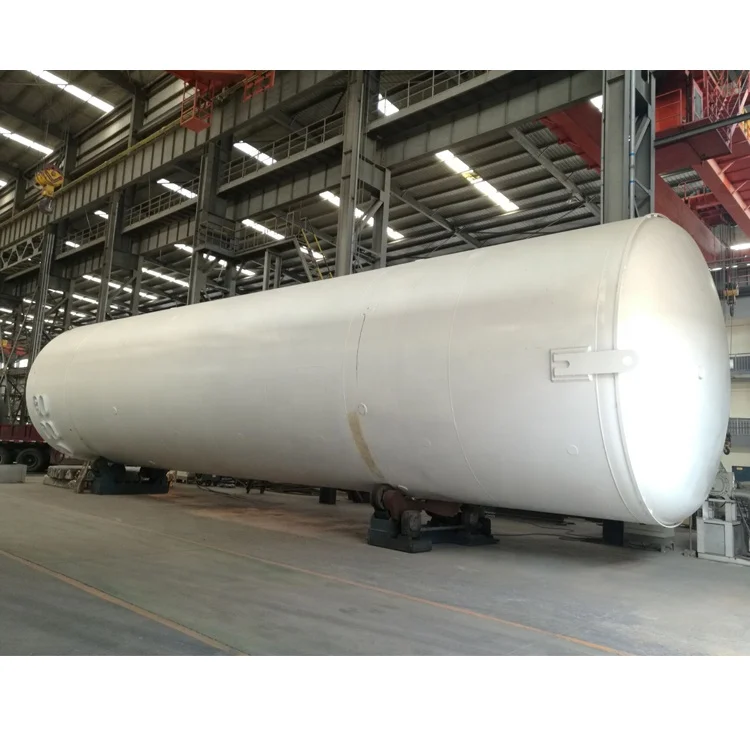

Product Display
Venta tanques de oxigeno
Company Information
Venta tanques de oxigeno
More products
Venta tanques de oxigeno
More information , please contact with us freely~~~
