Product Description

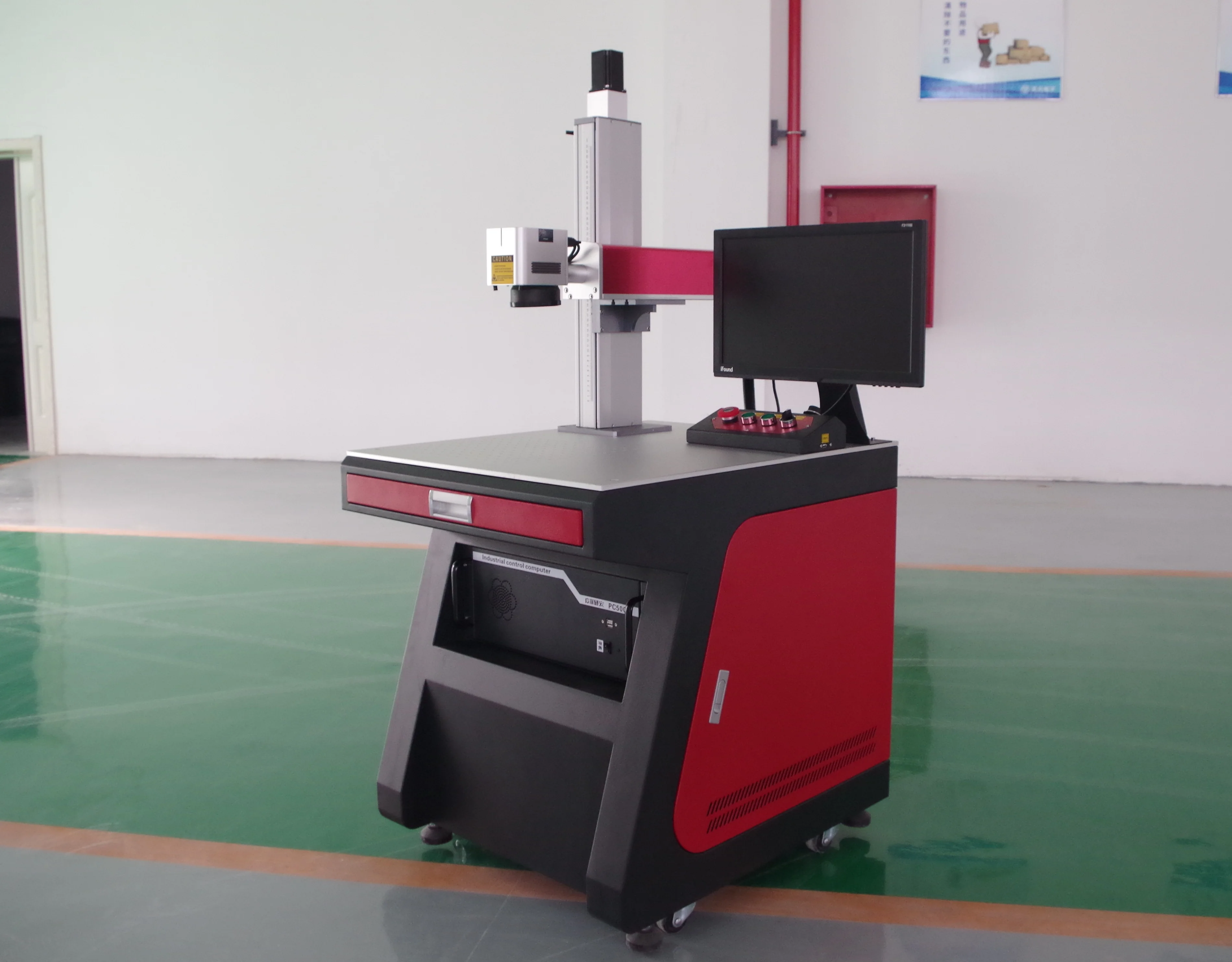

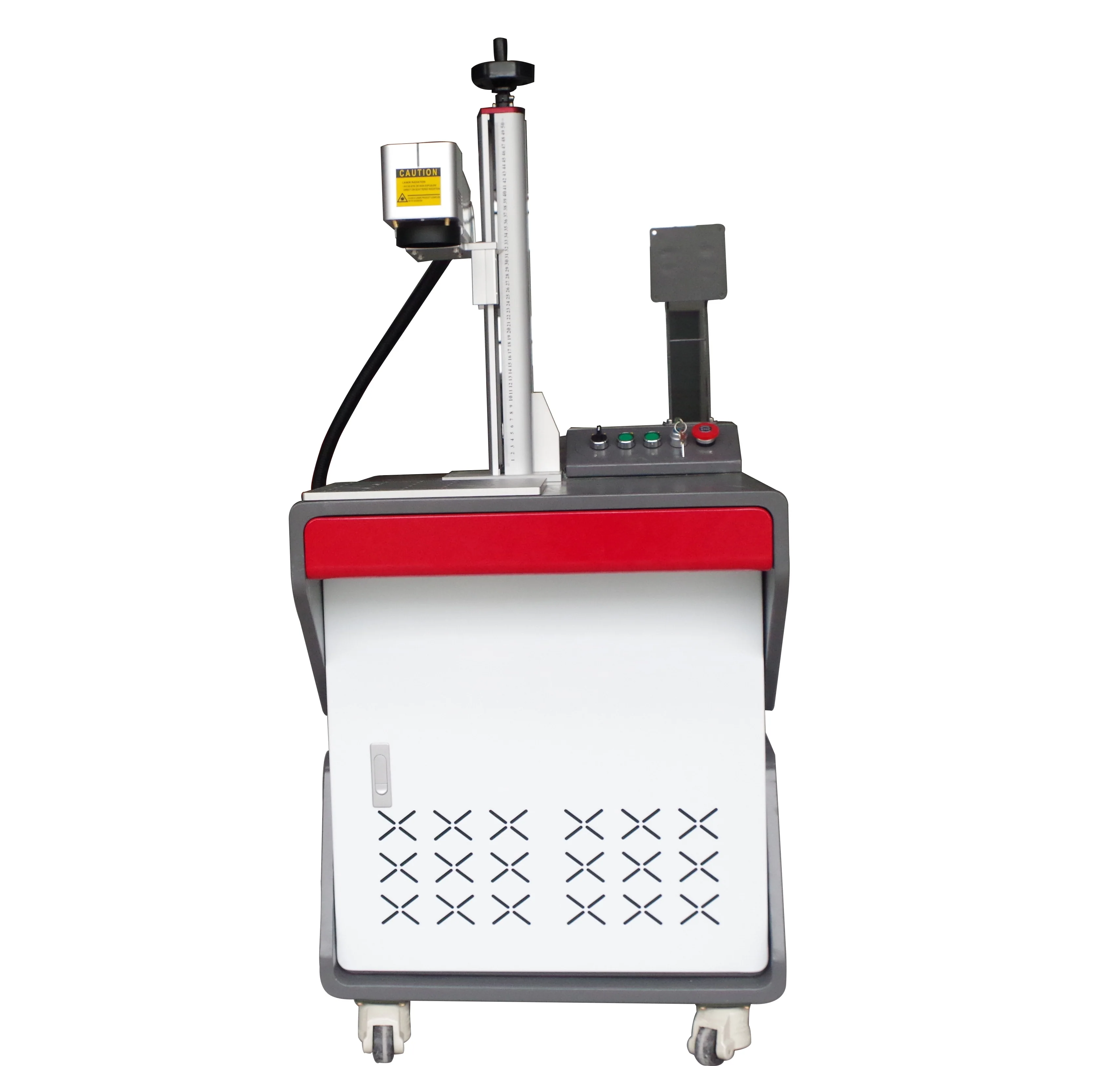

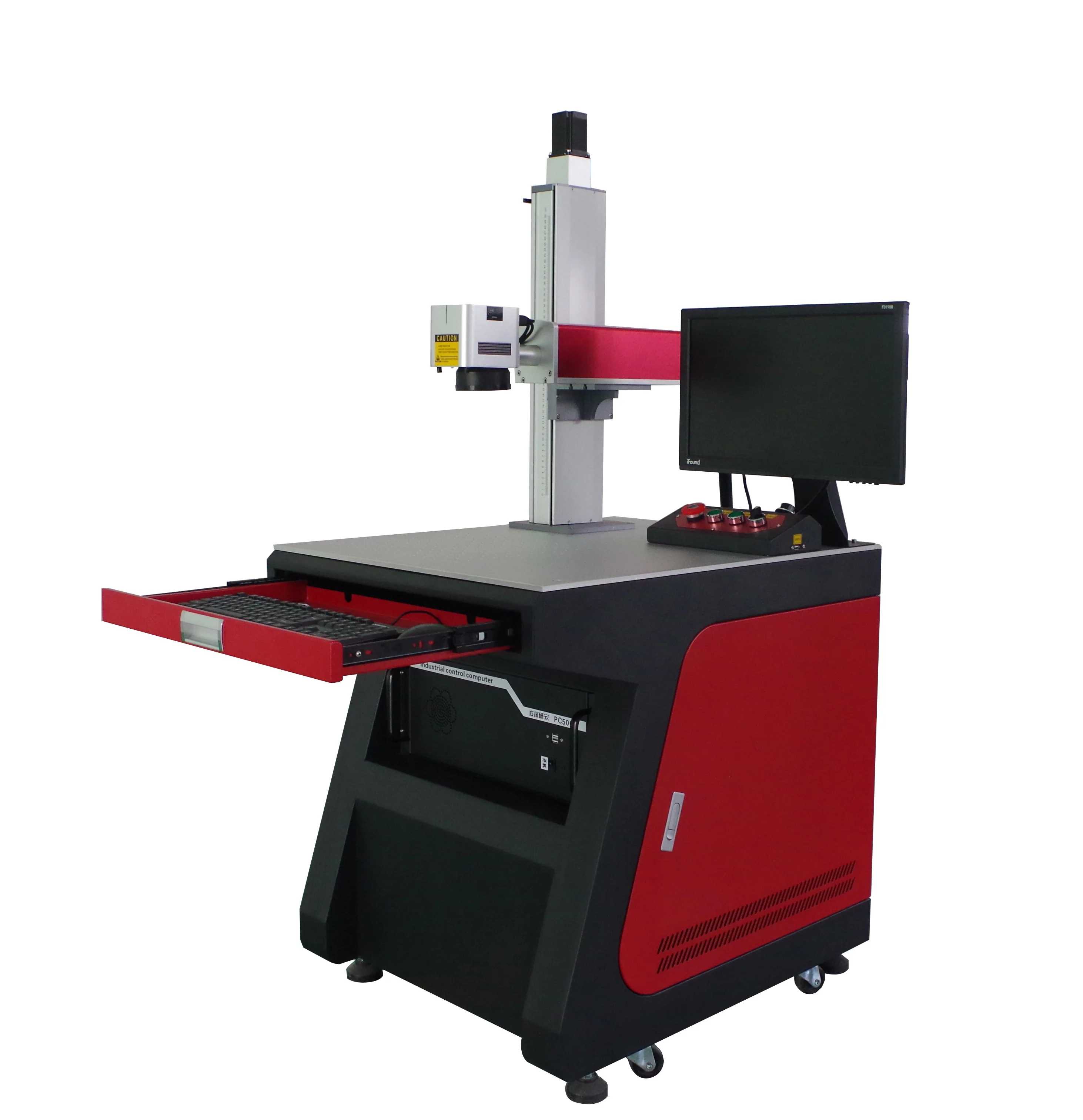

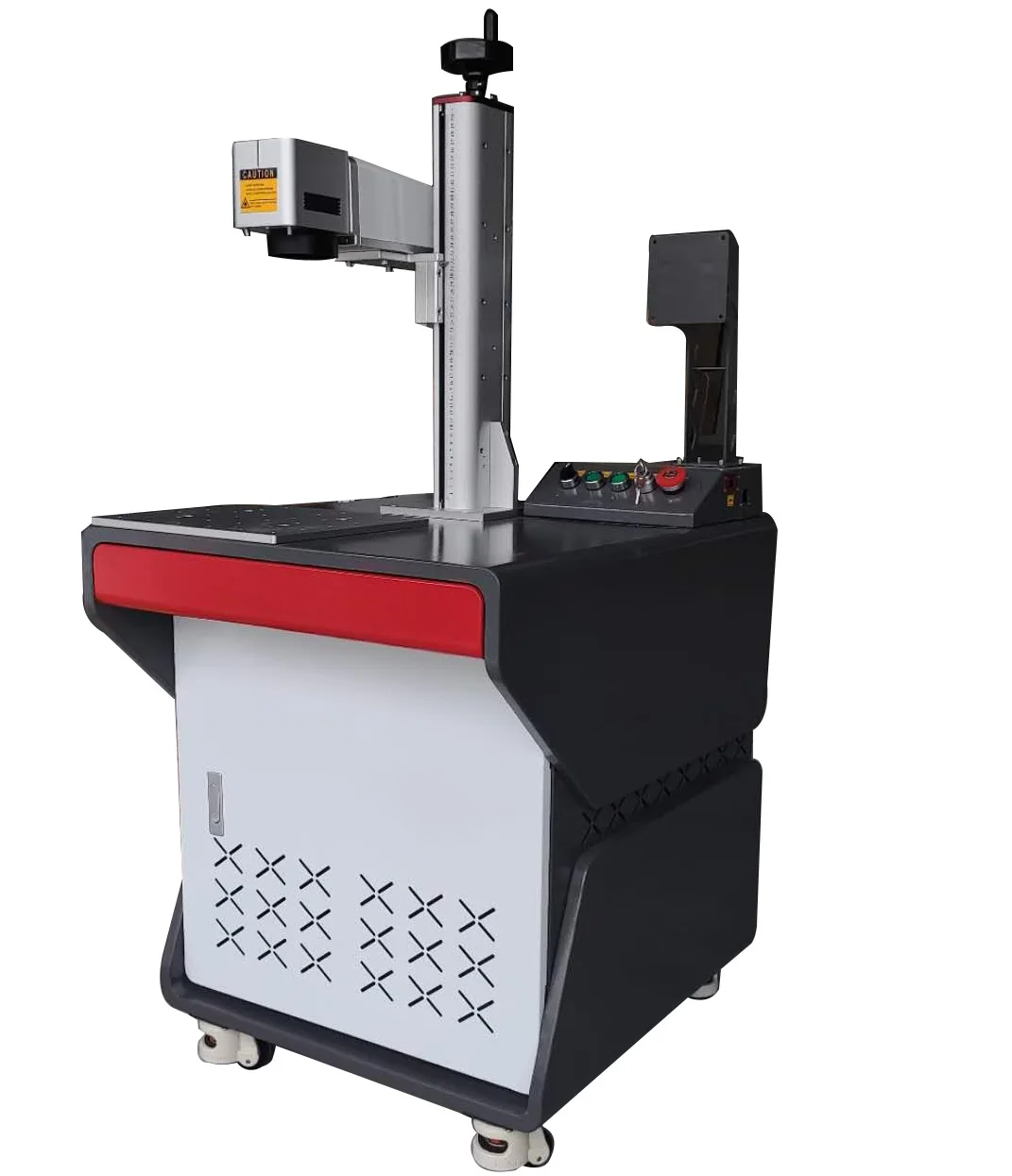

MOPA 60W Fiber laser silver gold engraving cutting machine
>>JPT M7 series high power pulsed fiber laser make use of master of oscillator power amplifier(MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switch technology, the pulse repetition frequency(PRF) and pulse width can be controlled independently in MOPA configuration,through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processsing which Q-switch limited. The higher output power makes its advantages especially in hign speed marking applications.
>>M7 series advantages:
In addition to the advantages of the M6+ series,M7 has the advantages of
The first pulse available;
Wider pulse width adjustment;
And the fans of the laser source will start automatically when it reaches a certain temperature, and it is ultra-quiet.
The internal control function of the laser source- GUI, can lock the output laser power, not interfered by external conditions.
>>Application.
Adjustable pulse width 2-500ns,wider frequency 1-4000KHZ. High pulse energy 1.5mj. Can used on:
+Thin metal cutting, welding.
+Laser derusting.
+metal surface processing,peeling coating.
+Sribing, drilling.
+Surface treatment.
+Semi-conductor&electronics industry applications.
>>Processed samples
Detailed Images
>>Main Features of the machine
1.Genuine JPT MOPA laser source with 3 years warranty
Each piece has a sole serial No. and test report.
2.Genuine EZ CAD controller
Each piece has a sole serial No. to check to avoid fake.
3.Newest digita galvo scanner head
Comes with double red dot and alarm lamp.
4.New design machine body,motorized Z axis ball screw transmission.
Moving more smoothly and easy to find focus dot.
5.F-theta lens for Galvo system
More accurate beam position.
>>Technical Parameter
Model | RF-F-100W | RF-F-60W |
Fiber laser source | mopa | mopa |
Power output | >100W | >60W |
Delivery cable length | 3m | |
Beam Quality M2 | <1.8 | |
Maximum Pulse Energy | 1.5 | |
Main board and control software | Genuine EZCAD (BJJCZ) which supports XP Win7 /8/10 32 and 64bits | |
Wavelength | 1064nm | |
Max positioning speed | 8000mm/s | |
Marking Area | 70×70/110×110/150×150/175×175/ 200×200/300×300mm(optional) | |
-- | - | |
Min. Character size | 0.2mm | |
Frequency adjustable range | 1~4000 KHZ | |
Pulse Duration | 2~500ns | |
Out beam diameter | 6 -7mm | |
Supply voltage | AC 110/220V±10%, 50/60Hz | |
Anti-reflection protection | yes | |
Polarization | Random | |
Power cable style | According to your request (Asian /European / American standard) | |
Focus | Double red dots positioning | |
Cooling way | Air cooling | |
Operation temperature | 0~40℃ | |
Package dimension | 90*77*106cm
| |
Package gross weight | 130kgs | |
CE Certificate | Approved | |
Packing&Shipping
1. Collect all accessories and and spare parts together one by one based on the order list ,and check all parts carefully once more to ensure all parts are included.
2. Our packaging standard:
+thick layer of plastic wrap
+ Six-sided pearl cotton
+ high-strength wooden box
+ packing belt and then fix the machine to ensure the safety of the machine during transportation.
3. Stick the shipping mark to ensure the buyer can recognize the right machine easily.
4. Stick the Safety signs can remind transporters to take good care of our equipment during shipping
>>PACKING LIST
Machine | 1set | |
Standard Accessories | ||
1.Focus ruler | 1pcs | |
2. English user manual | 1pcs | |
3. U-disk for setted parameter of software | 1pcs | |
4.software Setup CD | 1pcs | |
5.Foot switch | 1pcs | |
6.Allen wrench | 1pcs | |
7.Power cable(as per request) | 1pcs | |
>>Optional parts
Auto Focus :
When we mark work-pieces with different height, the displacement transducer can Automatically sense workpiece height . The Galvo head will be up and down automatically,no need move the Galvo head by hand when marking workpieces with different height.
Cyclops camera position system:
We can see work-piece photo in software through the camera. Then we can set the marking point on the photo via software,then the machine engrave the same place on the work-piece,no need to move the work-piece
3D Dynamic focusing Galvo head:
Mainly used for marking on curved surface and 3D deep engraving
After Sales Service
Why choose us ?
1)Our company is special manufacturer of laser equipment for many years.
2)We got many good feedback worldwide.
3)We have many experience for both Europe and US high quality market. Specially US market.
4)We Rayfine company have professional technical team, can custom made the laser machine according customers' special requirement.
5)Our company principle is that provide customer the best quality machine, after sales service and let customers satisfy
>>Our service
Pre-sale service
We arrange final test before shipment. We run the machine without materials for a few days, and then mark materials for test. After making sure the machine is the best performance, then ship out the machine.
After sale service
1.Details english manual book which explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.
2.English documents instruction to show you how to install the machine according to each machine of order(including photos and words).
3.Online remote support appointment: after receiving your machine you can make appoint 24 hours before install the equipment. then our engineer supply online support when you are ready to start installment.
4.Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
About warranty
The whole machine warranty is 2 years, And the laser source warranty is 3 years.
If problems within warranty period ,we do as following:
1)Electrical components: Switching power supply, AC contactor, Switch buttons. If have quality problem in within 2 years,we sent to you a new one and free.
2).Motherboard and galvanometer have quality problems, We will send the new one to you , But the customer needs to return the old part to us.
3).If the laser source have quality problems,the user need send the fiber laser source back to our company and we will repair it and send back to you free.
Note :Product damage by All man-made or accident are not covered.
