Новый медицинский конденсатор для красоты 1400VDC 100 мкФ

Описание и отзывы

Трекер стоимости

Характеристики

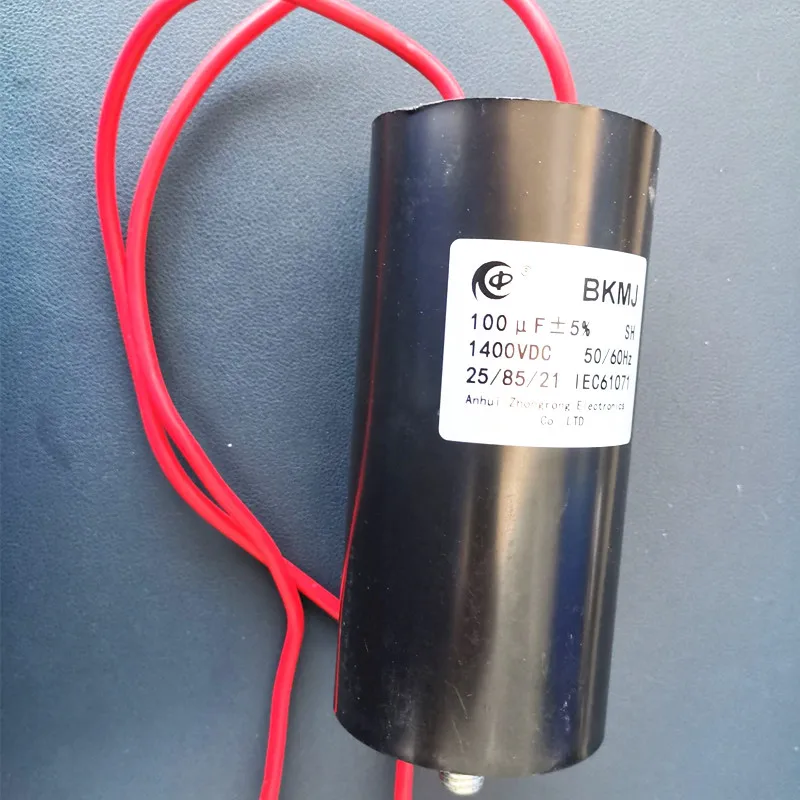

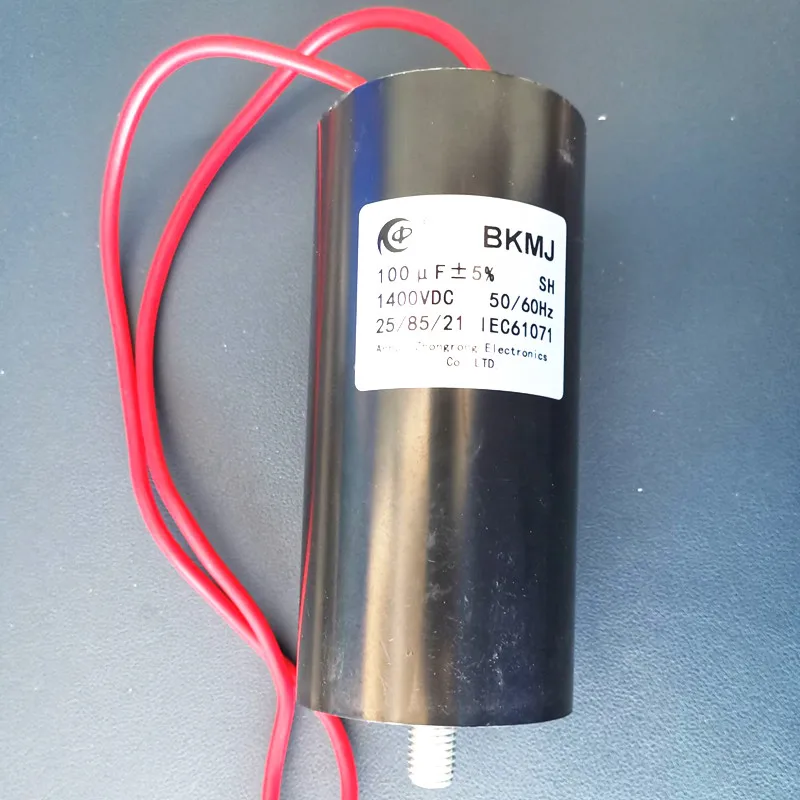

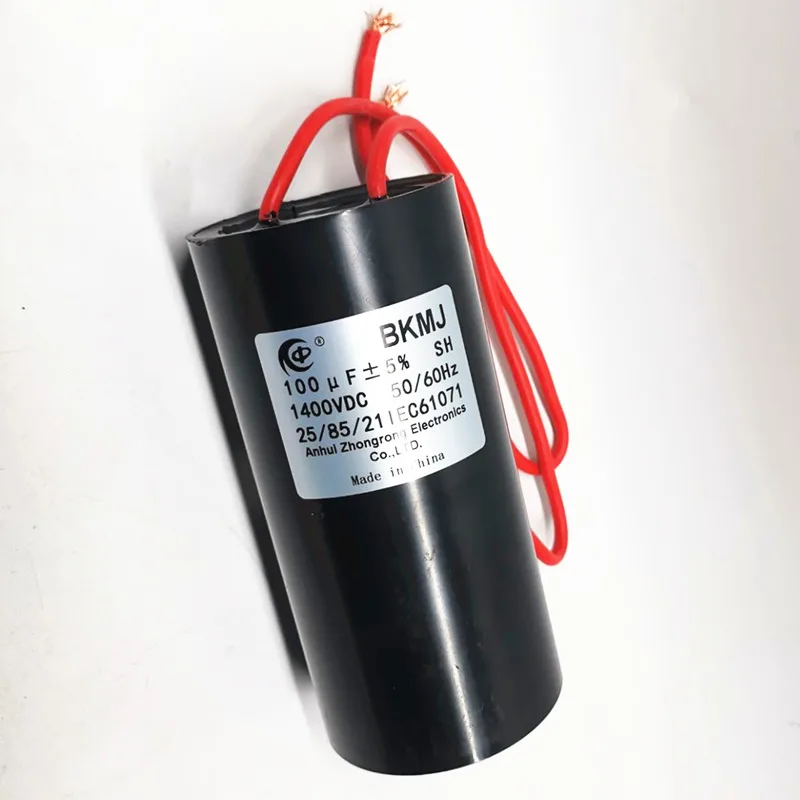

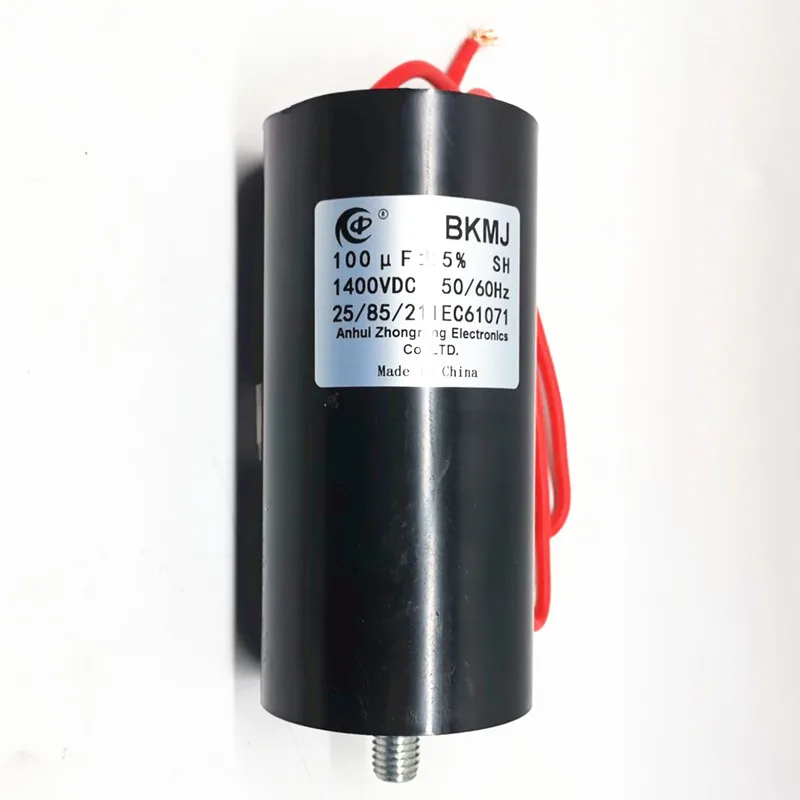

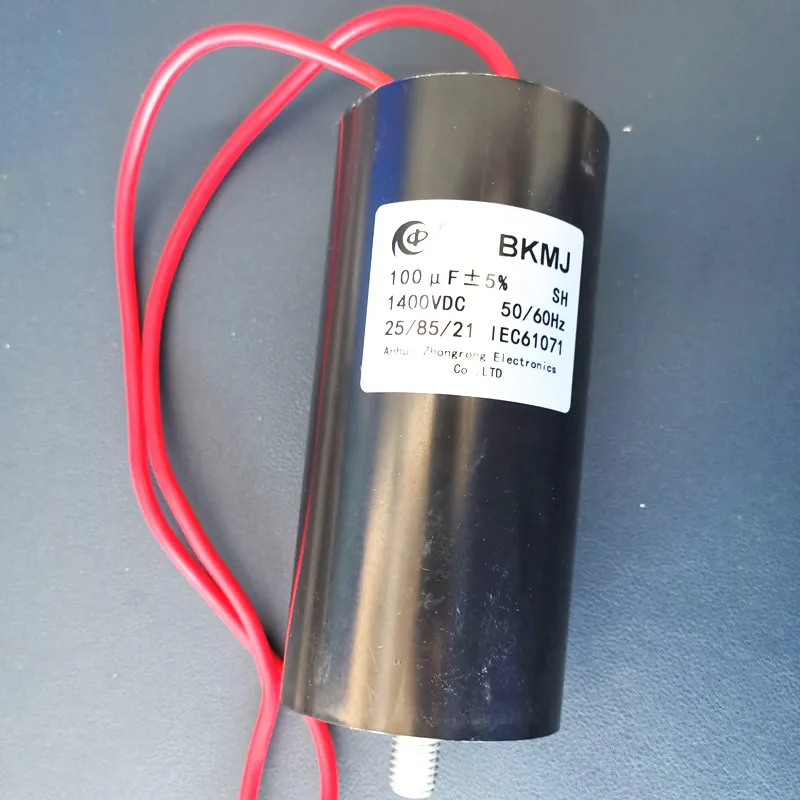

New 1400VDC 100UF 120UF Medical Beauty Capacitor



Medical Beauty Capacitor Main Feature :

(1) Circular plastic box, small dimension, light weight, high performance

(2) Excellent eletric performance

(3) High reliability





Medical Beauty Capacitor Application:

Applied in power source circuits of laser equipments





Medical Beauty Capacitor Technical information:

Technical data and specification:	BKMJ Laser Capacitor
Ambient Temperature	-40C ~ +55C
Rated Voltage	1000V ~ 3000V
Reference Standard	Q/MS009-2002
Capacitance Tolerance	+/-5% ; +/-10%
Dissipation Factor	≤ 0.0010 ( 100Hz )
Insulation resistance	R-C ≥ 1200M Ω µF
Withstand Voltage	1.1 ~ 1.5Un(5S)
Charge and discharge frequency	3 ~ 300 times/second





Medical Beauty Capacitor





Laser Pulse Capacitor :

Norminal Capacitance	1000V	1400V	1600V	1800V	2000V	2500V	3000VD
	D x H	D x H	D x H	D x H	D x H	D x H	D x H
10UF						Φ60 ×120	Φ60×120
20UF		Φ50 ×60	Φ50 ×70	Φ55 ×80	Φ60 ×100	Φ60 ×140	Φ60×140
30UF		Φ50 ×80	Φ50 ×90	Φ60 ×100	Φ60 ×120	Φ65 ×160	Φ80×160
40UF	Φ50 ×80	Φ50 ×100	Φ55 ×100	Φ60 ×130	Φ65 ×130	Φ80 ×160	Φ80×190
50UF	Φ50 ×100	Φ55 ×100	Φ60 ×100	Φ60 ×130	Φ76 ×130	Φ80 ×180	Φ80×200
60UF	Φ50 ×100	Φ60 ×100	Φ60 ×120	Φ65 ×145	Φ80 ×130	Φ80 ×200	Φ100×190
80UF	Φ55 ×100	Φ60 ×120	Φ65 ×120	Φ76 ×160	Φ100 ×150	Φ100 ×190	Φ100×240
100UF	Φ65 ×100	Φ65 ×120	Φ70 ×135	Φ84 ×160	Φ100 ×150	Φ100 ×200	Φ100×260
200UF		Φ84 ×150			Φ116 ×240
300UF		Φ100 ×150
400UF		Φ116 ×160



FAQ:



Q1: If samples available?

A:We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.



Q2: How is the guarantee of the quality?

A:Any quality problem, you can contact the sales or the manager, our engineers will settle the problem, and we promise  to replace goods or return your funds.



Q3: How about the delivery time?

A: If we have the stock, we will arrange the delivery immediately, The delivery time is according to the quantity, normally 7-20 days. If request in urgent, please contact us for details.



Q4: How about the payment:

A: TT, West Union, Paypal, Crash, Escrow, especially Escrow, which is guaranteed by Alibaba.com. It is safe and effective.



For more details, please feel free to contact us.
