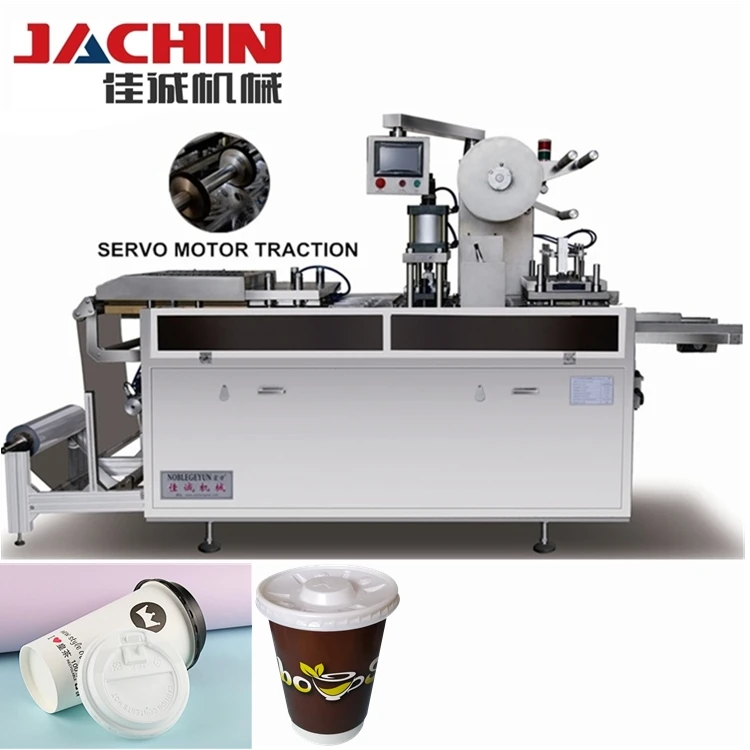

PS Lid Making Thermoforming Machine For Coffee Paper Cups Lid

Machine Introduction

JC-500C Automatic Plastic Forming Machine is developed by our research and development personnel according to the demand of packing market. This machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. Machine adopts a fully automatic flow covering blow molding or plastic sucking molding, punching and diet cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. therefore, the quality requirement is secured during the production.

Machine Features

1) The machine realizes automatic control through the combination of programmable controller (PLC), man-machine interface, encoder, photoelectric system, etc., and the operation is simple and intuitive.



2) The mechanical transmission adopts the reducer and the main rotation connection. Forming, punching, pulling, and punching stations are on the same axis to ensure operational synchronization (reduced transmission error).



3) Automatic lifting and loading material system is safe and labor-saving, plate type upper and lower preheating device temperature control system is stable to ensure uniform heating, various molding methods to ensure the appearance of the product is beautiful, servo traction are intelligent and reliable, punching and punching knife are durable and no burr, mold replacement is simple, main engine adopts the frequency conversion speed regulation to run smoothly.



4) The whole body is welded by steel box, the structure is firm and no deformation, the bracket and the box are under pressure molding, high density and no air holes, and the appearance is evenly wrapped with stainless steel, which is beautiful and easy to maintain.



5) The roller servo traction system makes the machine run more stable and reliable, increases the traction length and can directly set the traction length and traction speed in the man-machine interface through PLC programming, which increases the forming area and expands the applicable range of the machine.



Main Technical Parameters

Punch Speed	15-40(times/minute)
Max.Forming Area	480mm×300mm
Max.Forming Depth	47mm
Stroke	60-320mm
Packing Material	PLA, PVC, PET, PS
Material Thickness	0.15~0.6mm
Max. Sheet Width	510mm
Material Inner Roll Diameter	75mm
Total Power	11.5kW(380V)
Compressed Air(Mpa)	0.6-0.8Mpa
Mold Cooling	50L/H tap water/recycle water
Overall Dimension	3480×900×1800mm
Weight	2400kg

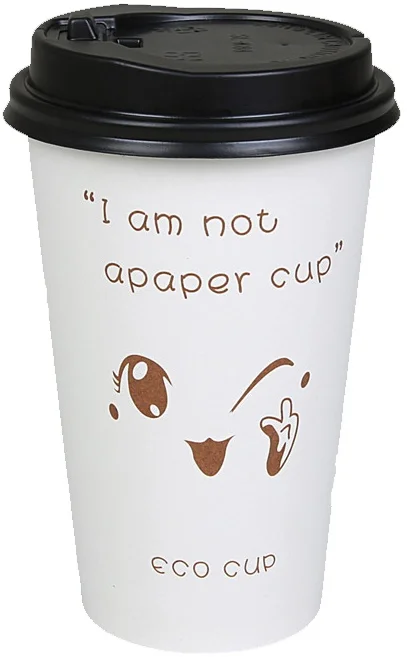

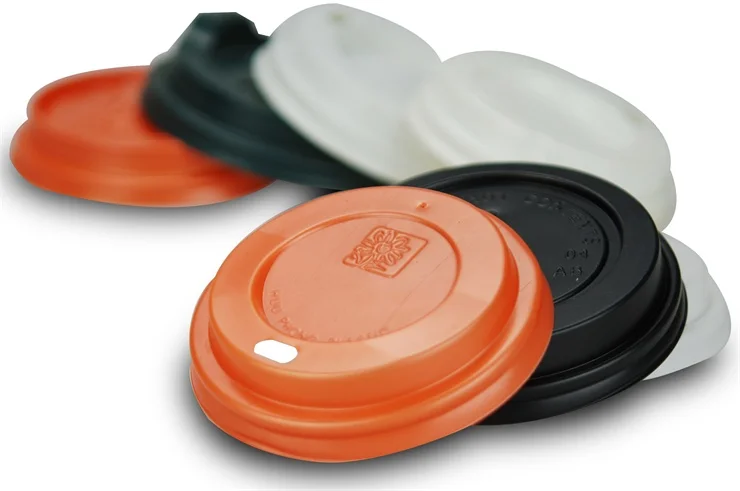

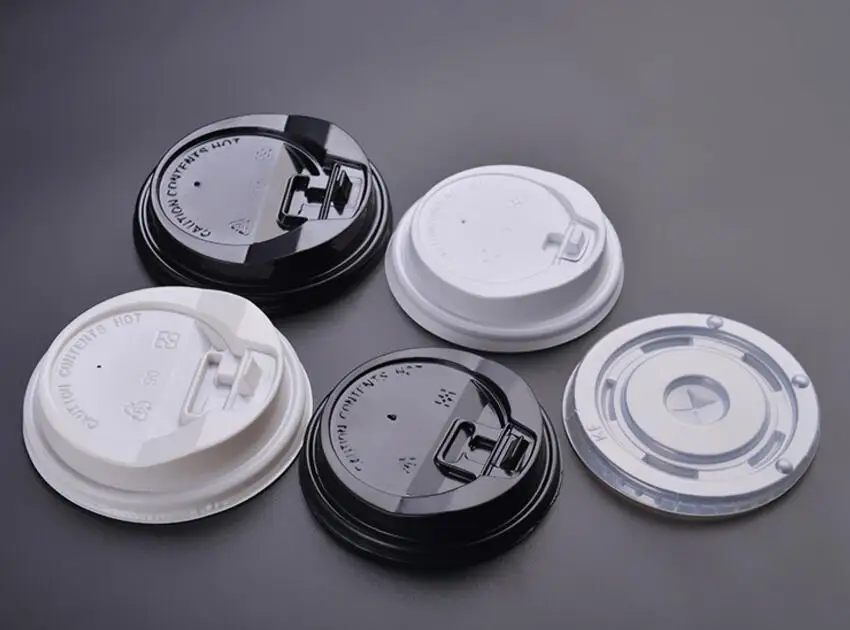

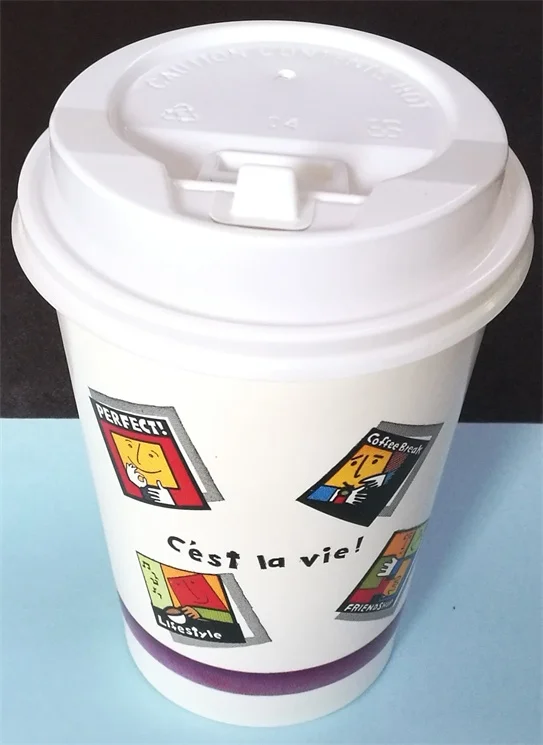

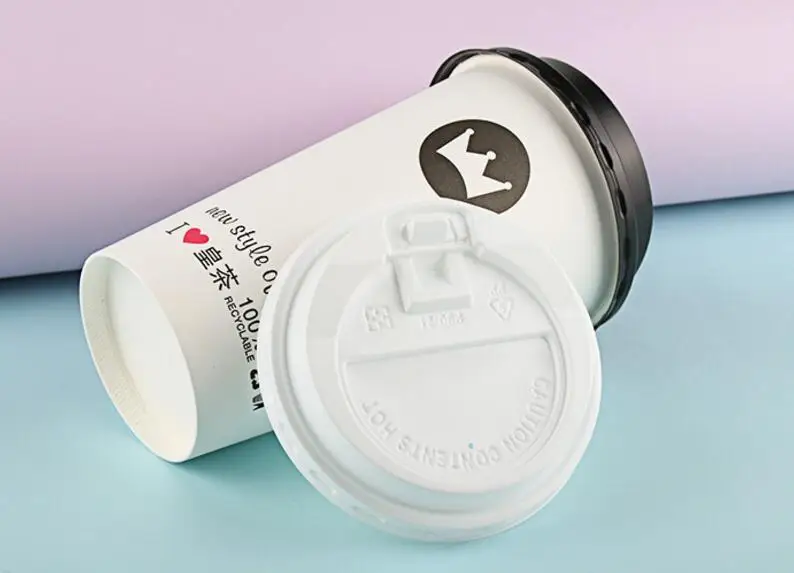

This machine applicable to the plastic sheet such as PLA, PVC, PET, PS, to making cup lid, cover, tray, container, box, plate. Just need to replace the mold can be achieved!
