Характеристики

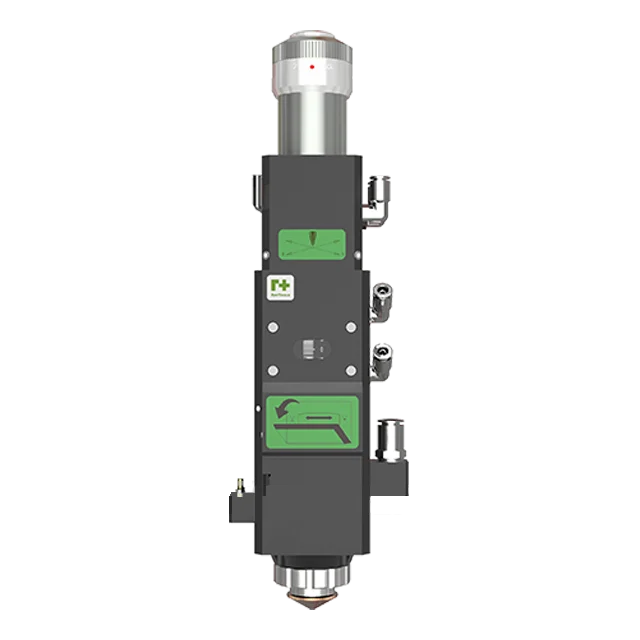

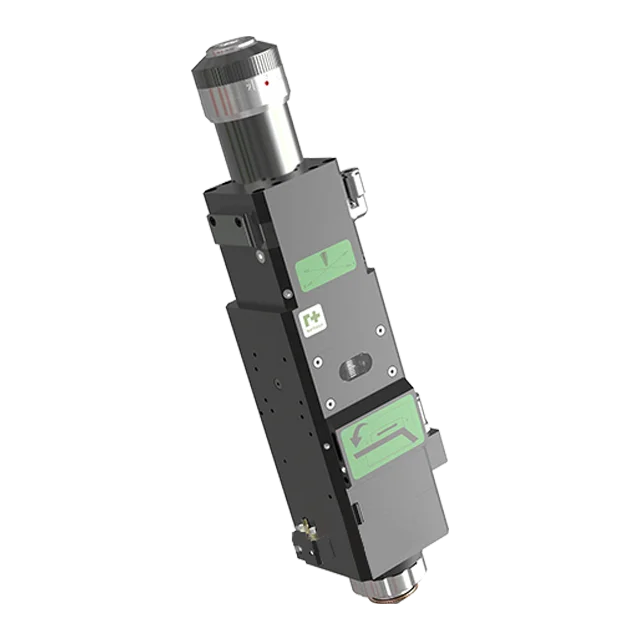

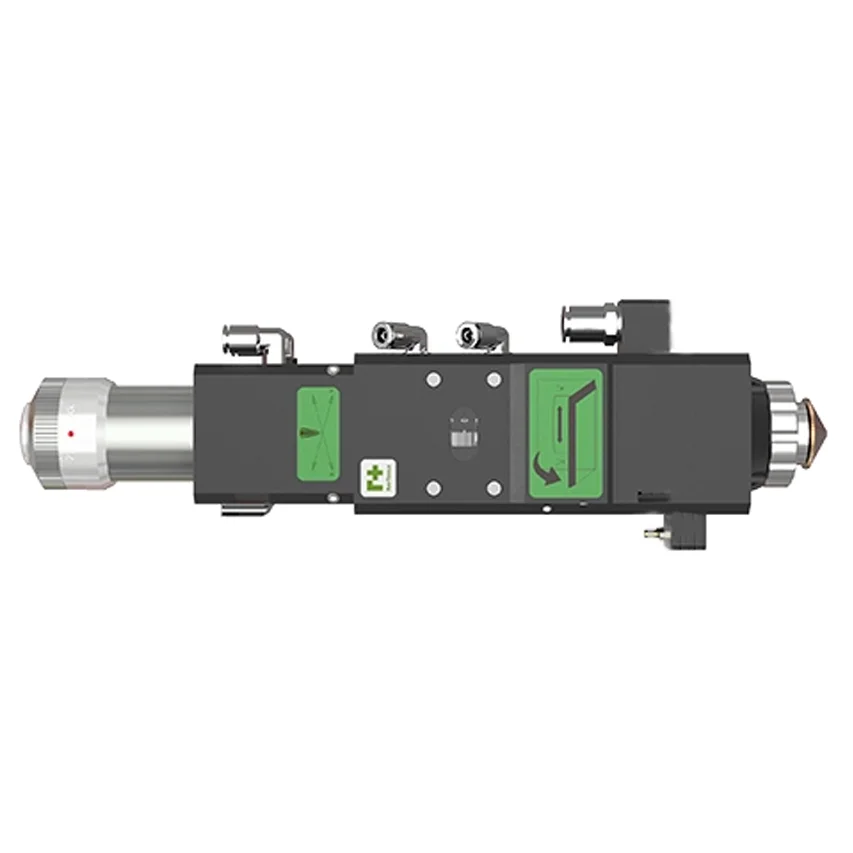

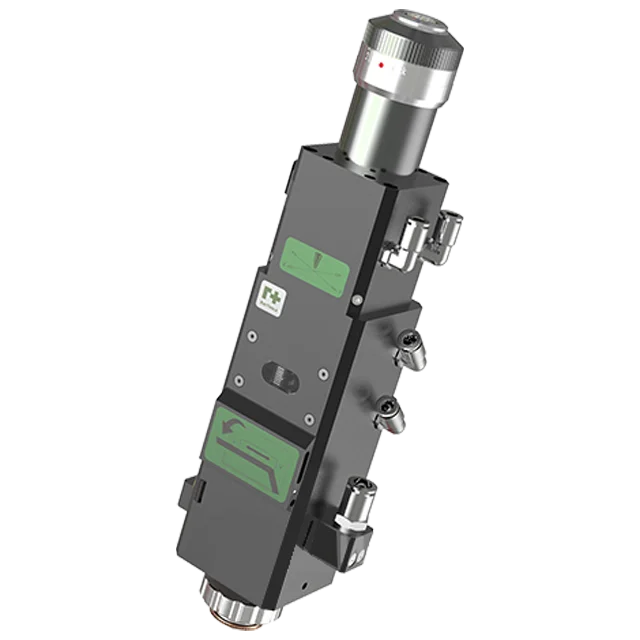

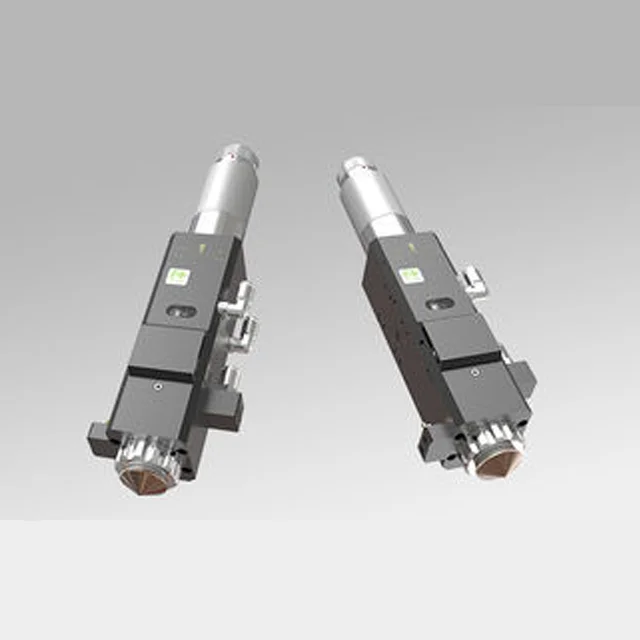

Product Description

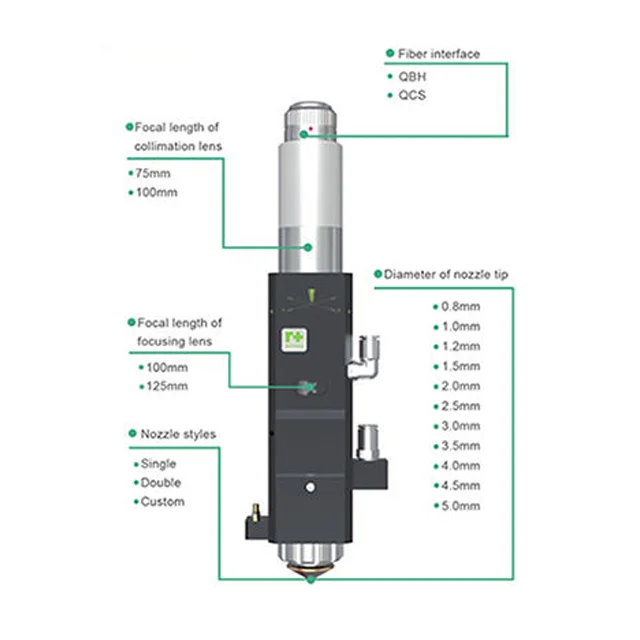

3300W) fiber lasers in industrial applications. It is of overall optimized optical focusing system, annular air path and turbulent
air flow and nozzle cooling design, built-in water cooling unit, and fine adjustment of focus position.
Advantages
1. Highly dustproof:The dustproof grade is IP65, and the light path is fully enclosed, so the possibility of lens contamination is almost zero.
2. Adjustable zero focus:The scale can be adjusted flexibly to unify the zero focal position, and no longer worry about adjusting process parameters.
3. Efficient water cooling:The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.
4. Optimize structure design:Integrated body design, improved QBH optical fiber interface no longer stuck due to water leakage and rust.
2. Adjustable zero focus:The scale can be adjusted flexibly to unify the zero focal position, and no longer worry about adjusting process parameters.
3. Efficient water cooling:The focusing lens, collimating lens and nozzle have built-in cooling function, which can solve the problem of cutting heating.
4. Optimize structure design:Integrated body design, improved QBH optical fiber interface no longer stuck due to water leakage and rust.
Water cooler interface parameters
Minimum flow rate | 1.8 liters/minute (0.48gpm) |
Inlet water pressure | 170-520kPa (30-60 psi) |
Inlet water temperature | ≥room temperature/＞dew point |
Water hardness (relative to CaCO3) | <250mg/liter |
pH range | 6 to 8 (deionized water or distilled water) |
Passable particle size | ≤ 200 μm in diameter |
Matters needing attention
Lens cleaning
Due to the processing characteristics of laser cutting, regular maintenance of the lens is required. It is recommended that the
protective lens, collimator lens and focusing lens be cleaned once a week.
I. Tools used: dustproof gloves, finger cots, polyester cotton swabs, ethanol, rubber air blower.
II. Cleaning method:
1. Wear finger cots on the left thumb and index finger.
2. Spray ethanol on the polyester cotton swab.
3. Gently pinch the side edge of the lens with the thumb and index finger of your left hand. (Note that the finger cot cannot touch the surface of the lens to avoid leaving marks)
4. Place the lens facing your eyes, hold the polyester cotton swab in your right hand, and wipe the surface of the lens from bottom to top. Clean the front and back sides. After cleaning, reconfirm that there are no residues of the following: detergent,floating dust, foreign matter.
Due to the processing characteristics of laser cutting, regular maintenance of the lens is required. It is recommended that the
protective lens, collimator lens and focusing lens be cleaned once a week.
I. Tools used: dustproof gloves, finger cots, polyester cotton swabs, ethanol, rubber air blower.
II. Cleaning method:
1. Wear finger cots on the left thumb and index finger.
2. Spray ethanol on the polyester cotton swab.
3. Gently pinch the side edge of the lens with the thumb and index finger of your left hand. (Note that the finger cot cannot touch the surface of the lens to avoid leaving marks)
4. Place the lens facing your eyes, hold the polyester cotton swab in your right hand, and wipe the surface of the lens from bottom to top. Clean the front and back sides. After cleaning, reconfirm that there are no residues of the following: detergent,floating dust, foreign matter.
