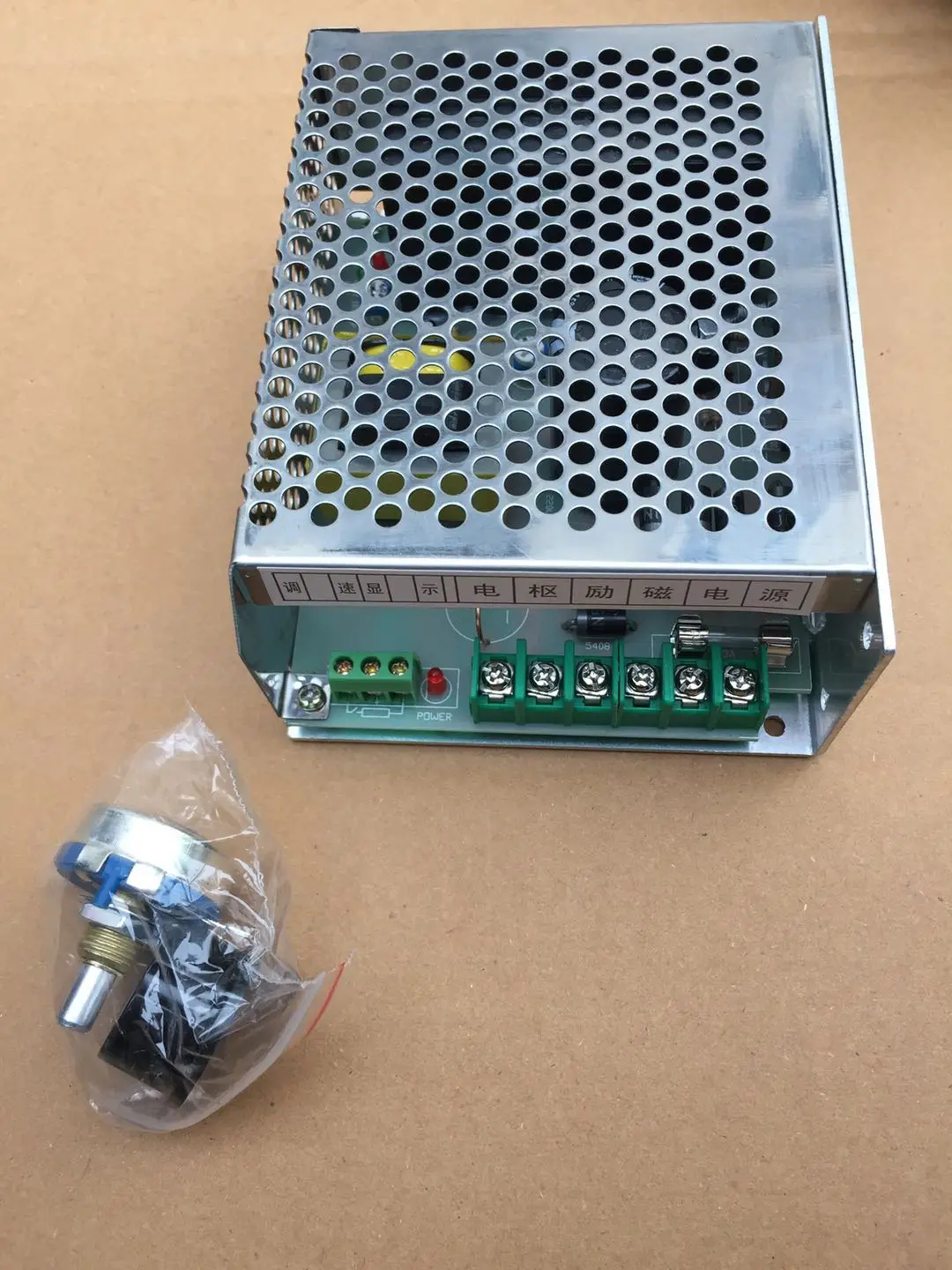

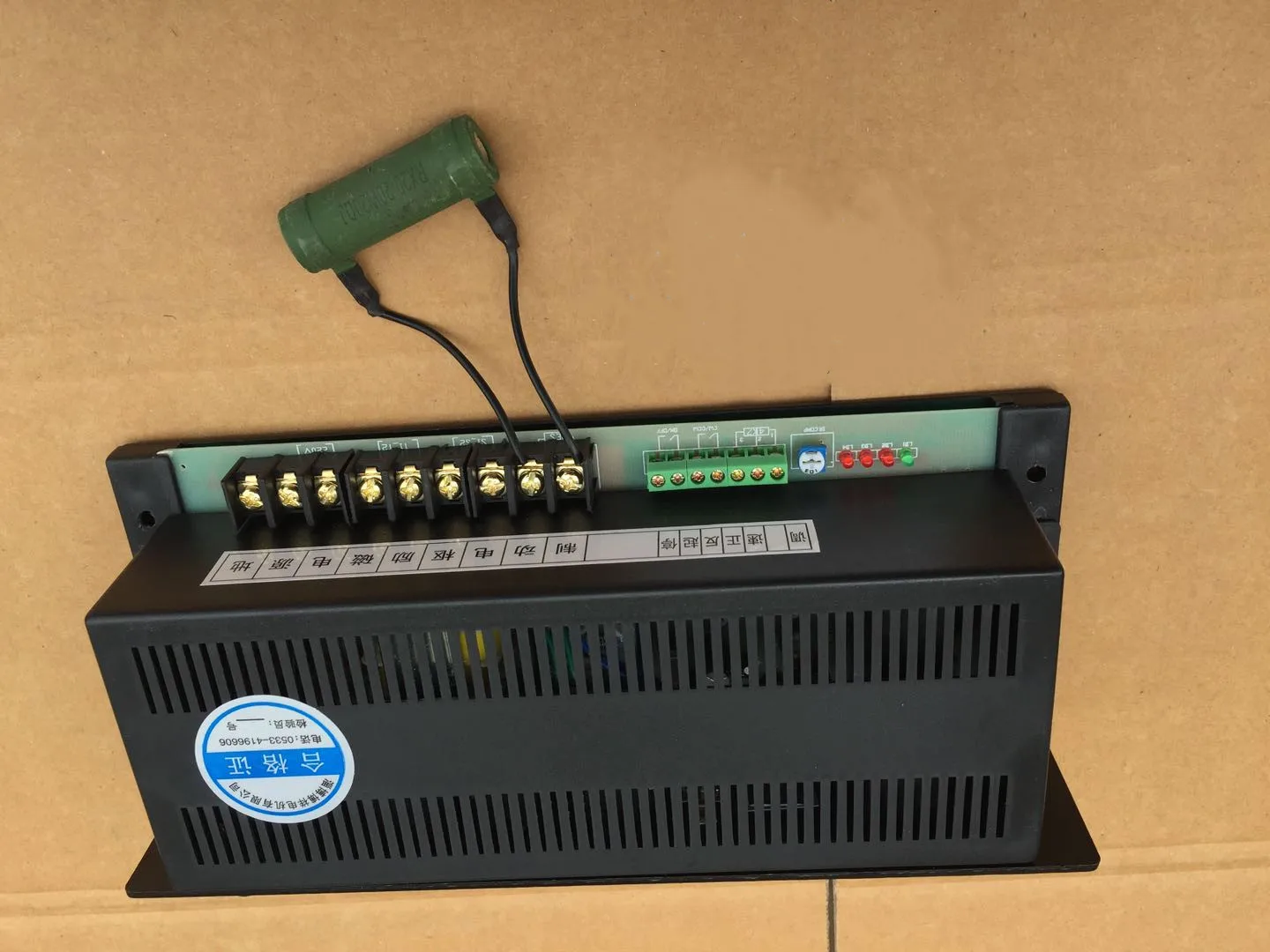

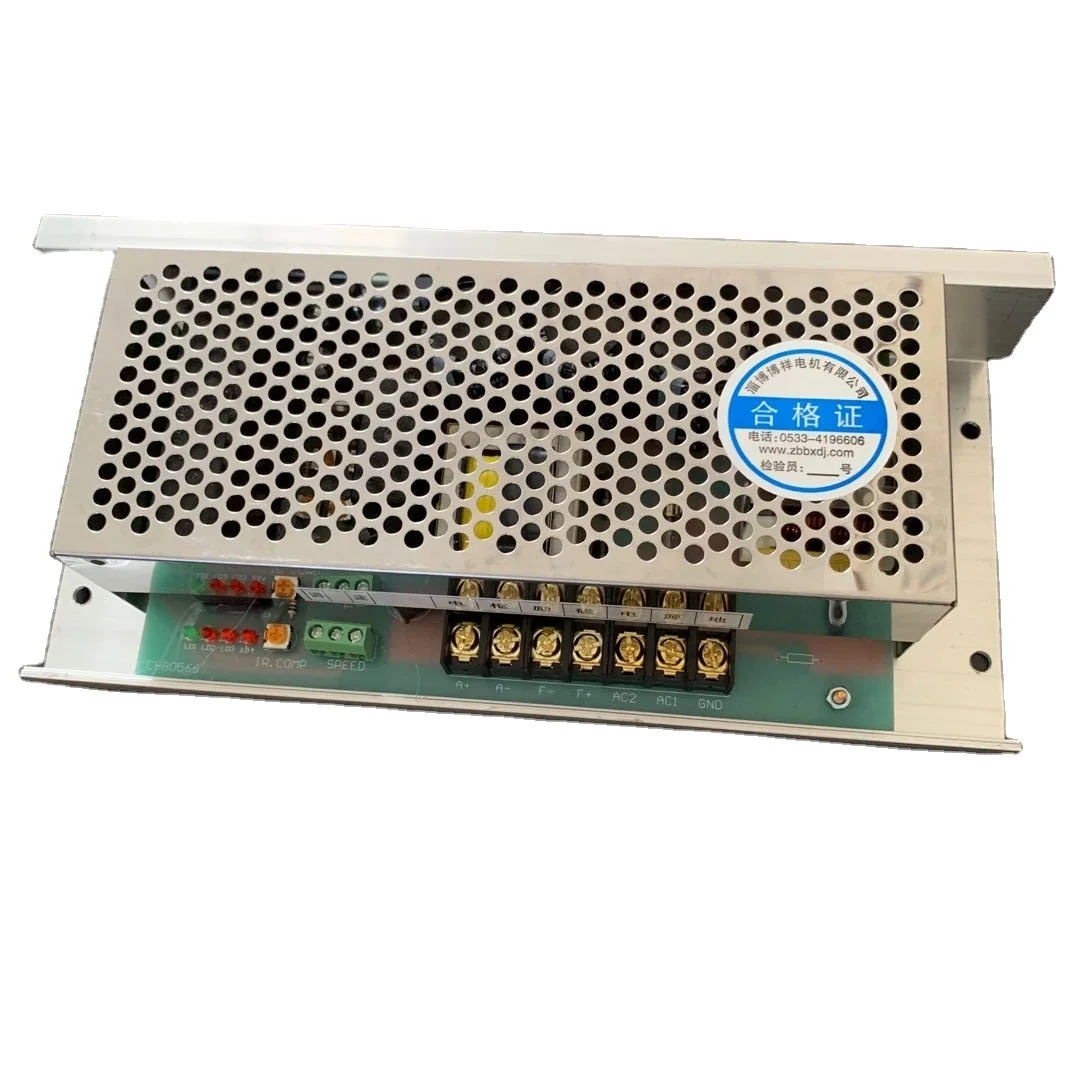

SK400H DC brushed gear motor drive

Summary:

This  driver is suitable for power consumption of 750VA and below three-phase brushless DC motor. This product is designed with advanced DSP control technology, with high torque, low noise, low vibration, fast start and stop characteristics at the same time with overvoltage, undervoltage, overcurrent, over temperature protection. At the same time with RS232 communication control function (optional), customers can choose the company BLDP-01 motor parameters and operating status control, but also according to the product provided by the RS232 communication protocol independent design of the host controller for motor control.



Electrical Parameters:



Parameter	Min	Rated	Max	Unit
Motor hall angle	120°/240°
Input voltage	18	48	50	V
Current	0	25	45	A
Applicable motor speed	0		20000	RPM
Hall Signal Volt	4.5	5	5.5	V
Hall Signal current		20		mA
Extenal Potentiometer		10K		Ω



Connect:



Speed adjustment mode description:

A. You can use the built-in potentiometer of the drive to adjust the motor speed

B. The motor speed can be adjusted using an external potentiomete

C. You can use the external 0 ~ 5V analog voltage input for motor speed adjustment\\

D. You can use the external 0 ~ 10V analog voltage input for motor speed adjustment

A The external pulse frequency input can be used to adjust the motor speed:

Pulse frequency: 0K-3KHZ pulse amplitude: 5V pulse duty cycle: 50%

PID closed-loop control motor rapid response setting:

SW2 / on (user setting): PID closed-loop control - motor fast response. SW / off (factory setting): No PID closed loop control - Motor common response

Wiring Precautions:



Note that the wiring sequence of the three-phase motor UVW and the wiring sequence of the Hall signal line and the power cord should not be wrong.

Size:
