Генератор 1000KVA дизель-генератор с флагом США двигатель KTA38-G5 1000 кВА сделано в

Описание и отзывы

Трекер стоимости

Характеристики

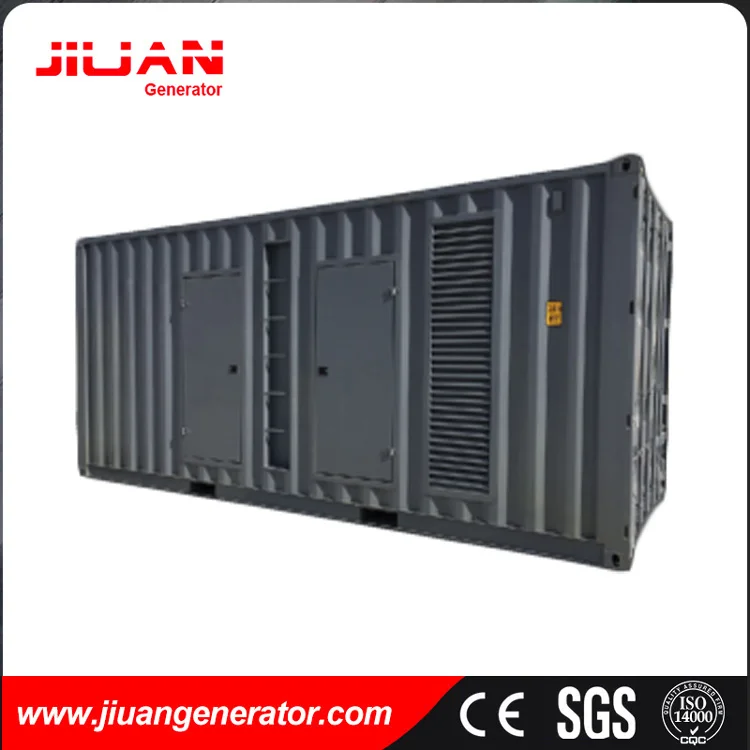

 Generator 1000KVA Diesel Generator with USA engine KTA38-G5 1000 KVA generator price

CDC1000KVA Diesel Generator with USA engine KTA38-G2A 1000KVA Generator

1000KVA Generator Detail Specifications

1000KVA Generator MODEL	CD-C800KW/1000KVA
Powered by USA CCEC Engine
Prime Power (50HZ)	728KW/910KVA
Standby Power (50HZ)	800kw/1000KVA
Power Factor	0.8 (Lagging)
Phase Wires	3-phases 4-Wires
Start Model	Electric
Protection	Low oil-pressure, High water temperature, Over-speed, Over-current
Engine Model	CCEC KTA38-G2A 4-Cycle
Cylinders	12
Cylinder Arrangement	V
Bore x Stroke(mm)	159X 159
Compression Ratio	14.5:1
Speed	1500rpm
Cooling Method	Water – cooled
Starting Method	24V DC electrical start
Full Load Diesel Consumption (L/H)	150
Engine Displacement (L)	37.8
Inspiration  (L)	Turbocharged Intercooled
Lube Volume  (L)	135
Coolant Volume  (L)	252
Noise (Db)	≤ 80
Alternator Model	Newage Stamford LVI634D or Leadtech LTG404E
Alternator Power	728KW/910KVA Brushles with AVR
Voltage	380/220V,400/230V,415/240V,220/127V
Protection	IP23
Voltage Regulation	±4%
Insulation Class	H
Voltage Control	AVR
Net Weigh (KGS)	6700
Dimensions (L x W x H) mm	4500*1800*1900
Controller	Smartgen 6110 or Deepsea 6020
Standard	Muffler * 2PCS
	Battery 120A * 2 PCS
Optional	ATS (auto transfer switch)
	AMF(auto mains failure)
	Containerized























Professional OEM diesel generator factory in Guangzhou

*Diesel Generator open type or silent type (soundproof type)
*Generator Diesel Engine: Cummins,UK Perkin,Deutz,Mitsubishi,DooSan,WeiChai, Yangdong, Kubota,  etc.
*Generator with alternator: Stamford, Leroy Somer,Marathon, MECC,etc.
*Diesel Generator Rated output: 5kVA - 2000kVA
*Rated frequency 50/60 Hz
*Rated voltage 230/400, 220/380, according to customers
*Power factor: 0.8(lag)
*Super Silent type Noise level at 7m ≤ 65DB
*Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
*Starting system: Electric start 12V/24V
*Protection System: High water temperature protection, Engine oil alarm, Over load Protection
*Overfrequency protection, Emergency stop
*Control System: Digital Control Panel; Meter Panel

JIUAN Diesel Generator Set Advantage

*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel
*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)

All ratings are at sea level!!!

After-sales Service

*1 year or 1800 running hours subject to the earlier one.



Our Diesel Generator Set Production Range is as follows

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkin (UK) 8kVA - 2000kVA
4. 1SUZU (Japanese) 20kVA - 40kVA
5. Mitsubishi (China) 750kVA - 2200kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. SDEC Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
11.DooSan Engine 60KVA-800KVA
12.Baudouin Engine 500KVA-2500KVA
* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

Terms of Payment

T/T ,Western Union,Cash
