Jinan Cassman Machinery Co., Ltd



Cassman is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.



We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.



Established in 2010, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc.

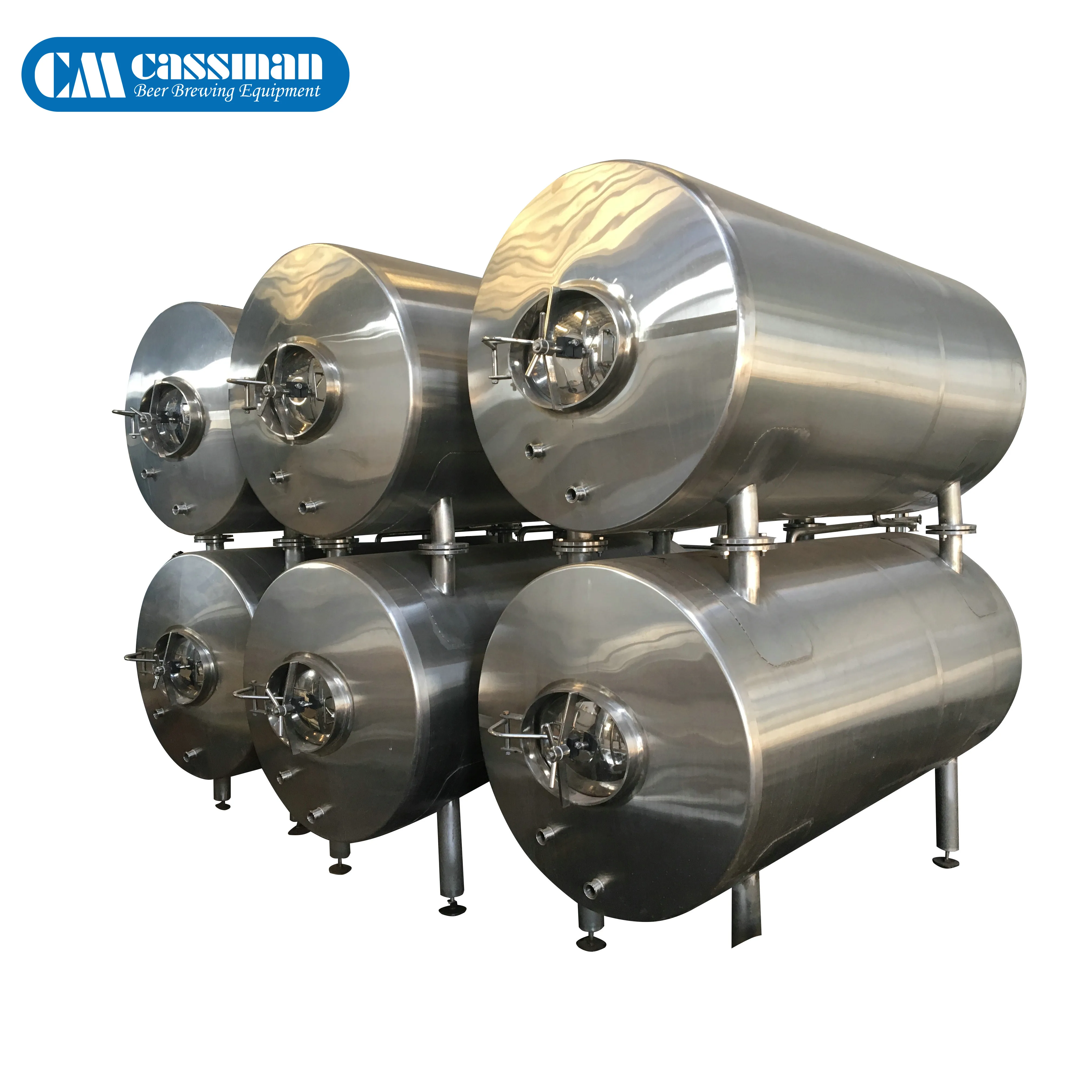

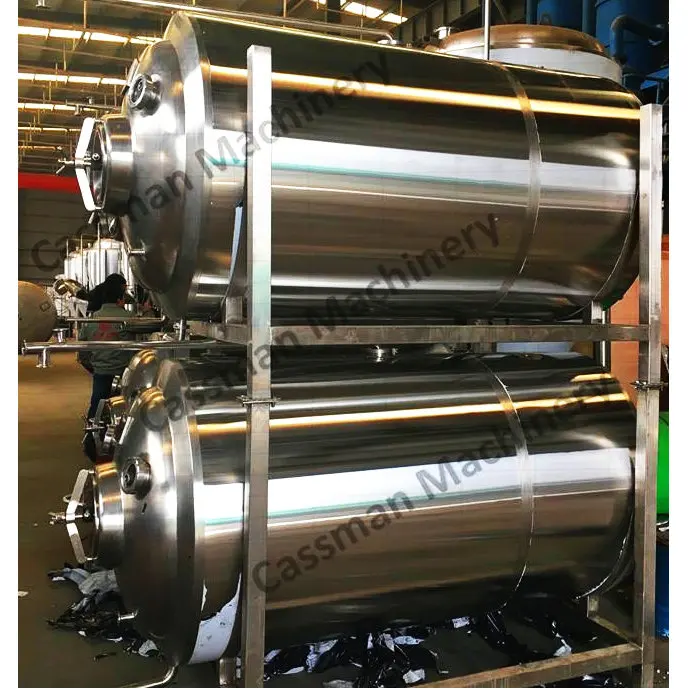

Details of 200L 300L 500L horizontal fermenters beer storage tanks jacket bright beer tank BBT



Turnkey Brewery system configuration

Brewhouse	Fermenters	Alcohl machine	Kegs	Can machine	Bottle Machine
50L-5000L	50L-20T	200L-4000L/D	10L-1BBL	50-3000 C/H	2000-10000B/D

 1----Mill System

Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.

Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.

Optional: Flexible Auger.

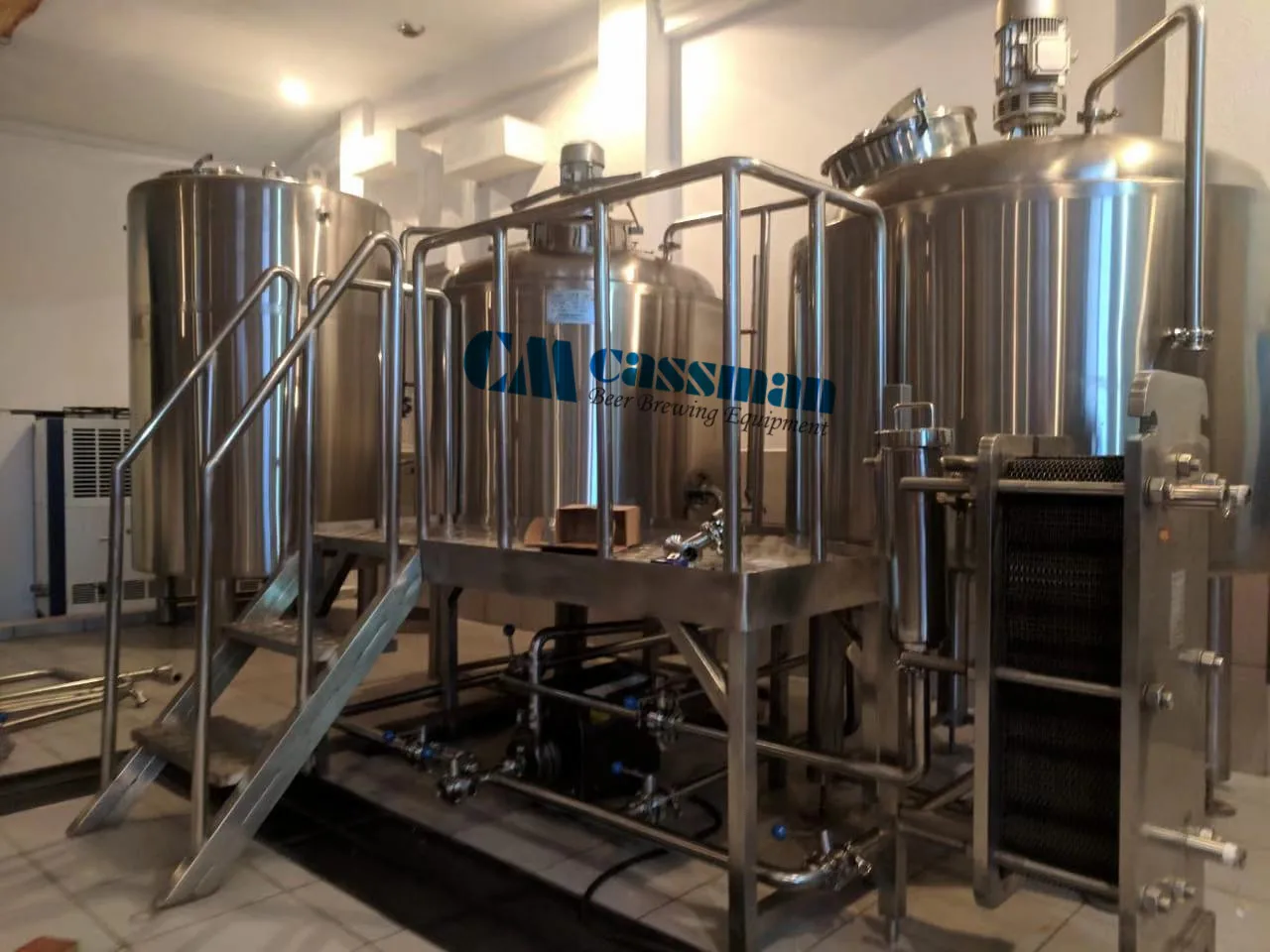

2----Brew House System

-Two-Four vessles or combined system.

-Capacity 100L-5000L, 1bbl-40bbl.

- Steam heated, electrical heated or natural gas

-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.

-Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.

-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.

-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.

-Insulated HLT and CLT with the pipelines and pumps

-External grant, hops back, heat exchanger.Wort oxygenation system, working platform.

-All the necessary pipelines and pumps.

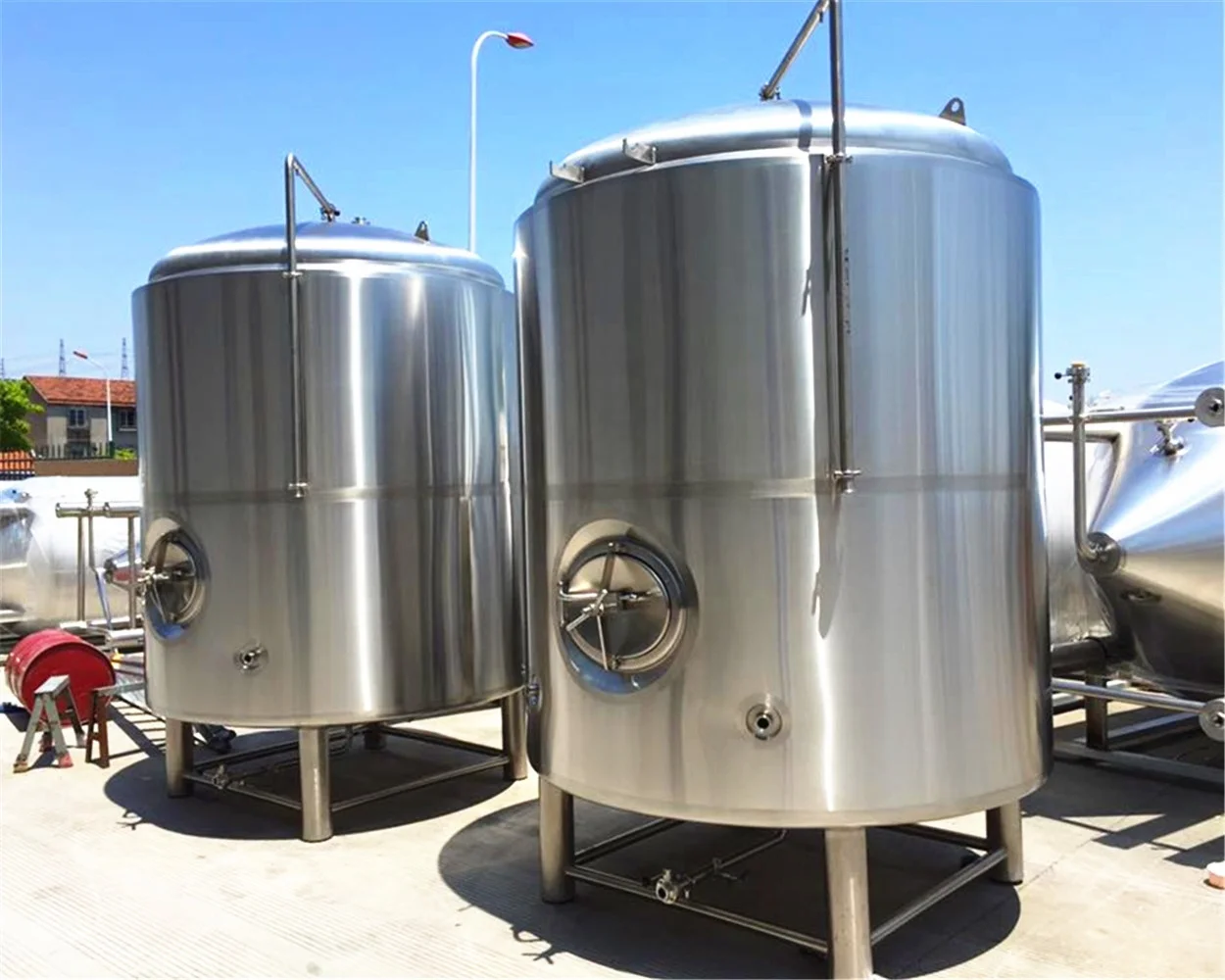

3----Fermenter&BBT System

-Capacity: 100L-30000L, 1bbl-100bbl, +25% Head space

-Interior shell thickness 3-6mm, Exterior shell=2mm

-100% TIG welding with pure argon gas shield

-Interior finish: pickled and passivated, external polished, 80mm insulated

-Test pressure 3 bar, working pressure 1.5 bar

-Glycol zones (Both on side and concial/bottom)

-60°conical bottom for Fermener, Shadow less side man way

-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top

-Mechanical relief valve 3 bar on CIP arm with pressure gauge

-Adjustable tank leveling pads



3----Cooling System

Description: Air type chiller + Ice water tank or Glycol tank

Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank

Brand: Copeland, SANYO.



4----Control System

-PID or PLC system

-SIEMENS program S7-200, Siemens touch screen.

-Penumatic valves for optional





 5----Canning line, Kegging line

-Double station Kegging line.

-Small capacity Canning line.



 6. Alcohol Making machine



 Reference and Customers Visiting







 Packge and Shipping

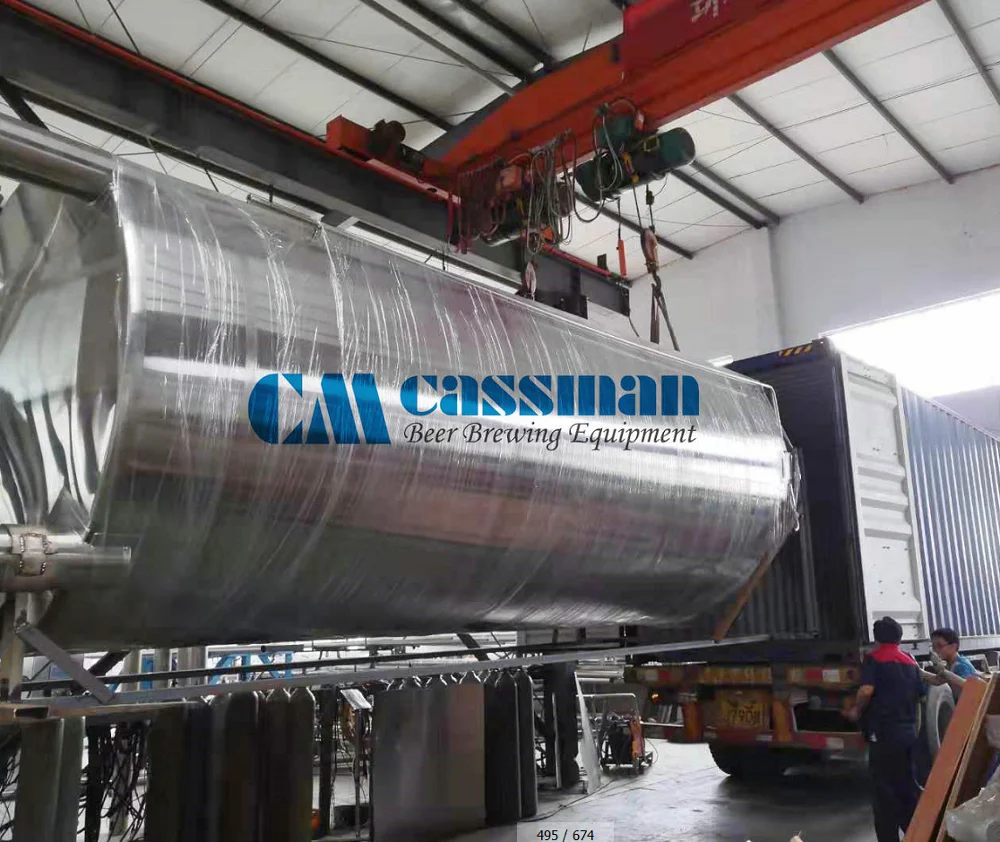

200L 300L 500L horizontal fermenters beer storage tanks jacket bright beer tank BBT will be packed with wooden package or Iron frame, shipping in container.

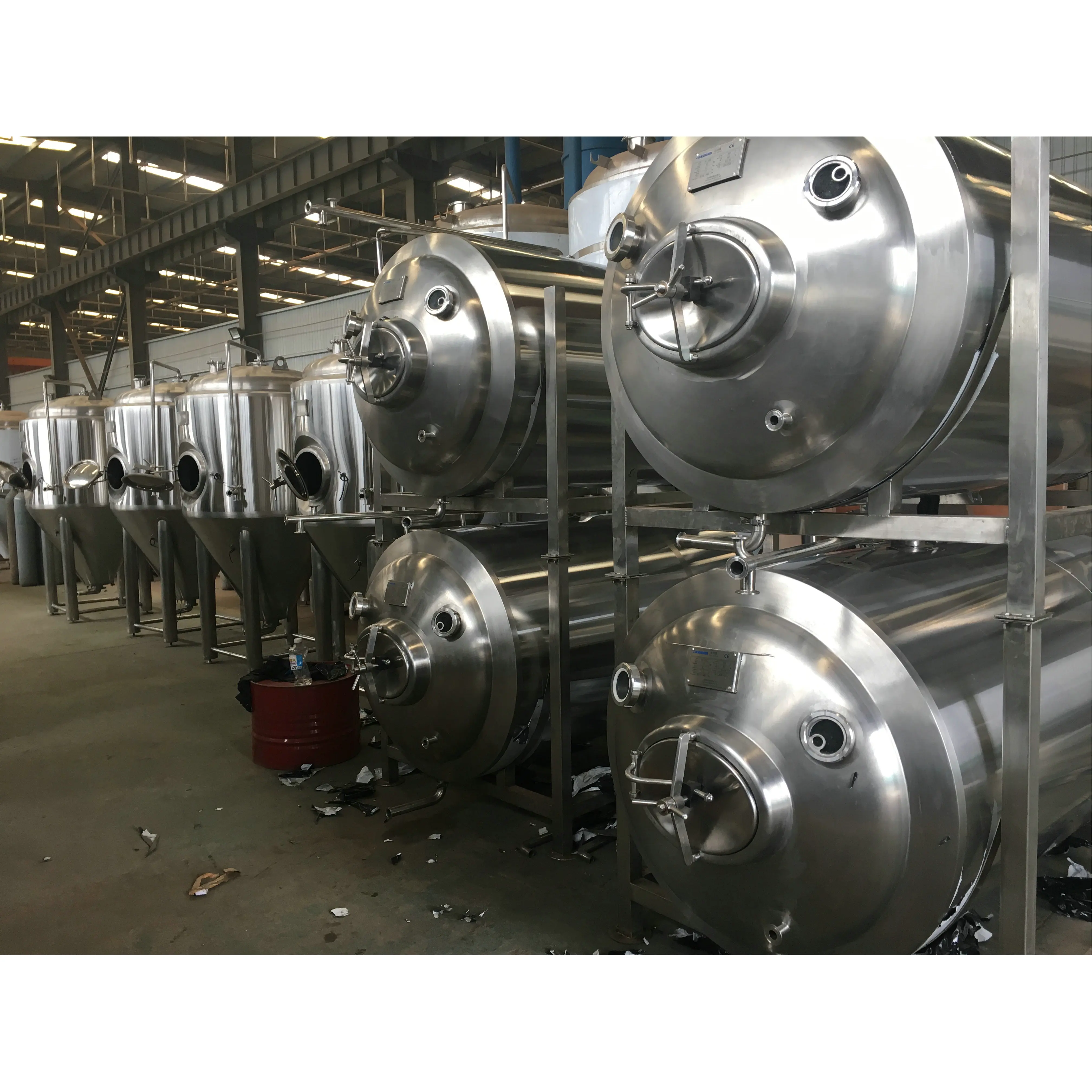

 Cassman Factory

The factory covers an area of nearly 8,000 square meters and it has three processing workshops: container processing, welding and cutting, and assembly and commissioning. It is equipped with laser cutting machines, CNC machines, argon arc welding machines, automatic polishing machines, stainless steel uncoiling & bending machines, pressure vessel detectors and other advanced stainless steel processing and assembly tools.
