Приемник радиоприемника Target v30 plus gnss rtk с 440 каналами отслеживания инструменты для наблюдения
- Категория: Other Test Instruments >>>
- Поставщик: Shangrao,Haodi,Imp&Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 2666.0 $* | 2719.38 $* |
| Jul-18-2025 | 2162.65 $* | 2205.55 $* |
| Jun-18-2025 | 2624.59 $* | 2676.94 $* |
| May-18-2025 | 2603.67 $* | 2655.40 $* |
| Apr-18-2025 | 2078.66 $* | 2120.54 $* |
| Mar-18-2025 | 2561.36 $* | 2612.89 $* |
| Feb-18-2025 | 2540.16 $* | 2591.73 $* |
| Jan-18-2025 | 2519.30 $* | 2569.51 $* |
Характеристики
Company Information
Related Products
Company Information

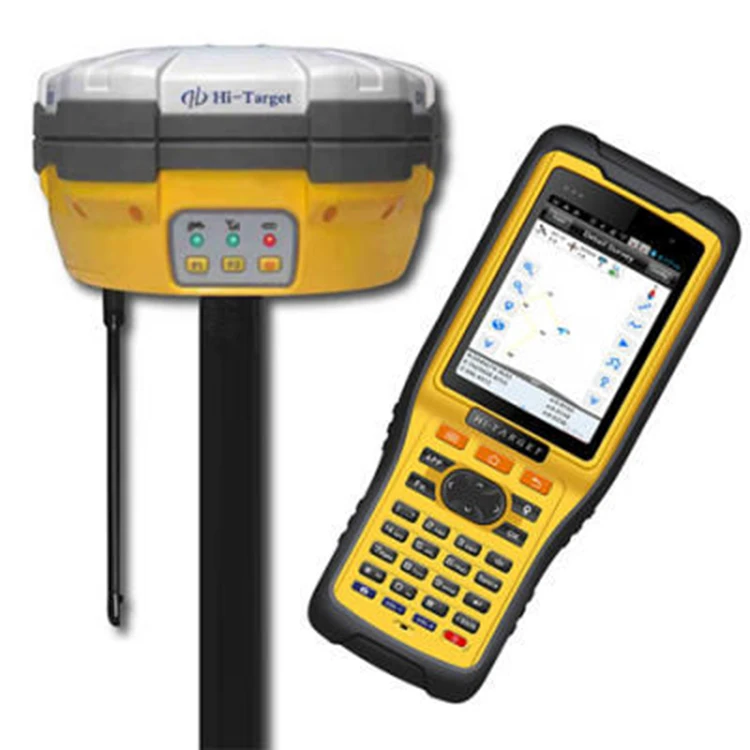

| Hi Target V30 | |
| GNSS Characteristics | |
| 220 channels | GPS: L1C/A,L1C,L2C, L2E, L5 |
| GLONASS: L1C/A, L1P, L2C/A, L2P, | |
| SBAS: WAAS, EGNOS, MSAS | |
| Galileo: E1, E5A, E5B (test) | |
| Beidou: B1, B2 | |
| Advanced multipath mitigation | |
| Low noise carrier phase measurement | |
| Performance Specifications (1) | |
| Real Time Kinematics (RTK) | Horizontal: 8mm+1ppm |
| Vertical: 15mm+1ppm RMS | |
| Initialization time: typically<10s | |
| Initialization reliability: typically >99.9% | |
| Horizontal: 2.5mm+0.5ppm RMS | |
| Post Processing Static | Horizontal: 3mm+0.5ppm RMS |
| Vertical: 5mm+0.5ppm RMS | |
| Baseline Length: ≤300km | |
| Communications | |
| 2 RS232 serial port | |
| 1 Bluetooth | |
| Integrated GSM/GPRS or 3G modem | |
| 1 USB 2.0 port | |
| Pacific Crest ADL Foundation internal radio | 403-473 Mhz |
| Standard Hi Target radio modem (2) | Hi Target Internal Rx/Tx:460 Mhz with 116 channels |
| Hi Target External radio: 460Mhz, 5w, 10w, 20w, 30w adjustable | |
| Protocols | RTCM2.1, RTCM2.3, RTCM3.0, |
| CMR, CMR+ input and output | |
| NMEA0183 outputs | |
| RINEX and ZHD outputs for GNSS raw data | |
| Data Storage | 64MB internal memory |
| GPS device mounts as a USB external hard drive | |
| Physical | |
| Size (H×D) | 1040×195 mm (4.09×7.68 in) |
| Weight | 1.3Kg with battery (2.86lb) |
| Working Temperature | -45 °C − +65°C (-49 °F − 149°F) |
| Storage Temperature | -55 °C − +85°C (-67 °F − 185°F) |
| Humidity | 100% condensation |
| Dustproof | IP67 |
| Waterproof | Protected from temporary immersion to depth of 1 meter floats |
| Shock | Survives a 3−meter drop on to concrete |
| Electrical | |
| Typical power consumption | 2.5 W |
| Battery capacity | 5000 mAh |
| Operating times on internal battery | Up to 15 hours typical |
| External power input | 6-28 VDC |
