Шлифовальный станок для ножей из фанеры/точный шлифовальный поверхности/шлифовальный лезвий
- Категория: Surface Grinding Machines >>>
- Поставщик: Linyi,Bangkaishun,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.81 $* | 0.66 $* |
| Aug-15-2025 | 0.79 $* | 0.98 $* |
| Jul-15-2025 | 0.4 $* | 0.71 $* |
| Jun-15-2025 | 0.69 $* | 0.6 $* |
| May-15-2025 | 0.14 $* | 0.45 $* |
| Apr-15-2025 | 0.59 $* | 0.94 $* |
| Mar-15-2025 | 0.92 $* | 0.77 $* |
| Feb-15-2025 | 0.44 $* | 0.47 $* |
| Jan-15-2025 | 0.85 $* | 0.9 $* |
Характеристики
Product Overview
Blade sharpening machine knife grinding machine for paper
This knife grinder machine is mainly used in straight blade cutting tool in different angles, suitable for all kinds of cutter tools of plywood, furniture, printing, textile industry, peeling machine knife, Granulator knife, cutting paper knife ,Shearing Blades, slicing knives etc....
It is also used to the oblique opening of high speed tool steel.

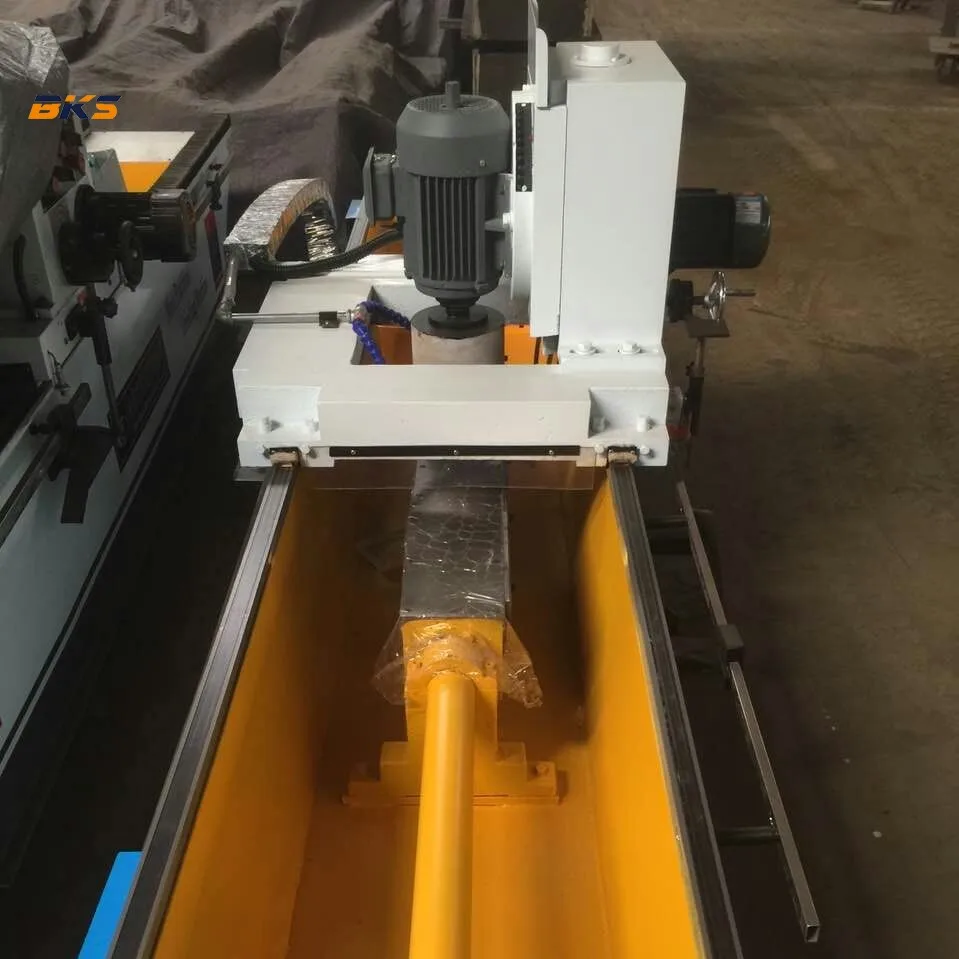

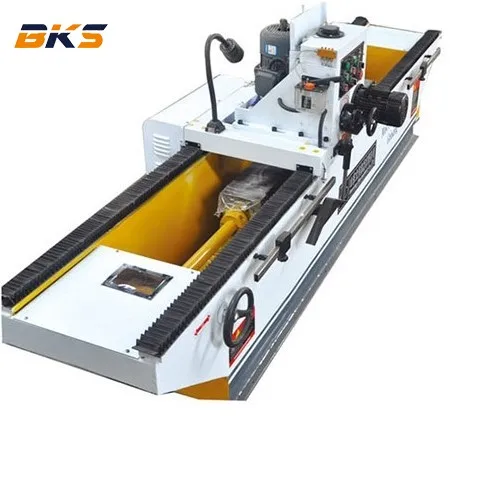

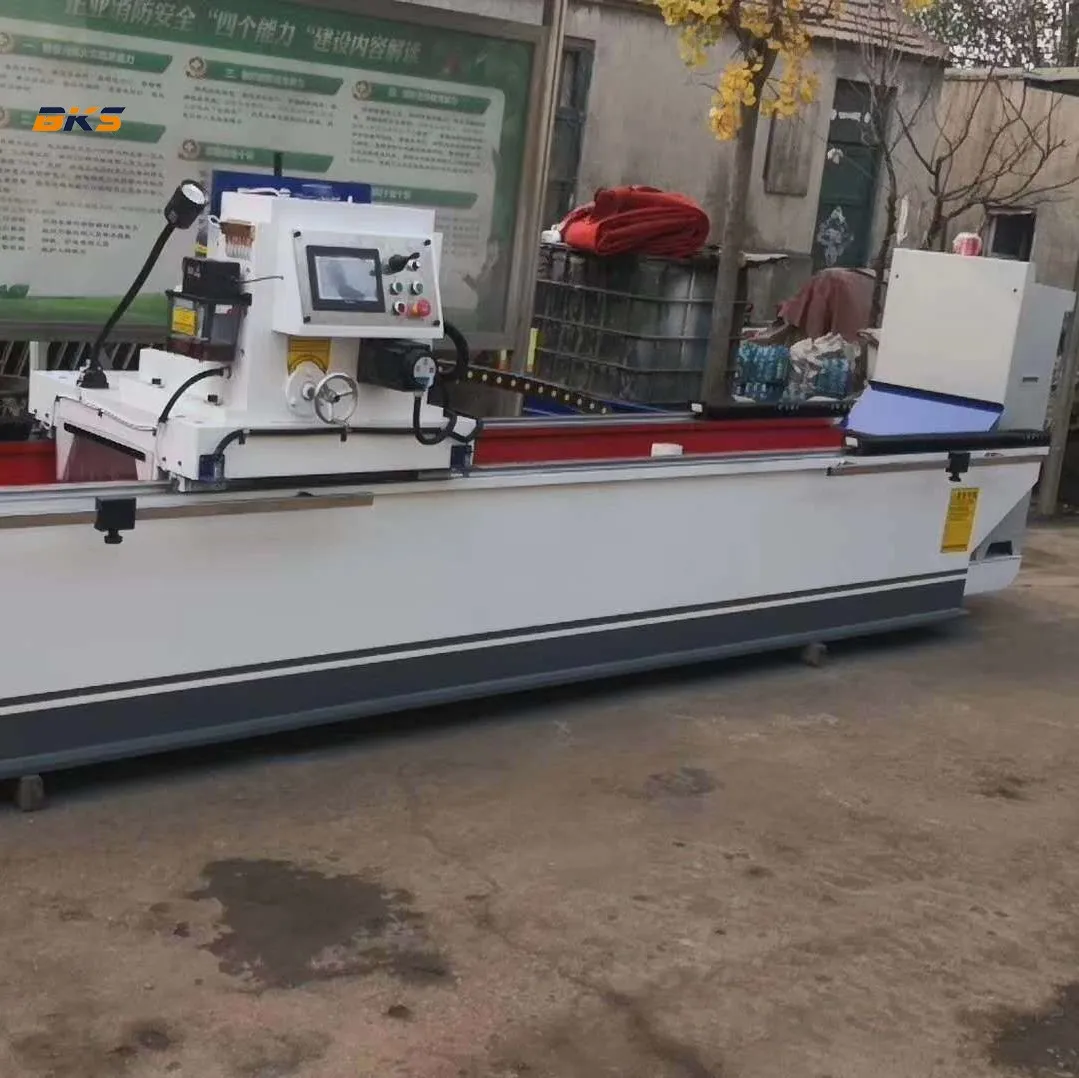

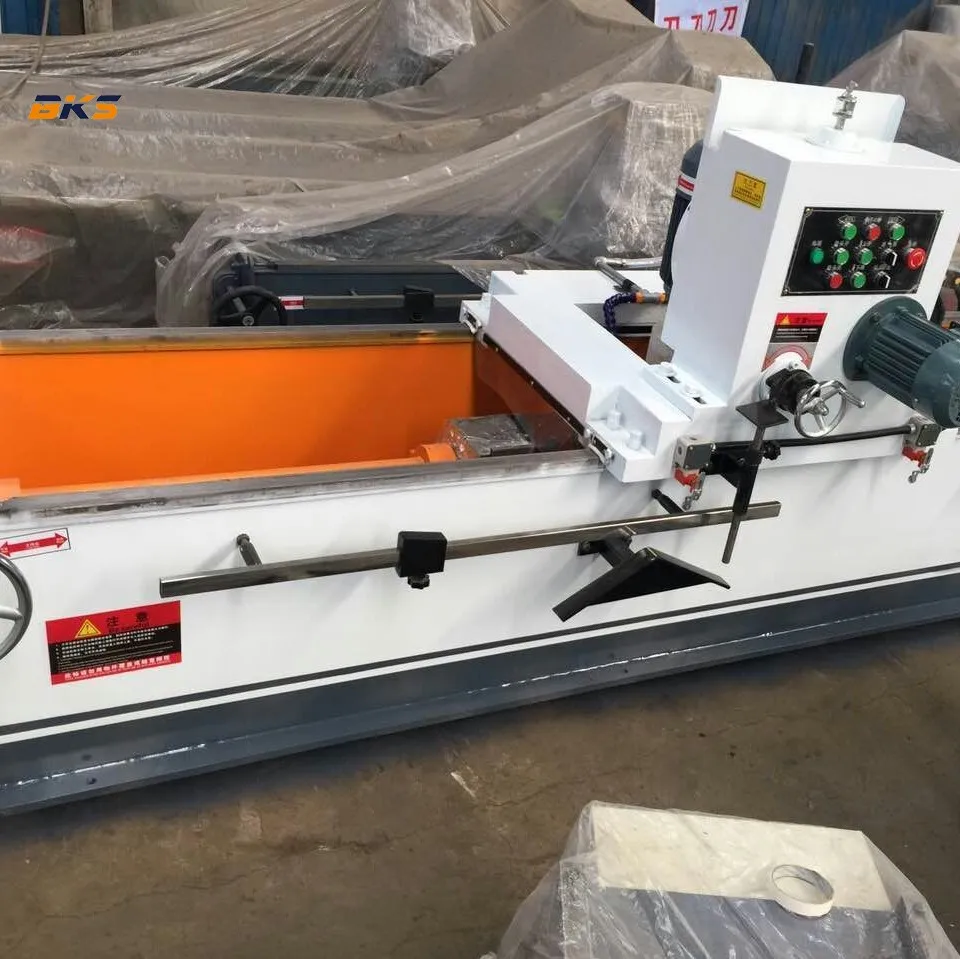

The machine tools consists of five parts, incl machine body, sliding plate, motor, grinding head, electrical parts.
The machine tools consists of five parts, incl machine body, sliding plate, motor, grinding head, electrical parts.
Each component has compact structure,rational and beautiful layout,It can make sure the same height and weight and express its unique advantages,so it is ideal for Plywood factory and straight blade knives manufacturers..
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model | LM1400 | LM2800 | LM2000 | |||||
Max. grinding length(mm) | 1500 | 2800 | 2000 | |||||
Tilting range of working table | 90 | 90 | 90 | |||||
Grinding head motor power(kw) | 4 | 4 | 4 | |||||
Overall dimensions(mm) | 3250*1200*1000 | 4500*1200*1100 | 4000*1200*1100 | |||||
Weight(kg) | 2000 | 2400 | 2200 | |||||
Knife grinding method | Electromagnetic | Electromagnetic | Electromagnetic | |||||
Grinding Accuracy(mm) | 0.01 | 0.01 | 0.01 | |||||
Length various from 1500-7000 mm, welcome inquiry. | Max. torque | 500N.m | ||||||
1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife, cutting paper knife ,Shearing Blades, slicing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500-7000mm.
3. This machine’s body is a design of gantry body, with the high-quality steel weld, stress relieved eliminating the internal
stress. The body has high strength and good rigidity. No shrinking in centre of body. the thickness of the steel is 10 or 12 mm.
4. The grinding head use the dedicated motor. It can adjusted the gap of axial direction, transmission steady, long life and high accuracy. The vertical movement of the grinding head use the ball screw, to ensure the accuracy.
5. The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
6. The rail use linear guide and ensure the steady horizontal movement of grinding head . the linear guide use TAIWAN HIWIN.
7. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
8. Job accuracy of machine is 0.01mm
2. This machine can work long surface knife. Max. Working length is 1500-7000mm.
3. This machine’s body is a design of gantry body, with the high-quality steel weld, stress relieved eliminating the internal
stress. The body has high strength and good rigidity. No shrinking in centre of body. the thickness of the steel is 10 or 12 mm.
4. The grinding head use the dedicated motor. It can adjusted the gap of axial direction, transmission steady, long life and high accuracy. The vertical movement of the grinding head use the ball screw, to ensure the accuracy.
5. The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
6. The rail use linear guide and ensure the steady horizontal movement of grinding head . the linear guide use TAIWAN HIWIN.
7. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
8. Job accuracy of machine is 0.01mm
