   Cement skim coat mortar making machine simple dry mortar mixing machine



Description of MG Improved Simple Dry Mortar Mixing Machine:

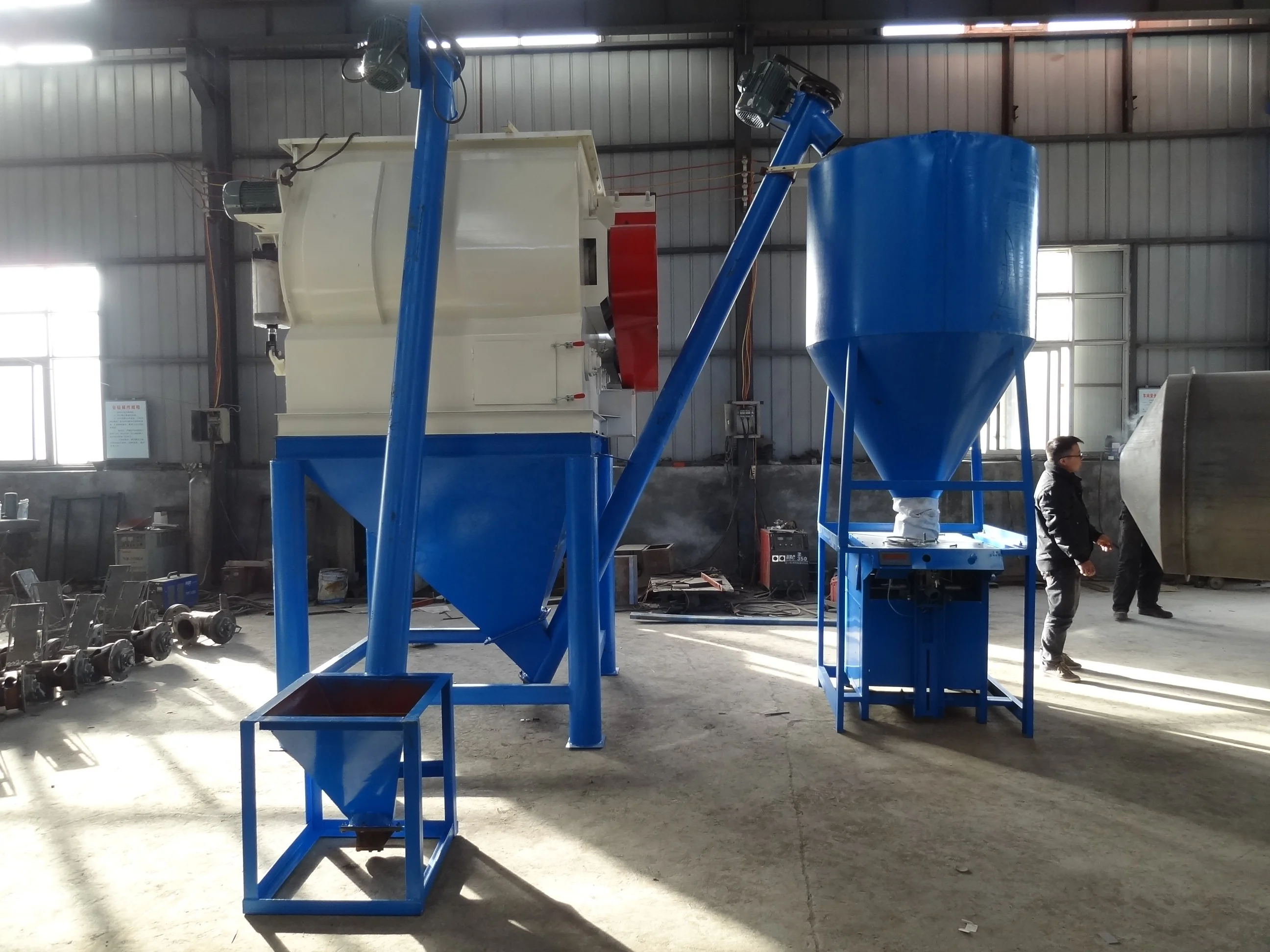

This kind of MG improved simple dry mortar mixing machine is consist of two screw conveyors, one twin shaft mixer, one finish product hopper, one finish product silo, one packing machine, one air compressor, one control cabinet, it is improved from the simple dry mortar plant, change to high efficiency type twin shaft mixer. Twin shaft mixer is high efficiency and can mix material more uniformally.



Technical parameter of MG Improved simple dry mortar mixing machine:



Working principle of MG Improved simple dry mortar mixing machine :

It is designed based on the traditional mixer, is added a material conveying system, a storage silo and an automatic packaging machine.It adopts the Twin-shaft Agravic mixer as its main mixing system. The well-mixed materials will go into the storage silo via material conveying pipe, and the mixer may be feed consecutively and work continuously in flow line production, but the equipment is not over 4 meters high, thus solving the problem of heightening the workshop. Moreover, it may realize automatic metering and packaging, hence, it may not merely save the time and energies but also may be more accurate. It required little investment, but it may load, weight and package the materials automatically; no wondering, it is a simple but practical production line.

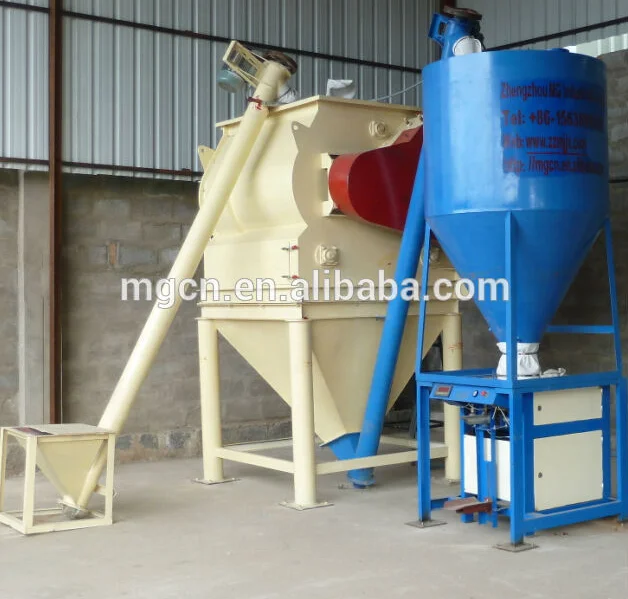

Detail configuration of MG Improved Simple dry mortar mixing machine:

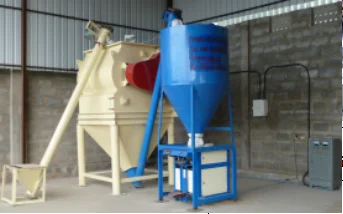

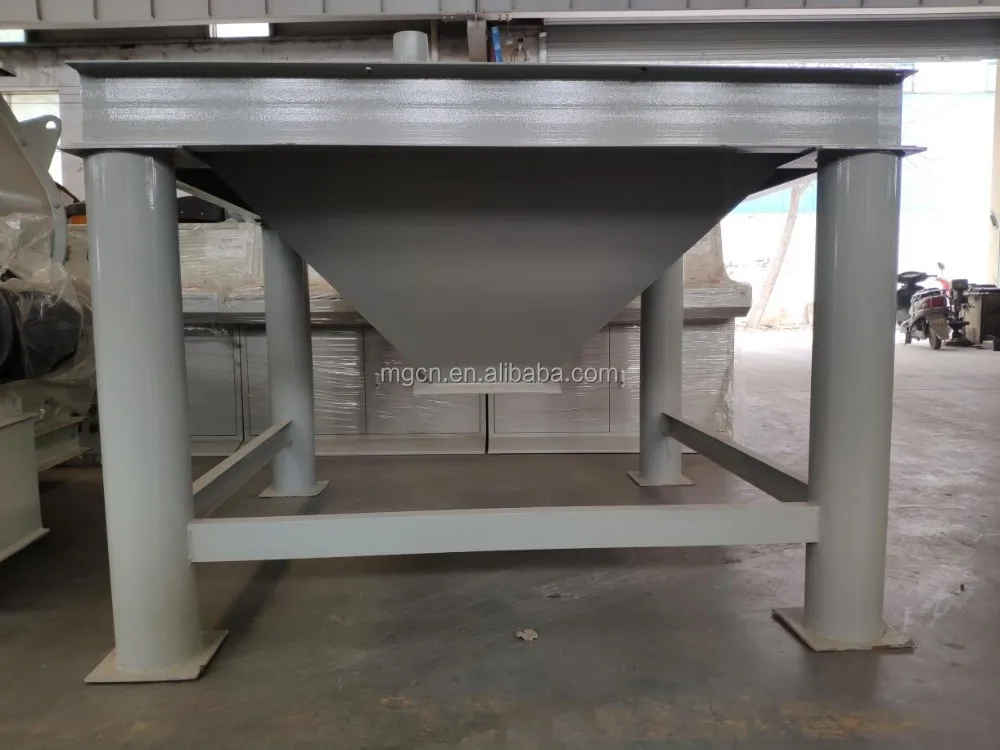

Packing machine&finish product silo&Air compressor equip on the Improved Simple dry mortar mixing machine:

Screw conveyor equip on the Simple dry mortar mixing machine:





1, How about the investment of this project?

 A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.

     Low capacity low cost, we will provide you cost effective solutions as your requirement.



2, What's the difference between full automatic dry mortar plant and Semi-automatic  dry mortar plant    ?

A: (1)  Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.

    (2)  Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.

    (3)  Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.



3,  How many person required to operate this  dry mortar plant ?

A: Usually 2-4 workers are enogh to operate this dry mortar plant.



4,  What equipment and services you can provide?

A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines,   transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.



5, What is the area required for this   dry mortar plant    ?

A: According to the capacity of the dry mortar plant, the area required 300-100 m2.



6, What is the total power consumption (KW) of this   dry mortar plant    ?

A: It is 20-80W based on the capacity of the dry mortar plant.



7, What is the capacity of your dry mortar plant?

A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry  mortar plant as your capacity requirement.



8,  How long is the guarantee period?

A: 12 months, within this period, we provide you spare parts and services for free.



9,  Can you install the dry mortar plant in my country?

A:  Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.



10,  If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
