Тайваньская технология низкая цена профилегибочная машина для
- Категория: >>>
- Поставщик: Xiamen,BMS,Group
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 23776.40 $* | 24965.20 $* |
| Aug-20-2025 | 23576.37 $* | 24755.99 $* |
| Jul-20-2025 | 19780.20 $* | 20769.8 $* |
| Jun-20-2025 | 23177.97 $* | 24336.80 $* |
| May-20-2025 | 20180.32 $* | 21189.55 $* |
| Apr-20-2025 | 22777.83 $* | 23916.20 $* |
| Mar-20-2025 | 22577.67 $* | 23706.48 $* |
| Feb-20-2025 | 22378.62 $* | 23497.17 $* |
| Jan-20-2025 | 22178.38 $* | 23287.28 $* |
Характеристики
Product Description
Product details

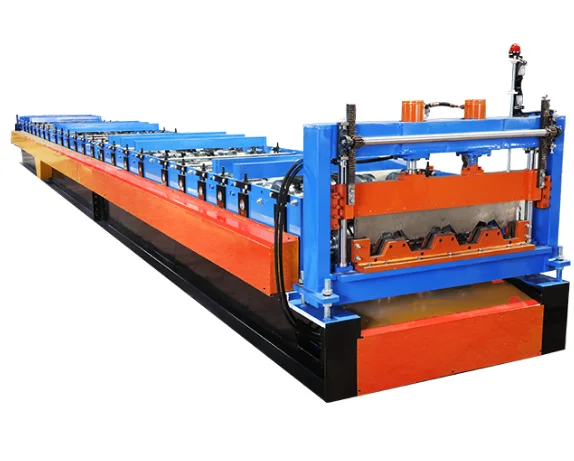

YX76-940 Floor Decking Roll Forming Machine
YX76-940 Floor Decking Roll Forming Machine
Profile Drawing
1)Main features
The advantages of Roof Panel Roll Forming Machine
1.Low cost,light weight but high strength,short building period,and re-cycle use2.save material,no waste
3.Easy operation,low maintenance cost
2)YX76-940 Floor Decking Roll Forming Machine feeding guide
Brand: BMS Original: China

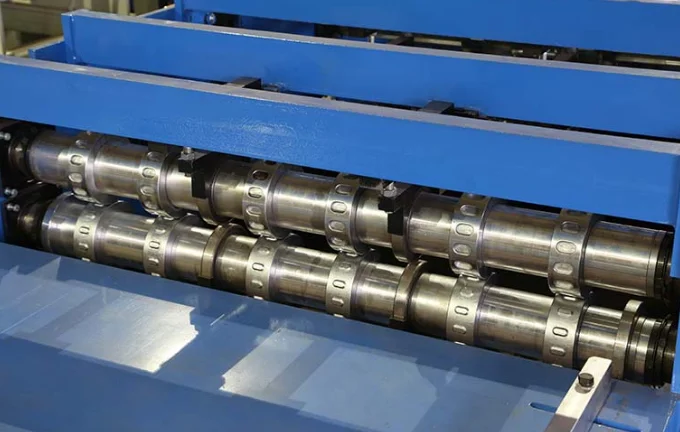

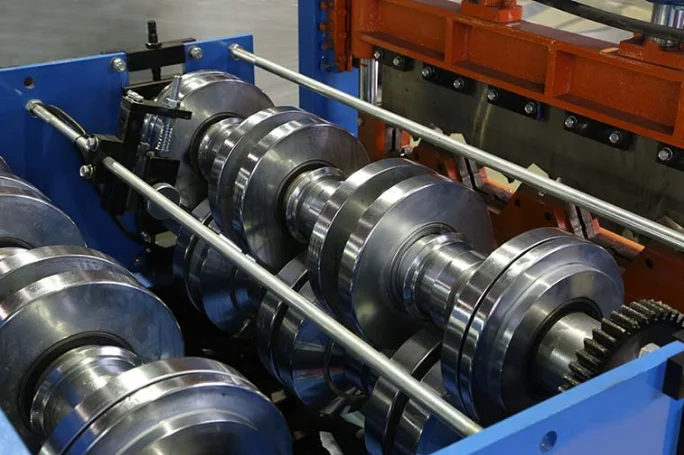

3)YX76-940 Floor Decking Roll Forming Machine embossing and rollers
Rollers manufactured from high quality 45# steel,CNC lathes,Heat Treatment
Rollers manufactured from high quality 45# steel,CNC lathes,Heat Treatment
with black treatment or hard-Chrome Coating for options
Body frame made from 400#H type steel by welding
Body frame made from 400#H type steel by welding

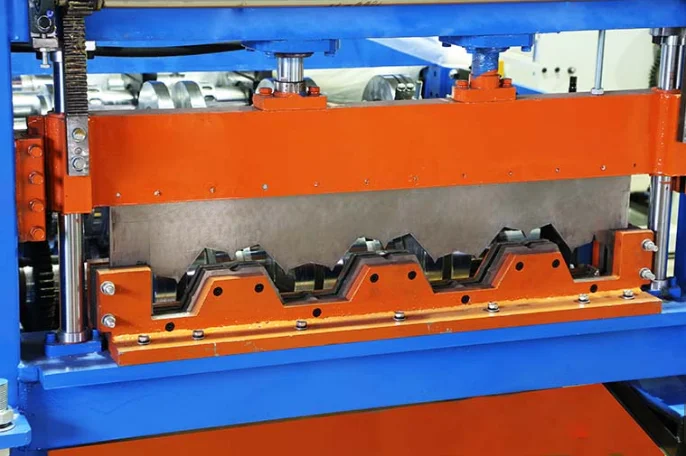

4) YX76-940 Floor Decking Roll Forming Machine post cutter
Made by high quality mold steel Cr12 with Heat treatment
Hydraulic motor: 18.5KW, Hydraulic pressure range: 0-16Mpa
Cutter frame made from high quality 20mm steel plate by welding
Cutter frame made from high quality 20mm steel plate by welding
5)YX76-940 Floor Decking Roll Forming Machine decoiler
Manual decoiler: one set Un-power,Manual control steel coil inner bore shrinkage and stop
Max feeding width: 1200mm, coil ID range 508mm+30mm
Capacity:5-9Ton
Capacity:5-9Ton
With 6 tons hydraulic decoiler for option

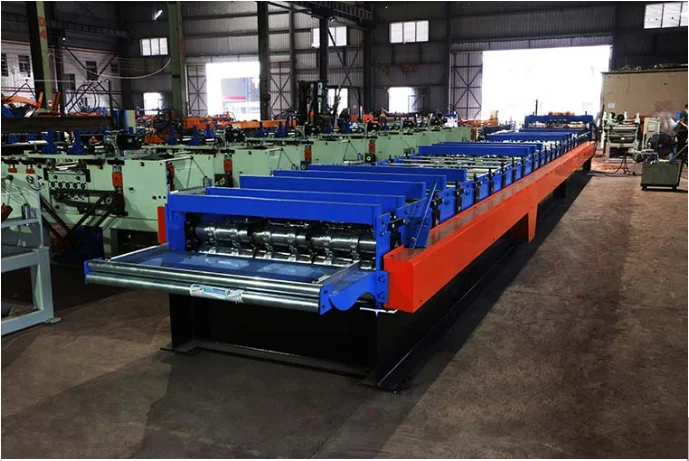

Other details of Floor Decking Roll Forming Machine
Main shafts diameter=90mm, precision machined
Motor driving, Gear chain transmission,26 steps to form
Main shafts diameter=90mm, precision machined
Motor driving, Gear chain transmission,26 steps to form
Main motor 22KW, Frequency speed control Forming speed approx. 16-18m/min
PLC Control System
Control the quantity and cutting length automatically
Input the production date(production batch,Pcs,length,etc.)on the touch screen
It can finish the production automaticlly
Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Cut-to-length tolerance≤+/-2mm
Control Voltage 24V
User's manual in English
Control Voltage 24V
User's manual in English
After-sale service of Floor Decking Roll Forming Machine
1. The warranty of Floor Decking Roll Forming Machine
is one year after the client receives the machine
Within one year, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machine
3. We can send our technicians to install and train the workers in the clients factories with extra cost
1. The warranty of Floor Decking Roll Forming Machine
is one year after the client receives the machine
Within one year, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machine
3. We can send our technicians to install and train the workers in the clients factories with extra cost
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,
UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia,Trinidad,Israel,Saudi Arabia,etc.
