Beke механических прессов для продажи механический пресс-автомат
- Категория: Штамповочные машины >>>
- Поставщик: Nanjing,BEKE,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 57715.41 $* | 60601.82 $* |
| Aug-19-2025 | 57230.61 $* | 60092.61 $* |
| Jul-19-2025 | 48015.17 $* | 50416.77 $* |
| Jun-19-2025 | 56260.72 $* | 59073.0 $* |
| May-19-2025 | 48985.74 $* | 51434.2 $* |
| Apr-19-2025 | 55290.3 $* | 58055.13 $* |
| Mar-19-2025 | 54805.17 $* | 57545.87 $* |
| Feb-19-2025 | 54320.24 $* | 57036.70 $* |
| Jan-19-2025 | 53835.50 $* | 56527.42 $* |
Характеристики
Product Description
Beke aluminum plate high Precise hole Punching machine

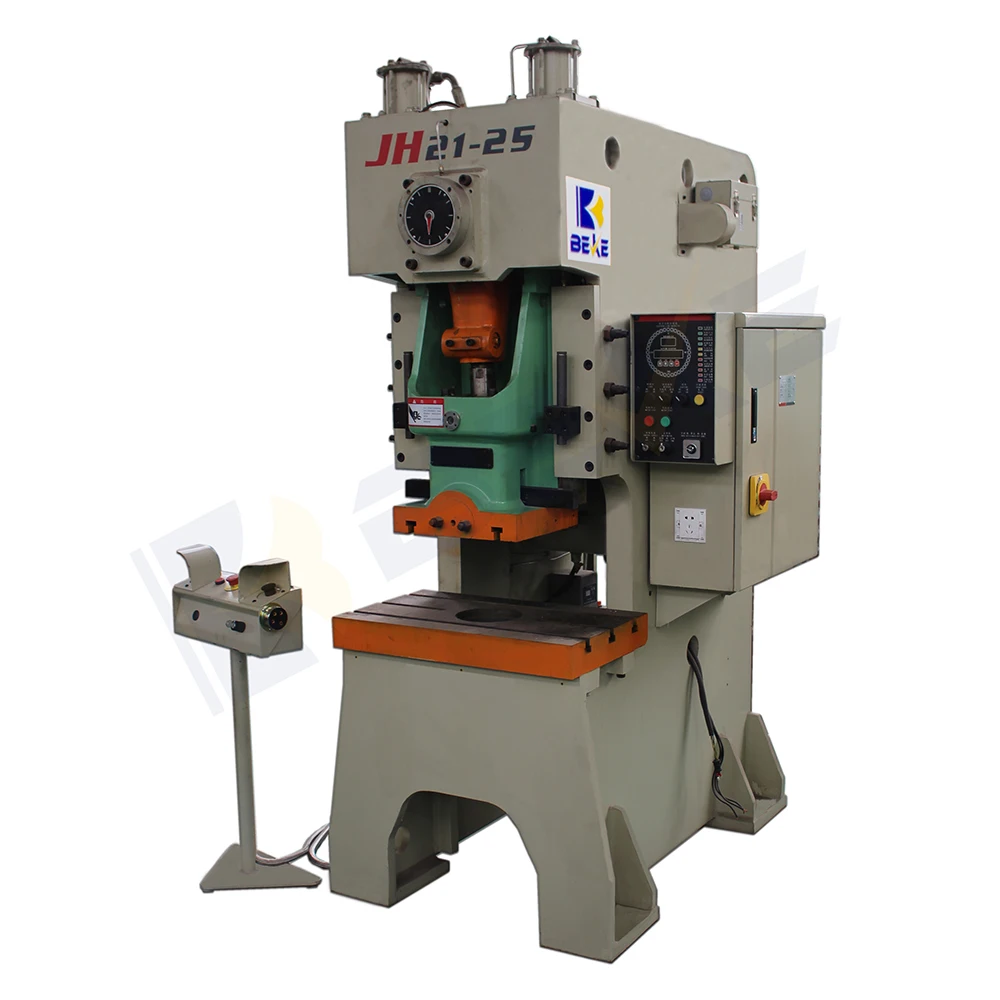

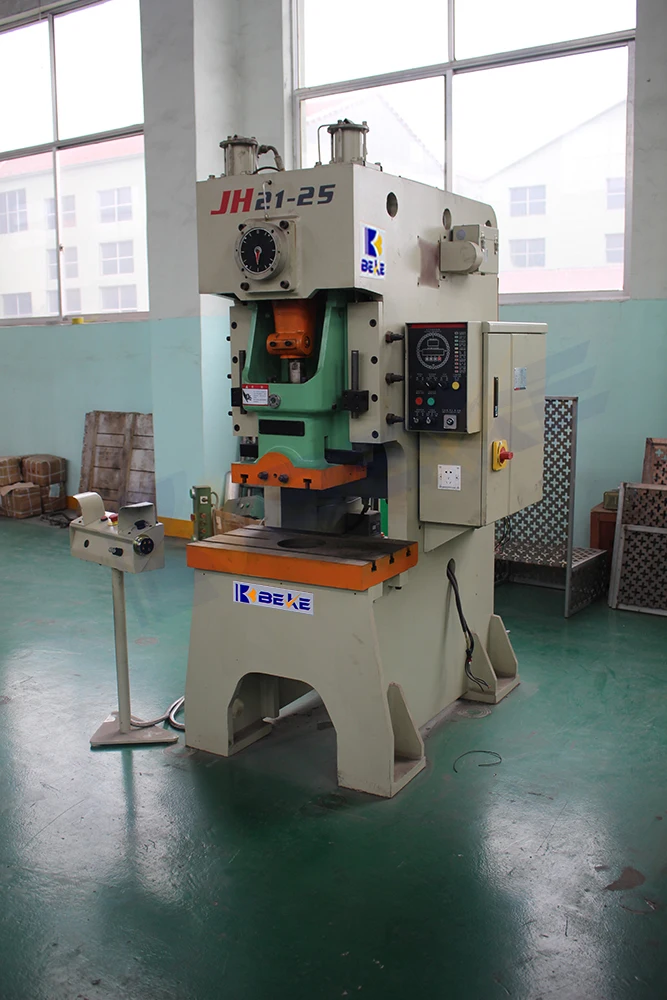

JH21 Series Pneumatic punching machine
1. Fabrication Technology
* Steel welded frame with high intensity
* Germany Siemens main motor;
* Combined dry pneumatic friction clutch and brake;
* Gear pairs: oil bath lubrication
* Six-face rectangle lengthened guide rail;
* Rigid collapse-type insurance components;
* JH21-16 / 25 / 25B / 45 manual adjustment die height, JH21-25 / 45: scale indication, JH21-63: digital display;
* JH21-63 and above: electric adjustment die height with digital display;
* JH21-45 electric adjustment die height (optional) with digital display;
* The slider is equipped with a lifting balance cylinder (except JH21-25)
* Imported dual solenoid valve;
* JH21-160 and above adopt grease forced lubrication system;
* Balance cylinder: manual Lubrication;
* Set a group blowing device
* Estun PLC controller;
* Contactor, button and indicator of International brand;
* Optional: air-cushion device, auto-feed shaft device, photoelectric protection, and various automated equipments;
2. Standard Configuration:
* Germany Siemens three-phase asynchronous motor
* Shanghai YUYI dry clutch
* Taiwan KingAir hydraulic Insurance Component
* Japan TACO dual Solenoid valve
* Kunshang Yuxi display
* Zhejiang Yuxiang lubrication system with electric lubrication pump
* 45T and below is mechanical cam, above 45T is electronic cam
* S78 series is equipped with Beijing Jinzhuli damping cushion
* France Schneider electrics
* Chinese high-performance pedal switch, movable console
* Estun PAC300 PLC controller
3. Safety Standard:
* Schneider electric (safety grade 4)
* Rear metal safety fence, line with CE standard
* Safety relay monitor pedal switch, safety protection.
* Chinese high-performance pedal switch, line with safety standard
4. Estun PAC 300PLC controller
* Auto-expanded input and output channel according to actual needs, upmost up to 40 logic input channels and 40 output logic channels
* Steel welded frame with high intensity
* Germany Siemens main motor;
* Combined dry pneumatic friction clutch and brake;
* Gear pairs: oil bath lubrication
* Six-face rectangle lengthened guide rail;
* Rigid collapse-type insurance components;
* JH21-16 / 25 / 25B / 45 manual adjustment die height, JH21-25 / 45: scale indication, JH21-63: digital display;
* JH21-63 and above: electric adjustment die height with digital display;
* JH21-45 electric adjustment die height (optional) with digital display;
* The slider is equipped with a lifting balance cylinder (except JH21-25)
* Imported dual solenoid valve;
* JH21-160 and above adopt grease forced lubrication system;
* Balance cylinder: manual Lubrication;
* Set a group blowing device
* Estun PLC controller;
* Contactor, button and indicator of International brand;
* Optional: air-cushion device, auto-feed shaft device, photoelectric protection, and various automated equipments;
2. Standard Configuration:
* Germany Siemens three-phase asynchronous motor
* Shanghai YUYI dry clutch
* Taiwan KingAir hydraulic Insurance Component
* Japan TACO dual Solenoid valve
* Kunshang Yuxi display
* Zhejiang Yuxiang lubrication system with electric lubrication pump
* 45T and below is mechanical cam, above 45T is electronic cam
* S78 series is equipped with Beijing Jinzhuli damping cushion
* France Schneider electrics
* Chinese high-performance pedal switch, movable console
* Estun PAC300 PLC controller
3. Safety Standard:
* Schneider electric (safety grade 4)
* Rear metal safety fence, line with CE standard
* Safety relay monitor pedal switch, safety protection.
* Chinese high-performance pedal switch, line with safety standard
4. Estun PAC 300PLC controller
* Auto-expanded input and output channel according to actual needs, upmost up to 40 logic input channels and 40 output logic channels
* Touch screen operation and customizable interface provide a good human-computer interactive interface
* Upmost support 20 channel electronic cam/cutting and programmable DM
* Auto dead- point compensation function
* Can restore 10 sets die database
* Die Counting function
* Various lubrication ways
* Dual-channel tonnage monitoring function
* Two overload treatment methods, compatible with overload safety valves of majority of machines
* Frequency converter control function
* Can be equipped with input and output interface (optional)
* Abnormal brake alarm function
* Upper dead-point over-stroke hardware and software dual protection
* Adopt rotating transformer for detecting angle, and improving machine reliability (such as: vibration resistance, impact
resistance, high accuracy)
* Upmost support 20 channel electronic cam/cutting and programmable DM
* Auto dead- point compensation function
* Can restore 10 sets die database
* Die Counting function
* Various lubrication ways
* Dual-channel tonnage monitoring function
* Two overload treatment methods, compatible with overload safety valves of majority of machines
* Frequency converter control function
* Can be equipped with input and output interface (optional)
* Abnormal brake alarm function
* Upper dead-point over-stroke hardware and software dual protection
* Adopt rotating transformer for detecting angle, and improving machine reliability (such as: vibration resistance, impact
resistance, high accuracy)
Detailed Images
Size Information
Packing&Shipping
Customer Photos
Related Products
Company Introduction
Nanjing BEKE CNC Machinery Co., LTD
Nanjing BEKE CNC Machinery Co., Ltd was established in 2003, located in Nanjing city, China.
We mainly dedicated to development, production and sales of sheet metal equipment. We have sold and exported over 320.00 Sets to Domestic and all over the world.
We mainly dedicated to development, production and sales of sheet metal equipment. We have sold and exported over 320.00 Sets to Domestic and all over the world.
Adhering to the advanced European design concept, BEKE follow the technology of Belgian R&d center, combine with the actual needs of customers, and make well-structured and high-quality sheet metal fabrication equipment. But most importantly to us is, it make us be the professional sheet metal processing equipment supplier.
Our machines have got the European CE approval, and has set up 7 branches around the world.
We have professional teams to provide technology support for pre-sales and after sales, timely integration solution.
Keep focusing and improving is our untiring pursuit. Welcome to inquire us!
We have professional teams to provide technology support for pre-sales and after sales, timely integration solution.
Keep focusing and improving is our untiring pursuit. Welcome to inquire us!
Certifications
Services about machines: |
Pre-service: |
1.We will help you confirm the model of our machine according to your offered sheet plate information. |
2.You are very welcome to see our machine how to work in the factory before you place an order with us. |
After sales-service: |
1.Free installation, trial start and adjustment, training. |
2.We guarantee machine quality for 2 years. During this year, if spare parts of the machine were damaged, we can send the components to the customer by DHL,TNT freely. |
3.Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service. |
FAQ: |
1. I want to buy this machine,How i can choose ? what suggestion can you give? A:Please tell me what material do you process? What's the size of your material? then we can help to choose the best suitable machine. |
2. Are you the manufacture? A:Yes, we are manufacturer factory, so you can get factory price directly. Don't need pay some extra agent price. |
3. How long is your delivery time? A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly. |
4.What is the payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures toyou.after we got your balance payment. we will send the machine to you. |
5. What is your minimum order quantity and warranty? A: MOQ is one set, warranty two years.And we will offer lifetime service for machine. |
