Product Description

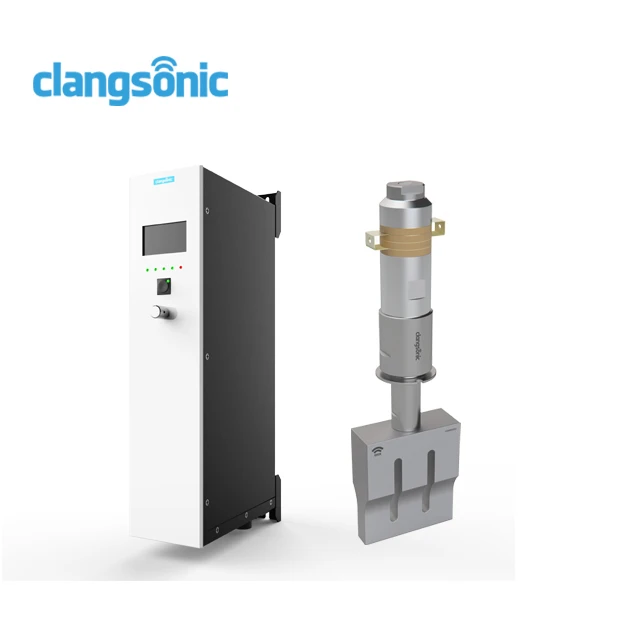

Clangsonic 20kHz 2000w ultrasonic welding transducer with digital ultrasonic generator for nonwoven fabrics
Our digital TCR ultrasonic generator is adopting advanced IGBT Full Bridge Phase Shift technology and features in automatic frequency tracking and constant amplitude output etc which can achieve accurate resonant frequency and energy output. It can tune itself to fit to transducer and sonotrode during working.

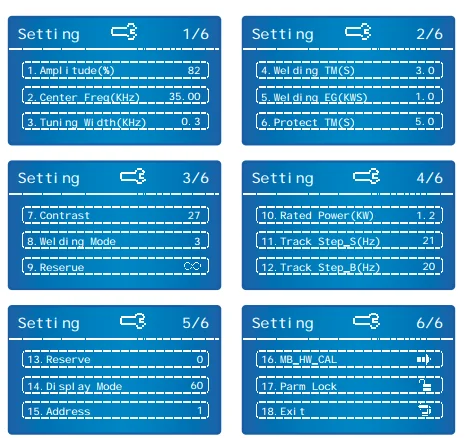

Main Function:
1. Automatic Frequency Tracking
2. Constant Amplitude Output
3. Amplitude 10-100% Adjustable
4. Three Working Modes Choices: External Control/Timing/Energy

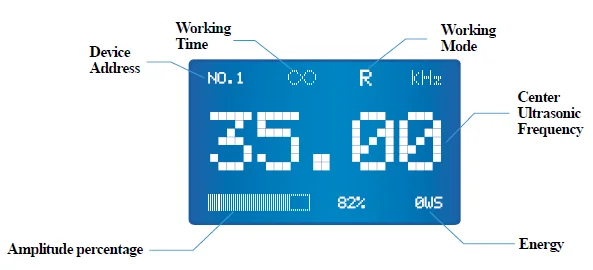

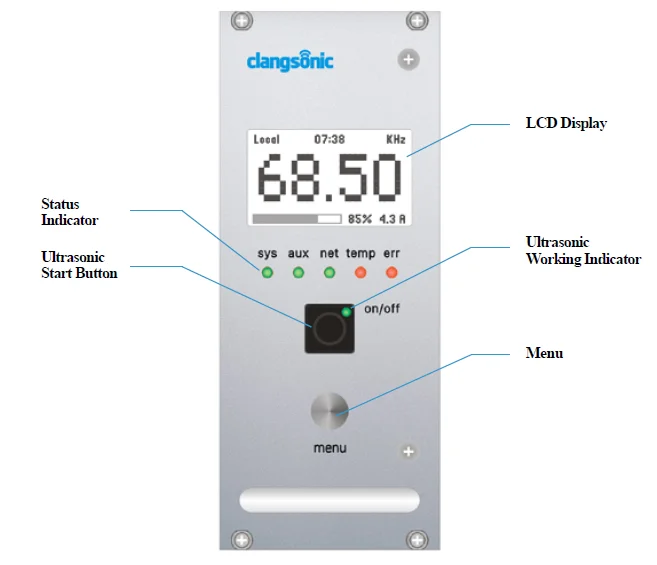

5. LCD Display To Monitor Working Status
6. RS485 MODBUS RTU Communication
7. Self Protection, For example Over-Temperature Protection, Over-Current Protection, Over-Voltage Temperature etc
Product Paramenters

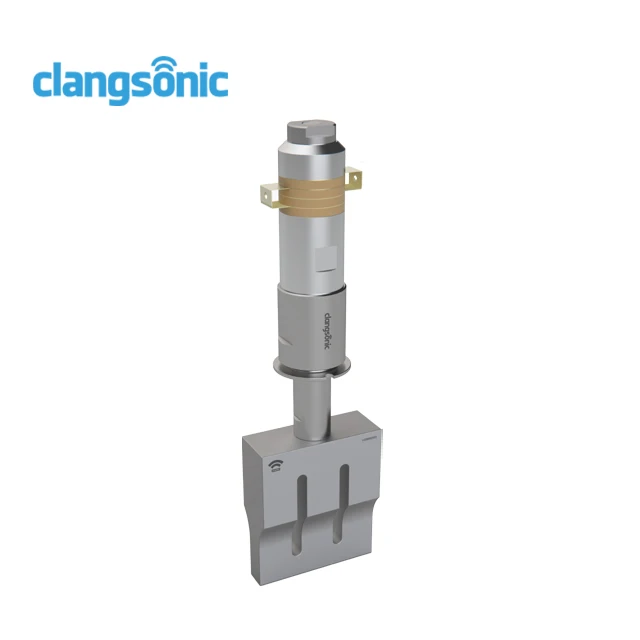

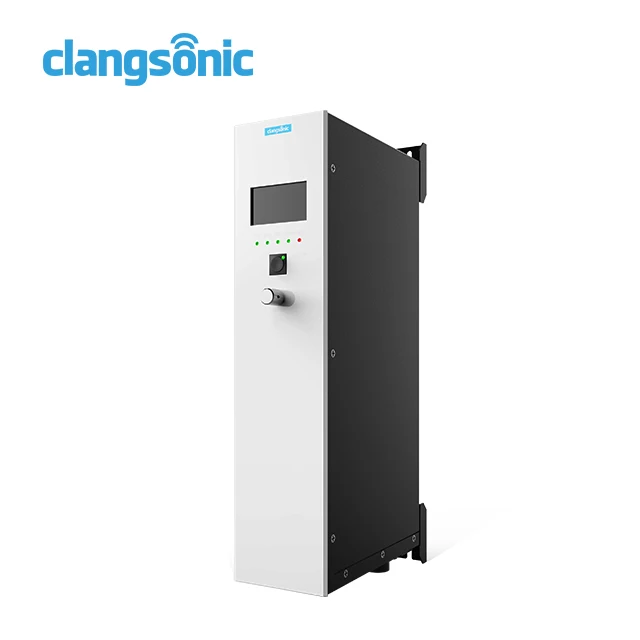

Name | Ultrasonic Transducer With Booster And Sonotrode | Ultrasonic Generator |
Model | CW2050-4P8-S | TU2020 |
Ultrasonic Frequency | 20±0.5kHz | 20±0.5kHz |
Ultrasonic Power | 2000Watts | 2000Watts |
Capacitance | 11000±10%PF | - |
Resistance | ≤10Ω | - |
Max.Allowable Temperature | 120°C | 40°C |
Storage Temperature | -5°C-+40°C | 0-40°C |
Storage Humidity | 60±20%RH | 0-90%RH |
Size | H 253 x φ63mm | 224 x 88 x 415mm |
Working Area | L 110x W 20mm | - |
Application
This ultrasonic welding transducers and generator can be used for non-woven bag making machine, paper cup sealing machine, three layers bag making machine, medical cloths making machine, plastic welding machine, plastic bag making machine and mask welding etc.
Packing&Shipping
Shipment is available by air, ocean and International Express.
