Characteristics for Mini Electric Steam Boiler:

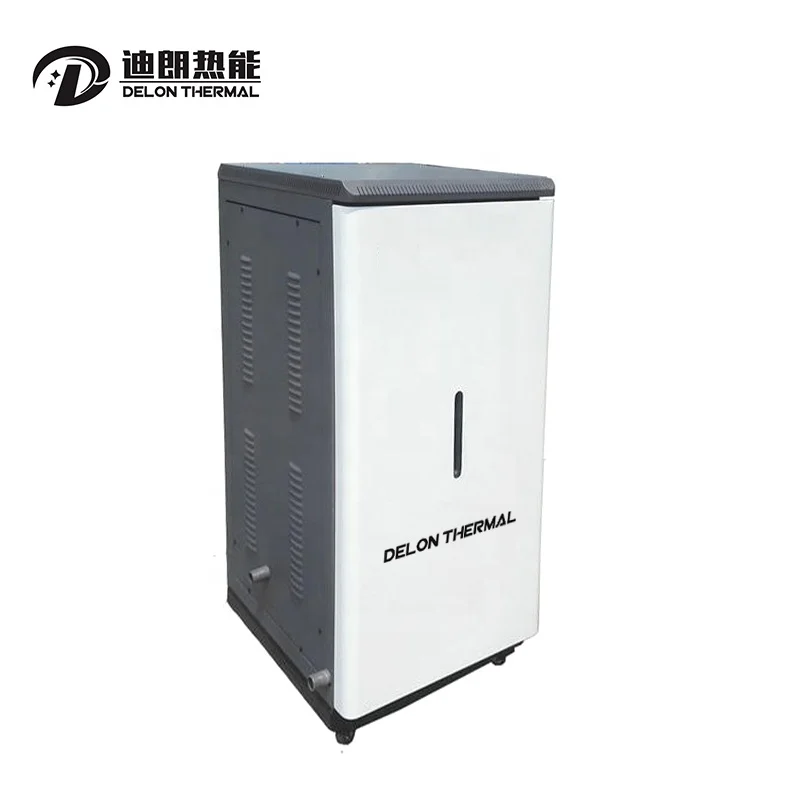

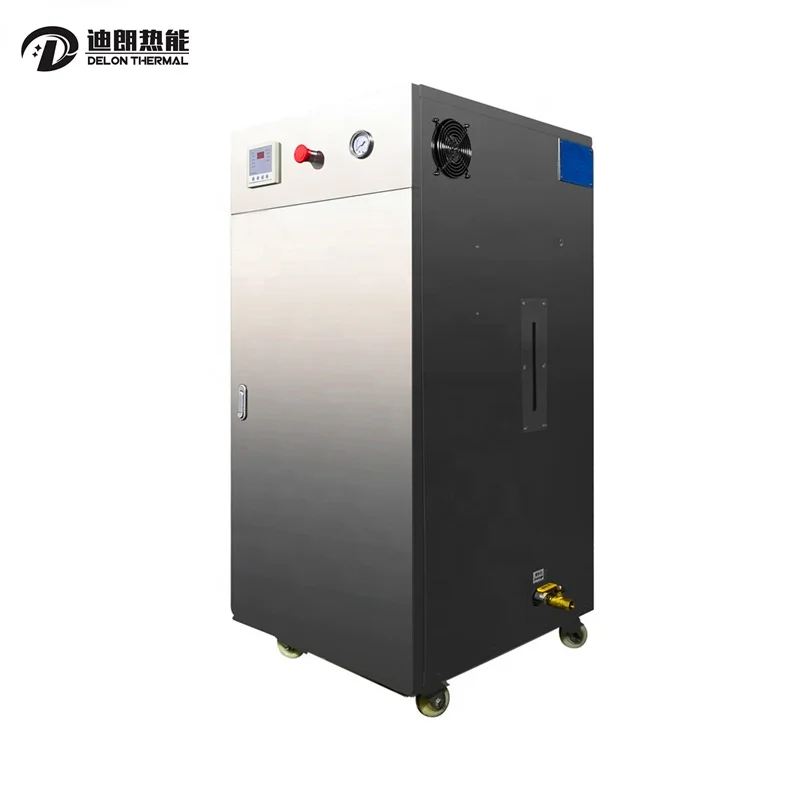

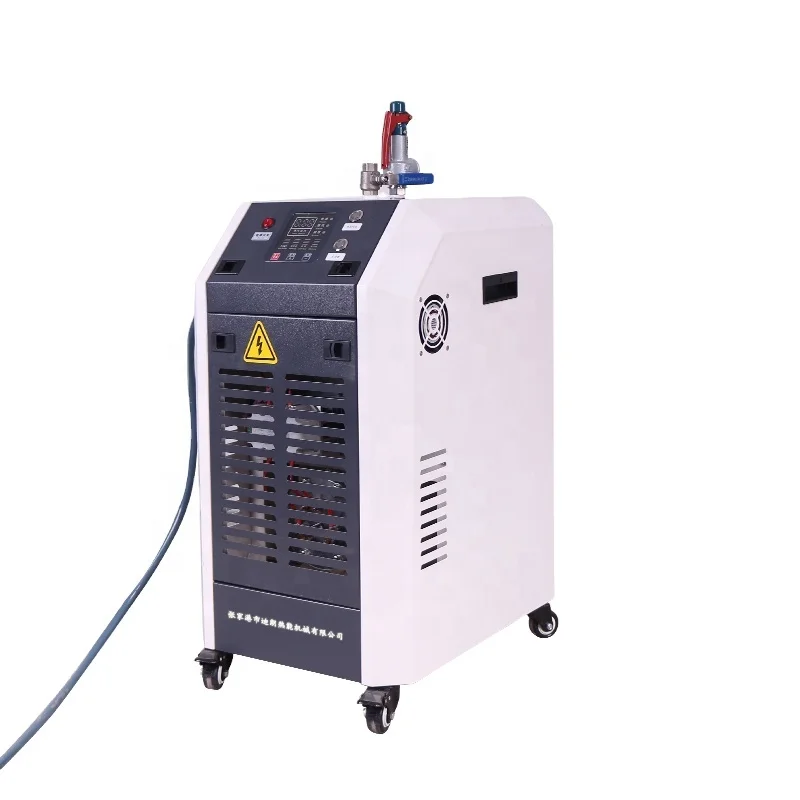

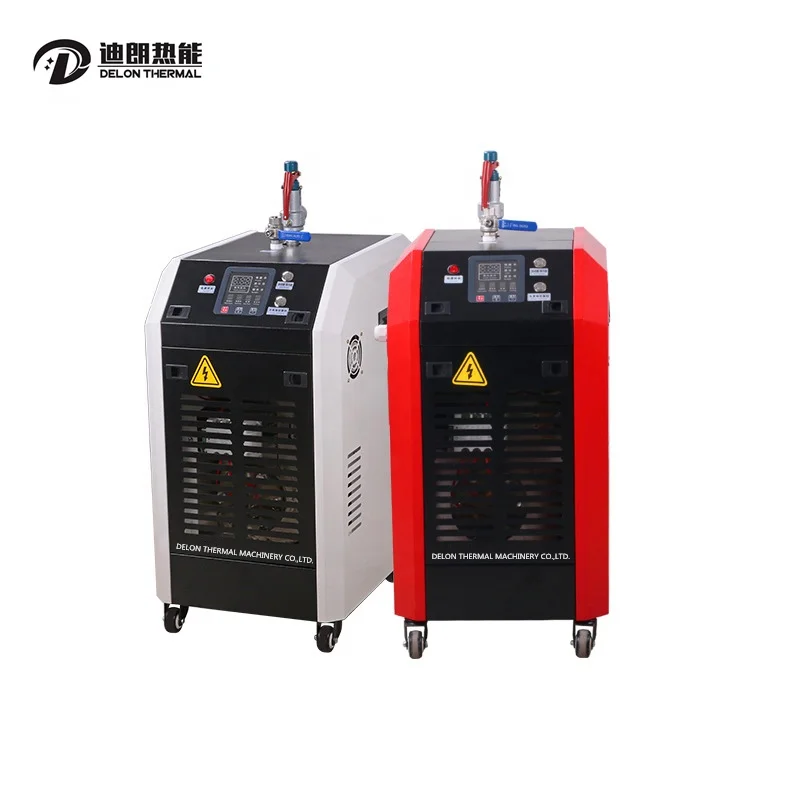

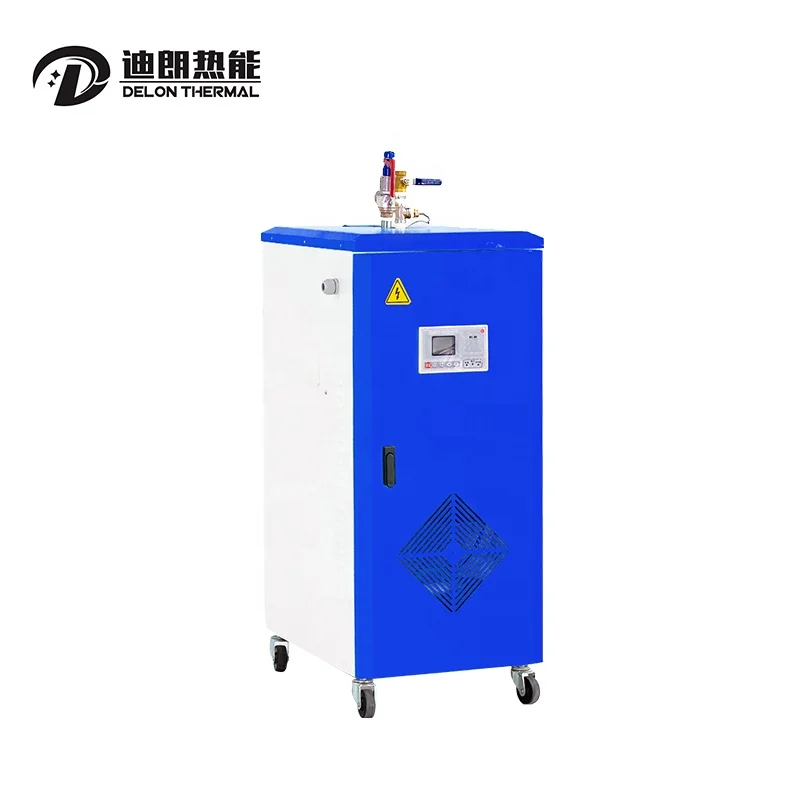

  "Delon" mini electric steam boiler is operated by power energy, no noise, no pollution. Using high quality stainless steel heaters, with a lower surface heat load and higher thermal efficiency. This product adopts compact design style, elegant appearance, compact internal structure and it's ideal for space saving.

1. LED digital display screen
2. P.I.D control system with high effieciency & energy saving functions
3. One-key sewage discharge
4. Intelligent security function

5. Steam pressure could be adjustable

6. Input power could be adjustable

7. Electrical components are marked CE & UL



Technical Specifications for Mini Electric Steam Boiler:



Model / Series	Unit	NS-6D	NS-9D	NS-12D	NS-18D	NS-24D	NS-36D
Rated steam capacity	Kg/h	9	13	17	25	35	50
Input power	kW	6	9	12	18	24	36
Rated current	A	9.2	13.8	18.4	27.6	36.7	55.1
Main power supply	V/HZ	380V±5%/50HZ, 3Ph (3P+N+E) or Customs Made
Rated working pressure	MPa	0.7 (Customs made)
Saturated steam temperature	°C	170 (Customs made)
Steam outlet diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Safety valve outlet diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Water inlet diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Blow-down outlet valve diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Overall size	C  mm	660	660	700	700	750	750
	B  mm	395	395	410	410	460	460
	A  mm	740	740	790	790	920	920
Net weight	Kg	62	62	78	78	95	95
