Bubble Self-adhesive Thermal Insulation Sheet Material with
- Категория: Other Heat Insulation Materials >>>
- Поставщик: Qingdao,Taiyue,Composite,Material,Co.,Ltd.Qingdao,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 76.22 $* | 80.35 $* |
| Aug-20-2025 | 76.46 $* | 80.0 $* |
| Jul-20-2025 | 63.75 $* | 66.66 $* |
| Jun-20-2025 | 74.89 $* | 78.7 $* |
| May-20-2025 | 65.98 $* | 68.94 $* |
| Apr-20-2025 | 73.7 $* | 77.34 $* |
| Mar-20-2025 | 72.41 $* | 76.61 $* |
| Feb-20-2025 | 72.65 $* | 76.45 $* |
| Jan-20-2025 | 71.71 $* | 75.62 $* |
Характеристики

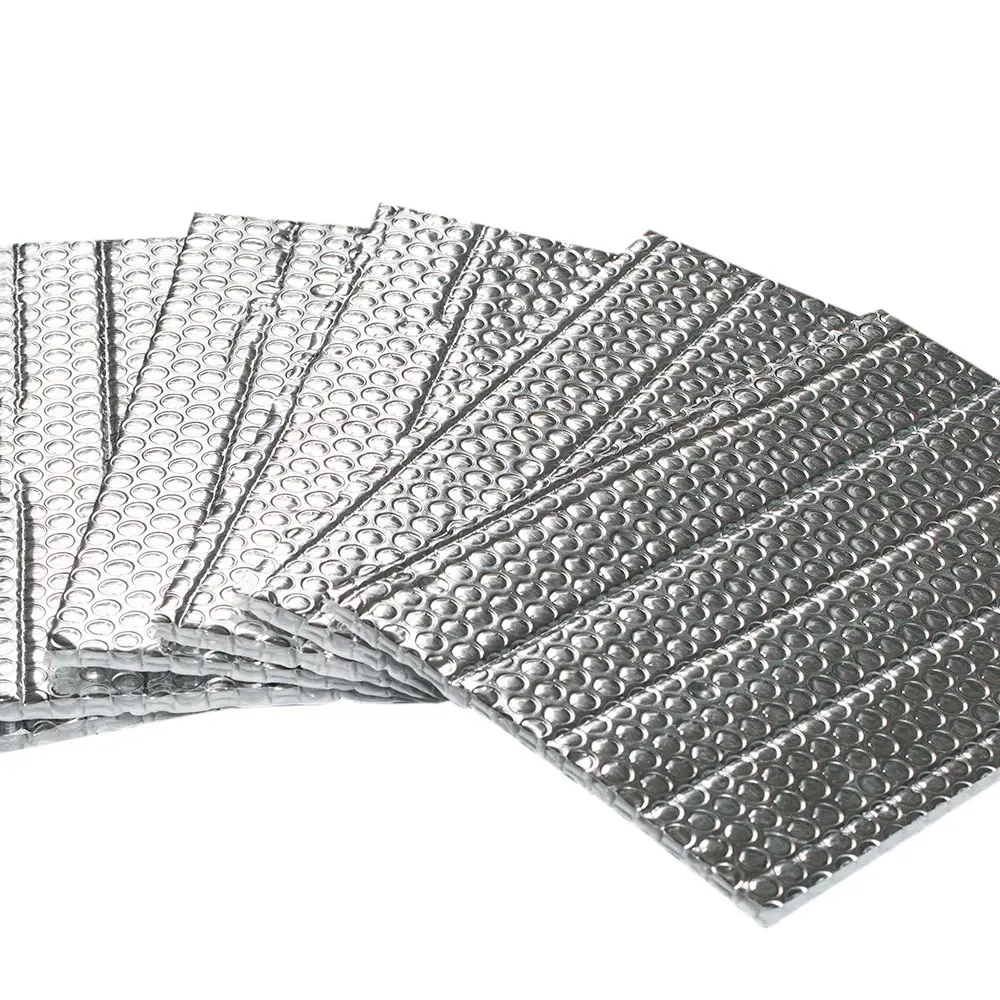

Wholesale woven foil foam double sided aluminium Bubble Roof Insulation
Single Bubble Double Foil Insulation
The single bubble aluminum foils insulation product consists of 1 layer of 3mm or 4mm polyethylene bubble with one or two side aluminum foils. The polyethylene air bubbles serve as an effective thermal break as well as a vapor barrier while the outer foil reflect up to 97% of radiant heat, it is a cost-effective way to keep your building cool in the summer and warm in the winter.
Product details and applications
Typical Physical Properties
Item Name | Single Bubble Double Foil Insulation | |
Material Structure | AL + Bubble + White PE Film | |
AL + Bubble + AL | ||
VMPET + Bubble + VMPET | ||
Bubble Diameter | 6mm, 9mm(Common),10mm(Common),12mm,15mm, 20mm, 25mm, 30mm | |
Bubble Height | 3mm, 4mm, 6mm, 8mm, 10mm | |
Aluminum Thickness | 7um, 12um or customized | |
Size/Roll | Normal size: 1.2m*40m,1.2m*30m,1.2m*20m.,1.22*38.1m, 1.22*30.5m.,Max width is 2m, length can be customized | |
Weight | 150g/m2 - 550g/m2 | |
Reflectivity | 90%-97% of radiant heat | |
Emissivity | 0.03 or 0.05 | |
Water Vapor | 100% | |
Fire proof | Class A | |
mold and mildew | No growth | |
Corrosion | Doesn't generate | |
Application Conditions | -50℃—80℃ | |
Max R Value | 1.5- 14.8m2*k/w | |
Please note that : Customized items are acceptable. We can do it with aluminum foil or metallized foil. The size, density,thickness can be changed according to your requirements. | ||
Application
Be cut easily(knife), be fixed conveniently (paste, staple ), can DIY by yourself.
1. Metal &Steel Building 2. Wooden House 3. Homes & Crawl Spaces 4. Roof underlayment & wall
5. Concrete Block walls & Basement Walls 6. Floor & Floors Carpets 7. Cathedral Ceiling
8. Garage door 9. Water pipe & Hot water Heaters 10. Central air conditioning pipe
1. Metal &Steel Building 2. Wooden House 3. Homes & Crawl Spaces 4. Roof underlayment & wall
5. Concrete Block walls & Basement Walls 6. Floor & Floors Carpets 7. Cathedral Ceiling
8. Garage door 9. Water pipe & Hot water Heaters 10. Central air conditioning pipe

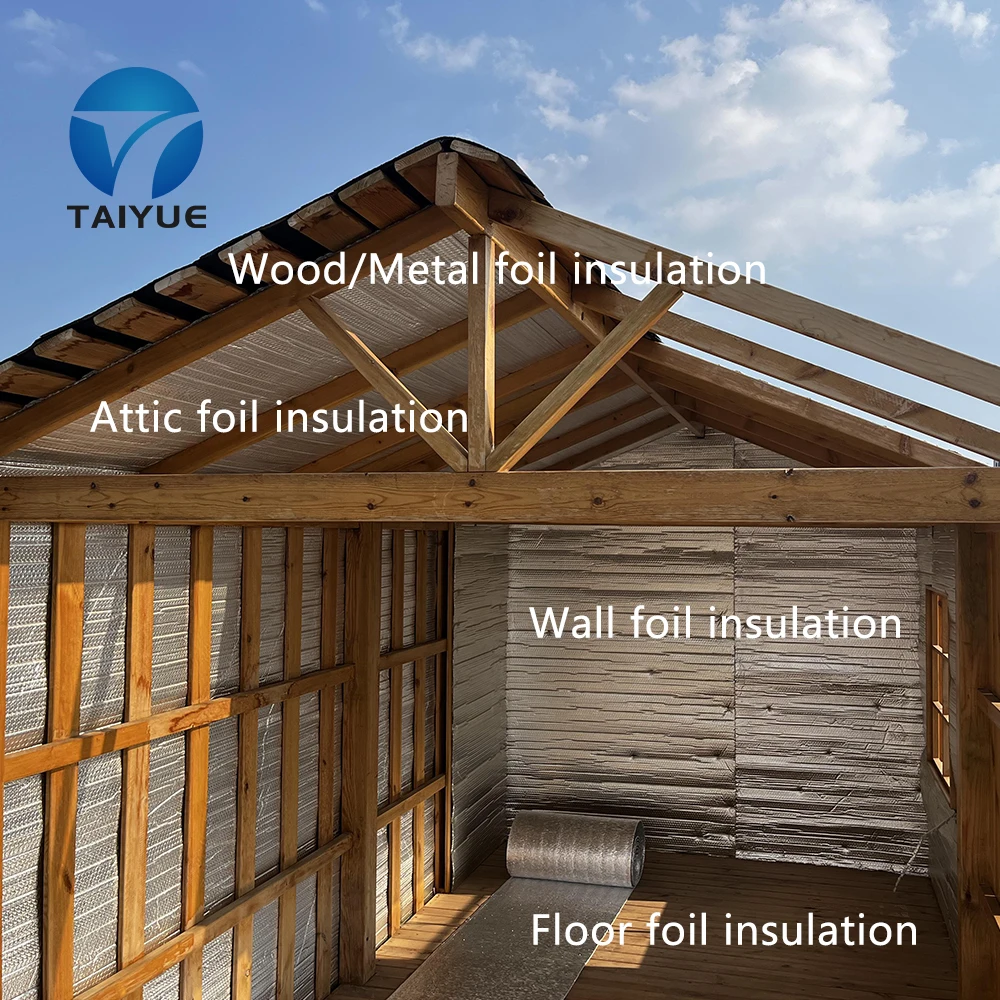

Metal Building walls & roofs
Wooden House
Post Frame / Pole Barn walls & roofs
Grapes and plants, Thermal insulation

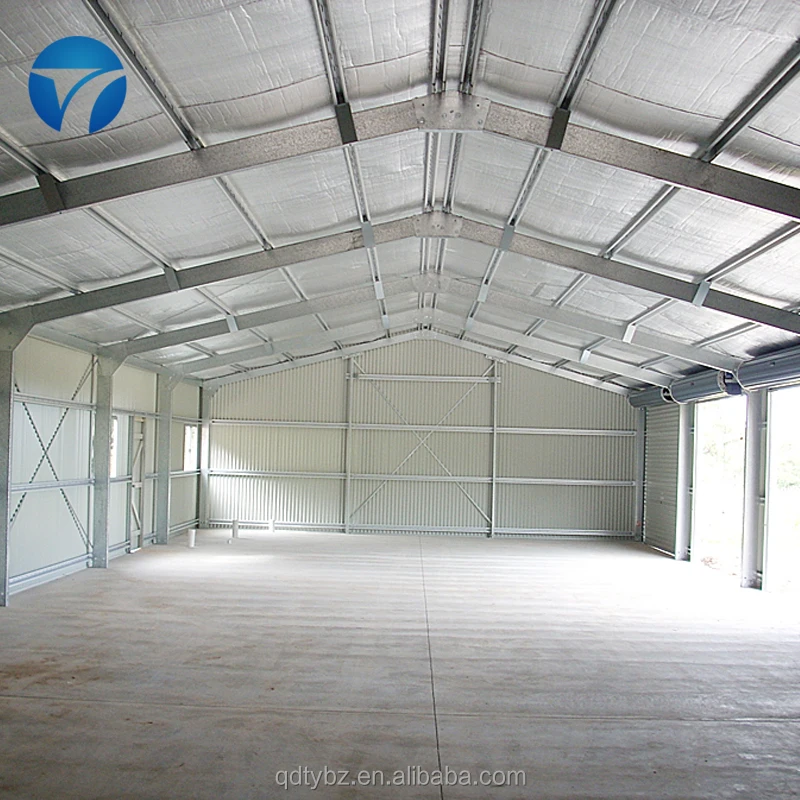

Metal Building
Cold-chain transportation, school bus, truck thermal insulation
Radiant Barrier Installation - Attic Masters
Duct
Radiant Floor
Related Products
AL+BUBBLE+AL
Single bubble insulation is a cost-effective way to keep your building cool in the summer and warm in the winter. Single bubble is
an 1/8” thick single layer of bubble insulation primarily used in warm climates. We offer this in two different options, Foil/Foil
and Foil/White. The first option has a foil surface on both sides, while the second option has foil on one side and white on the
other. Both products are equal in performance and stop 96% of radiant heat. The main difference between the two is cosmetic.
an 1/8” thick single layer of bubble insulation primarily used in warm climates. We offer this in two different options, Foil/Foil
and Foil/White. The first option has a foil surface on both sides, while the second option has foil on one side and white on the
other. Both products are equal in performance and stop 96% of radiant heat. The main difference between the two is cosmetic.
AL+BUBBLE+POLY WHITE
*Single Bubble White Insulation is very thin (1/8" to 3/16"), with a foil surface on one side and a white surface on the other. This insulation is rated and tested by reflectivity and emissivity. It is 96% reflective and 4% emissive, which means the product only allows 4% of radiant heat to pass through it. To put it simple, the insulation does not try to slow the way heat passes through it, the insulation tries to eliminate heat from passing through it.
*This insulation performs exactly the same as Single Bubble Foil Insulation, the white is just a cosmetic difference. The question to ask yourself is, "Do I want a foil interior or a white interior?" EcoFoil Single Bubble White Insulation is primarily used in pole barns, metal buildings, basement walls, crawl spaces, and storage units. Our insulation can be used for both new construction and existing buildings. It is a great product for many spaces as the insulation acts as a vapor barrier which keeps unwanted moisture from your building, which reduces the possibility of mold issues.
*This insulation performs exactly the same as Single Bubble Foil Insulation, the white is just a cosmetic difference. The question to ask yourself is, "Do I want a foil interior or a white interior?" EcoFoil Single Bubble White Insulation is primarily used in pole barns, metal buildings, basement walls, crawl spaces, and storage units. Our insulation can be used for both new construction and existing buildings. It is a great product for many spaces as the insulation acts as a vapor barrier which keeps unwanted moisture from your building, which reduces the possibility of mold issues.
AL+BUBBLE+BUBBLE+AL
Key benefits of this foil-faced double bubble include:
* 1/4" - 5/16" nominal thickness of foil bubble insulation
* 99.9% Pure Aluminum bonded to tear-resistant polyethylene core and bubblewrap insulation
* Highly reflective foil facing
* Optional UV resistant polyethylene facing on one side, foil on the opposite side (foil double bubble white poly option)
* Reflective bubble insulation has a very low rate of emissivity
* Durable polyethylene bubbles make up the center bubblewrap insulation
* Acts as 100% vapor barrier
* Class A/Class 1 fire rating
* Foil-faced bubble wrap insulation makes an excellent thermal barrier
* Barrier for methane, radon, moisture, termites, and other pests
* 1/4" - 5/16" nominal thickness of foil bubble insulation
* 99.9% Pure Aluminum bonded to tear-resistant polyethylene core and bubblewrap insulation
* Highly reflective foil facing
* Optional UV resistant polyethylene facing on one side, foil on the opposite side (foil double bubble white poly option)
* Reflective bubble insulation has a very low rate of emissivity
* Durable polyethylene bubbles make up the center bubblewrap insulation
* Acts as 100% vapor barrier
* Class A/Class 1 fire rating
* Foil-faced bubble wrap insulation makes an excellent thermal barrier
* Barrier for methane, radon, moisture, termites, and other pests
AL+BUBBLE+EPE+BUBBLE+AL
Aluminum Foil Foam & Bubbler Core Insulation is manufactured with a closed-cell foam and two layer bubble of the inner layer, outside are two outer layers aluminum foil that reflect about 97% of radiant heat, the inner layer of bubble and foam can reduce heat transfer efficiently to keep cool in summer and warm in winter of house. The more airspace in the product, the better it is at slowing heat transfer, this item provides maximum efficiency with thickness 10 mm, it is usually used in the region where the climate is very cold and hot
AL+EPE+AL
EPE foam is the most affordable type of heat insulation foam material, which is light and thin insulation material so it is easy to handle during construction, we offer you different thickness to catering different needs .
Consist one layer of foam laminated with both side matelized aluminium foil to provide excellent resistance. Mainly by using the barrier property of foam and the light blocking principle of aluminum foil. The foam layer designed increased strength and resistand puncture in addition to resisting sound. Foam foil provides neat appearance, and reflects up to 95% heat radiant from heat source such as sun.
Consist one layer of foam laminated with both side matelized aluminium foil to provide excellent resistance. Mainly by using the barrier property of foam and the light blocking principle of aluminum foil. The foam layer designed increased strength and resistand puncture in addition to resisting sound. Foam foil provides neat appearance, and reflects up to 95% heat radiant from heat source such as sun.
AL+XPE+AL
The product is a new environmental friendly thermal insulation material. Manufactured with a patented closed-cell foam structure sandwiched by highly reflective foil surfaces, it is the fibre-free, non-allergenic alternative to conventional bulk insulation. Designed for warehouses and commercial or industrial sheds where the insulation acts as the wall or ceiling lining. 3-in-1 insulation, vapour barrier and radiant barrier.
We can also do reflective anti-glare insulation, it can protect the eyes of construction workers from being hurt by strong sunlight reflection, make the construction process safer.
Reflective foil XPE foam is your solution for shed insulation, achieving comfortable indoor temperatures that are significantly cooler in summer and warmer in winter.
We can also do reflective anti-glare insulation, it can protect the eyes of construction workers from being hurt by strong sunlight reflection, make the construction process safer.
Reflective foil XPE foam is your solution for shed insulation, achieving comfortable indoor temperatures that are significantly cooler in summer and warmer in winter.
AL+EPE+PE
EPE foam is the most affordable type of heat insulation foam material, which is light and thin insulation material so it is easy to handle during construction, we offer you different thickness to catering different needs .
Consist one layer of foam laminated with both side matelized aluminium foil to provide excellent resistance. Mainly by using the barrier property of foam and the light blocking principle of aluminum foil. The foam layer designed increased strength and resistand puncture in addition to resisting sound. Foam foil provides neat appearance, and reflects up to 95% heat radiant from heat source such as sun.
Consist one layer of foam laminated with both side matelized aluminium foil to provide excellent resistance. Mainly by using the barrier property of foam and the light blocking principle of aluminum foil. The foam layer designed increased strength and resistand puncture in addition to resisting sound. Foam foil provides neat appearance, and reflects up to 95% heat radiant from heat source such as sun.
Woven Fabric Radiant Barrier
Aluminum Foil woven fabric Radiant Barrier is a material that is a poor transmission of radiant energy. This product is made of double-sided metalized aluminum and woven fabric. By definition, this re-transmission characteristic (emissivity) must be at or below 10%. The emissivity of our Aluminum Foil woven fabric Radiant Barrier is about 0.1. Therefore, when a radiant barrier is installed in a residential attic roof, it block about 90% of the radiant energy that is being radiated by the hot Roofing materials. This is a cooler attic, resulting in a house that requires less air conditioning usage to maintain comfortable inside temperature.
Woven Fabric Radiant Barrier
Multi foil Insulation is a lightweight and flexible insulation for roofs, walls and floor. Due to the special composition of multilayers of insulation such as aluminum foil, foam, cotton …effectively deals with all forms of energy transfer (i.e. radiation, conduction, convection) multi foil insulation works most effectively by reflecting radiation. This means that not only is Multilayer Insulation effective in winter by reflecting heat back into the building and cold out, but also in summer. Multilayer Insulation is a very effective solar over heating barrier reducing the need for artificial cooling systems, preventing uncomfortable heat buildup in the roof.The thickness is 45mm and the beams and rafter can be exposed,so our material will save valuable living space in the attic.
Production
AL+XPE+AL
AL+BUBBLE+AL
AL+EPE+AL
Radiant Barrier
AL+BUBBLE+BUBBLE+AL
AL+XPE+AL
Workshop & Warehouse
Workshop
Workshop
Radiant Barrier
Warehouse
Warehouse
Bubble Insulation
Shipping
Shipping
Shipping-Bubble Insualtion
AL+BUBBLE+BUBBLE+AL
AL+BUBBEL+XPE+BUBBLE+AL
AL+BUBBLE+AL
AL+EPE+AL
Why Choose Us？
Taiyue, specializing in the production of thermal insulation materials for 20 years, the products are sold all over the world, the main products:foil bubble insulation, foil foam insulation, foil woven cloth, multi layer insulation for Roof, Wall and Floor; Aluminum foil for lamination； swimming pool solar cover.
Exhibition
FAQ
Q1.Are you a factory or trading company? We're professional factory located in Qingdao city, Shandong province with many years
production experience, assured quality and competitive factory price.
production experience, assured quality and competitive factory price.
Q2. What should I to get the quotation?
Please kindly advise us your details of size, thickness, density and quantity to check the exact prices.
Q3. Can we get samples?
Yes, we would like to offer samples before your order. We promise the quality of mass production will be exactly the same as sample.
Q4. What is the lead time?
Q4. What is the lead time?
The production time depends on your quantity, usually 3-5 working days after receiving the deposite.
Q5. What is your payment terms?
Q5. What is your payment terms?
Usually payment is finished by T/T transfer, 30% of total amount as deposit, 70% before shipment or against copy of B/L.
