Автоматическая металлическая сварочная машина плоский точечный сварочный
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Shanghai,Trintfar,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 35700.1 $* | 37485.91 $* |
| Aug-19-2025 | 35400.76 $* | 37170.50 $* |
| Jul-19-2025 | 29700.33 $* | 31185.75 $* |
| Jun-19-2025 | 34800.31 $* | 36540.35 $* |
| May-19-2025 | 30300.52 $* | 31815.15 $* |
| Apr-19-2025 | 34200.79 $* | 35910.70 $* |
| Mar-19-2025 | 33900.3 $* | 35595.6 $* |
| Feb-19-2025 | 33600.24 $* | 35280.19 $* |
| Jan-19-2025 | 33300.62 $* | 34965.96 $* |
Характеристики

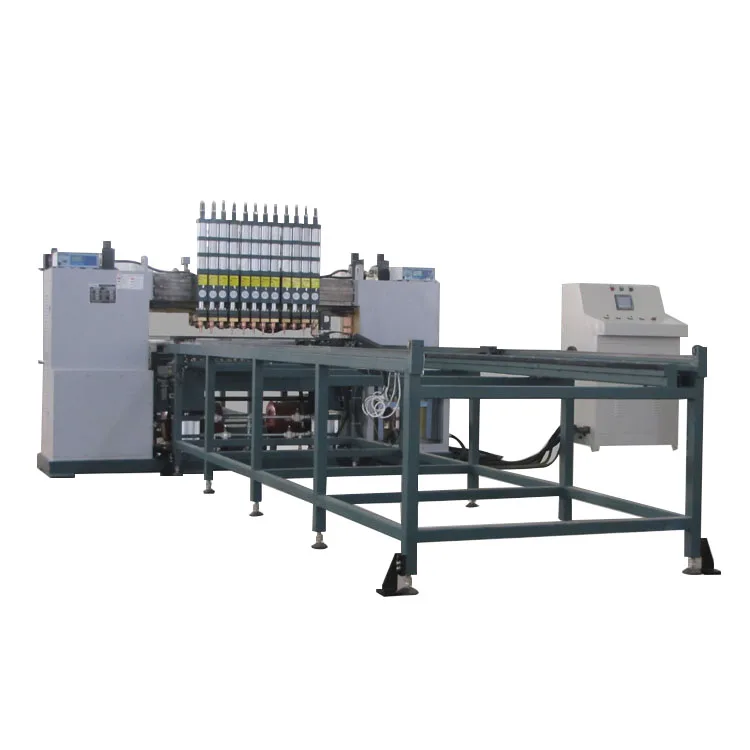

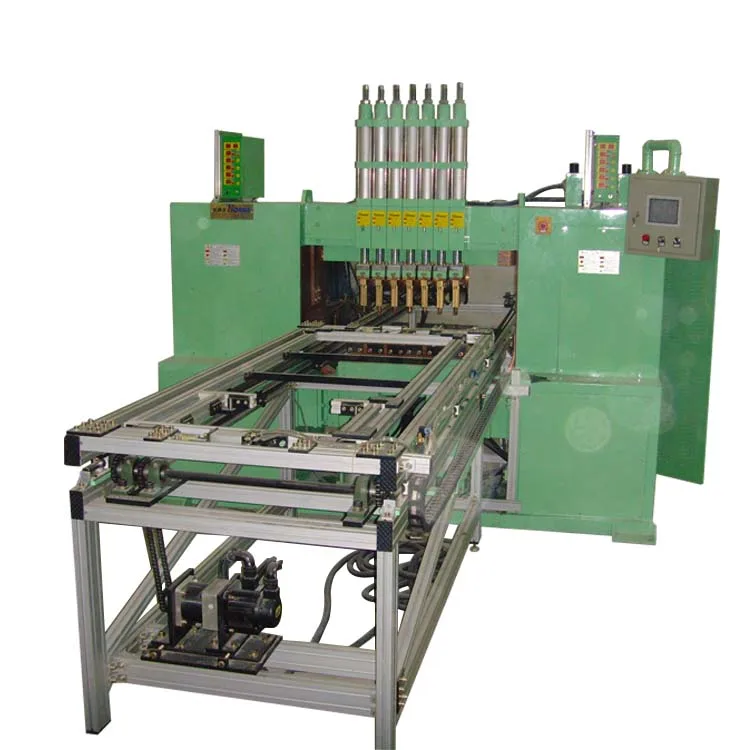

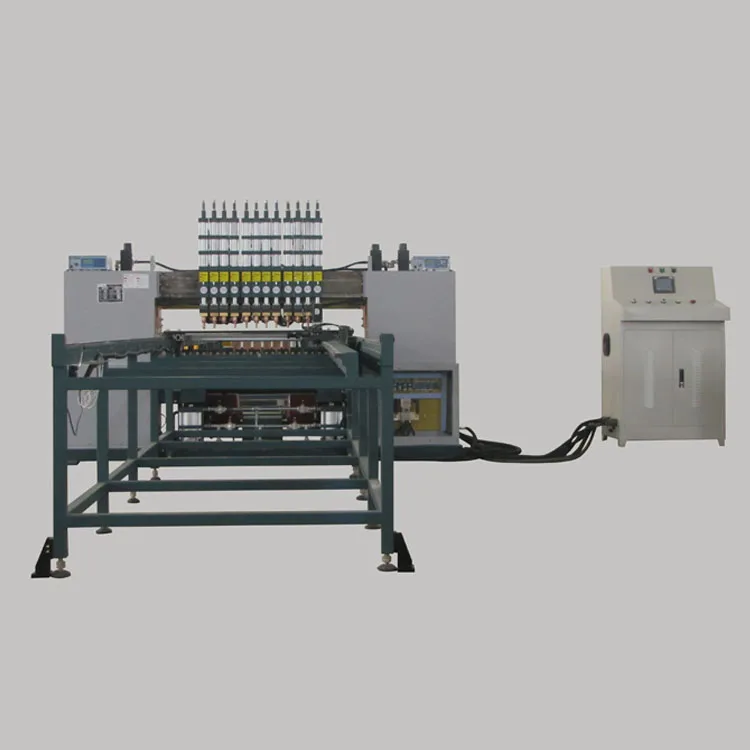

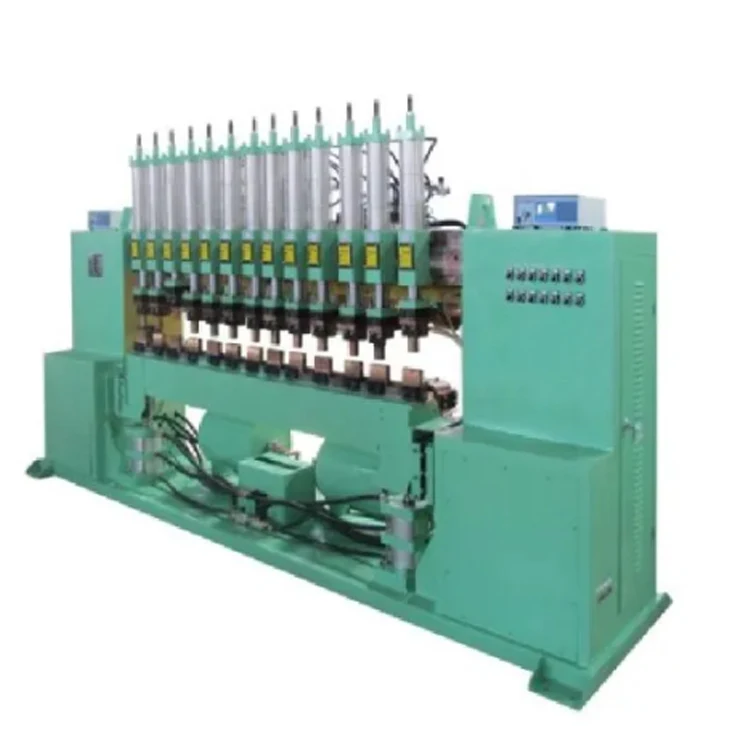

GATE-STYLE METAL MESH WELDING MACHINE
Manual feeding equipment
Manually place the work piece, and feed it lo the welding station. start the welding machine to weld the work piece in a row. then push it to the next station until finish the whole work piece. ThiS type is with low cost and high work intensity.
Semiautomatic feeding equipment
Manually place the work piece, automatically feed it to the welding SlaIion, and weld the work piece in a row, then automatically push it to the next station until finish the whole work piece.The finished parts will return automatically, or return from back.This type can improve the productivity, reduce the work intensity and improve the quality.
Automatic double-molds feeding equipment
The use of advanced PLC and flexible man-machine interface controlling and the precise servo motor driving system makes it available on continuous automatically feeding and welding It is With front and back two layers table, so when one layer lable is in welding work,the other can be used to place the work piece. then change the work after welding. It effectively improve the work efficiency. and also it can weld the different specification of metal mesh conveniently through adjusting the man-machine interface.
Parameters
Model | Welding width(mm) |
Number of cylinders(Pc) | |||||||||
DNW1000-XX-XXX | 1000 | 8 | 10 | 12 | / | / | / | / | / | / | / |
DNW1200-XX-XXX | 1200 | 8 | 10 | 12 | / | / | / | / | / | / | / |
DNW1500-XX-XXX | 1500 | 8 | 10 | 12 | 14 | 16 | / | / | / | / | / |
DNW2000-XX-XXX | 2000 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | / | / | / |
DNW2500-XX-XXX | 2500 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 |
Remarks: “XXX” means welding cylinder number, for example: DNW1200-XX-XXX use 8 cylinders, 2 sets 150kva transformer, noteds DNW 1200 08 150X2
Appication Rance
- In this modern society, metal mesh is widely applied, at express way, sport fields,golf,park,villa,farm.etc. Our metal mesh welder applies
- Microcomputer controlling technology by Mitsubishi PLC. Metal mesh: can be used on fence welding of high way, railway, tennis court, palestra. farm.etc.
- Hardware: can be used on welding of all kinds of electroplate,paint shelf,exhibition shelf,barbecue mesh,etc.
- Storage shelf: can be used on shelt welding of heavy goods shelf. warehouse cage, shopping cart,etc.
